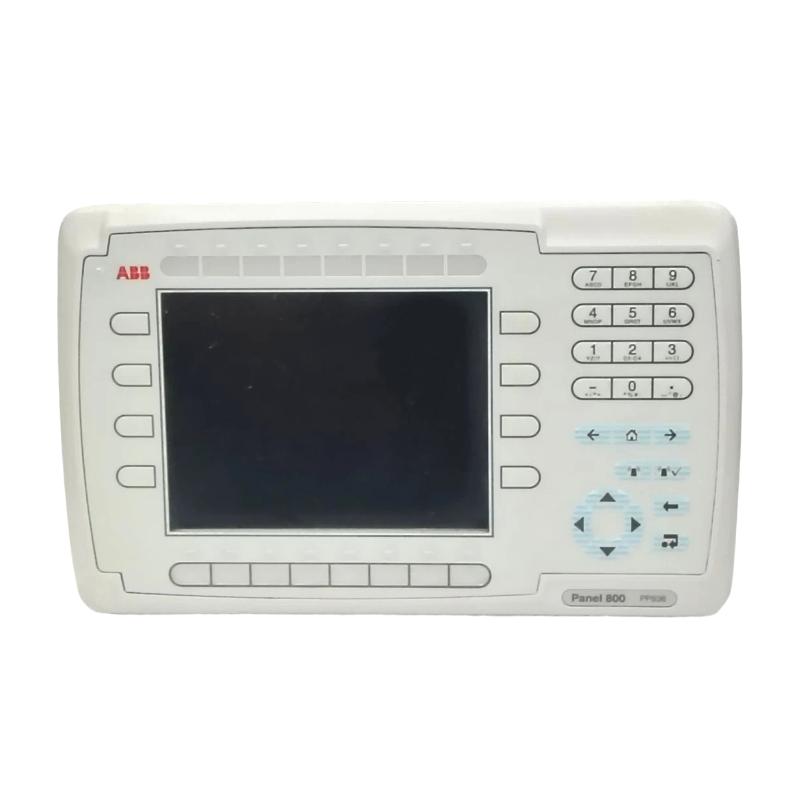

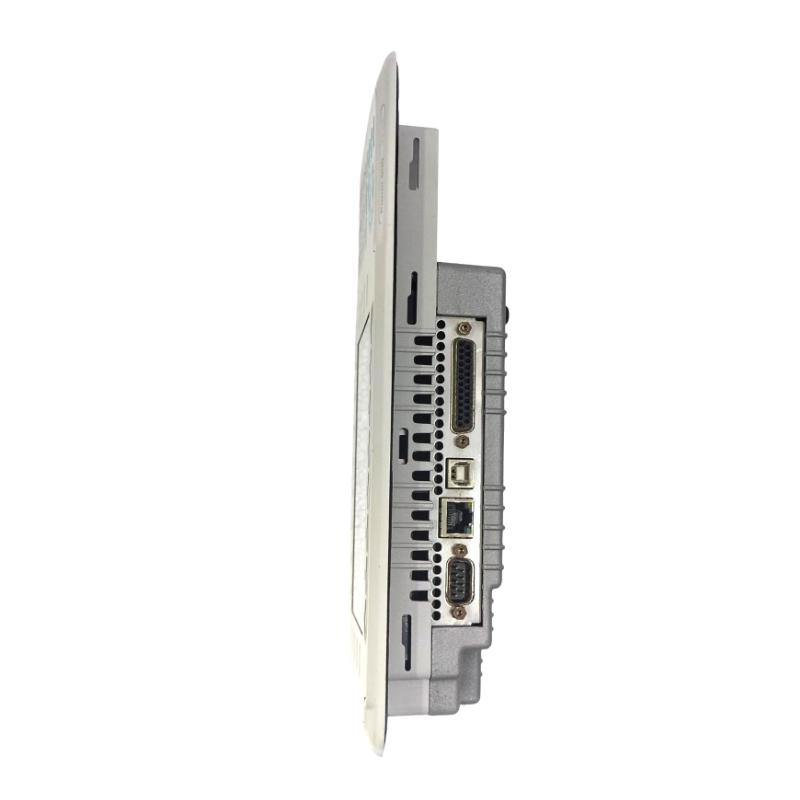

ABB PP836A (3BSE042237R2) – Product Overview
Product Introduction
The PP836A is a high-performance programmable logic module designed for industrial automation applications. It is part of ABB’s PP800 series of digital and analog I/O modules, engineered to provide reliable and precise signal processing for complex industrial control systems.
This module combines high-speed digital input and output functionality with robust construction, ensuring dependable operation in demanding industrial environments. Its modular design allows integration into automation racks and supports system scalability, making it suitable for large-scale industrial production, process control, and machinery automation.
Product Specifications
| Parameter | Description |
|---|---|
| Model | PP836A |
| Part Number | 3BSE042237R2 |
| Function | Programmable Logic / I/O Module |
| Input Type | Digital Input |
| Output Type | Digital Output / Relay selectable |
| Voltage Rating | 24 V DC |
| Maximum Current per Channel | 2 A |
| Number of Input Channels | 16 |
| Number of Output Channels | 16 |
| Switching Frequency | 50 Hz |
| Isolation | Optical isolation |
| Communication Interfaces | PP800 series compatible |
| Operating Temperature | -20°C to 60°C |
| Protection Class | IP20 |
| Dimensions (WxHxD) | 120 × 150 × 130 mm |
| Weight | 1.75 kg |
| Mounting | DIN Rail / Panel |
| Certifications | CE, UL |
Product Applications
The PP836A module is widely used in industrial automation and control applications:
-
Automated production lines in automotive, electronics, and packaging industries.
-
Process automation in chemical, pharmaceutical, and food processing plants.
-
Control of robotics and material handling systems.
-
Monitoring and control in energy distribution and management systems.
-
Complex PLC systems requiring high channel digital I/O.
-
Industrial machinery and equipment with modular expansion needs.
Product Advantages
-
High Channel Density: Offers 16 digital inputs and 16 digital outputs in one compact module.
-
Reliable Signal Processing: Optical isolation ensures interference-free and accurate operation.
-
High-Speed Switching: Supports 50 Hz digital switching frequency.
-
Industrial Durability: Operates reliably in a temperature range from -20°C to 60°C.
-
Modular Integration: Fits into PP800 PLC racks for scalable automation solutions.
-
Compact Footprint: Efficient use of rack space without sacrificing performance.
-
Robust Construction: Built for long-term operation under harsh industrial conditions.
-
Certified Safety Compliance: CE and UL certified for industrial applications.
Brand and Series Information
-
Brand: ABB
-
Series: PP800 Series (Programmable Logic and I/O Modules)
Related Models – Same Series or Similar Functionality
| Model | Voltage | Max Current per Channel | Input Channels | Output Channels | Dimensions (mm) | Weight (kg) | Key Feature |
|---|---|---|---|---|---|---|---|
| PP835A | 24 V DC | 2 A | 16 | 16 | 120 × 150 × 130 | 1.7 | Previous module in series |
| PP836B | 24 V DC | 2 A | 16 | 16 | 120 × 150 × 135 | 1.8 | Enhanced reliability variant |
| PP837A | 24 V DC | 2 A | 12 | 12 | 115 × 150 × 130 | 1.6 | Balanced input/output configuration |
| PP838A | 24 V DC | 2 A | 8 | 16 | 110 × 150 × 125 | 1.55 | Output-focused module |
| PP839A | 24 V DC | 2 A | 16 | 8 | 120 × 150 × 125 | 1.65 | Input-focused module |
Popular Models – Same Brand
| Model | Voltage | Channels | Dimensions (mm) | Weight (kg) | Key Feature |
|---|---|---|---|---|---|
| AC500 PM573 | 24 V DC | N/A | 75 × 130 × 115 | 0.95 | Flexible modular automation |
| AC500 PM575 | 24 V DC | N/A | 80 × 140 × 120 | 1.05 | Multi-protocol communication |
| AC500 PM577 | 24 V DC | N/A | 85 × 145 × 125 | 1.10 | High-speed industrial CPU |
| AC500 PM578 | 24 V DC | N/A | 85 × 145 × 125 | 1.15 | Advanced safety integration |
| AC500 PM590 | 24 V DC | N/A | 80 × 135 × 120 | 1.0 | Compact, energy-efficient CPU |
FAQ – PP836A
Q1: How many input channels does this module have?
A1: The module provides 16 digital input channels.
Q2: How many output channels are included?
A2: The module provides 16 digital output channels.
Q3: What types of outputs are supported?
A3: Relay or transistor selectable outputs.
Q4: What voltage range does the module operate in?
A4: 24 V DC.
Q5: Does the module provide electrical isolation?
A5: Yes, it provides optical isolation to prevent interference.
Q6: What is the switching frequency of the outputs?
A6: Supports up to 50 Hz switching frequency.
Q7: Can this module be mounted on a DIN rail?
A7: Yes, DIN rail and panel mounting are supported.
Q8: What are the module’s dimensions and weight?
A8: Dimensions: 120 × 150 × 130 mm, Weight: 1.75 kg.
Q9: Is it suitable for harsh industrial environments?
A9: Yes, operates reliably from -20°C to 60°C.
Q10: Is it certified for industrial safety standards?
A10: Yes, the module has CE and UL certifications.
