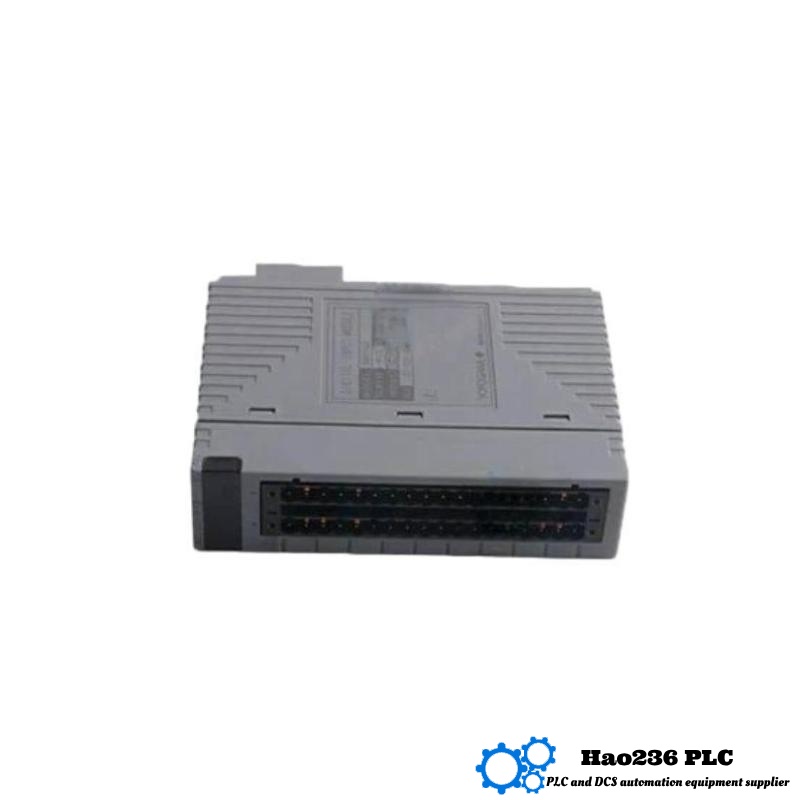

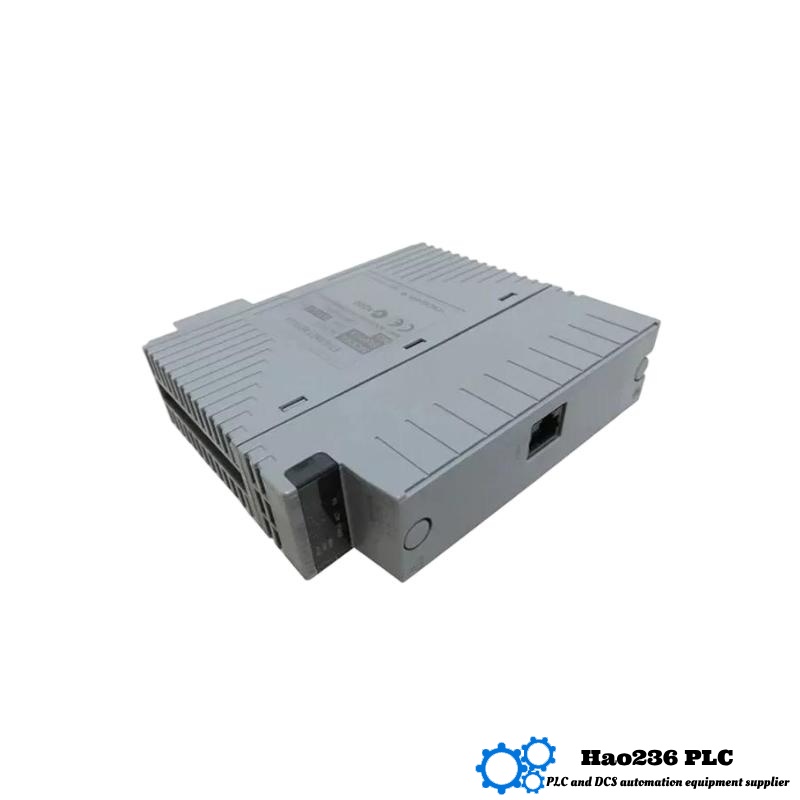

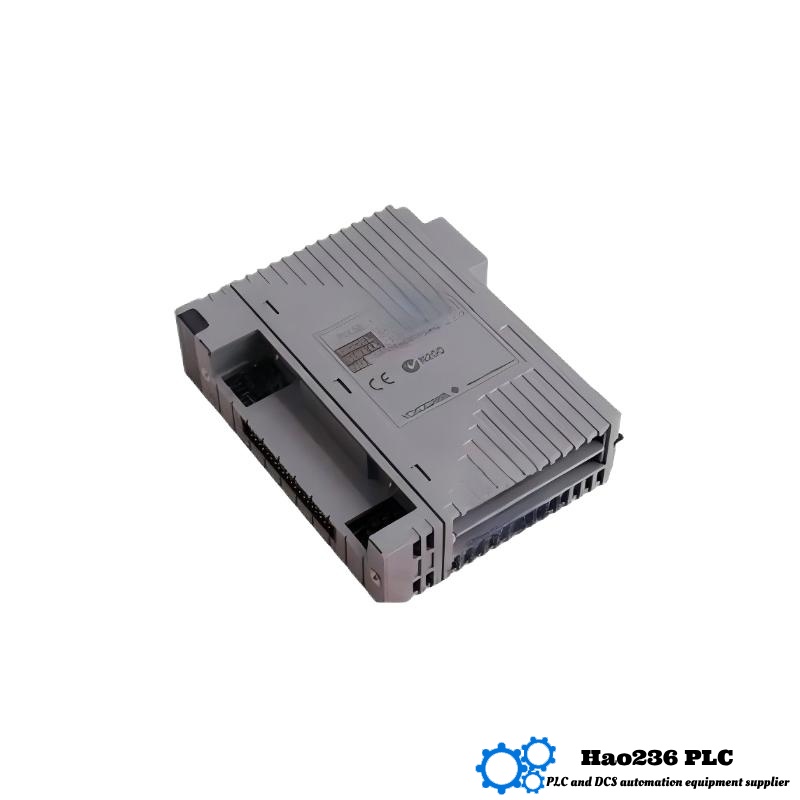

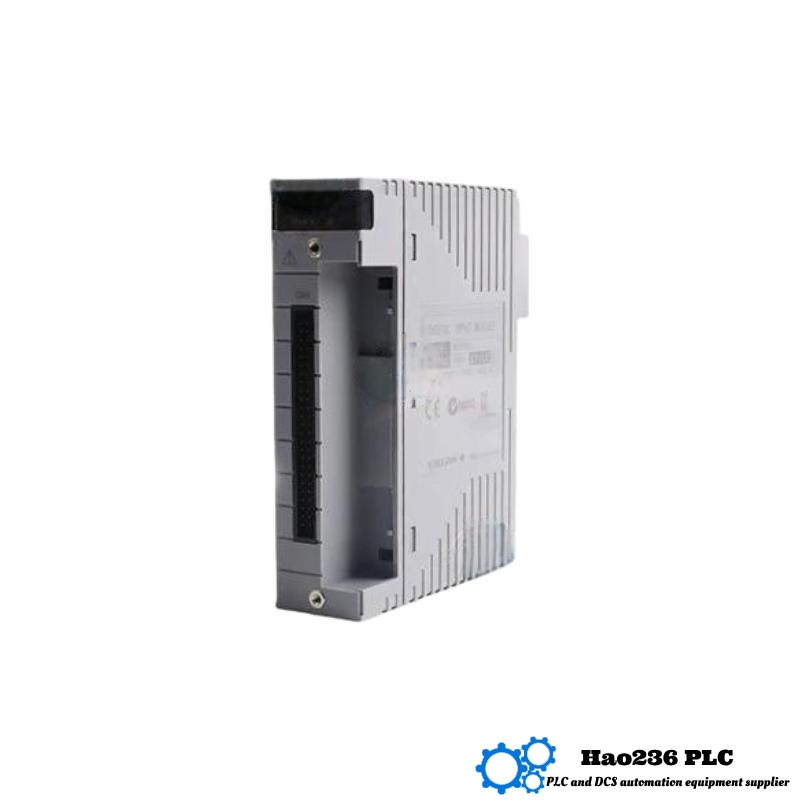

Yokogawa ADV144-S13 Digital Input Module
Product Overview
The Yokogawa ADV144-S13 is a high-performance digital input module designed for use in industrial automation and control systems. It provides reliable and accurate data acquisition from various field devices, including sensors, switches, and other digital signals. The module supports a broad range of applications, ensuring precise monitoring and control of machinery in various industries.
This module features robust construction, ensuring operational efficiency and reliability even in challenging industrial environments. The ADV144-S13 is an essential part of Yokogawa’s suite of automation and process control products, providing the necessary interface to digital input signals for systems that require constant and uninterrupted operation.
Product Specifications
| Parameter | Specification |
|---|---|
| Model Number | ADV144-S13 |
| Input Type | Digital Input |
| Number of Inputs | 16 Inputs |
| Voltage Range | 24V DC ±20% |
| Current Consumption | 60 mA |
| Input Impedance | 10 kΩ |
| Isolation Resistance | 500 V DC |
| Dimensions (WxHxD) | 107.5 × 130 × 32.8 mm |
| Weight | 0.3 kg |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% (non-condensing) |
| Signal Input Level | 24V DC (Logic High), 0V (Logic Low) |
| Mounting Type | DIN Rail |
| Compliance | CE, UL, RoHS |
Product Applications
The ADV144-S13 Digital Input Module is ideal for a variety of applications, including:
-
Industrial Automation: Monitoring switches, sensors, and other devices that produce digital signals.
-
Process Control: Integration with process control systems for data acquisition and real-time monitoring.
-
Factory Automation: Connecting digital sensors to automation controllers for efficient system operations.
-
Machinery Protection: Detecting status signals from machinery for condition monitoring and failure prediction.
-
Building Management Systems: Digital signal integration for control of heating, ventilation, and air conditioning (HVAC) systems.
Product Advantages
-
Reliable Data Acquisition: The ADV144-S13 offers reliable digital signal acquisition, ensuring real-time monitoring with minimal delay.
-
Compact and Robust: Its compact design (107.5 × 130 × 32.8 mm) allows for easy integration into space-constrained environments while ensuring durability in demanding conditions.
-
Wide Input Voltage Range: The module supports a broad input voltage range (24V DC ±20%), making it compatible with various field devices.
-
Easy Installation: The DIN rail mounting feature simplifies installation and maintenance, reducing downtime during system integration.
-
Wide Operating Temperature Range: With an operating range from -20°C to +60°C, the module is designed to function reliably in harsh industrial conditions.
-
Compliance and Safety: It meets international safety and environmental standards, including CE, UL, and RoHS certifications.
Brand Information
Yokogawa is a globally recognized leader in industrial automation, control systems, and instrumentation. With over 100 years of expertise, Yokogawa develops innovative solutions that help businesses optimize operations, improve efficiency, and ensure safety in industrial environments. Their products are trusted by industries such as oil and gas, power, chemicals, and manufacturing.
Recommended Models from the Same Brand
| Model Number | Description | Key Features |
|---|---|---|
| ADV144-S12 | Digital Input Module | 12-channel, 24V DC input, compact design |
| ADV145-S13 | Digital Output Module | 16 outputs, wide voltage compatibility |
| ADV124-S13 | Analog Input Module | High-precision signal acquisition, 8 inputs |
| ADV150-S12 | Relay Output Module | 16 relay outputs, high-load switching capability |
| ADV155-S13 | Digital/Analog Hybrid Module | Combination of 8 digital and 4 analog inputs |
Recommended Popular Models from Yokogawa
| Model Number | Description | Key Features | Number of Inputs/Outputs | Voltage Range | Dimensions (WxHxD) | Weight |
|---|---|---|---|---|---|---|
| ADV142-P10 | Digital Input Module | High-performance digital input, 10-channel configuration | 10 Inputs | 24V DC ±20% | 107.5 × 130 × 32.8 mm | 0.3 kg |
| ADV142-S03 | Digital Input Module | 3-channel digital input module with compact design | 3 Inputs | 24V DC ±20% | 107.5 × 130 × 32.8 mm | 0.3 kg |
| ADV151-P60 | Digital Output Module | Digital output, high-load capacity, 60-channel configuration | 60 Outputs | 24V DC ±20% | 107.5 × 130 × 32.8 mm | 0.4 kg |
| ADV161-P50 | Relay Output Module | High-efficiency relay output, 50-channel configuration | 50 Outputs | 24V DC ±20% | 107.5 × 130 × 32.8 mm | 0.35 kg |
| ADV159-P01 | Digital Output Module | Precision output control, compact and reliable | 1 Output | 24V DC ±20% | 107.5 × 130 × 32.8 mm | 0.3 kg |
Frequently Asked Questions (FAQs)
Q1: What type of input does the ADV144-S13 support?
A1: The ADV144-S13 is designed to handle digital inputs, typically from switches, sensors, and other devices that produce binary signals.
Q2: What is the voltage range for the inputs?
A2: The input voltage range for this module is 24V DC ±20%, making it compatible with most standard field devices.
Q3: How is the ADV144-S13 mounted?
A3: This module is mounted on a DIN rail, providing easy installation and secure mounting in industrial environments.
Q4: Can this module operate in high-temperature environments?
A4: Yes, it can operate within a temperature range of -20°C to +60°C, suitable for many industrial applications.
Q5: What is the maximum current consumption of this module?
A5: The ADV144-S13 has a maximum current consumption of 60 mA.
Q6: Does the ADV144-S13 require special handling for installation?
A6: No, the module is designed for easy installation on a DIN rail, reducing installation time and complexity.
Q7: Is the module certified for safety and environmental standards?
A7: Yes, the ADV144-S13 complies with CE, UL, and RoHS certifications, ensuring it meets global safety and environmental standards.
Q8: How many digital inputs does the ADV144-S13 support?
A8: It supports 16 digital inputs, allowing for efficient monitoring of multiple field devices.
Q9: Can the ADV144-S13 be used in hazardous areas?
A9: The module is not inherently explosion-proof, so additional measures may be needed when installing in hazardous areas.
Q10: What is the weight of the ADV144-S13 module?
A10: The ADV144-S13 module weighs 0.3 kg, which is relatively lightweight for easy handling and installation.
