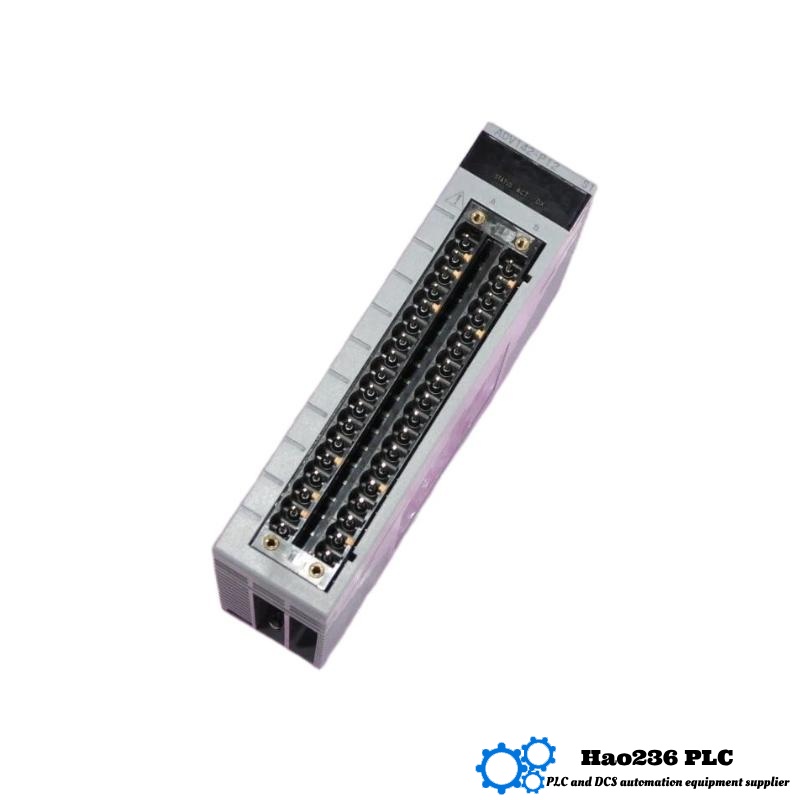

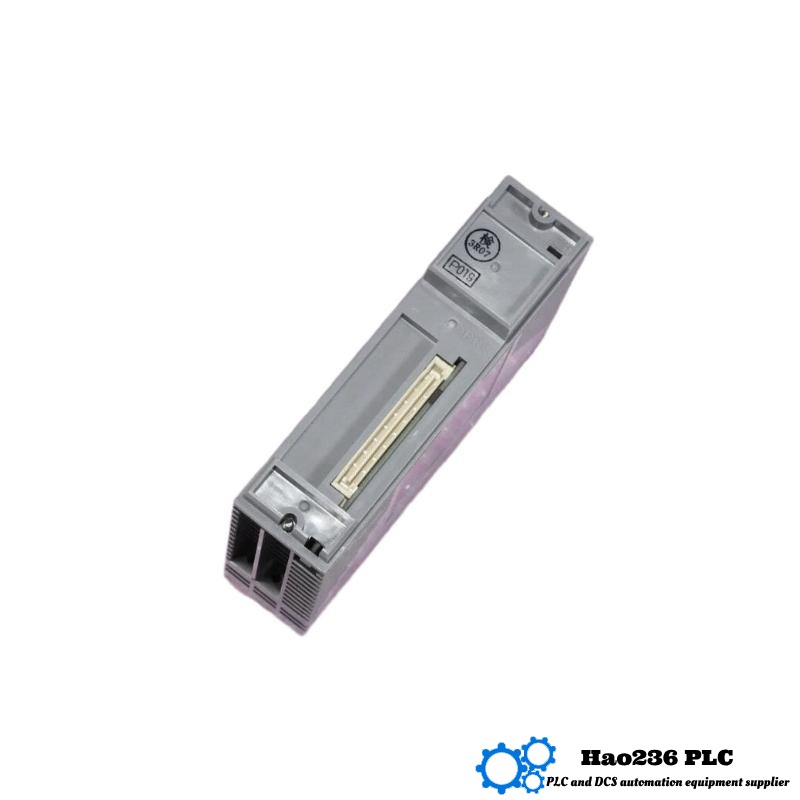

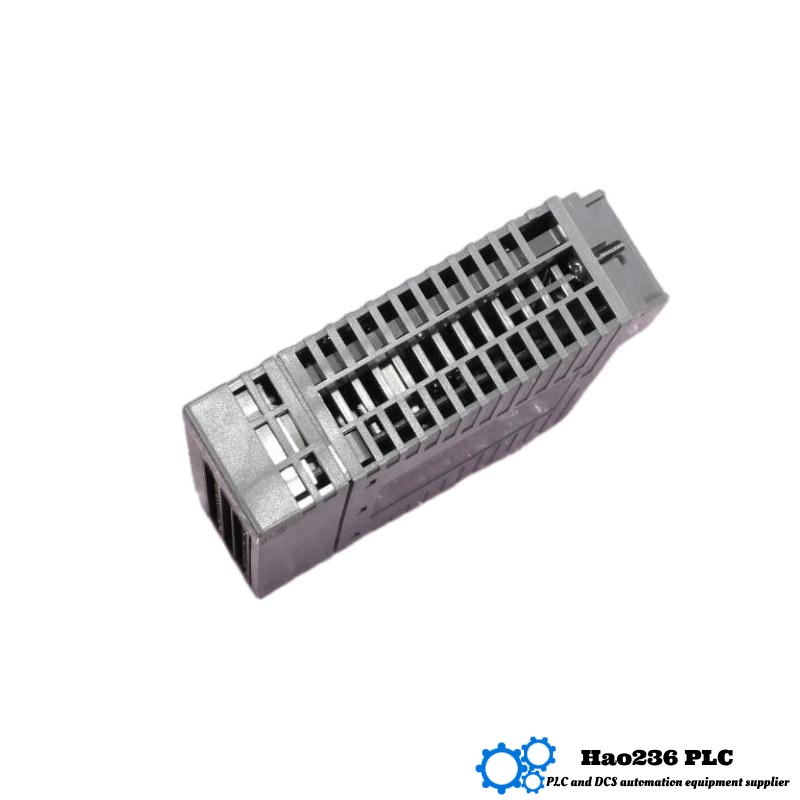

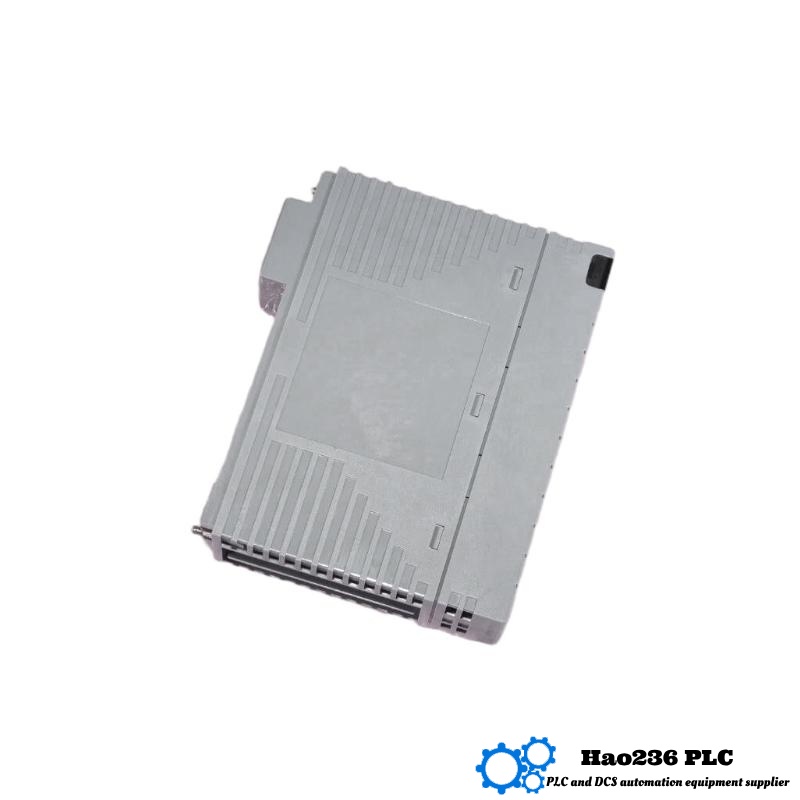

Yokogawa ADV142-S03 Digital Input Module
Product Introduction
The Yokogawa ADV142-S03 digital input module is engineered to deliver precise and reliable acquisition of digital signals within Yokogawa’s advanced control system platforms. Designed to support critical process monitoring and automation needs, this module captures the ON/OFF status of field devices and transmits accurate data to the control system for enhanced operational oversight.
Built with Yokogawa’s commitment to quality and robustness, the ADV142-S03 ensures seamless integration with the CENTUM and other Yokogawa control families. Its compact and lightweight form factor simplifies installation while maintaining excellent signal integrity through galvanic isolation and noise rejection capabilities.
Product Parameters
| Parameter | Specification |
|---|---|
| Model Number | ADV142-S03 |
| Product Type | Digital Input Module |
| Brand | Yokogawa |
| Series | ADV Series |
| Dimensions (L x W x H) | 107.5 × 130 × 32.8 mm |
| Weight | 0.3 kg |
| Input Channels | 16 channels |
| Input Signal Type | Digital ON/OFF signals |
| Input Voltage | 24 V DC nominal |
| Response Time | ≤ 10 ms |
| Isolation | Channel-to-channel and channel-to-system isolation |
| Operating Temperature | 0°C to 55°C |
| Communication Interface | Backplane bus |
| Certifications | CE, UL, CSA, RoHS |
Product Applications
-
Factory Automation: Monitor digital status signals from sensors, switches, and contactors in automated production lines.
-
Process Plant Control: Receive real-time ON/OFF data from valves, pumps, and safety devices.
-
Power Generation: Interface with circuit breakers, protective relays, and status indicators.
-
Water and Wastewater Management: Track valve positions and alarm signals for efficient plant operation.
-
Building Management Systems: Acquire signals from fire alarms, lighting controls, and security systems.
Product Advantages
-
High Channel Density: Offers 16 digital input channels in a single module to maximize system efficiency.
-
Fast Signal Response: Provides rapid detection and transmission of digital signal changes within 10 milliseconds.
-
Reliable Signal Integrity: Galvanic isolation on each channel prevents electrical noise interference and ensures clean data.
-
Compact and Lightweight: Its slim profile fits easily into existing Yokogawa control racks.
-
Wide Operating Range: Performs reliably across typical industrial temperature ranges.
-
Easy Integration: Designed for full compatibility with Yokogawa control systems and easy configuration.
Brand and Series Affiliation
The ADV142-S03 is part of Yokogawa’s ADV Series, a trusted family of modular I/O components widely recognized for robustness and precision in industrial automation. Yokogawa, as a global leader in process automation, guarantees the highest standards of performance, durability, and integration with its CENTUM and FAST/TOOLS platforms.
Related Models in the ADV Series
| Model | Function | Dimensions (mm) | Weight (kg) | Description |
|---|---|---|---|---|
| ADV141-S01 | Digital Output Module | 107.5 × 130 × 32.8 | 0.32 | Provides 16 digital output channels |
| ADV143-S02 | Analog Input Module | 107.5 × 130 × 32.8 | 0.31 | Supports multiple analog input types |
| ADV144-S01 | Analog Output Module | 107.5 × 130 × 32.8 | 0.33 | Provides analog output channels |
| ADV145-S01 | Relay Output Module | 107.5 × 130 × 32.8 | 0.30 | Offers relay outputs for control circuits |
| ADV146-S02 | Counter Module | 107.5 × 130 × 32.8 | 0.34 | High-speed pulse counting capability |
Popular Yokogawa Models
| Model Number | Description | Function Type | Communication Interface | Typical Application |
|---|---|---|---|---|
| ADM55-S4 | Analog input module | 4-channel input | Modbus RTU | Process variable acquisition |
| ADM55R-S2 | Analog input module with relay | 2-channel input + relay output | Modbus RTU | Process control with alarms |
| ADM55R | Analog input module with relay | Multi-channel input + relay output | Modbus RTU | Remote monitoring and control |
| ADM55-S2 | Analog input module | 2-channel input | Modbus RTU | Compact data acquisition |
| ADM55R-S4 | Analog input with relay outputs | 4-channel input + relay output | Modbus RTU | Enhanced alarm and control systems |
FAQ (Q&A Format)
Q1: How many digital inputs does the ADV142-S03 module support?
A1: The module supports 16 digital input channels.
Q2: What is the nominal voltage for input signals?
A2: The nominal input voltage is 24 V DC.
Q3: Can this module be integrated with Yokogawa CENTUM systems?
A3: Yes, it is fully compatible with CENTUM and other Yokogawa platforms.
Q4: What is the typical response time for signal acquisition?
A4: The response time is 10 milliseconds or less.
Q5: Does the module provide channel-to-channel isolation?
A5: Yes, it offers galvanic isolation between input channels and to the system.
Q6: What temperature range can the module operate in?
A6: It operates reliably between 0°C and 55°C.
Q7: Is the module suitable for use with contact closures?
A7: Yes, it is designed to detect ON/OFF signals from contact closures or switches.
Q8: How is the module powered?
A8: It receives power through the control system backplane bus.
Q9: What certifications does the ADV142-S03 hold?
A9: It is certified for CE, UL, CSA, and RoHS standards.
Q10: Can this module be used in hazardous locations?
A10: Use in hazardous areas depends on additional protection and compliance with local regulations.
