Product Overview
Brand: Yokogawa
Series: ADV14x – Digital Input Modules (AC/DC)

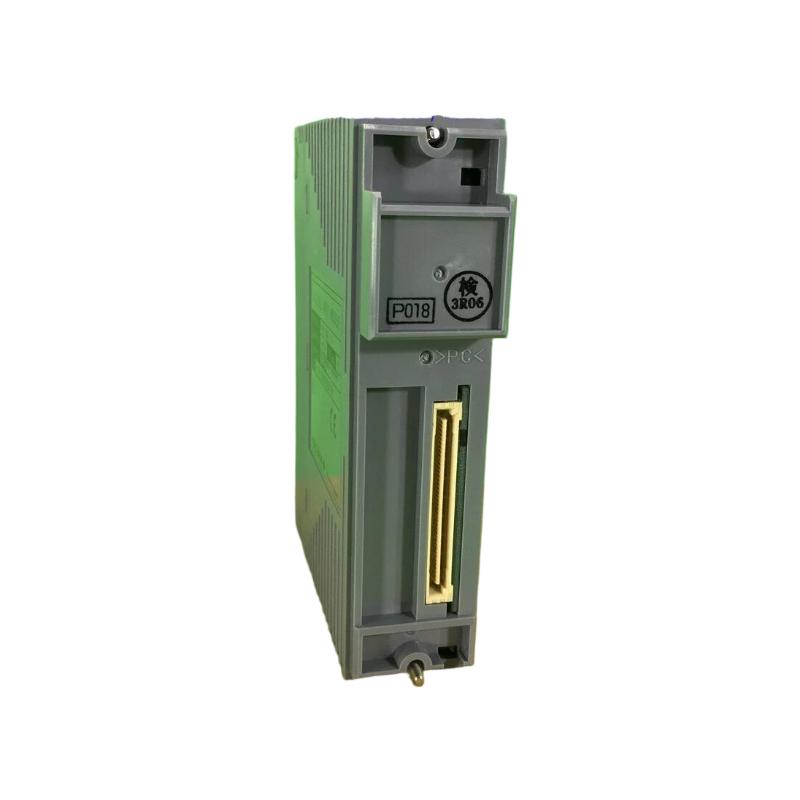

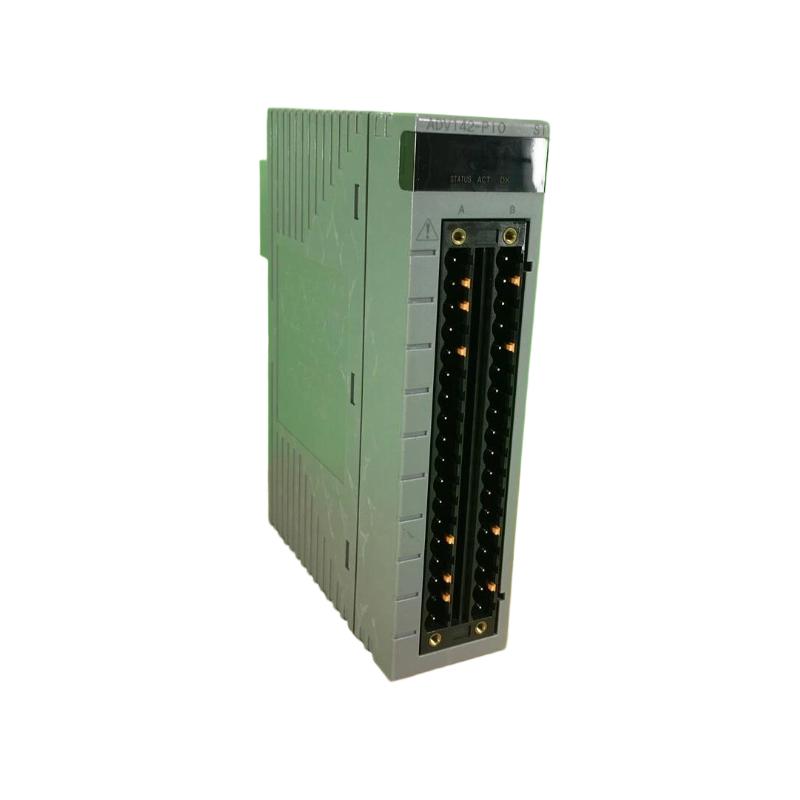

Model: ADV142-P10
The ADV142-P10 is a digital input module designed for high-performance industrial control systems and DCS environments. As part of the ADV142 line it offers a set of input channels for field devices and converts those signals into logic data for control systems. The suffix “-P10” denotes a specific variant with certain options and input characteristics within the ADV142 family. With its rugged design and compact module form, it is used for signal acquisition in automation, manufacturing, petrochemical, and process-control installations.
This module supports multiple channels of digital inputs, offers isolation and noise protection, and is designed for reliable performance in typical industrial ambient conditions. It integrates seamlessly into back-plane or rack-mounted systems and supports wiring methods amenable to field installation and maintenance.
Technical Specifications
| Parameter | Description |
|---|---|
| Number of input channels | 16 channels (typical for ADV142-P10) |
| Rated Input Voltage | 24 V DC (some listings indicate 24 V DC for P10 variant) |
| Input Type | Digital ON/OFF signals (dry contact or voltage input) |
| Operating Temperature Range | –20 °C to +70 °C (typical rugged version) |
| Humidity Tolerance | 5 % to 95 % RH (non-condensing) |
| Dimensions (W × H × D) | Approx. 3.2 cm × 10.7 cm × 13.0 cm |
| Weight | Approx. 0.26 kg |
| Mounting | Back-plane / module slot mount in system rack |
| Isolation | Channel to system isolation per module design |
| Certification/Standards | CE / UL / CSA (as applicable) |
Note: The above values reflect typical published data for the P10 variant under normal conditions. Specific installation or version variants may slightly differ.
Applications
-
Integration into distributed control systems (DCS) for capturing status signals from field devices (limit switches, contacts, pushbuttons, sensor outputs).
-
Use in manufacturing automation lines for monitoring on/off states of machinery, safety interlocks, material handling conveyors.
-
Deployment in process industries (chemical, petrochemical, refinery) where digital input modules must interface with large systems and harsh environments.
-
Suitable for power generation, utility control, sub-station automation where digital signals need to be sampled and sent to control logic.
-
Retrofitting older installations or expansions requiring digital input modules that fit into existing rack systems or I/O bases.
-
Building automation and facility management systems that monitor discrete signals from electrical panels, HVAC systems, lighting controls.
Advantages
-
Compact module size & low weight – At ~0.26 kg and compact footprint, installation and replacement are efficient and cabinet space is optimized.
-
Robust ambient coverage – Operating from –20 °C to +70 °C and wide humidity tolerance means the module works reliably in a variety of industrial settings.
-
Versatile input support – Supports digital ON/OFF and dry‐contact input types, allowing flexible field wiring and device compatibility.
-
High integration ease – Designed for modular back-plane systems or rack mounting, enabling straightforward integration into automation cabinets.
-
Brand legacy & support – As part of Yokogawa’s ADV14x family, it benefits from known system compatibility, spare parts availability and proven field performance.
-
Reliable signal acquisition – Engineered for industrial noise-rich environments with proper isolation and signal integrity design.
-
Maintenance friendly – Module replacement takes minimal downtime; compact, standardized design assists serviceability.
Brand & Series Information
-
Brand: Yokogawa
-
Series: ADV14x – Digital Input Modules
-
Category: Digital Input Module (Discrete signals)
The ADV14x family covers multiple input voltages (AC and DC), various channel counts, options (pushbutton input, status display, temperature/ISA options) and suits different automation system architectures. The ADV142 sub-family specifically handles certain input voltage ranges (depending on variant) and provides robust digital input capability.
Recommended Models — Same Series or Related
| Model | Description |
|---|---|
| ADV141-P50 | 16-channel AC digital input module (100–120 V AC), standard version without pushbutton option. |
| ADV141-P53 | 16-channel AC digital input (100–120 V AC) with pushbutton input and rugged temperature options. |
| ADV142-P10 | (Current model) 16-channel digital input module, DC input variant (24 V DC) within ADV142 family. |
| ADV142-P00 | 16-channel digital input module (200–240 V AC) base version in ADV142 family. |
| ADV151-P53 | 32-channel DC digital input module (24 V DC input) in the adjacent series for higher channel count. |
Recommended Popular Models — Same Brand
| Model | Description |
|---|---|
| ADR541-P50 | 16-channel relay output module (24-110 V DC / 100-240 V AC outputs) for load switching in automation systems. |
| ADV551-P53 | 32-channel digital output module (24 V DC output) designed for actuator and driver interface. |
| ADV157-S50 | 32-channel DC digital input module (24 V DC input) compact version for general discrete input use. |
| AAI141-S50 | Analog input module (4-20 mA signal acquisition) for process measurement tasks. |
| AAV142-S50 | Analog I/O mixed module, multi-channel analogue in/out, suited for larger process-control I/O expansion. |
FAQ (10 Questions & Answers)
Q1: What input voltage does the ADV142-P10 support?
A1: The P10 variant supports a 24 V DC input voltage for its digital input channels.
Q2: How many channels does this module provide?
A2: It offers 16 individual input channels.
Q3: What are its dimensions and weight?
A3: Approximately 3.2 cm width × 10.7 cm height × 13.0 cm depth, and around 0.26 kg in weight.
Q4: Can it be used in outdoor or harsh ambient environments?
A4: Yes — it supports operation down to –20 °C and up to +70 °C, and high humidity tolerance, making it suitable for demanding industrial settings.
Q5: Is it compatible with AC input signals?
A5: No — the P10 variant is designed for DC input (24 V DC). For AC signals, other variants in the series (such as ADV142-P00) are used.
Q6: Does the module provide status indicators for each channel?
A6: This variant does not necessarily include per-channel LED indicators; specific sub-variants may provide status display options.
Q7: Is it suitable for redundant I/O system installation?
A7: Yes — it is compatible with typical I/O rack/back-plane systems and can be used in redundant configurations for higher reliability.
Q8: What type of field wiring is supported?
A8: The module uses standard pressure-clamp terminals or compatible connector wiring to interface with field devices and back-plane bus.
Q9: How rapid is its response time for input changes?
A9: The response time meets industrial specifications (typically under 160 ms) for digital status sampling.
Q10: Can I retrofit this module into an existing system rack?
A10: Yes — provided the rack and back-plane are compatible with the Yokogawa module form-factor and the system supports the ADV14x series modules.
