Product Overview
Brand: Yokogawa
Series: ADV14x Series – Digital Input Module
Model: ADV142

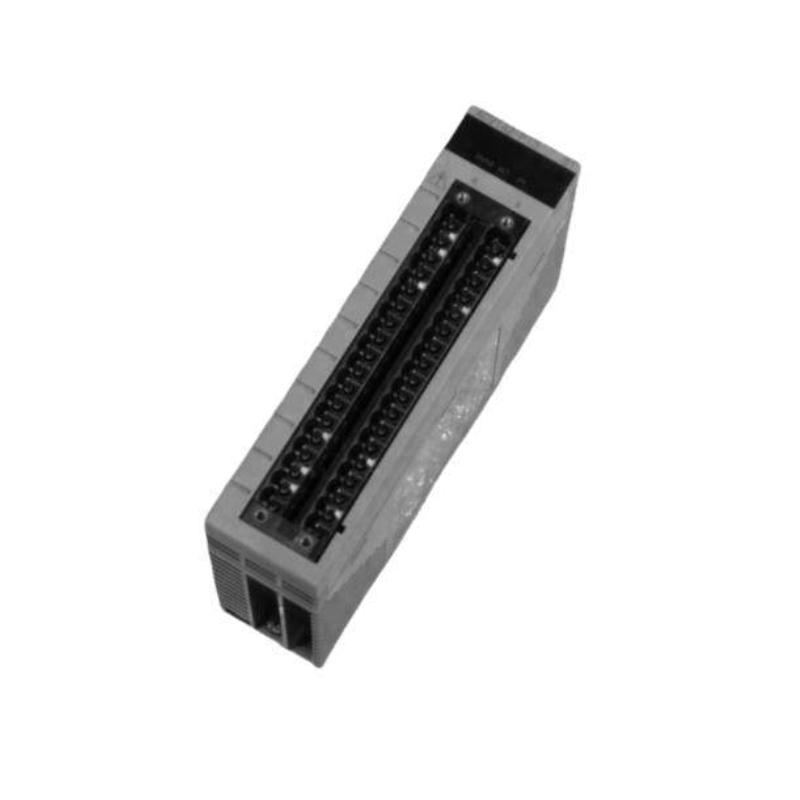

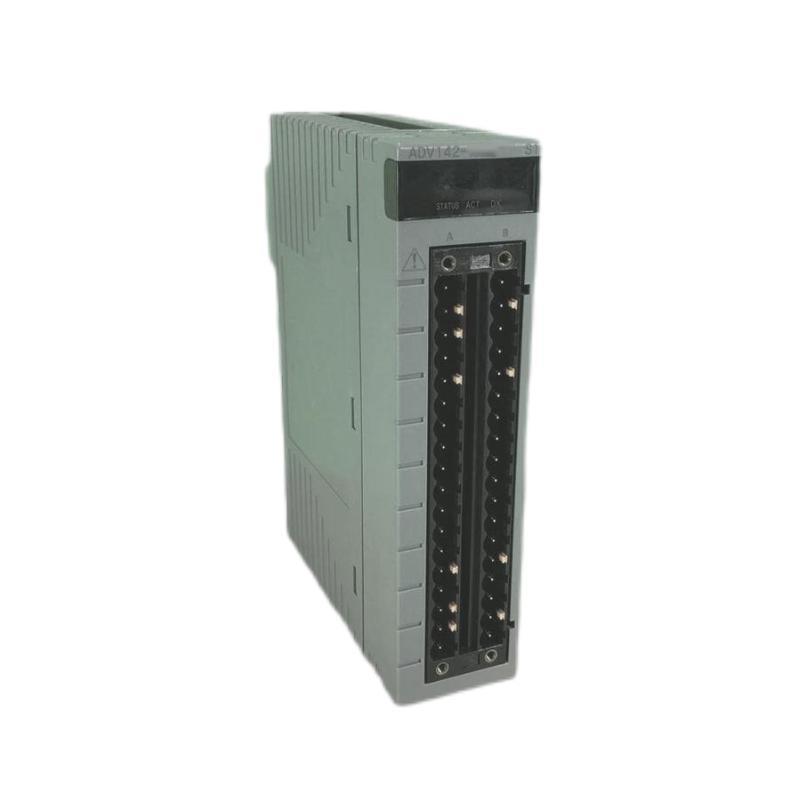

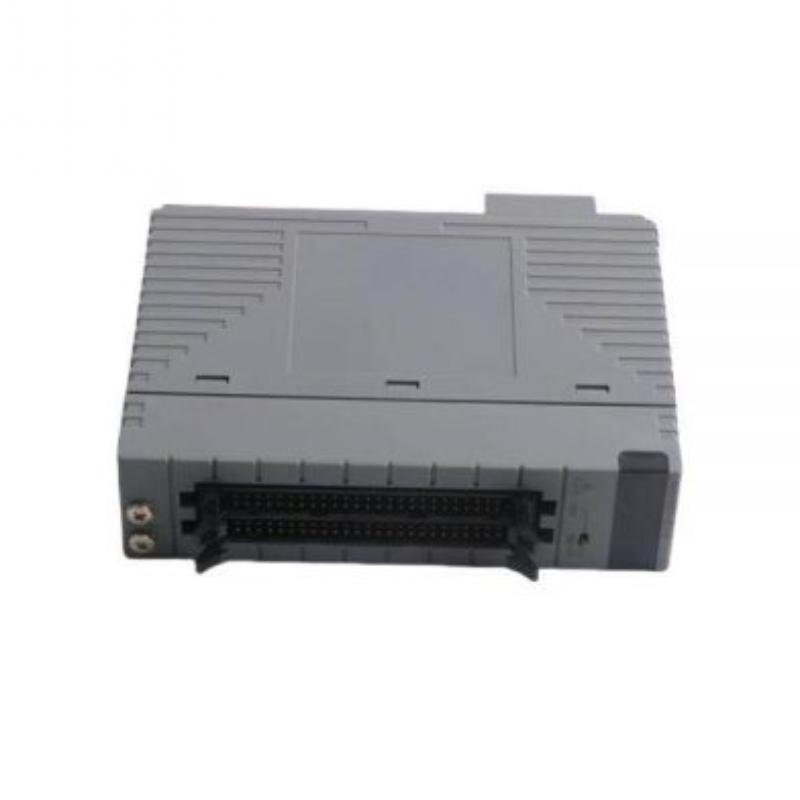

The Yokogawa ADV142 is a high-performance AC Digital Input Module designed for distributed control systems (DCS) and industrial automation environments.
It is an upgraded version of the ADV141 series, specifically engineered to accept 200 V AC to 240 V AC digital input signals across 16 isolated channels.
The module converts external AC ON/OFF signals into logic-level data that can be processed by a control system, providing secure and reliable monitoring of plant equipment status.
ADV142 modules feature strong electrical isolation, surge protection, and superior noise immunity, making them suitable for harsh process-control conditions such as power generation, petrochemical operations, and heavy industrial machinery control.
Technical Specifications
| Parameter | Description |
|---|---|
| Input Type | AC Digital Input |
| Number of Channels | 16 channels |
| Rated Input Voltage | 200 V AC – 240 V AC (50/60 Hz) |
| Input ON Voltage (peak) | 160 V AC to 264 V AC |
| Input OFF Voltage (peak) | ≤ 60 V AC |
| Typical Input Current | 2.2 mA / channel @ 240 V AC |
| Maximum Input Current | 3.0 mA / channel |
| Dielectric Strength (Input ↔ System) | 2 kV AC, 1 minute |
| Dielectric Strength (Between Commons) | 1.35 kV AC, 1 minute |
| Input Filtering | Software-configurable debounce filter |
| Response Time | Approx. 160 ms |
| Connection Type | Pressure-clamp terminal or dedicated cable connector |
| Power Consumption | Approx. 8 W (typical) |
| Operating Temperature Range | –20 °C to +70 °C (extended environment version) |
| Storage Temperature Range | –40 °C to +85 °C |
| Humidity Range | 10 % to 90 % RH (non-condensing) |
| Dimensions (W×H×D) | 3.2 cm × 10.7 cm × 7.6 cm |
| Weight | 0.29 kg (typical 0.30 kg including connector) |
| Mounting | DIN rail or backplane slot mount |
| Isolation Type | Opto-isolated per channel |
| Certifications | CE, UL, and ISA G3 environmental compliance |
Applications
-
Industrial Automation: For monitoring AC-powered sensors, limit switches, and operator panels.
-
Process Control Systems: Used within distributed control systems to collect status data from pumps, motors, and valves.
-
Power Plants and Substations: Suitable for capturing breaker positions and protection relay status.
-
Petrochemical and Refinery Plants: Used for detecting on/off conditions in explosion-safe control loops.
-
Manufacturing Facilities: Reliable input monitoring for conveyors, safety interlocks, and alarms.
-
Building Automation: Integration of AC status feedback from HVAC or electrical panels into control logic.
Product Advantages
-
High-Voltage Capability: Handles 200–240 V AC input directly without additional transformers.
-
Robust Isolation: 2 kV AC isolation ensures stable operation and operator safety.
-
Strong Noise Immunity: Designed for electrically harsh environments with superior surge absorption.
-
Compact Design: Slim 3.2 cm width saves valuable cabinet space.
-
Wide Temperature Range: –20 °C to 70 °C operation suitable for both indoor and outdoor panels.
-
Flexible Installation: Can be mounted via backplane connector or DIN rail, supporting easy field replacement.
-
Industrial-Grade Durability: Built with conformal coating for corrosion and humidity protection (ISA G3 option).
-
System Compatibility: Fully integrates with Yokogawa CENTUM VP and ProSafe-RS control architectures.
Brand and Series Information
-
Brand: Yokogawa
-
Product Family: ADV14x Series
-
Category: Digital Input Modules – AC type
-
Target System: Yokogawa DCS / Control I/O subsystems
The ADV14x family includes both AC and DC digital input modules optimized for stable and noise-free signal acquisition.
Related Models (Same or Adjacent Series)
| Model | Description |
|---|---|
| ADV141-P50 | 16 CH, 100–120 V AC input, standard model without button input. |
| ADV141-P53 | 16 CH, 100–120 V AC input, pushbutton input type, wide temperature range. |
| ADV142 | 16 CH, 200–240 V AC input, base model with high-voltage tolerance. |
| ADV151-P53 | 32 CH, 24 V DC digital input module, extended for DC signal environments. |
| ADV161-P50 | 64 CH, 24 V DC input module, ideal for large-scale I/O systems. |
Popular Yokogawa Models (Same Brand)
| Model | Description |
|---|---|
| ADR541-P50 | 16 CH Relay Output Module for 24–240 V AC/DC load switching. |
| ADV551-P53 | 32 CH Digital Output Module, 24 V DC, used for actuator control. |
| ADV157-S50 | 32 CH DC Digital Input Module, compact and terminal-based design. |
| AAI141-S50 | Analog Input Module, 8 CH, 4–20 mA current signal acquisition. |
| AAV142-S50 | Analog I/O Module, multi-channel unit for process variable interfacing. |
FAQ (10 Common Questions & Answers)
Q1: What type of signals can the ADV142 receive?
A1: It accepts 200 V AC – 240 V AC ON/OFF input signals from field devices such as limit switches and pushbuttons.
Q2: Can I connect DC input signals to this module?
A2: No. The ADV142 is designed specifically for AC input. For DC applications, use ADV151 or ADV161.
Q3: How many channels does it support?
A3: The module provides 16 independent input channels.
Q4: What isolation voltage is provided?
A4: It provides 2 kV AC isolation between field and system circuits and 1.35 kV AC between channel commons.
Q5: Is this module compatible with redundant control configurations?
A5: Yes. It can operate in dual-redundant systems to ensure high reliability.
Q6: What is the recommended operating environment?
A6: Temperature range –20 °C to 70 °C, humidity 10–90 % RH, non-condensing.
Q7: Does the module have built-in LED indicators?
A7: Some suffix versions include per-channel status LEDs. The standard ADV142 base model does not.
Q8: What type of wiring connection does it use?
A8: Pressure-clamp terminals or pre-assembled connector cables.
Q9: Can it be hot-swapped during system operation?
A9: Replacement should be done under safe conditions with power off to maintain I/O stability.
Q10: What are the approximate dimensions and weight?
A10: 3.2 cm × 10.7 cm × 7.6 cm, approximately 0.29 kg.
