Product Overview
Brand: Yokogawa
Series: ADV14x Series – Digital Input Module
Model: ADV141-P53

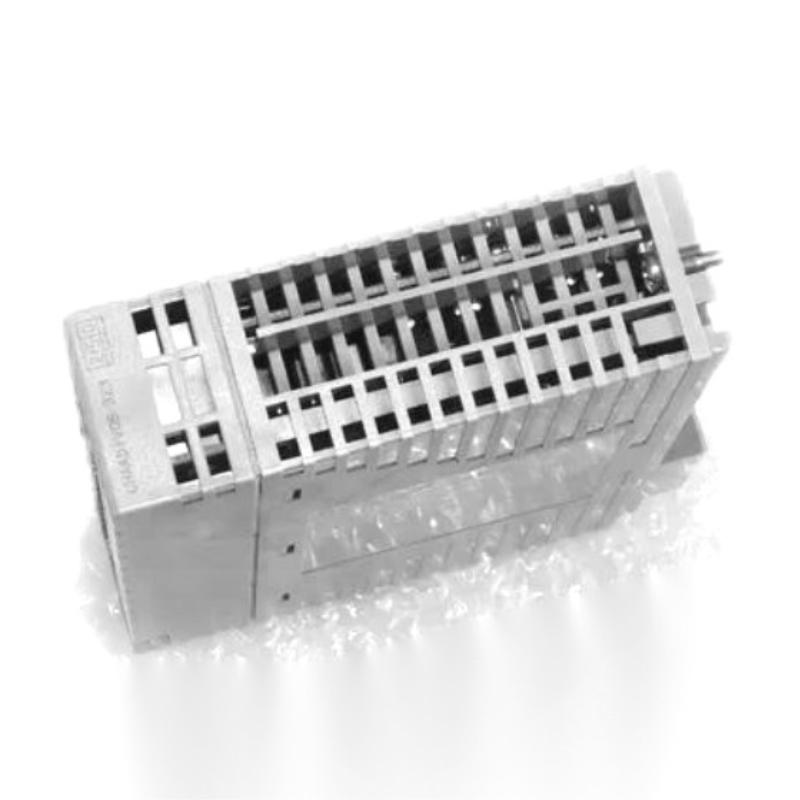

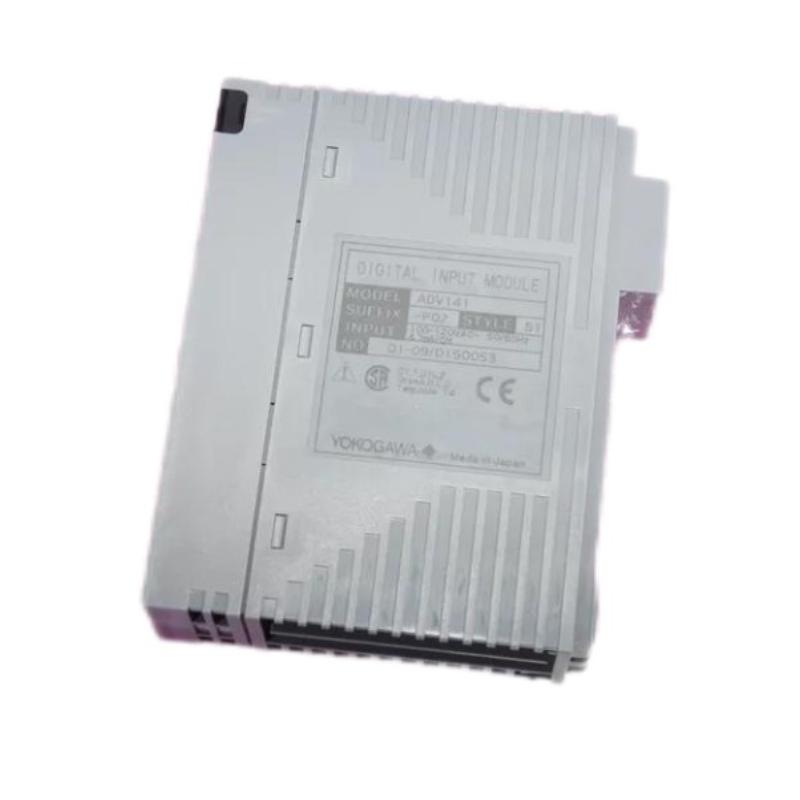

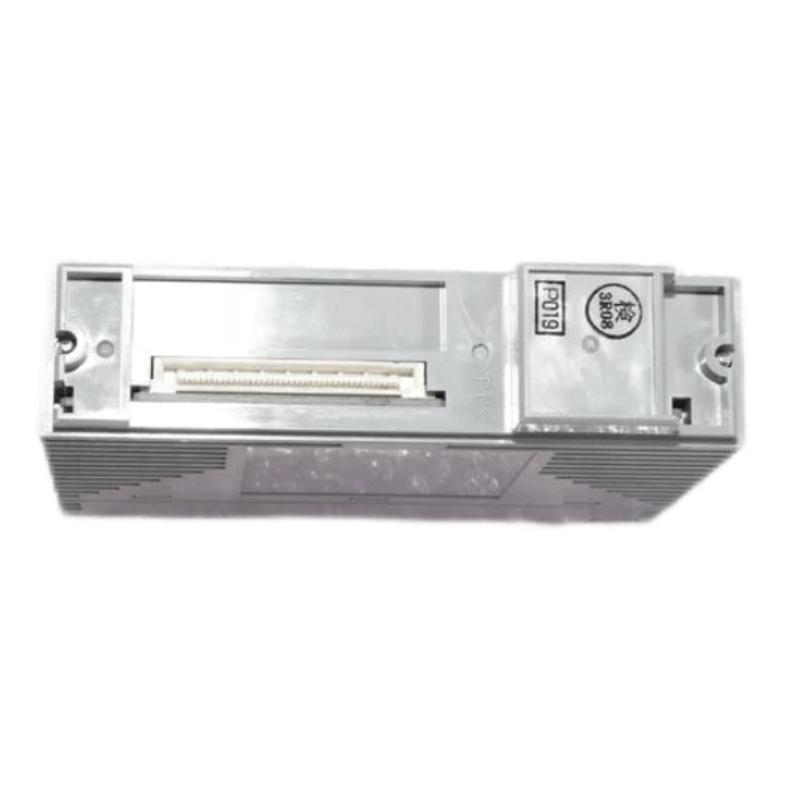

The Yokogawa ADV141-P53 is a 16-channel AC Digital Input Module designed for use in distributed control systems (DCS) and process automation applications. It accepts AC ON/OFF signals (typically 100 – 120 V AC) from field devices such as switches, sensors, and pushbuttons, converting them into digital inputs readable by the control system.
The suffix “-P53” specifies a version equipped with pushbutton input capability (-P), no status indicator / no explosion protection (-5), and ISA G3 option with an extended temperature range (-20 °C to 70 °C) (-3).
It features high-isolation circuits, surge suppression, and high-noise immunity — suitable for demanding industrial environments such as power generation, petrochemical plants, manufacturing lines, and building automation systems.
Technical Specifications
| Parameter | Description |
|---|---|
| Input Channels | 16 channels |
| Rated Input Voltage | 100 V AC – 120 V AC (50/60 Hz) |
| Input ON Voltage (peak) | 80 V AC (113 V) to 132 V AC (187 V) |
| Input OFF Voltage (peak) | ≤ 20 V AC (28 V) |
| Typical Input Current | 4.7 mA / channel @ 120 V AC, 60 Hz |
| Maximum Input Current | 7 mA / channel |
| Dielectric Strength (Input ↔ System) | 2 kV AC for 1 minute |
| Dielectric Strength (Between Commons) | 1.35 kV AC for 1 minute (each 8-channel group) |
| Minimum ON Detection Time (Pushbutton Input) | 200 ms |
| Maximum ON/OFF Frequency | 2.5 Hz |
| Connection Type | Pressure-clamp terminal or dedicated cable (AKB332) |
| Dimensions | Approx. 3.2 cm × 10.7 cm × 7.6 cm |
| Weight | Approx. 0.28 kg (typical 0.3 kg with variations) |
| Operating Temperature | -20 °C to +70 °C (for “3” suffix models) |
Applications
-
Designed for process automation and industrial control systems to acquire AC digital signals (ON/OFF status).
-
Commonly used in power plants, chemical/petrochemical facilities, and manufacturing lines for equipment status monitoring and alarm inputs.
-
Suitable for redundant control configurations and event logging in DCS systems.
-
Ideal for machine protection, safety interlocks, and operator pushbutton input monitoring.
-
Can also be used in building automation and energy management systems requiring centralized AC input collection.
Product Advantages
-
High Reliability – 2 kV input/system isolation and 1.35 kV between commons ensure excellent noise immunity and safety.
-
Compact Design – 16 channels per module maximize cabinet space efficiency while reducing wiring effort.
-
Flexible Versions – Suffix options enable users to select button input, status indicator, temperature range, and explosion protection variations.
-
Wide Environmental Tolerance – Extended temperature range (-20 °C to 70 °C) and ISA G3 conformity make it fit for harsh industrial conditions.
-
Easy Integration – Fully compatible with Yokogawa CENTUM VP and ProSafe-RS DCS systems.
-
Lightweight and Serviceable – Only 0.28 kg, enabling fast replacement and lower cabinet load.
Brand & Series Information
-
Brand: Yokogawa
-
Series: ADV14x Digital Input Module Series
-
Category: AC Digital Input Modules for Industrial Automation (DCS I/O Modules)
Related Models (Within the Same Series or Category)
| Model | Description |
|---|---|
| ADV141-P50 | 16 CH AC Digital Input Module (100–120 V AC); standard type without button input or status indicator. |
| ADV141-P53 | Current model – 16 CH AC Input (100–120 V AC); with pushbutton input and wide temperature range (-20 °C to 70 °C). |
| ADV142-P00 | 16 CH AC Digital Input (200–240 V AC); designed for higher-voltage applications. |
| ADV151-P53 | 32 CH DC Digital Input (24 V DC); extended channel version for low-voltage signals. |
| ADV161-P50 | 64 CH DC Digital Input (24 V DC); ideal for large-scale signal acquisition systems. |
Popular Yokogawa Models (Other Series)
| Model | Description |
|---|---|
| ADR541-P50 | 16 CH Relay Output Module (24–110 V DC / 100–240 V AC Outputs); for load switching and relay control. |
| ADV551-P53 | 32 CH Digital Output Module (24 V DC Outputs); ideal for actuator and driver control. |
| ADV157-S50 | 32 CH DC Digital Input Module (24 V DC); terminal-type wiring, compact and efficient. |
| AAI141-S50 | Analog Input Module (4–20 mA Signal Acquisition); for process measurement applications. |
| AAV142-S50 | Analog I/O Module offering multi-channel analog signal interfaces for large DCS systems. |
FAQ (10 Common Questions & Answers)
Q1: What type of signal does the ADV141-P53 accept?
A1: It accepts AC ON/OFF digital signals within 100–120 V AC (50/60 Hz).
Q2: Can it be used for 24 V DC inputs?
A2: No, it is designed specifically for AC inputs. Use models like ADV151 or ADV161 for 24 V DC applications.
Q3: What are the dimensions and weight?
A3: Approximately 3.2 cm × 10.7 cm × 7.6 cm; weight around 0.28 kg.
Q4: Is the channel count expandable?
A4: The module offers 16 channels fixed. For higher channel count, select ADV151 (32 CH) or ADV161 (64 CH).
Q5: What does the suffix -P53 represent?
A5: -P = pushbutton input option; 5 = no status indicator / no explosion protection; 3 = ISA G3 option with -20 °C to 70 °C range.
Q6: Does it support redundant control systems?
A6: Yes, it can be used in dual redundant configurations to ensure system reliability.
Q7: What is the recommended wiring method?
A7: It uses pressure-clamp terminals or dedicated AKB332 cable for quick connection.
Q8: What is the input response time?
A8: Typical response time is ≤ 160 ms for status input; pushbutton input requires at least 200 ms ON time.
Q9: Are versions with status indicators or explosion protection available?
A9: Yes, specific suffix variants offer indicator and explosion-proof features.
Q10: Can it operate below -20 °C?
A10: The -P53 variant is rated for -20 °C to +70 °C; operation below -20 °C is not guaranteed and requires external heating measures.
