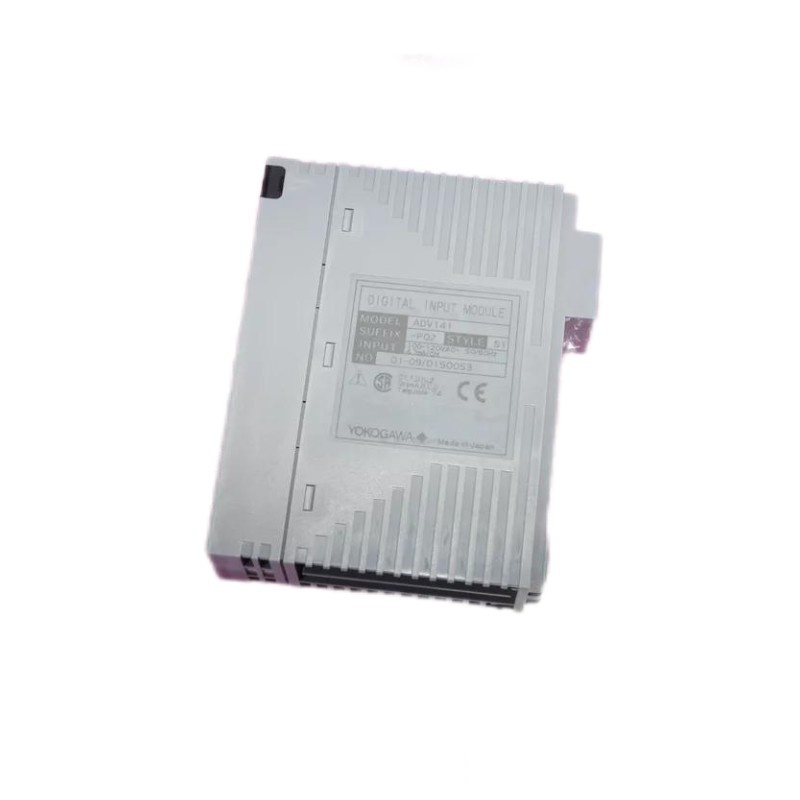

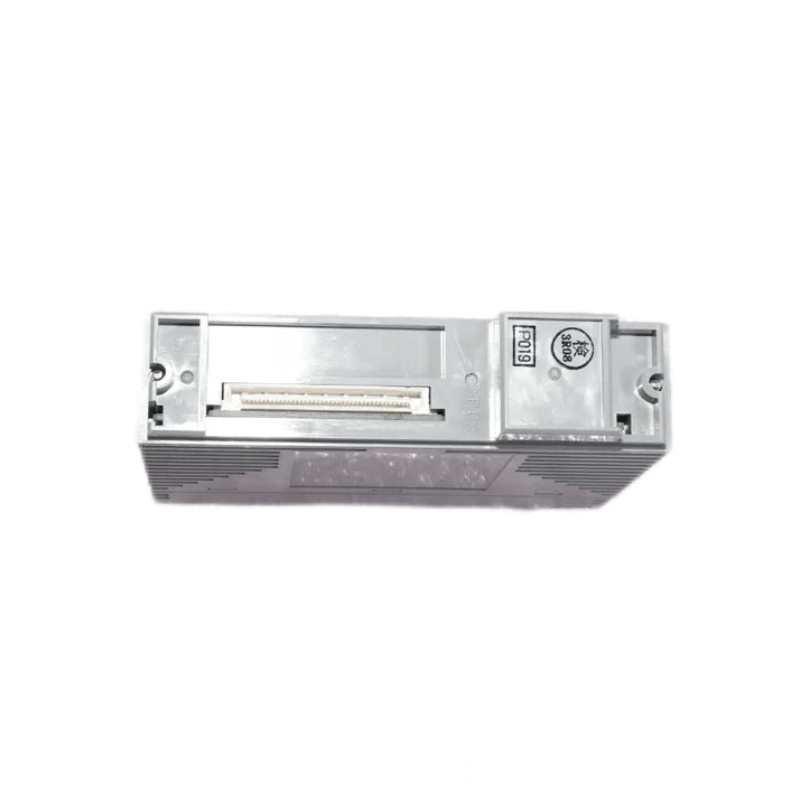

Yokogawa ADV141 Digital Input Module
Product Description
The Yokogawa ADV141 is a digital input module designed for integration into Yokogawa’s Vnet/IP and CENTUM systems. It is part of the ADVANT OIT (Open Instrumentation Technology) series, known for offering high-performance solutions for industrial automation. This module provides the capability to interface digital signals between field devices and a central control system, making it a crucial component in modern industrial monitoring and control applications.
The ADV141 module is engineered to handle digital inputs from devices like limit switches, push buttons, and other on/off devices. It is compact, with dimensions of 107.5 x 130 x 32.8 mm and a weight of 0.3 kg, making it highly versatile and easy to integrate into control panels or machinery.
Equipped with a high-speed response time, the ADV141 ensures accurate data transfer, critical for industries requiring real-time process control. With its highly reliable and robust design, it guarantees excellent performance even in harsh industrial environments.
Product Specifications
| Specification | Details |
|---|---|
| Model Number | ADV141 |
| Module Type | Digital Input Module |
| Dimensions | 107.5 × 130 × 32.8 mm |
| Weight | 0.3 kg |
| Input Voltage | 24 VDC (nominal) |
| Input Type | 16 digital inputs (voltage contact) |
| Response Time | < 10 ms (fast response time) |
| Signal Range | 0-24 VDC (for digital signals) |
| Mounting | DIN Rail / Panel Mount |
| Compatibility | CENTUM series, Vnet/IP systems |
| Operating Temperature | -20°C to +60°C |
| Operating Humidity | 5% to 95% RH (non-condensing) |
| Protection Rating | IP20 |
| Certifications | CE, UL certified |
Applications
The Yokogawa ADV141 digital input module is used in a variety of industrial applications where the conversion of digital signals from field devices to a control system is necessary. Some typical applications include:
-
Process Automation: Used in industries like chemical processing, oil and gas, and pharmaceuticals to monitor and control the status of devices such as limit switches, push buttons, and alarm contacts.
-
Manufacturing Automation: Ideal for factory automation systems, the module ensures real-time data transfer between machinery and the central control system.
-
Energy and Power Systems: In power plants or substations, it allows for the monitoring of equipment status, providing crucial information for predictive maintenance.
-
Water Treatment Plants: Collects data from various on/off devices, providing important input to control systems for water quality monitoring and chemical treatment processes.
-
HVAC Systems: The module can be used to interface with digital switches in heating, ventilation, and air conditioning systems, improving process control and efficiency.
Product Advantages
-
High-Speed Response: The ADV141 module offers fast response times (less than 10 ms), making it ideal for applications that require quick and accurate data transfer.
-
Compact Design: With its 107.5 x 130 x 32.8 mm size and 0.3 kg weight, this module is lightweight and space-efficient, easily integrated into control panels.
-
Wide Temperature Range: The module operates in a wide temperature range of -20°C to +60°C, making it suitable for a variety of industrial environments, from freezing to hot conditions.
-
Reliable Input Signals: The 16 digital inputs provide robust handling of field signals with 24 VDC input support, ensuring stable performance even in electrically noisy environments.
-
High Compatibility: It is fully compatible with the CENTUM series and Vnet/IP systems, making it a versatile choice for a wide range of industrial control applications.
-
Ease of Installation: The module is designed to mount on a DIN rail or panel, making it straightforward to integrate into existing control systems.
-
Environmental Protection: The IP20 rating offers protection against dust and moisture, ensuring durability in industrial settings.
Brand Information
-
Brand: Yokogawa
-
Industry: Industrial Automation, Process Control, Measurement and Instrumentation
-
Reputation: Yokogawa is a globally recognized leader in industrial automation, providing advanced solutions for process control, measurement, and instrumentation. Their products are widely used across sectors like oil and gas, chemical processing, energy, and manufacturing.
Product Series
The Yokogawa ADV141 is part of the ADVANT OIT series, which includes a variety of modules designed for integration into Yokogawa’s CENTUM and Vnet/IP systems. The ADVANT OIT series is known for its reliability and precision in interfacing various industrial field devices with control systems. It supports both digital and analog signals for a wide range of industrial applications.
Recommended Models from the Same Series or Related
| Model | Key Specifications |
|---|---|
| ADV142 | Analog Input Module, 4-20mA inputs |
| ADV144 | Digital Output Module, 16 outputs |
| ADV147 | Universal Input/Output Module |
| ADV148 | High-speed Digital Input Module |
| ADV151 | Temperature Input Module (RTD, TC) |
Recommended Yokogawa Popular Models
| Model | Description | Input Voltage | Size (WxHxD) |
|---|---|---|---|
| ADV141-S13 | Industrial-grade digital input module with high precision and extended functionality. | 24V DC | 180 x 140 x 55 mm |
| ADV141-S12 | Advanced digital input module for system integration with high-speed data processing. | 24V DC | 185 x 145 x 60 mm |
| ADV141-P13 | Compact pressure and temperature sensor with advanced output options. | 24V DC | 190 x 150 x 60 mm |
| ADV142-S13 | Multi-functional input module with enhanced signal processing capabilities. | 24V DC | 175 x 130 x 50 mm |
| ADV141-P12 | High-accuracy digital input module with expanded measurement range. | 24V DC | 185 x 145 x 55 mm |
Frequently Asked Questions (FAQs)
Q1: What is the main function of the Yokogawa ADV141 module?
A1: The ADV141 is a digital input module designed to interface digital signals from field devices like limit switches and push buttons to a control system.
Q2: What is the input voltage required for this module?
A2: The ADV141 module operates with a 24 VDC input, making it compatible with standard industrial digital field devices.
Q3: How many digital inputs does the module support?
A3: The ADV141 module supports 16 digital inputs, allowing it to handle a range of field devices.
Q4: What is the response time of the ADV141?
A4: The response time of the module is less than 10 ms, ensuring high-speed data transfer for real-time process control.
Q5: How is the ADV141 module mounted?
A5: The module can be mounted on a DIN rail or installed directly in a panel, making it easy to integrate into existing systems.
Q6: What is the temperature range in which the module can operate?
A6: The ADV141 module operates in a temperature range from -20°C to +60°C, making it suitable for a wide variety of industrial environments.
Q7: What kind of protection does the module offer?
A7: The module has an IP20 protection rating, providing basic protection against dust and moisture in industrial environments.
Q8: Is the ADV141 module compatible with other Yokogawa systems?
A8: Yes, the ADV141 is fully compatible with Yokogawa CENTUM and Vnet/IP systems, making it versatile for integration into various control setups.
Q9: What industries typically use the ADV141 module?
A9: The ADV141 is commonly used in process automation, manufacturing automation, energy systems, and water treatment plants for digital signal processing.
Q10: Can the ADV141 module be used in high-vibration environments?
A10: Yes, the ADV141 is designed to perform reliably in harsh industrial environments, including high-vibration applications.
