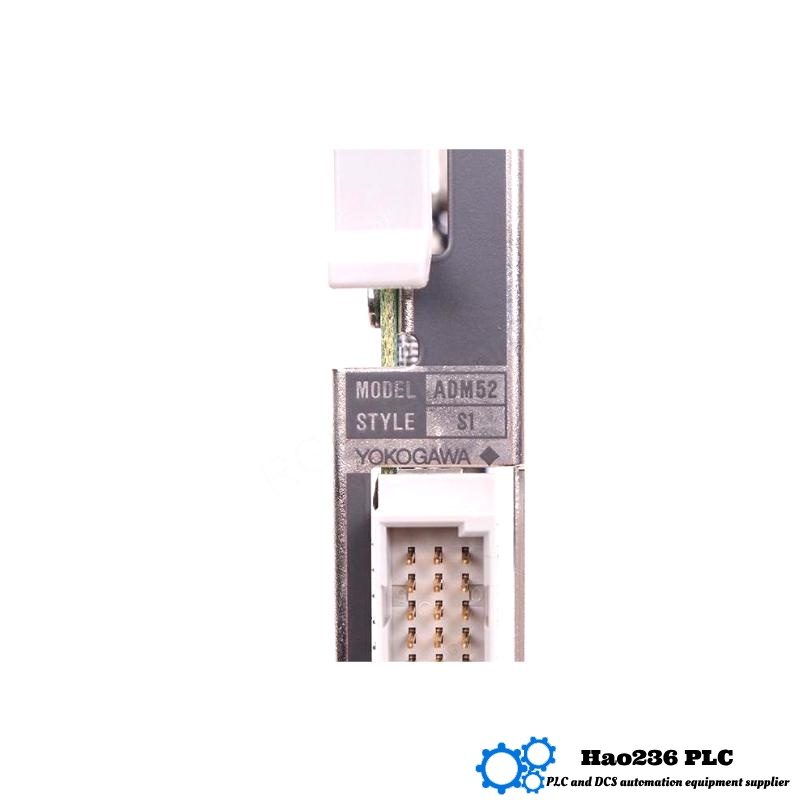

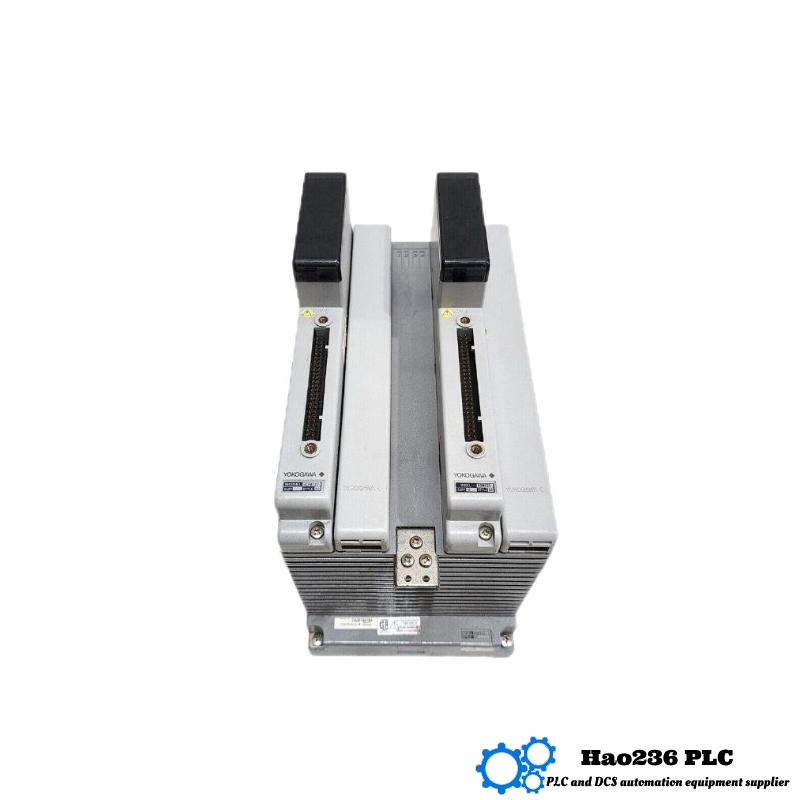

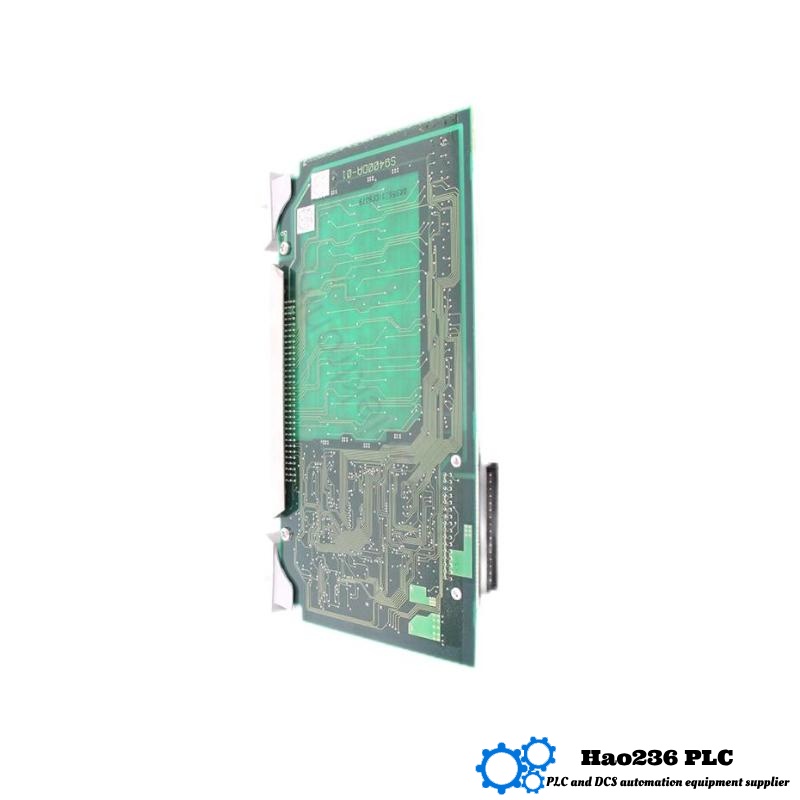

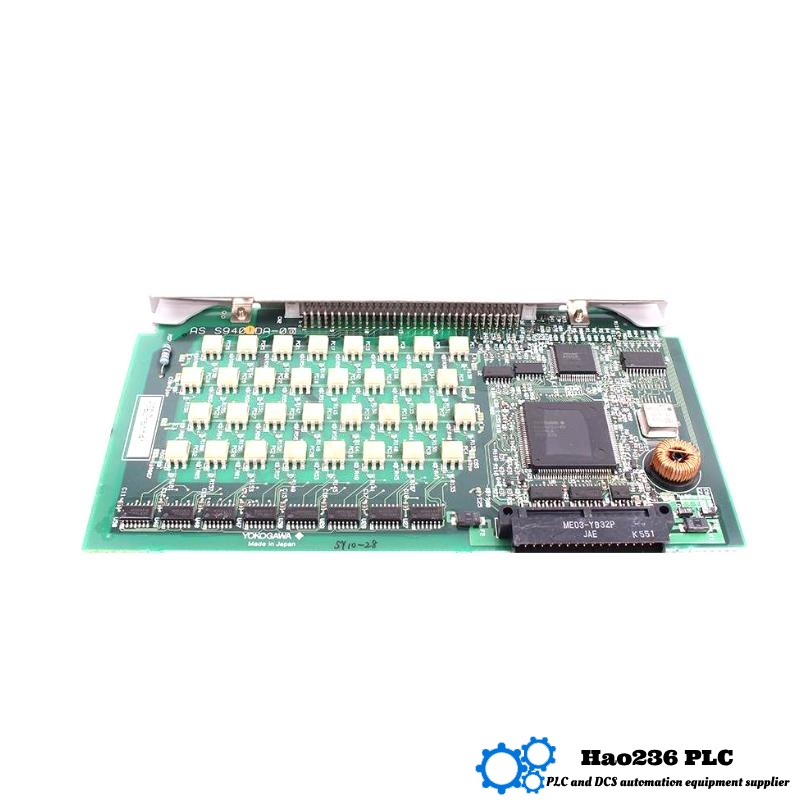

Yokogawa ADM52T Contact Output Module
Product Introduction
The Yokogawa ADM52T is an advanced 8-channel contact output module designed for industrial process automation. It is built to handle high-reliability switching operations using relay contact outputs. The module is part of Yokogawa’s I/O product family and integrates seamlessly with the CENTUM VP control system and other distributed control systems (DCS).
With its compact size and robust performance, the ADM52T ensures safe and accurate signal switching for various field devices such as alarms, lights, solenoids, and motor starters. Its design meets rigorous industrial standards, making it ideal for demanding environments such as petrochemical plants, power generation, and manufacturing facilities.
This module offers strong electrical isolation, rapid response time, and extended operating life. It is suitable for both discrete and analog applications, offering flexibility and reliability in automation systems.
Product Applications
The ADM52T module is widely used in process automation industries where precision and safety are critical. Typical applications include:
-
Distributed Control Systems (DCS)
-
Emergency Shutdown Systems (ESD)
-
Alarm and Notification Systems
-
Discrete Control for Valves and Actuators
-
Energy and Utility Management Systems
Its versatility makes it a preferred choice for sectors such as oil and gas, power generation, pharmaceuticals, and water treatment.
Product Advantages
-
8 independent relay contact channels for reliable switching
-
High isolation between input and output
-
Compact design for space-saving installation
-
Low power consumption
-
Extended operating temperature range
-
Seamless integration with Yokogawa systems
-
Easy to install and maintain
Brand and Series
-
Brand: Yokogawa
-
Product Series: I/O Module Series, compatible with CENTUM VP and other DCS platforms
Product Parameters
| Parameter | Specification |
|---|---|
| Model | ADM52T |
| Type | Contact Output Module |
| Output Type | Relay Contact Output |
| Number of Channels | 8 |
| Rated Voltage | 250 VAC / 30 VDC |
| Maximum Output Current | 5 A per channel (resistive) |
| Isolation Resistance | >100 MΩ |
| Response Time | < 10 ms |
| Operating Temp. Range | 0 to 55 °C |
| Storage Temp. Range | –20 to 70 °C |
| Dimensions | 30 × 130 × 150 mm |
| Weight | 1.36 kg |
| Mounting | DIN rail or backplane |
Recommended Related Models (Same Series)
| Model | Type | Channels | Description |
|---|---|---|---|
| ADM51C | Contact Output | 8 | General-purpose output module |
| ADM51-2 S4 | Contact Output | 8 | Enhanced performance version |
| ADM52S | Contact Output | 8 | Standard switching application |
| AAV144-S50 | Analog Output | 16 | High-density analog output module |
| ADV151-P50 | Pulse Input Module | 8 | Frequency and pulse signal detection |
Popular Yokogawa Models (Same Brand)
| Model | Type | Description |
|---|---|---|
| AAI543-H50 | Analog Input Module | High-accuracy analog measurement |
| ADV551-P00 | Digital Input Module | Discrete input for industrial sensors |
| ADM51C | Contact Output | Reliable relay switching |
| AAR181-S00 | RTD Input Module | Temperature input for RTD sensors |
| ALR121-S10 | Logic Solver Module | For safety system logic control |
Product FAQs
Q1: What is the output type of the ADM52T?
A1: The ADM52T uses relay contact outputs, capable of switching both AC and DC loads.
Q2: How many output channels does it have?
A2: It features 8 individual relay output channels.
Q3: Is the ADM52T suitable for switching inductive loads?
A3: Yes, but external protection such as snubber circuits is recommended for inductive loads.
Q4: What control systems is the ADM52T compatible with?
A4: It is compatible with Yokogawa’s CENTUM VP and other legacy DCS systems.
Q5: What is the maximum output current per channel?
A5: The maximum output current is 5 A per channel for resistive loads.
Q6: Does the module support hot swapping?
A6: Yes, it can be hot-swapped in supported chassis without powering down the system.
Q7: What kind of isolation does it provide?
A7: It offers galvanic isolation between output channels and system bus.
Q8: Is it DIN-rail mountable?
A8: Yes, the ADM52T supports both DIN rail and rack mounting options.
Q9: Can it operate in extreme temperatures?
A9: It has an operating temperature range from 0°C to 55°C.
Q10: What maintenance is required for the ADM52T?
A10: Routine visual inspection and testing of relay contacts are advised to ensure long-term reliability.
