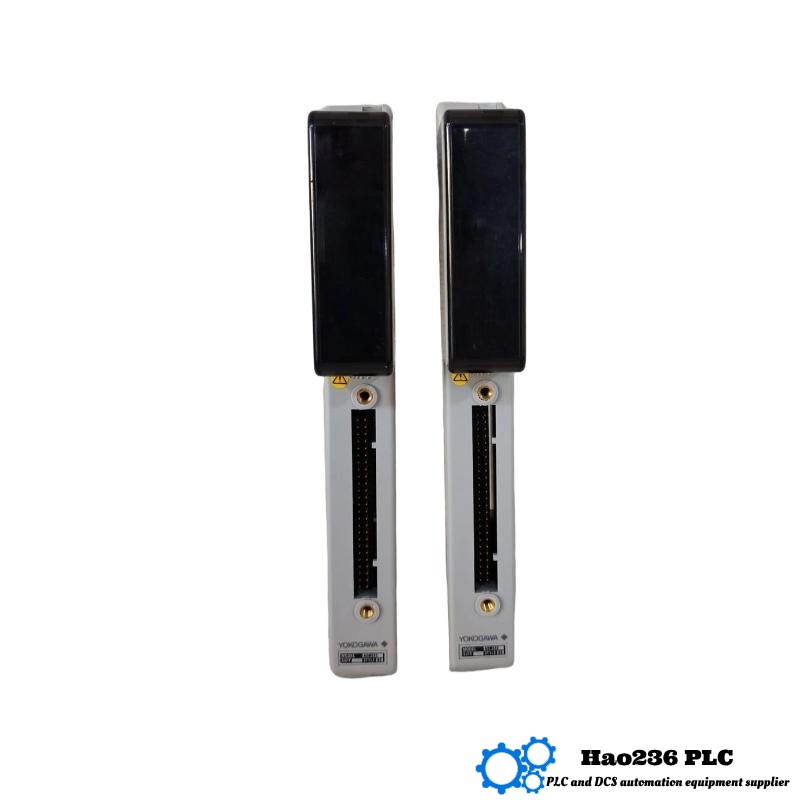

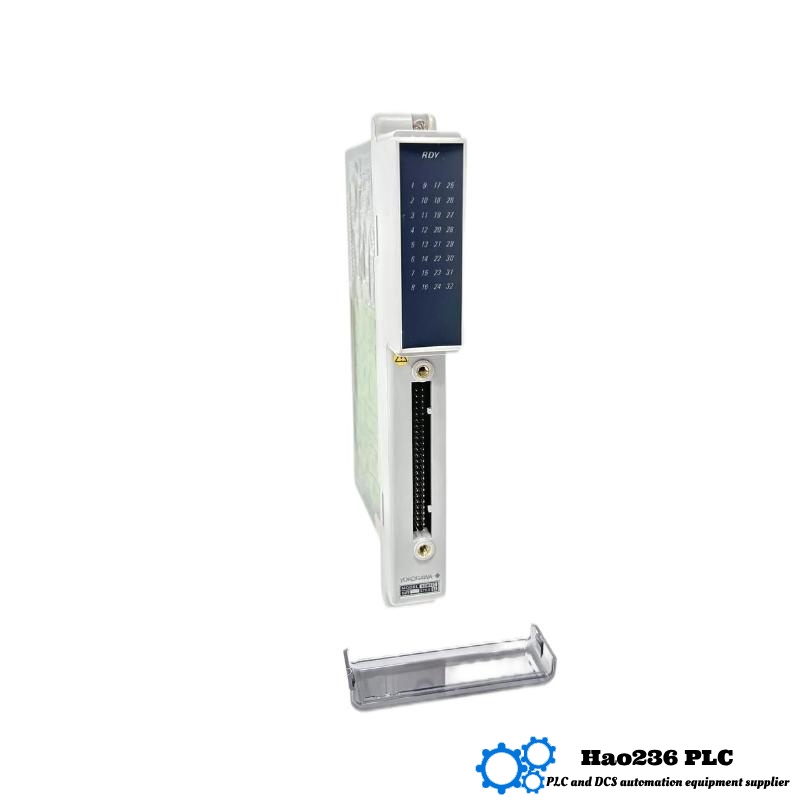

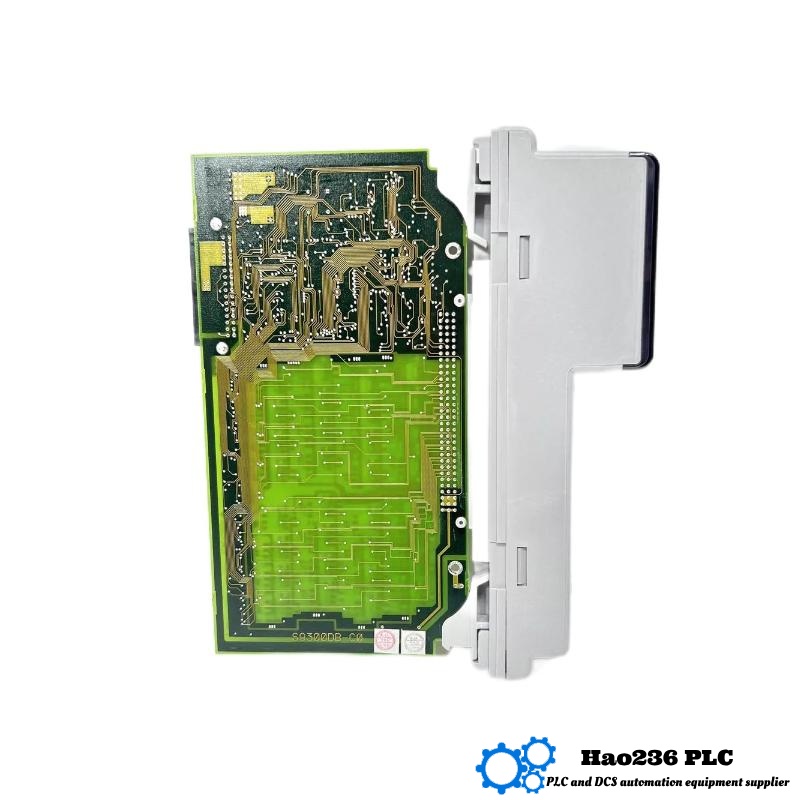

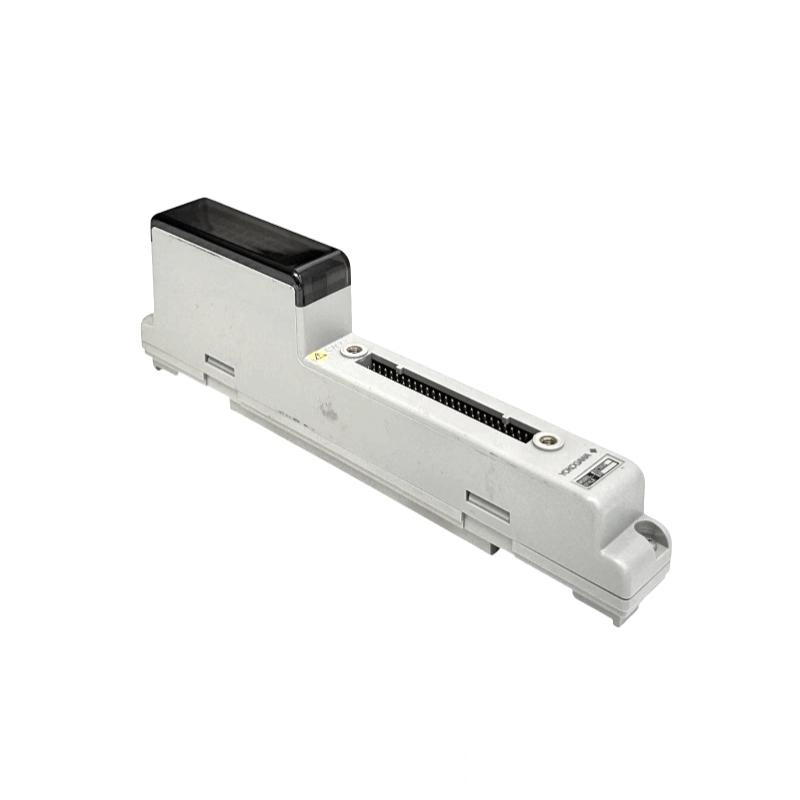

Yokogawa ADM52C-S2 Contact Output Module
Product Introduction
The Yokogawa ADM52C-S2 is a highly reliable contact output module designed to provide switching outputs for control and monitoring systems. It belongs to the ADM52 series of modules, widely used in Yokogawa’s distributed control systems (DCS) and process automation solutions. This module is engineered to handle electrical contact outputs, enabling the control of alarms, indicators, relays, and other auxiliary devices.
Its compact design, combined with robust electrical performance, makes it suitable for a wide range of industrial applications. The ADM52C-S2 module supports seamless integration with Yokogawa control systems, delivering high-speed and stable output performance, critical for maintaining process safety and operational efficiency.
Technical Parameters
| Parameter | Specification |
|---|---|
| Model Number | ADM52C-S2 |
| Dimensions | 130 × 100 × 30 mm |
| Weight | 1.5 kg |
| Output Type | Contact output (relay type) |
| Number of Outputs | 4 contacts (SPST or SPDT types) |
| Output Rating | 5 A at 250 VAC / 30 VDC |
| Response Time | Approx. 20 ms |
| Power Supply | 24 VDC or 100-240 VAC (depending on variant) |
| Operating Temperature Range | 0 °C to 55 °C |
| Storage Temperature Range | –20 °C to 70 °C |
| Mounting Type | DIN rail or panel mounting |
| Electrical Isolation | Optically isolated outputs |
| Certification | CE, UL certified |
Product Applications
The ADM52C-S2 contact output module is widely used in:
-
Process Control Systems – Activating alarms, indicators, and control relays in industrial automation systems.
-
Safety and Alarm Systems – Providing reliable switching outputs for fault and emergency notification systems.
-
Building Automation – Controlling HVAC, lighting, and security system devices.
-
Manufacturing Plants – Driving external relays and indicators for machine status and fault signaling.
-
Energy and Utility Systems – Managing switchgear and auxiliary power equipment control outputs.
Product Advantages
-
Reliable Contact Switching: Provides stable and precise relay contact outputs suitable for various control tasks.
-
Compact and Lightweight: The small form factor (130 × 100 × 30 mm) and moderate weight (1.5 kg) enable easy installation in limited spaces.
-
Electrical Isolation: Optically isolated outputs protect the control system from electrical noise and interference.
-
Flexible Mounting: Supports DIN rail and panel mounting for versatile installation options.
-
High Output Capacity: Capable of handling up to 5 A load, accommodating various industrial devices.
-
Wide Temperature Range: Operates reliably across typical industrial temperature conditions.
-
Certified for Safety and Quality: Meets international standards ensuring product safety and reliability.
Brand Information
Yokogawa Electric Corporation is a global leader in industrial automation, control, and measurement systems. Renowned for its high-quality products and innovative solutions, Yokogawa offers a wide range of control modules such as the ADM52C-S2, serving industries worldwide with reliable and precise automation technology.
Recommended Related Models in the Same Series
| Model | Description | Dimensions (mm) | Weight (kg) | Key Features |
|---|---|---|---|---|
| ADM52C-S1 | Contact output module, 4 contacts | 130 × 100 × 30 | 1.4 | Basic contact output with 4 relays |
| ADM52C-S3 | Contact output module, 8 contacts | 160 × 100 × 30 | 1.8 | Higher output count |
| ADM52C-R1 | Relay output module, single output | 80 × 100 × 25 | 0.9 | Compact size for small control panels |
| ADM52C-H1 | High-capacity contact output module | 130 × 120 × 35 | 2.0 | Supports higher load ratings |
| ADM52C-D1 | Digital output module with contact | 140 × 110 × 30 | 1.6 | Combined digital and contact outputs |
Popular Yokogawa Models
| Model | Description | Dimensions (mm) | Weight (kg) | Key Features |
|---|---|---|---|---|
| ADM52C-I1 | Analog input module | 130 × 100 × 30 | 1.5 | High precision analog inputs |
| ADM52C-A1 | Analog output module | 130 × 100 × 30 | 1.5 | Precise analog control output |
| ADM62F-S1 | Advanced contact output module | 160 × 120 × 40 | 2.3 | Enhanced performance and durability |
| ADM62F-D1 | Digital input module | 130 × 100 × 30 | 1.5 | High-speed digital input processing |
| ADM71F | Power supply module | 180 × 100 × 60 | 3.0 | Stable power supply for system modules |
Frequently Asked Questions (FAQ)
Q1: What are the dimensions of the ADM52C-S2 module?
A1: The module measures 130 × 100 × 30 mm.
Q2: How much does the ADM52C-S2 weigh?
A2: It weighs approximately 1.5 kg.
Q3: How many output contacts does the module have?
A3: The module features 4 contact outputs.
Q4: What is the maximum output load rating?
A4: It supports up to 5 A at 250 VAC or 30 VDC.
Q5: What types of mounting are supported?
A5: DIN rail and panel mounting are both supported.
Q6: Is the module electrically isolated?
A6: Yes, the outputs are optically isolated to prevent interference.
Q7: What is the operating temperature range?
A7: It operates reliably between 0 °C and 55 °C.
Q8: Is the module certified for safety standards?
A8: Yes, it has CE and UL certifications.
Q9: Can this module be used in building automation?
A9: Yes, it is commonly used for controlling HVAC, lighting, and security devices.
Q10: What is the response time of the outputs?
A10: The response time is approximately 20 milliseconds.
