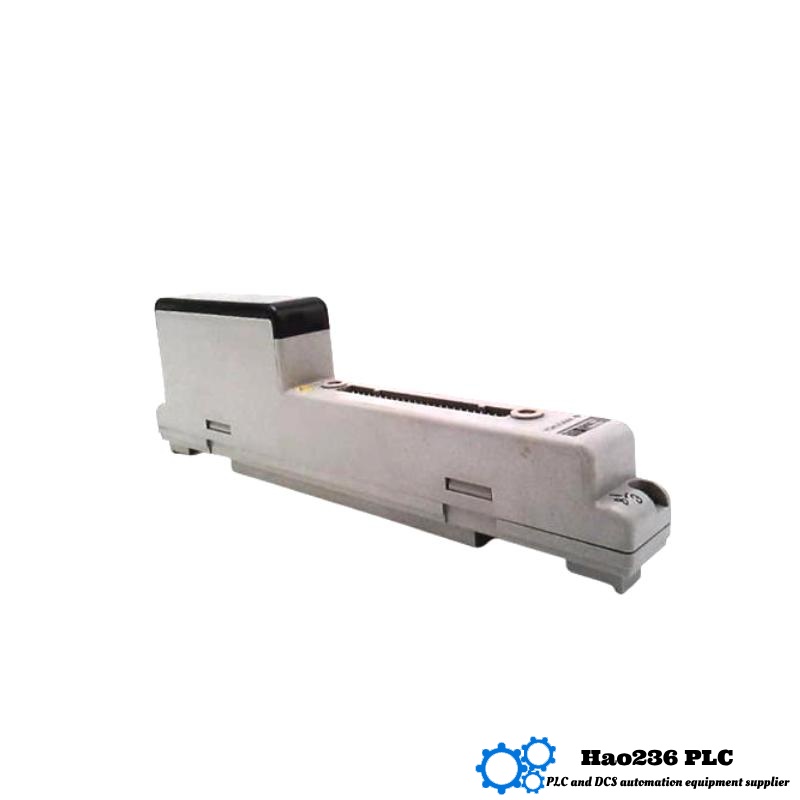

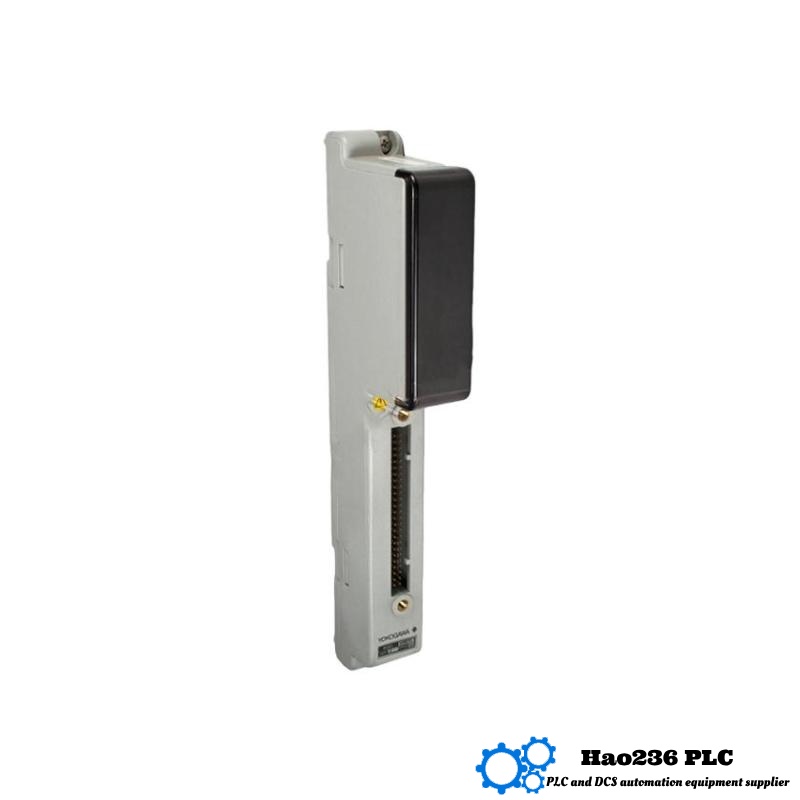

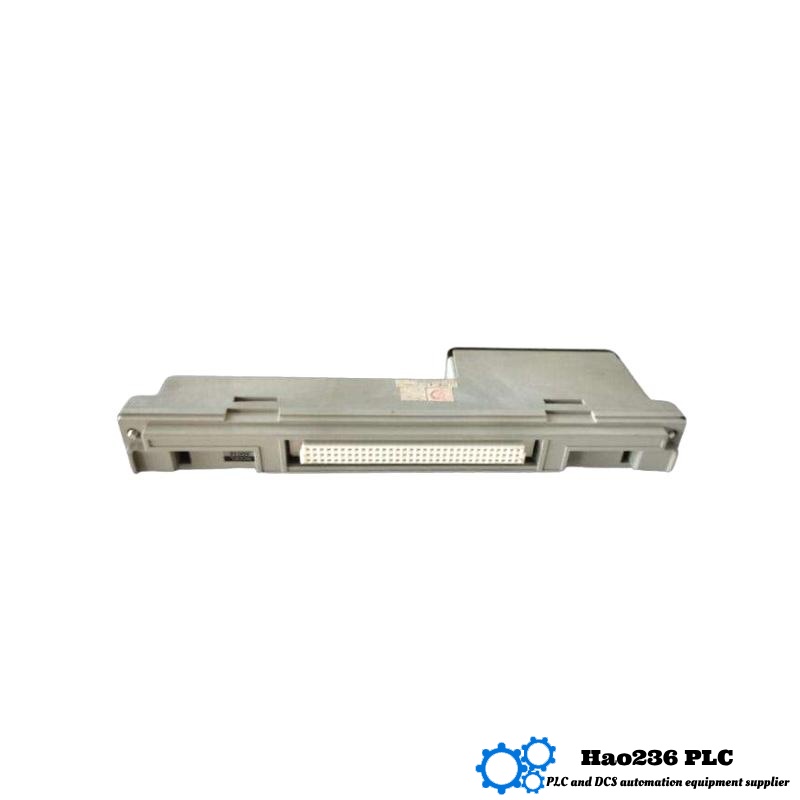

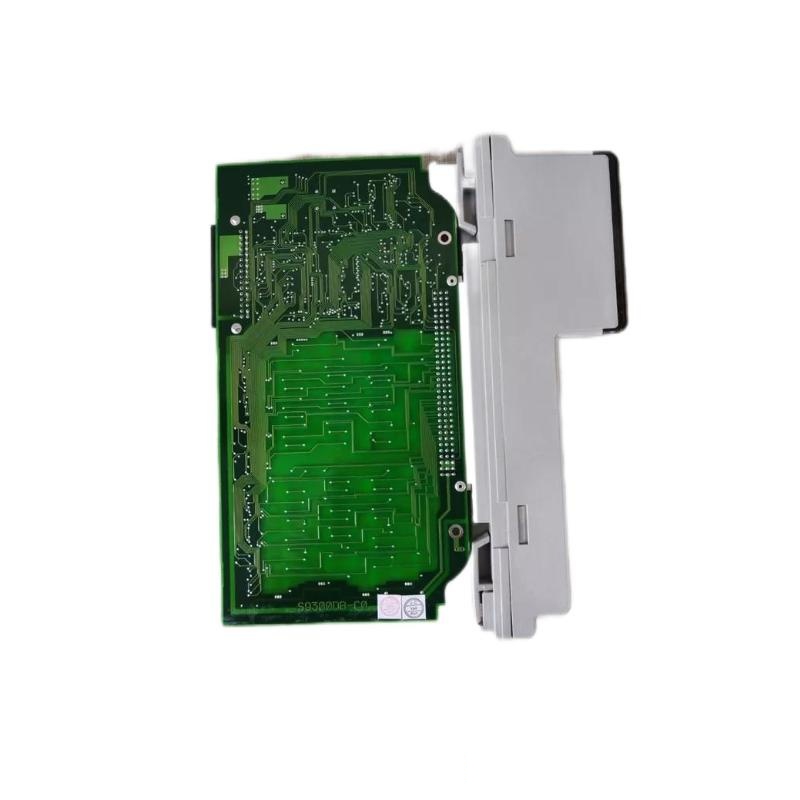

Yokogawa ADM52C-2 S3 Contact Output Module
Product Introduction
The Yokogawa ADM52C-2 S3 is a highly efficient contact output module designed for integration into industrial automation and control systems. It provides reliable switching outputs to interface between control systems and external equipment such as alarms, relays, solenoids, and other field devices. The module is designed to meet the high demands of industrial environments, ensuring seamless performance in mission-critical applications.
This model offers a combination of dry contact output functionality, electrical isolation, and fast response times, making it an ideal solution for industries that require robust and precise control. The ADM52C-2 S3 is the latest version in the ADM series, incorporating improved features and performance for enhanced reliability and flexibility.
Product Parameters
| Parameter | Specification |
|---|---|
| Model | ADM52C-2 S3 |
| Output Type | Contact (Relay) Output |
| Number of Channels | 8 |
| Rated Voltage | 250 VAC / 30 VDC |
| Rated Current | 2 A |
| Response Time | ≤ 10 ms |
| Isolation Voltage | 1500 VAC |
| Operating Temperature | -10 to 55 °C |
| Dimensions | 130 × 100 × 30 mm |
| Weight | 1.5 kg |
| Mounting | DIN Rail |
| Connection Type | Screw Terminal |
| Protection Level | IP20 |
Product Applications
The ADM52C-2 S3 module is designed for a wide variety of applications within industrial automation, process control, and safety systems. It is commonly used in the following sectors:
-
Control Systems: Interfacing with programmable logic controllers (PLCs) to manage and control external devices such as pumps, motors, and actuators.
-
Safety and Alarm Systems: Used to trigger alarm devices or emergency shutdown systems when certain thresholds or conditions are met.
-
Process Control: Employed in factory automation and process control systems where reliable output switching is required to monitor and control manufacturing processes.
-
Energy Management: Ideal for controlling and switching relays in energy management systems, allowing for accurate monitoring and control of power distribution.
-
Equipment Monitoring: Used in industrial equipment monitoring systems to provide outputs for system feedback or alert signals.
The ADM52C-2 S3 is highly adaptable, making it an ideal choice for industries such as automotive, power, chemical, and oil & gas, where continuous operation and safety are critical.
Product Advantages
-
Reliability: The ADM52C-2 S3 provides durable and stable performance over time, ensuring minimal downtime and reducing maintenance requirements.
-
Electrical Isolation: The module offers excellent isolation (1500 VAC), ensuring that electrical signals from external devices do not interfere with the control system, improving overall safety and reliability.
-
Fast Response Time: With a response time of ≤10 ms, the module is capable of rapid switching, which is crucial in high-speed automation and control applications.
-
Compact Design: The module features a compact size of 130 × 100 × 30 mm, making it easy to install in space-constrained control panels without compromising on performance.
-
Versatile Integration: Supports various industrial protocols, making it easy to integrate with existing systems and control networks.
-
Ease of Installation: The module can be easily mounted on a DIN rail and uses screw terminals for simple and secure connections, minimizing installation time and errors.
-
Wide Temperature Range: With an operational temperature range of -10 to 55 °C, it can be used in a variety of harsh environments and industrial settings.
Brand Information
The Yokogawa ADM52C-2 S3 is a product of Yokogawa Electric Corporation, a leading global provider of industrial automation solutions. Founded in 1915, Yokogawa is renowned for its high-quality products and pioneering contributions to industrial control systems. The company’s solutions are designed to improve the efficiency, safety, and reliability of industrial operations worldwide.
Recommended Related Models (Same Series or Similar Functionality)
| Model | Output Type | Channels | Dimensions (mm) | Weight (kg) | Notes |
|---|---|---|---|---|---|
| ADM52C-2 | Contact Output | 8 | 130 × 100 × 30 | 1.5 | Standard version of ADM52C-2 |
| ADM52C-2 S4 | Contact Output | 8 | 130 × 100 × 30 | 1.6 | Newer version with enhanced features |
| ADM52C-3 | Contact Output | 12 | 180 × 100 × 30 | 1.8 | Model with more output channels |
| ADM52C-R | Contact Output | 8 | 130 × 100 × 30 | 1.5 | Relay type with additional safety features |
| ADM52C-S | Solid State | 8 | 130 × 100 × 30 | 1.4 | Solid-state variant for enhanced reliability |
Recommended Popular Models from Yokogawa
| Model | Type | Channels | Dimensions (mm) | Weight (kg) | Application Area |
|---|---|---|---|---|---|
| ADW51B | Analog Input Module | 16 | 130 × 120 × 35 | 1.6 | For processing analog signals |
| ADM53C | Digital Output | 8 | 130 × 100 × 30 | 1.5 | High-speed switching applications |
| ADM54A | Digital Input | 16 | 150 × 100 × 40 | 1.8 | Digital monitoring applications |
| ADM56B | Communication Module | N/A | 130 × 100 × 30 | 1.5 | Fieldbus communication |
| ADU51A | Power Supply Module | N/A | 130 × 90 × 30 | 1.3 | Power distribution and control |
FAQ (Q&A)
Q1: What is the output type of the ADM52C-2 S3?
A1: The ADM52C-2 S3 provides contact (relay) outputs for controlling external devices like relays, solenoids, and alarm systems.
Q2: How many output channels does the ADM52C-2 S3 have?
A2: The ADM52C-2 S3 has 8 output channels, providing versatile control options.
Q3: What is the rated voltage of the ADM52C-2 S3?
A3: The module supports a rated voltage of 250 VAC / 30 VDC, making it suitable for a variety of industrial applications.
Q4: What is the response time of the ADM52C-2 S3?
A4: The response time of the ADM52C-2 S3 is ≤ 10 ms, ensuring quick and efficient operation in fast-paced environments.
Q5: What is the maximum current rating for each output channel?
A5: Each output channel can handle a maximum current of 2 A, providing sufficient power for most industrial applications.
Q6: What is the isolation voltage of the ADM52C-2 S3?
A6: The module features an isolation voltage of 1500 VAC, ensuring safe operation by preventing interference between input and output signals.
Q7: What are the dimensions and weight of the ADM52C-2 S3?
A7: The module measures 130 × 100 × 30 mm and weighs 1.5 kg, making it compact and easy to install in standard control panels.
Q8: Can the ADM52C-2 S3 be mounted on a DIN rail?
A8: Yes, the module can be easily mounted on a DIN rail for convenient installation.
Q9: What type of protection does the ADM52C-2 S3 have?
A9: The ADM52C-2 S3 has an IP20 protection level, which safeguards it from solid objects but not liquids.
Q10: What is the operational temperature range of the ADM52C-2 S3?
A10: The module operates efficiently in temperatures ranging from -10°C to 55°C.
