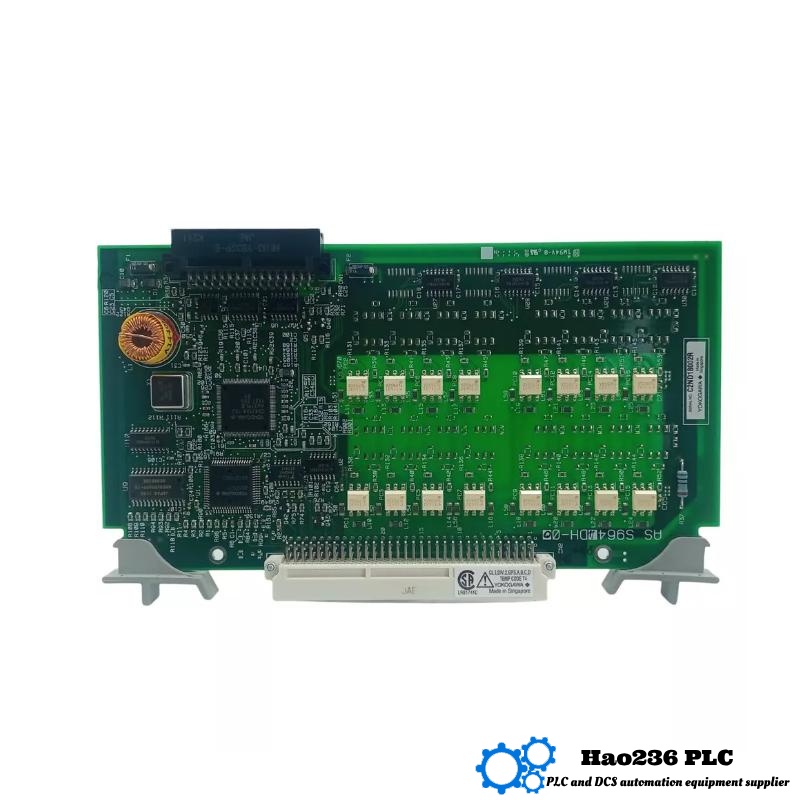

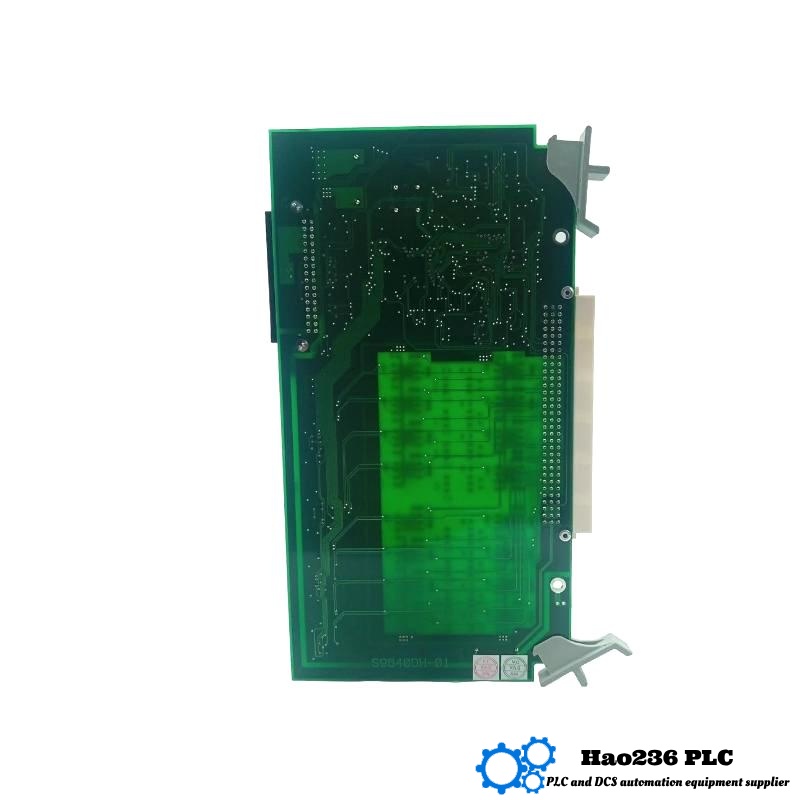

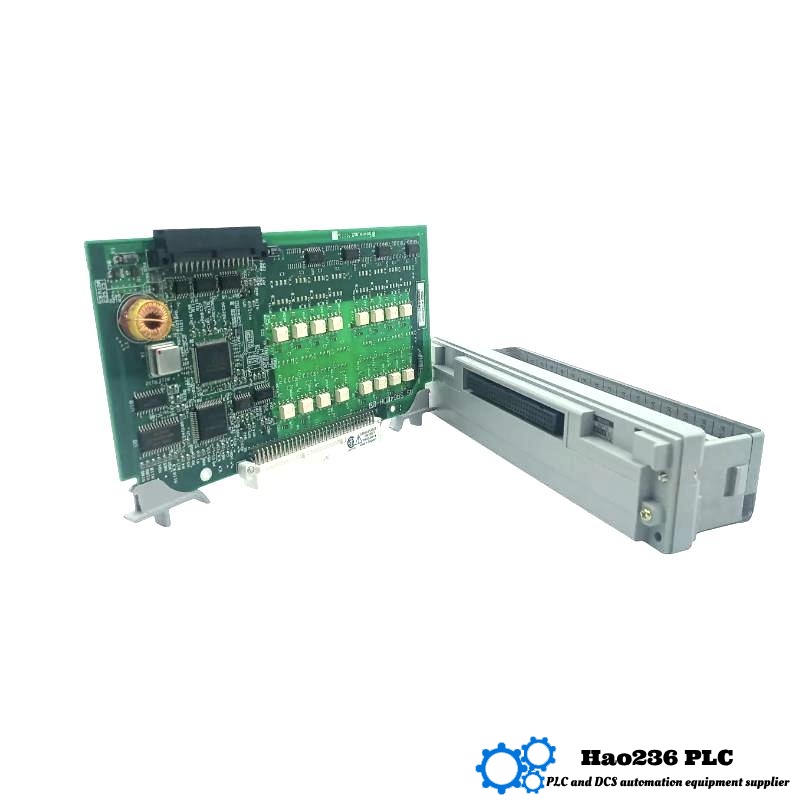

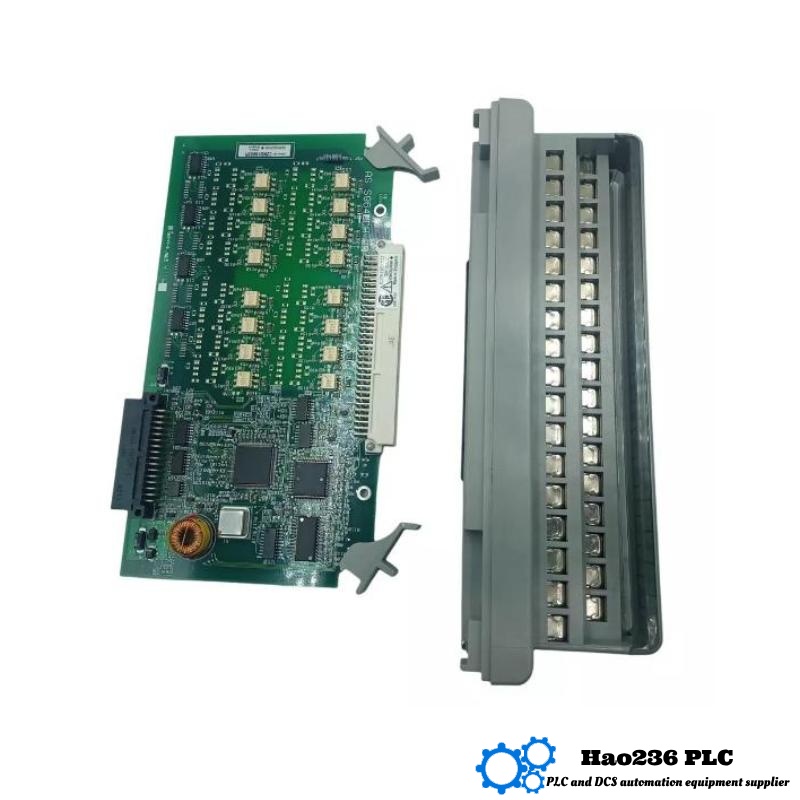

Yokogawa ADM51T Contact Output Module
Product Introduction
The Yokogawa ADM51T is a high-performance Contact Output Module designed to provide robust and reliable output control for industrial automation systems. This module is specifically built to interface with external devices such as relays, alarms, and actuators, providing control over critical functions within automated systems. The ADM51T offers a combination of versatility, speed, and reliability, making it ideal for a wide range of industrial applications.
Designed to handle 8 discrete contact outputs, the ADM51T ensures that digital signals from the control system are properly sent to the connected equipment. Its compact form factor of 125 x 130 x 248 mm allows it to fit seamlessly into control panels where space is often at a premium. This module is engineered for efficient performance, delivering fast switching speeds and ensuring minimal delays in output activation, which is crucial for process control systems.
Applications
The ADM51T Contact Output Module is widely used across industries where precise control of output signals is required. Key applications include:
-
Industrial Automation: Used to control machinery, devices, and systems that require discrete output contact signals for activation or deactivation.
-
Safety and Alarm Systems: Ideal for triggering alarms, emergency shutdowns, and interlocks to ensure safe operation in industrial environments.
-
Power Generation and Distribution: Controls power equipment such as circuit breakers, relays, and other protective devices in electrical systems.
-
Manufacturing Systems: Used in automated production lines to manage machine states, stop/start operations, and activate various production devices.
-
Building Management Systems (BMS): Controls building infrastructure systems such as lighting, HVAC, and fire alarm systems.
-
Process Control: Ensures precise control over systems such as pumps, valves, and conveyors, making it an essential component in process automation.
Advantages
-
High Output Capacity: With 8 output channels, the ADM51T allows users to control multiple devices simultaneously, making it ideal for medium-density applications.
-
Fast Switching Speed: The ADM51T ensures that output switches occur rapidly, minimizing delays and improving system responsiveness in real-time applications.
-
Compact and Space-Efficient: Its dimensions of 125 x 130 x 248 mm make it an ideal choice for control panels where space is limited, without compromising on functionality.
-
Enhanced Reliability: Built for long-term operation, the ADM51T delivers consistent performance even in demanding industrial environments, ensuring minimal downtime and reduced maintenance needs.
-
Low Power Consumption: The ADM51T is designed with power efficiency in mind, consuming just 1.0 W of power under typical operating conditions, helping to reduce overall operational costs.
-
Seamless Integration: Easily integrates with Yokogawa control systems and third-party devices, making it an ideal component for enhancing the functionality of automation systems.
Brand
-
Brand: Yokogawa
Product Parameters
Here are the detailed specifications for the Yokogawa ADM51T Contact Output Module:
| Parameter | Details |
|---|---|
| Model | ADM51T |
| Output Type | Contact Output (Dry Contact) |
| Number of Outputs | 8 Outputs |
| Output Voltage Range | 24 V DC (typical) |
| Output Current | 1 A Max per Output |
| Dimensions | 125 x 130 x 248 mm |
| Weight | 2 kg |
| Power Consumption | 1.0 W (typical) |
| Mounting | DIN Rail or Panel Mount |
| Temperature Range | -10 °C to +55 °C |
| Response Time | 10 ms (typical per output) |
Related Models
Here are five related models that belong to the same Yokogawa series or provide similar functionalities:
| Model Number | Description | Outputs | Output Type | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| ADM51C | Contact Output Module | 8 | Dry Contact | 125 x 130 x 248 | 2 |
| ADM52C | High-Density Contact Output Module | 16 | Dry Contact | 125 x 130 x 248 | 2.2 |
| ADM53C | Isolated Contact Output Module | 8 | Dry Contact | 125 x 130 x 248 | 2.1 |
| ADM54C | Compact Contact Output Module | 4 | Dry Contact | 125 x 130 x 248 | 1.8 |
| ADM55C | Extended Contact Output Module | 12 | Dry Contact | 125 x 130 x 248 | 2.3 |
Popular Yokogawa Models
Here are five other popular Yokogawa models commonly used in industrial automation:
| Model Number | Description | Channels | Input/Output Type | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| AAI141-S00 | 4–20 mA Input Module | 8 | 4–20 mA DC | 107.5 x 32.8 x 130 | 0.2 |
| AAI132-S00 | RTD Input Module | 8 | Pt100/Pt1000 RTD | 107.5 x 32.8 x 130 | 0.2 |
| AAB142-S00 | Voltage Output Module | 8 | 0–10 V DC | 107.5 x 32.8 x 130 | 0.2 |
| AAF141-S00 | Current Output Module | 8 | 4–20 mA DC | 107.5 x 32.8 x 130 | 0.2 |
| AAD321-S00 | Universal Input/Output Hybrid Module | 4 IN / 4 OUT | TC, RTD, mA, V | 107.5 x 65.6 x 130 | 0.35 |
FAQ
-
Q: How many outputs does the ADM51T module support?
A: The ADM51T supports 8 discrete contact outputs. -
Q: What is the maximum output current per contact?
A: The maximum output current per contact is 1 A. -
Q: How is the ADM51T mounted?
A: The ADM51T can be mounted on a DIN rail or directly to a panel. -
Q: What is the weight of the ADM51T?
A: The ADM51T weighs 2 kg. -
Q: What is the typical power consumption of the ADM51T?
A: The ADM51T consumes approximately 1.0 W. -
Q: What is the operating temperature range for the ADM51T?
A: The ADM51T operates within a temperature range of -10 °C to +55 °C. -
Q: What is the response time for each output?
A: The response time is typically 10 ms per output. -
Q: How many outputs can the ADM51T handle?
A: The ADM51T can handle up to 8 contact outputs. -
Q: Can the ADM51T be used in high-density output applications?
A: Yes, the ADM51T is designed to handle multiple outputs efficiently, making it suitable for high-density applications. -
Q: Is the ADM51T compatible with other Yokogawa systems?
A: Yes, the ADM51T integrates seamlessly with other Yokogawa control systems.
