Product Overview

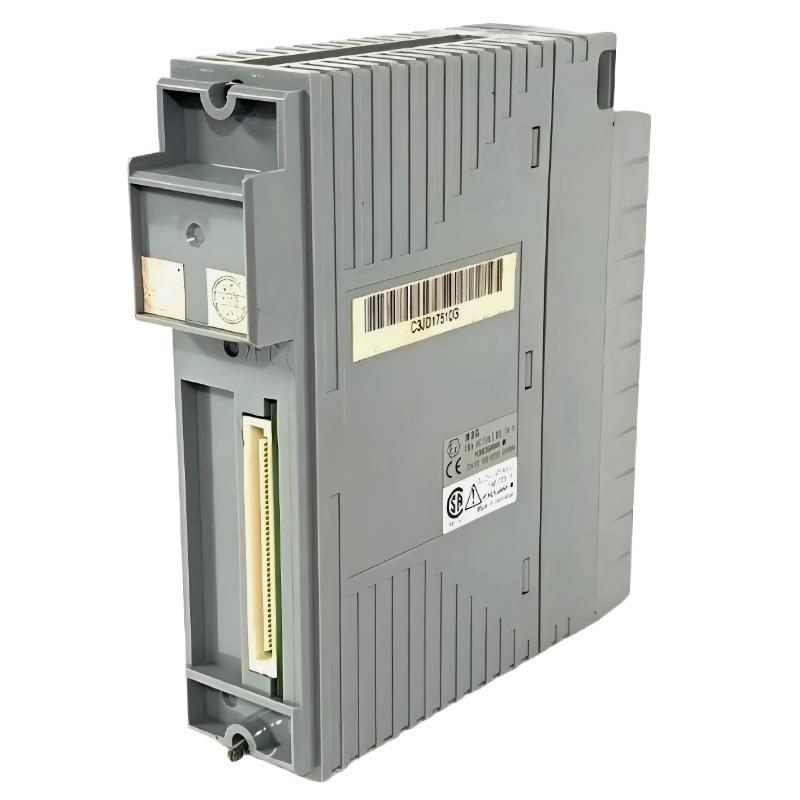

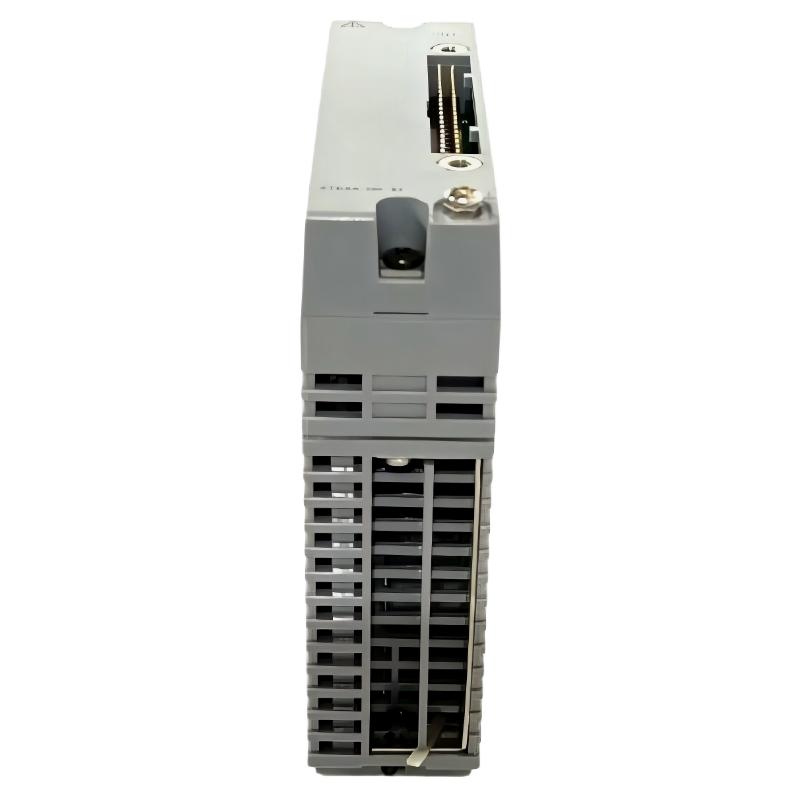

The Yokogawa AAV544 Voltage Output Module is a high-reliability isolated analog voltage output module designed for Yokogawa CENTUM Distributed Control Systems (DCS). It converts digital control signals into precise analog voltage outputs for accurate regulation of industrial field devices such as actuators, control valves, and process controllers.
This module is engineered for high-density output, strong electrical isolation, and stable long-term performance, making it suitable for mission-critical industrial environments including oil & gas, petrochemical, chemical processing, and power generation systems.
The AAV544 supports 16 isolated output channels with a standard -10 to +10 V DC output range, ensuring precise and stable control performance in complex automation systems.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Yokogawa |
| Model | AAV544 |
| Product Type | Isolated Voltage Output Module |
| System Compatibility | CENTUM VP / CENTUM CS 3000 |
| Output Channels | 16 channels (isolated) |
| Output Signal Range | -10 to +10 V DC |
| Allowable Load Resistance | ≥ 5 kΩ |
| Accuracy | ±0.3% FS or ±12 mV (whichever is greater) |
| Data Update Period | 10 ms |
| Step Response Time | Approx. 40 ms |
| Temperature Drift | ±0.1% / 10°C or ±10 mV / 10°C |
| Isolation Voltage | 1500 V AC (output to system, 1 minute) |
| Power Supply | 5 V DC (via backplane) |
| Current Consumption | Max 860 mA |
| Power Dissipation | Approx. 5.5 W |
| Output Type | Analog voltage output |
| Mounting Type | Rack-mounted I/O module |
| Dimensions (H × W × D) | 107.5 × 130 × 32.8 mm |
| Weight | 0.2 kg |
Function and Working Principle
The AAV544 operates as a digital-to-analog conversion interface module (DAC) within a Yokogawa DCS system.
Its working process includes:
- Receiving digital control signals from the DCS controller
- Processing data through internal DAC circuitry
- Converting digital values into precise analog voltage signals
- Providing isolated output to field devices
- Continuously updating output signals in real time
This enables precise control of industrial equipment such as valves, actuators, dampers, and other analog-driven devices.
The key advantage is its electrical isolation between system and field side, which reduces noise interference and protects control hardware in harsh industrial environments.
Role in Industrial Control Systems
Within Yokogawa DCS architecture, the AAV544 functions as a front-end analog output interface module.
Its main roles include:
- Generating precise analog voltage signals for process control
- Supporting closed-loop control loops in industrial automation
- Ensuring stable real-time output for field device regulation
- Maintaining system integrity through electrical isolation
It is essential for achieving high-precision process control, operational stability, and safe automation performance.
Industrial Applications
The AAV544 is widely used in:
- Oil and gas refining systems
- Petrochemical and chemical processing plants
- Power generation and turbine control systems
- Water treatment and utility automation
- Industrial manufacturing automation
- Distributed Control System (DCS) environments
It is particularly suitable for applications requiring continuous analog voltage control with high accuracy and reliability.
Installation and System Integration
Proper installation ensures stable operation:
- Installed in Yokogawa CENTUM I/O racks or control cabinets
- Connected via system backplane architecture
- Requires load resistance ≥ 5 kΩ for proper output performance
- Shielded wiring recommended to reduce electrical noise
- Proper grounding required to maintain signal stability and isolation performance
Configuration is handled via Yokogawa engineering tools within the DCS environment.
Compatible System Components
The AAV544 typically works with:
- Yokogawa CENTUM VP / CS 3000 controllers
- Field actuators and control valves
- Analog voltage-driven industrial devices
- System I/O backplane modules
- Process automation instrumentation systems
These components together form a complete distributed process control ecosystem.
Recommended Alternative Models
| Model | Type | Key Feature | Application |
|---|---|---|---|
| Yokogawa AAV542-S50 | Voltage Output Module | Non-isolated version | Standard control systems |
| Yokogawa AAI543-S50 | Current Output Module | 4–20 mA output | Process control applications |
| Yokogawa AAV544-S50 | Voltage Output Module | Variant configuration | Advanced system integration |
| Yokogawa AAV541-S50 | Voltage Output Module | Lower channel density | Compact control systems |
| Yokogawa AAI141 | Analog Input Module | Signal acquisition side | Measurement systems |
Key Advantages
- 16-channel isolated high-density voltage output design
- Stable -10 to +10 V DC analog output
- High accuracy with ±0.3% full-scale precision
- Fast 10 ms update cycle for real-time control
- Strong electrical isolation (1500 V AC)
- Compact industrial-grade module structure
- Reliable long-term continuous operation
- Seamless integration with Yokogawa CENTUM systems
Technical FAQs
Q1: What is the main function of the AAV544?
It converts digital control signals into analog voltage outputs for industrial process control.
Q2: What is the output range?
It supports -10 to +10 V DC analog voltage output.
Q3: Is the module isolated?
Yes, it provides electrical isolation between output and system circuits.
Q4: Where is it commonly used?
It is used in oil & gas, petrochemical, power generation, and chemical industries.
Q5: What devices does it control?
It is used to control valves, actuators, and analog field equipment.
Conclusion
The Yokogawa AAV544 Voltage Output Module is a high-performance isolated analog output solution designed for industrial DCS systems. With its strong electrical isolation, stable voltage output, and precise control capability, it ensures reliable and accurate process regulation in demanding industrial environments.
It is widely used in mission-critical automation systems where signal integrity, control precision, and long-term operational stability are essential.
