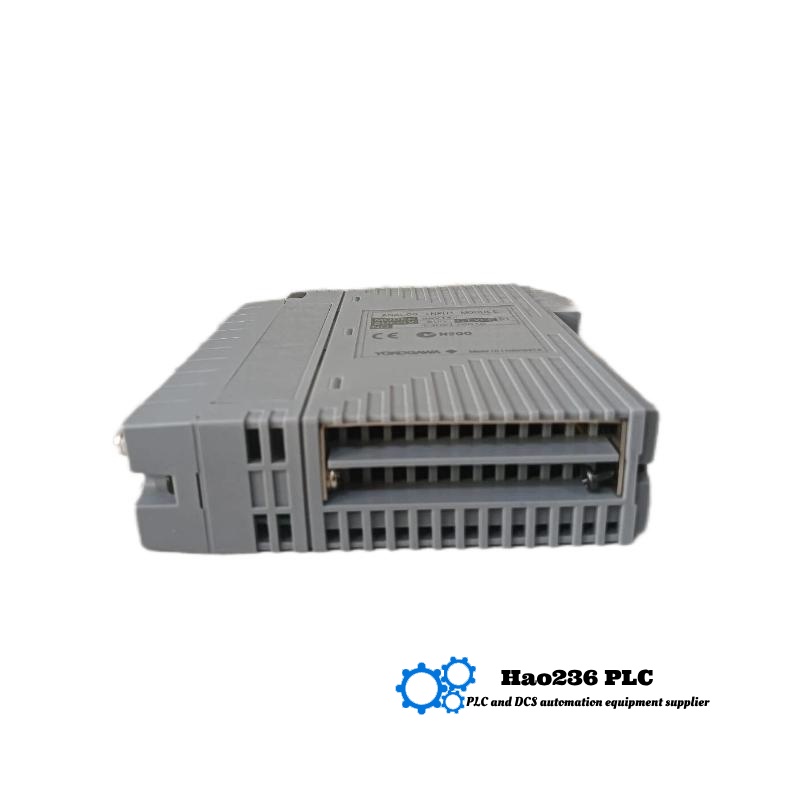

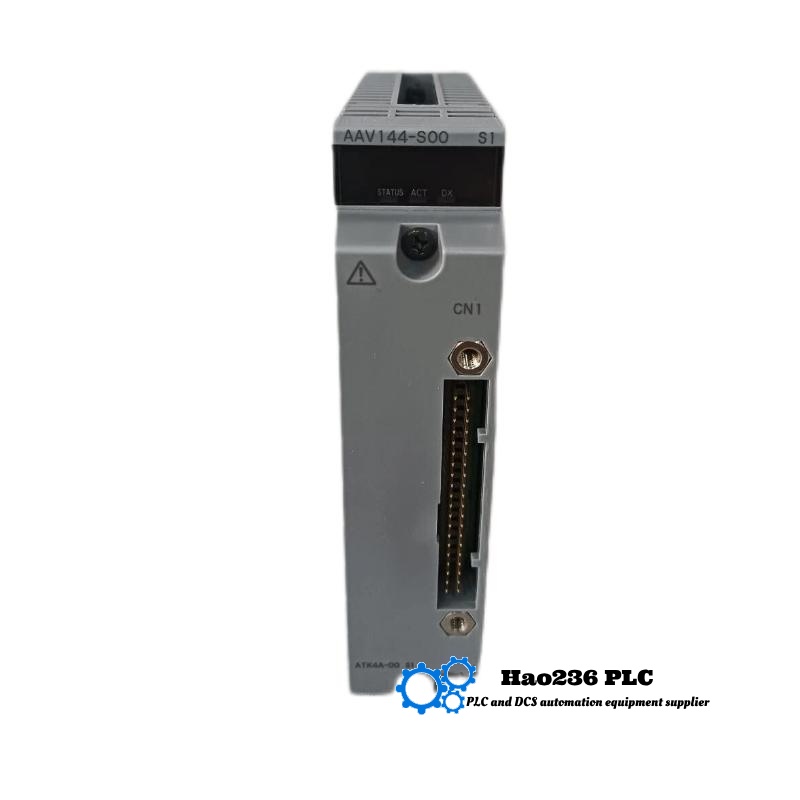

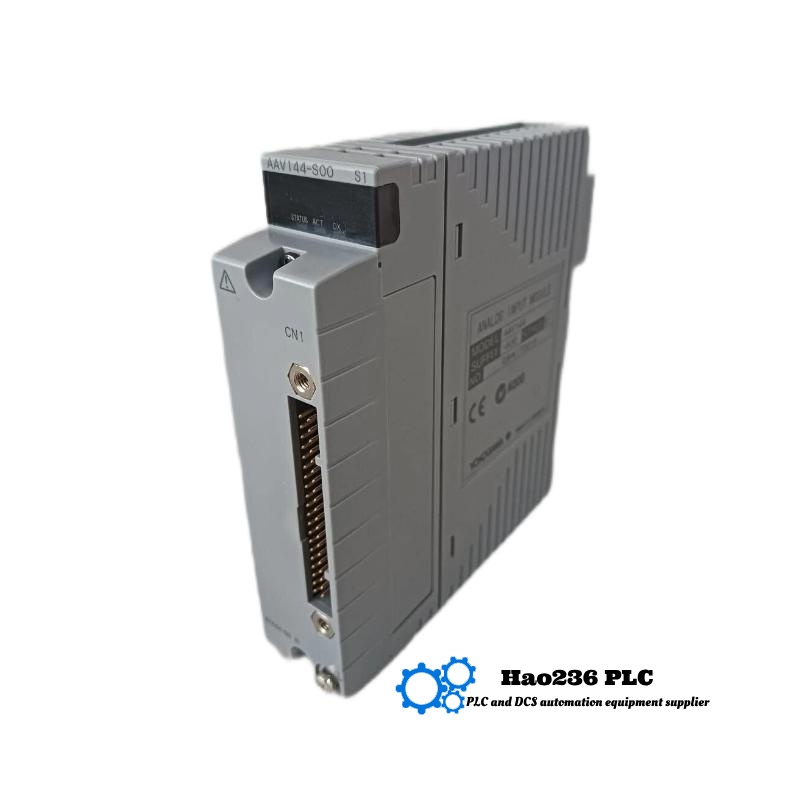

Yokogawa AAV144-S00 Analog Input Module

Product Introduction

The Yokogawa AAV144-S00 is a high-quality analog input module designed for use in Yokogawa’s advanced control systems. As part of the AAV series, the module provides exceptional performance in the measurement and conversion of analog signals to digital formats, enabling reliable and accurate process control in a variety of industrial applications. The AAV144-S00 offers a combination of high precision, fast response time, and compact design, making it suitable for a broad range of automation and control systems.

This module is widely used in industries such as power generation, chemical processing, manufacturing, and more, to monitor signals from sensors and transducers. It supports a wide range of input signal types, including voltage, current, and resistance, ensuring compatibility with diverse equipment and machinery.

Product Parameters

Applications

• Power Generation: In power plants, the AAV144-S00 module is used to monitor signals from temperature, pressure, and flow sensors, ensuring proper operation and performance of turbines, pumps, and other critical equipment.

• Chemical Processing: This module allows chemical plants to accurately monitor various process parameters such as pressure, temperature, and chemical concentrations, enabling optimal control and safety.

• Manufacturing Automation: Used in manufacturing systems to gather analog data from various sensors for monitoring machine performance, adjusting operational parameters, and ensuring the efficient use of resources.

• Oil & Gas Industry: The module is used to monitor and control parameters such as pressure, temperature, and flow rates in pipelines and other critical infrastructure, ensuring operational efficiency and safety.

• Water Treatment Plants: The AAV144-S00 is used to monitor sensors in water treatment processes, ensuring the consistency of water quality through the measurement of parameters like pH, turbidity, and flow rate.

Advantages

• High Accuracy: The AAV144-S00 ensures a high degree of accuracy with a resolution of 16 bits and an accuracy of ±0.1% of the full scale, making it ideal for critical applications where precise measurements are necessary.

• Wide Input Range: Supporting voltage, current, and resistance inputs, the module is versatile and can be integrated with a variety of sensors and equipment for diverse measurement needs.

• Compact Design: The module’s small size (32.8 × 130 × 107.5 mm) makes it easy to install and use in space-constrained environments, while still offering robust functionality and performance.

• Galvanic Isolation: The module features galvanic isolation to protect the system from electrical noise and potential damage caused by ground loops or voltage spikes, ensuring long-term reliability.

• Fast Sampling Rate: With a fast sampling rate of 1.6 ms, this module is capable of providing real-time data, which is essential for quick decision-making and process control in dynamic environments.

Brand Information

Yokogawa is a leading global provider of industrial automation, control, and measurement solutions. Founded in 1915, the company has established itself as a pioneer in the field of industrial automation, known for its high-performance products that are used in a wide range of industries, including power generation, chemicals, manufacturing, and oil & gas. The AAV series of modules, such as the AAV144-S00, is part of Yokogawa’s broader strategy to provide innovative, reliable, and precise solutions to the global industrial market.
