Product Overview

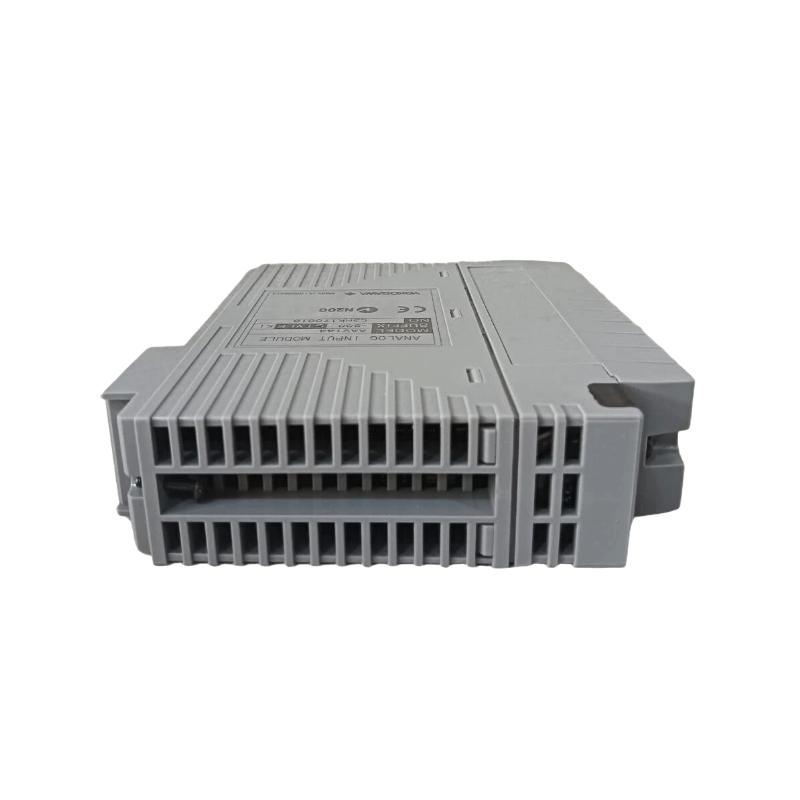

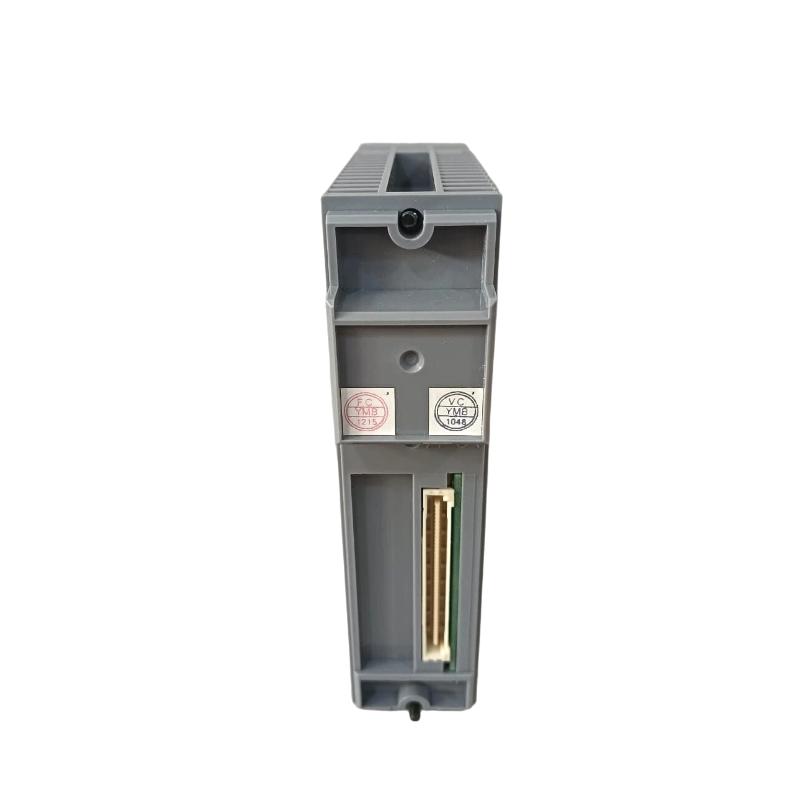

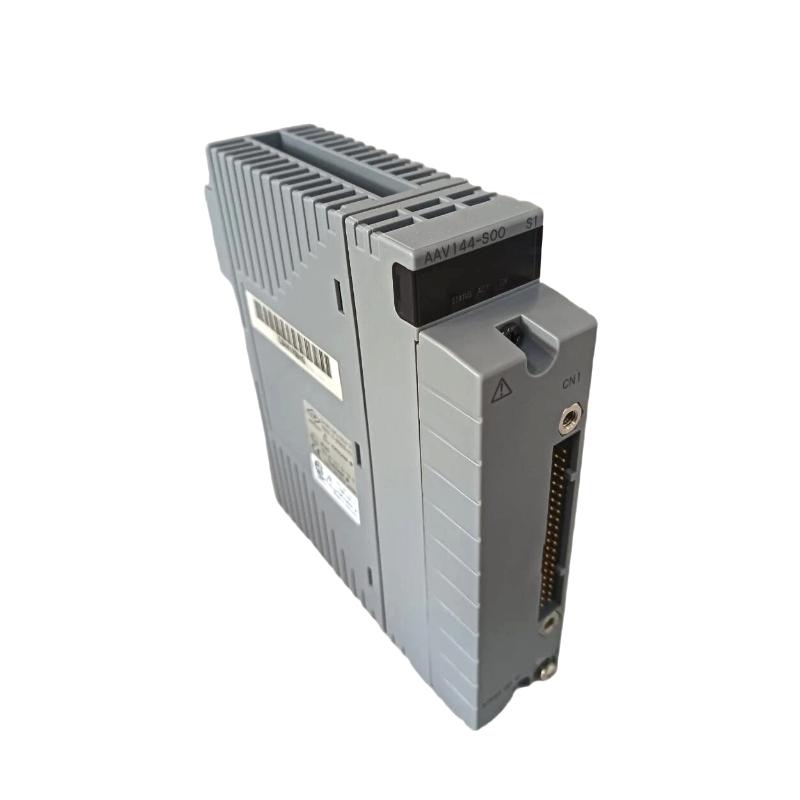

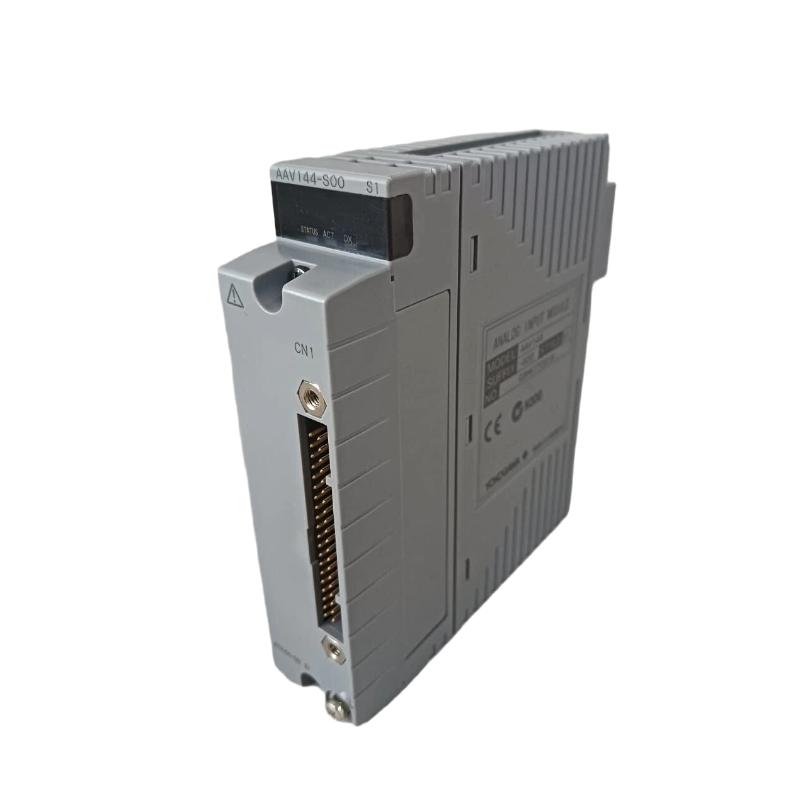

The Yokogawa AAV144-S00 / A4S00 Voltage Input Module is a high-performance isolated analog input module designed for Yokogawa CENTUM Distributed Control Systems (DCS). It is engineered to acquire and process voltage signals from industrial field instruments while maintaining strong electrical isolation between field wiring and system electronics.
This module is widely used in mission-critical process industries where signal stability, electrical noise immunity, and system safety are essential. Its isolated design significantly improves reliability in harsh industrial environments such as refineries, chemical plants, and power generation facilities.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Yokogawa |
| Model | AAV144-S00 / A4S00 |
| Product Type | Isolated Voltage Input Module |
| System Compatibility | Yokogawa CENTUM VP / CS 3000 |
| Input Channels | 16 channels (isolated) |
| Input Signal Range | 1–5 V DC / -10 to +10 V DC |
| Allowable Input Voltage | ±30 V DC |
| Input Resistance | 1 MΩ (power ON), 200 kΩ (power OFF) |
| Isolation Voltage | 1500 V AC (input to system, 1 minute) |
| A/D Conversion Resolution | 16-bit |
| Data Update Period | 10 ms |
| Accuracy | ±4 mV to ±20 mV |
| Temperature Drift | ±4 mV / 10°C |
| Power Supply | 5 V DC (via backplane) |
| Current Consumption | Max 500 mA |
| Power Dissipation | Approx. 5.5 W |
| Mounting Type | Rack-mounted I/O module |
| Dimensions (H × W × D) | 107.5 × 130 × 32.8 mm |
| Weight | 0.2 kg |
Function and Working Principle
The AAV144-S00 / A4S00 operates as a signal acquisition and isolation interface between field devices and the DCS controller.
Its working process includes:
- Receiving analog voltage signals from field transmitters or sensors
- Applying electrical isolation between field and system circuits
- Performing signal conditioning and filtering
- Converting analog signals into high-resolution digital data
- Transmitting processed data to the DCS for real-time control
The key engineering advantage is its galvanic isolation, which prevents ground loops, reduces electrical noise, and protects control systems from field-side electrical disturbances.
Role in Industrial Control Systems
Within Yokogawa DCS architecture, the AAV144-S00 / A4S00 functions as a front-end analog signal interface module.
Its core roles include:
- Safe acquisition of voltage-based process signals
- Ensuring electrical isolation between field instruments and control systems
- Supporting stable real-time process monitoring
- Providing high-integrity data for control algorithms
This makes it a critical component for maintaining process accuracy, system safety, and operational continuity in industrial automation environments.
Industrial Applications
The AAV144-S00 / A4S00 is widely used in:
- Oil and gas production and refining systems
- Petrochemical and chemical processing plants
- Power generation and turbine control systems
- Water treatment and utility automation
- Industrial DCS-based process control systems
- Large-scale continuous manufacturing operations
It is especially suitable for environments with high electrical noise or long-distance signal transmission requirements.
Installation and System Integration
Proper installation is essential for stable operation:
- Installed in Yokogawa CENTUM I/O racks or control cabinets
- Connected via backplane system architecture
- Field wiring routed through shielded cables
- Proper grounding required to maintain isolation effectiveness
- Channel configuration managed through system engineering tools
Correct installation ensures optimal performance and minimizes signal interference and measurement drift.
Compatible System Components
The AAV144-S00 / A4S00 is typically used with:
- Yokogawa CENTUM VP / CS 3000 controllers
- Field voltage transmitters and sensors
- System I/O backplane units
- Signal conditioning and interface modules
- Distributed process control instrumentation
These components together form a complete industrial automation and process control ecosystem.
Recommended Alternative Models
| Model | Type | Key Feature | Application |
|---|---|---|---|
| Yokogawa AAV142-S50 | Voltage Input Module | Non-isolated version | Standard DCS applications |
| Yokogawa AAI141 | Current Input Module | 4–20 mA signal support | Process instrumentation |
| Yokogawa AAV141-S00 | Voltage Input Module | Compact design | Space-limited systems |
| Yokogawa AAI143-S00 | Isolated Analog Input Module | Higher robustness | Critical industrial environments |
| Yokogawa AAI841 | Multi-function I/O Module | Expanded I/O capacity | Complex automation systems |
Key Advantages
- Fully isolated 16-channel voltage input design
- High immunity to electromagnetic interference
- Stable performance in harsh industrial environments
- High-resolution 16-bit signal conversion
- Fast 10 ms data update cycle
- Compact and lightweight structure
- Seamless integration with Yokogawa DCS platforms
Technical FAQs
Q1: What is the main function of the AAV144-S00 / A4S00?
It converts isolated analog voltage signals into digital data for DCS processing.
Q2: What is the benefit of isolation in this module?
It prevents ground loops and protects the control system from electrical noise and faults.
Q3: What signal types are supported?
It supports 1–5 V DC and -10 to +10 V DC voltage signals.
Q4: Where is it typically used?
It is used in oil & gas, chemical, power generation, and other process industries.
Q5: Is it compatible with modern Yokogawa systems?
Yes, it is compatible with CENTUM VP and CS 3000 platforms.
Conclusion
The Yokogawa AAV144-S00 / A4S00 Voltage Input Module is a high-reliability isolated analog input solution designed for industrial distributed control systems. With its strong electrical isolation, precise signal conversion, and stable performance, it ensures safe and accurate voltage measurement in demanding process environments.
It remains a critical component for engineers and system integrators requiring high-integrity analog signal acquisition in modern industrial automation systems.
