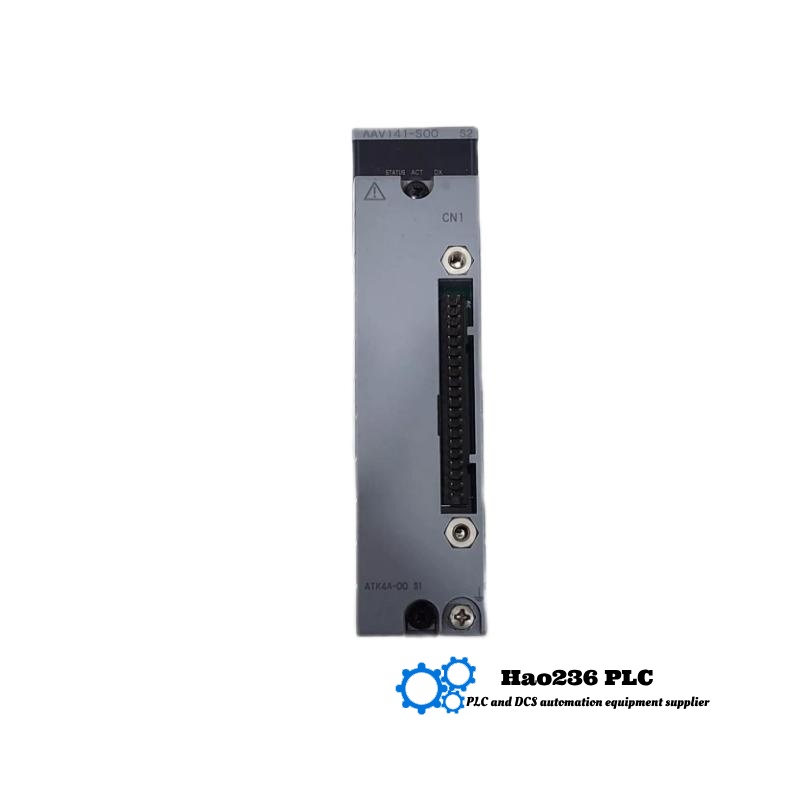

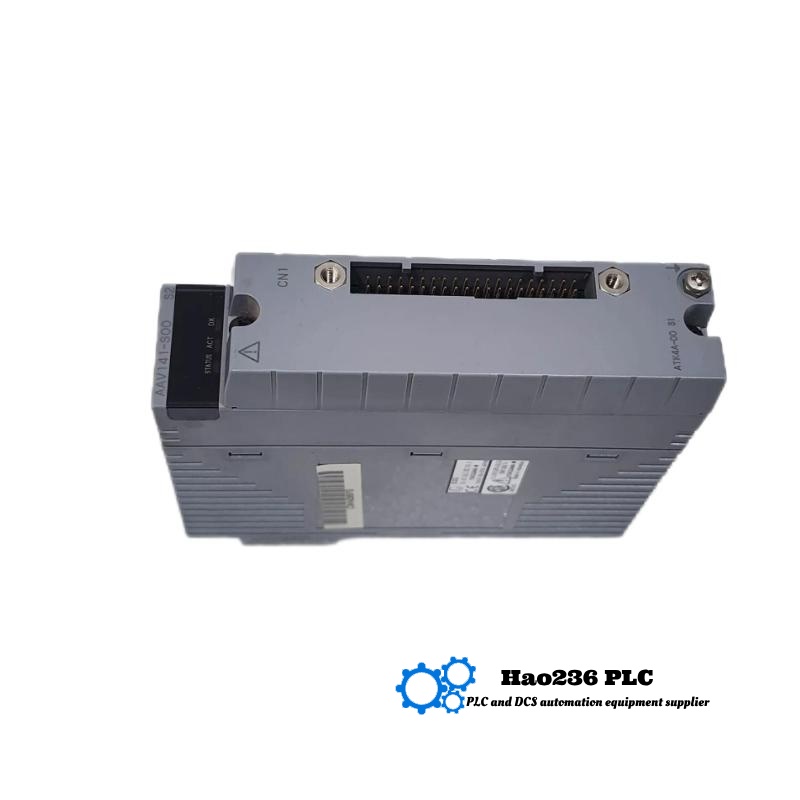

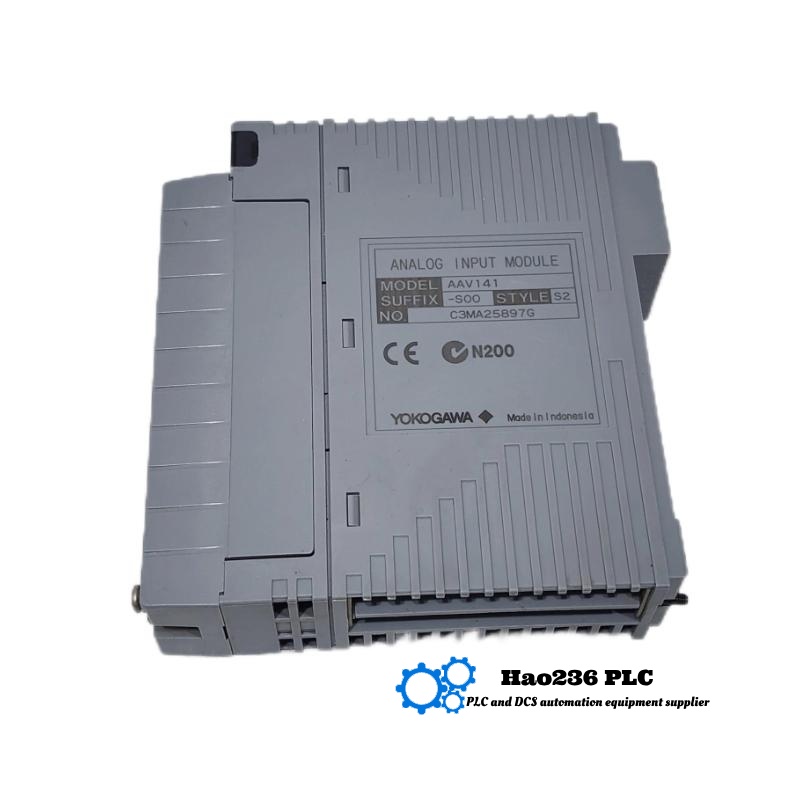

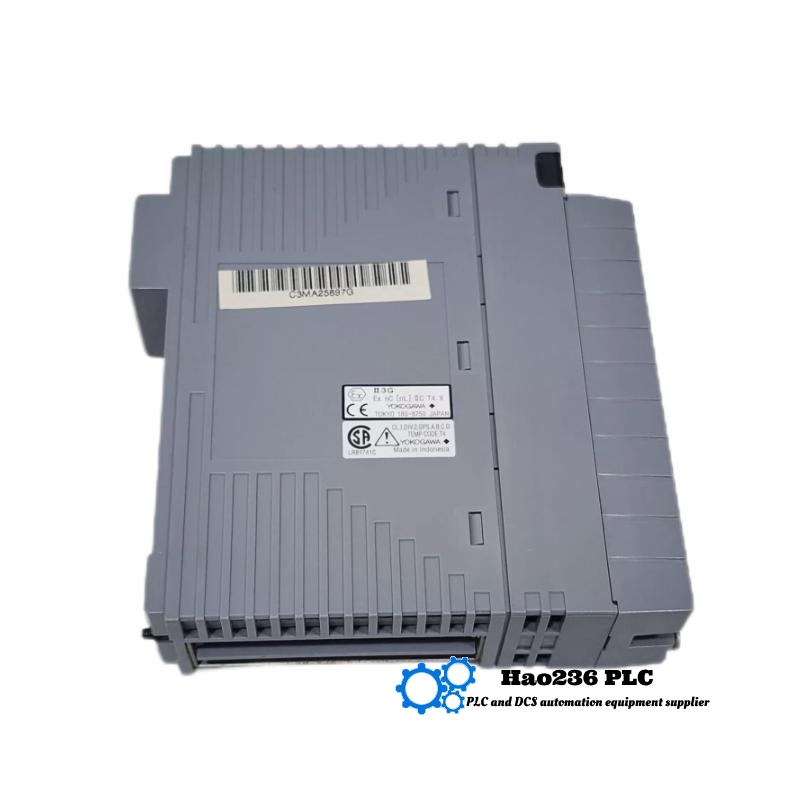

Yokogawa AAV141-S00 Analog Input Module
Product Overview
The Yokogawa AAV141-S00 is a high-performance analog input module designed to meet the demands of modern industrial automation systems. Part of the AAV series, this module is engineered for applications where accurate, reliable analog signal processing is essential. The AAV141-S00 module supports a wide range of input types, including current and voltage signals, making it versatile for numerous industrial processes.
This module is optimized for data acquisition, ensuring the conversion of physical signals into valuable digital data for further processing and analysis. Its compact design allows for easy integration into industrial control systems, whether in process automation, machine control, or monitoring systems. The AAV141-S00 is ideal for applications requiring the precise measurement of analog signals in temperature, pressure, flow, and level monitoring systems.
The Yokogawa AAV141-S00 is characterized by its high reliability and accuracy, making it a trusted choice in environments where precision is paramount. This module is built to work seamlessly with other Yokogawa products, ensuring that users benefit from smooth integration and stable performance in their automation networks.
Product Parameters
| Parameter | Details |
|---|---|
| Model | Yokogawa AAV141-S00 |
| Type | Analog Input Module |
| Input Types | Voltage, Current |
| Dimensions (W × H × D) | 32.8 × 130 × 107.5 mm |
| Weight | 0.2 kg |
| Power Supply | 24 V DC |
| Input Range | –10 V to +10 V (voltage), 4 to 20 mA (current) |
| Accuracy | ±0.1% of reading or ±0.05% of full scale |
| Operating Temperature | –20°C to 60°C |
| Mounting | DIN Rail Mount |
| Signal Processing | High-Resolution, Digital Signal Conversion |
| Response Time | < 100 ms |
| Environmental Protection | IP20 (dust protected) |
| Output Type | Digital Signal to Controller |
| Communication Protocol | Modbus RTU, Yokogawa Proprietary Protocol |
| Weight | 0.2 kg |
| EMC Protection | EN 61326-1 |
Applications
The Yokogawa AAV141-S00 is designed for a wide variety of applications in industrial and control systems. It is especially suitable for:
-
Process Automation: Used in industrial environments where precise measurement of current and voltage signals is required to monitor and control processes like temperature, pressure, and flow.
-
Control Systems: The AAV141-S00 can be used in machine control systems, ensuring that signals are accurately acquired from field devices and transmitted to the system for analysis.
-
Data Acquisition Systems: Ideal for data logging applications, the module allows for seamless conversion of analog signals into digital data that can be analyzed and used for further decision-making.
-
Monitoring Systems: The module is frequently used in monitoring applications such as flow measurement, temperature sensing, and level monitoring in systems that require high precision.
-
Energy Management Systems: By accurately measuring analog signals, the AAV141-S00 can be integrated into systems designed to optimize energy consumption and performance monitoring.
-
HVAC Systems: The module is also suitable for applications in HVAC (heating, ventilation, and air conditioning) systems where accurate measurements of voltage or current are necessary for proper operation and control.
Product Advantages
-
Wide Input Range: The AAV141-S00 supports both voltage and current input signals, making it a highly versatile solution for many types of industrial applications.
-
High Accuracy: With an accuracy of ±0.1% of reading or ±0.05% of full scale, the module delivers precise measurements for critical applications, ensuring high reliability.
-
Fast Response Time: With a response time of less than 100 ms, the module provides real-time signal acquisition, which is essential for time-sensitive applications.
-
Compact Design: The module is 32.8 × 130 × 107.5 mm in size, allowing it to fit easily into crowded control panels without taking up too much space.
-
Easy Integration: With Modbus RTU support, the module can be easily integrated into existing industrial control systems, allowing for seamless communication with controllers and other devices.
-
Reliable Performance: Built to withstand the demanding conditions of industrial environments, the AAV141-S00 features an IP20 rating, ensuring protection from dust and offering long-lasting durability.
-
Energy Efficiency: The module operates on a 24 V DC power supply, making it energy-efficient and ideal for continuous operation in demanding systems.
-
Cost-Effective: Offering high performance at a competitive price, the AAV141-S00 is an affordable solution for industrial applications requiring accurate analog input.
Brand Information
Yokogawa is a global leader in industrial automation and control systems. The company is known for producing high-quality, reliable products that enhance the performance of industrial systems. Their products, such as the AAV141-S00, are trusted in industries such as oil and gas, chemical processing, power generation, and manufacturing. Yokogawa is renowned for its commitment to innovation, providing advanced solutions to meet the growing needs of modern industrial processes.
Recommended Models (Same Series or Related)
| Model | Description | Input Type | Dimensions (W × H × D) | Weight |
|---|---|---|---|---|
| AAV142-S00 | High-speed Analog Input Module | Voltage, Current | 32.8 × 130 × 107.5 mm | 0.2 kg |
| AAV143-S00 | Multi-channel Analog Input Module | Voltage, Current | 32.8 × 130 × 107.5 mm | 0.3 kg |
| AAV144-S00 | Advanced Analog Input Module with Isolation | Voltage, Current | 32.8 × 130 × 107.5 mm | 0.2 kg |
| AAV145-S00 | Precision Analog Input Module | Voltage, Current | 32.8 × 130 × 107.5 mm | 0.3 kg |
| AAV146-S00 | Dual-channel Analog Input Module | Voltage, Current | 32.8 × 130 × 107.5 mm | 0.2 kg |
Popular Yokogawa Models (Same Brand)
| Model | Function | Input Type | Dimensions (W × H × D) | Weight |
|---|---|---|---|---|
| YTA610 | Temperature Transmitter | Thermocouple, RTD | 40.0 × 100 × 120 mm | 0.5 kg |
| YFGW510 | Field Gateway | Digital, Analog Inputs | 90.0 × 130 × 60 mm | 0.7 kg |
| YTA100 | Temperature Transmitter | Thermocouple, RTD | 60.0 × 100 × 130 mm | 0.6 kg |
| YS1700 | Temperature Controller | Thermocouple, RTD | 72.0 × 144 × 149 mm | 1.2 kg |
| YFF502 | Fieldbus Temperature Transmitter | Thermocouple, RTD | 50.0 × 120 × 150 mm | 0.8 kg |
FAQ – Yokogawa AAV141-S00
Q: What types of inputs does the AAV141-S00 module support?
A: The AAV141-S00 supports both voltage and current input signals, providing flexibility for various industrial applications.
Q: What is the accuracy of the module?
A: The module provides ±0.1% of reading or ±0.05% of full scale accuracy, ensuring reliable and precise measurements.
Q: What is the response time of the AAV141-S00?
A: The module has a fast response time of less than 100 ms, enabling real-time signal processing.
Q: What is the power supply requirement for the AAV141-S00?
A: The module operates on a 24 V DC power supply, making it energy-efficient for continuous operation.
Q: Can the AAV141-S00 be mounted on a DIN rail?
A: Yes, the module is designed for DIN rail mounting, simplifying installation and integration.
Q: What is the operating temperature range for the AAV141-S00?
A: The module operates in temperatures ranging from –20°C to 60°C, making it suitable for a wide range of industrial environments.
Q: How does the AAV141-S00 communicate with other devices?
A: The module supports Modbus RTU communication, allowing for seamless integration with other industrial systems.
Q: Is the AAV141-S00 suitable for outdoor applications?
A: The module has an IP20 rating, which means it is dust-protected but not suitable for direct exposure to outdoor elements.
Q: What are the dimensions of the AAV141-S00?
A: The module measures 32.8 × 130 × 107.5 mm, providing a compact design for easy integration into control panels.
Q: How much does the AAV141-S00 weigh?
A: The module weighs 0.2 kg, making it lightweight and easy to install.
