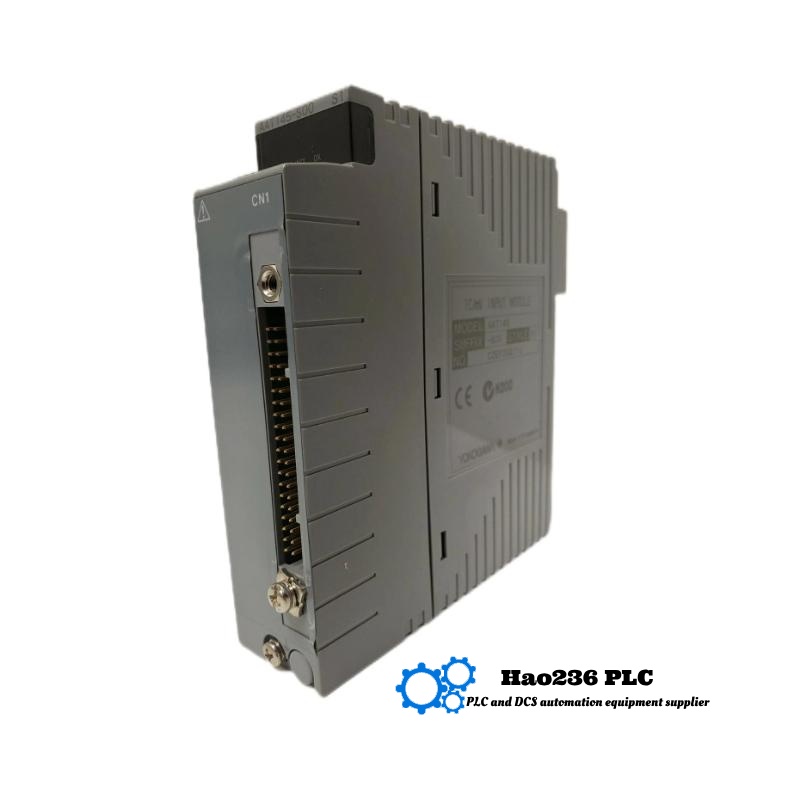

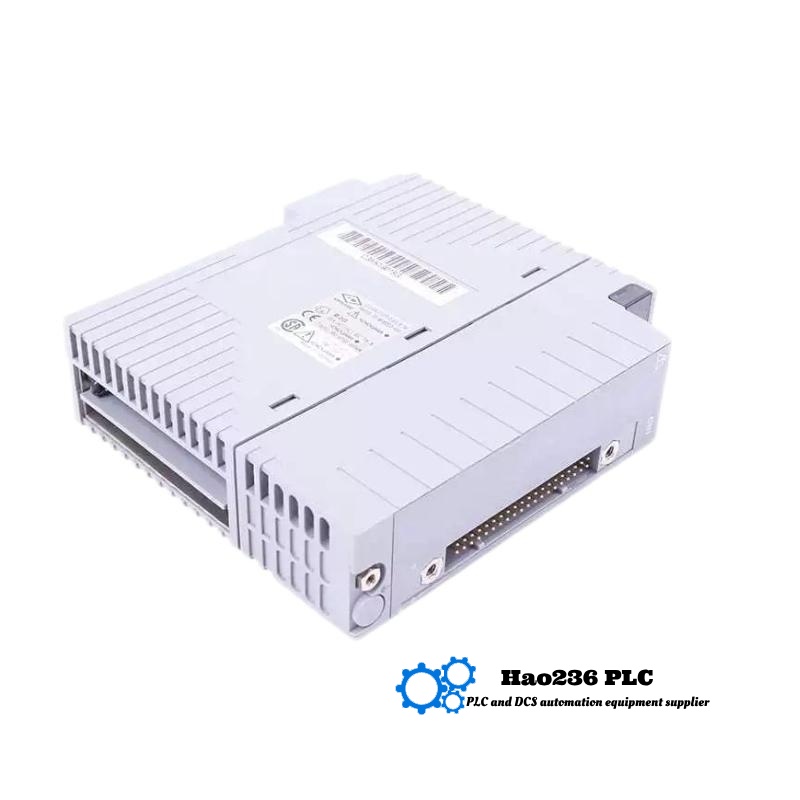

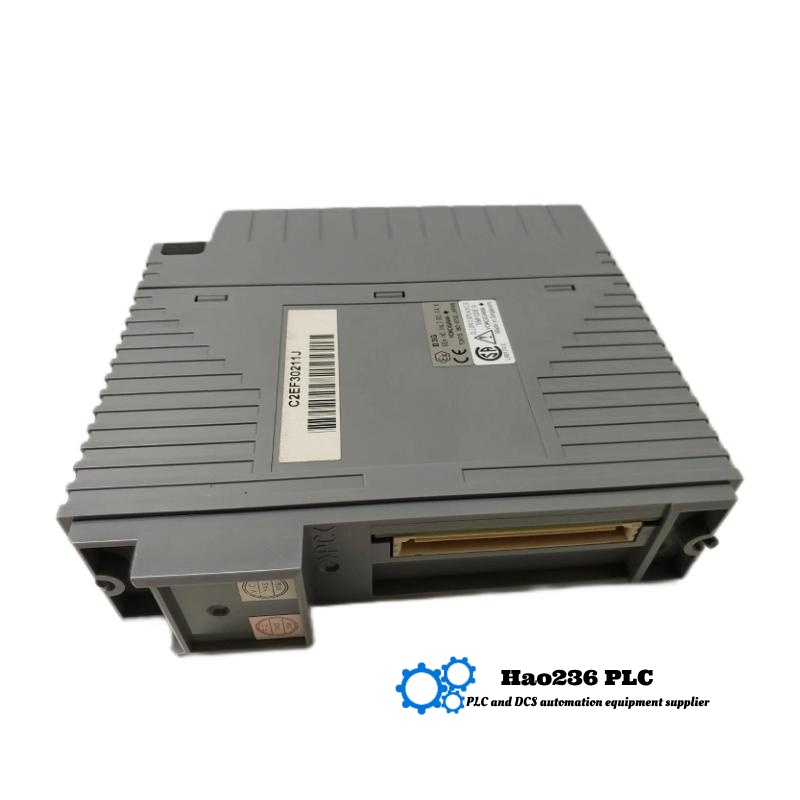

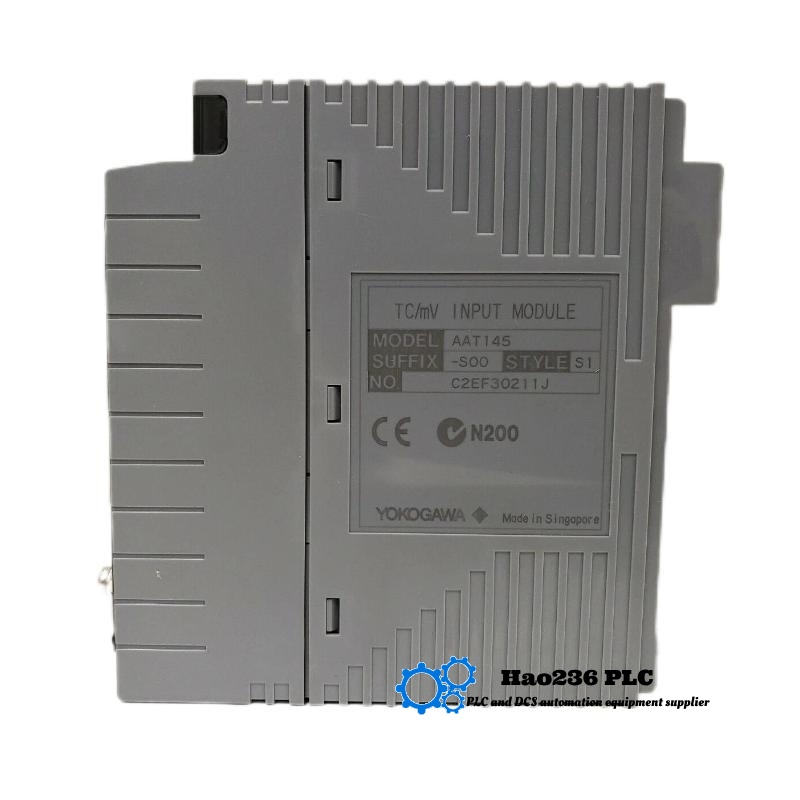

Yokogawa AAT145-S00 Thermocouple/mV Input Module
Product Overview
The Yokogawa AAT145-S00 is a thermocouple/mV input module designed for use in industrial process monitoring systems. This module is part of the AAT series, known for its high precision and reliability in measurement, offering flexible input options for various temperature sensing applications. The module is specifically engineered to work with thermocouples and millivolt signals, making it ideal for applications that require temperature measurement and control.
The AAT145-S00 features a compact design, making it suitable for use in confined spaces while ensuring efficient signal processing. This module is optimized for use in industrial environments, where accurate and reliable temperature measurement is critical for maintaining optimal operating conditions. Whether used in temperature control systems, process automation, or instrumentation systems, the AAT145-S00 ensures high accuracy and fast response times.
Product Parameters
| Parameter | Details |
|---|---|
| Model | Yokogawa AAT145-S00 |
| Type | Thermocouple/mV Input Module |
| Input Types | Thermocouple (Type J, K, T, E, R, S, B, etc.), mV |
| Dimensions (W × H × D) | 32.8 × 130 × 127.2 mm |
| Weight | 0.3 kg |
| Power Supply | 24 V DC |
| Accuracy | ±0.1% of reading or ±0.5°C |
| Operating Temperature | –20°C to 60°C |
| Mounting | DIN Rail Mount |
| Output | mV, digital signal to the connected system |
| Response Time | < 1 second |
| Signal Processing | High-resolution, high-speed processing |
| Environmental Protection | IP20 (dust protected) |
| Input Range | 0 to 75 mV for mV input, temperature-specific ranges for thermocouples |
| Communication Interface | Modbus RTU (for communication with controllers) |
| Certificates | CE, UL, RoHS compliant |
Applications
The Yokogawa AAT145-S00 is ideal for applications that involve precise temperature and mV signal measurement in industries such as chemical processing, oil and gas, pharmaceuticals, and power generation. Common applications include:
-
Temperature Control Systems: Used to measure and control temperature in heating, ventilation, and air conditioning (HVAC) systems, ensuring optimal performance.
-
Process Automation: Integrated into process automation systems for precise temperature monitoring, enabling better control over manufacturing processes.
-
Instrumentation Systems: Used in laboratories and testing environments where accurate temperature measurement is crucial.
-
Energy Management: Helps in monitoring and controlling energy usage by tracking temperatures in critical areas.
-
Research & Development: Widely used in research facilities for testing and measurement of various temperature-sensitive processes.
-
Temperature Calibration: Used in calibration applications for ensuring the accuracy of other temperature measurement systems.
Product Advantages
-
Versatile Input Options: The AAT145-S00 supports multiple types of thermocouples and mV inputs, providing flexible measurement capabilities for various industrial applications.
-
Compact and Efficient Design: With a size of 32.8 × 130 × 127.2 mm, the module is space-efficient, allowing it to be easily integrated into systems where space is limited.
-
High Accuracy and Fast Response: The module offers ±0.1% accuracy and a response time of less than 1 second, ensuring precise and quick temperature readings for critical processes.
-
Wide Operating Range: With an operating temperature range of –20°C to 60°C, the module can be used in various industrial environments, from extreme cold to moderate heat.
-
Easy Integration: The module is compatible with Modbus RTU, making it easy to integrate into existing industrial communication systems, providing a seamless interface with controllers.
-
Reliability: Designed for industrial environments, the AAT145-S00 has a robust construction, ensuring reliable performance in tough working conditions.
-
Environmental Protection: The module has an IP20 rating, protecting it from dust and other particulate matter, ensuring longevity and durability in harsh environments.
-
Energy Efficiency: By accurately monitoring temperatures and mV signals, the module helps optimize system energy use, contributing to cost savings in industrial operations.
Brand Information
Yokogawa is a global leader in industrial automation, providing innovative solutions for process control and measurement. Known for their commitment to precision, quality, and reliability, Yokogawa’s products are trusted by industries worldwide for their advanced technology and robust performance. The AAT series of input modules, including the AAT145-S00, exemplify the brand’s dedication to delivering high-performance solutions for complex industrial challenges.
Recommended Models (Same Series or Related)
| Model | Description | Input Type | Dimensions (W × H × D) | Weight |
|---|---|---|---|---|
| AAT144-S00 | Thermocouple/mV Input Module | Thermocouple, mV | 32.8 × 130 × 127.2 mm | 0.3 kg |
| AAT146-S00 | Multi-channel Thermocouple/mV Input Module | Thermocouple, mV | 35.0 × 130 × 127.2 mm | 0.35 kg |
| AAT147-S00 | High-precision Thermocouple Input Module | Thermocouple | 32.8 × 130 × 127.2 mm | 0.3 kg |
| AAT148-S00 | Dual-channel Thermocouple/mV Input Module | Thermocouple, mV | 35.0 × 130 × 127.2 mm | 0.35 kg |
| AAT149-S00 | Thermocouple Input Module with Isolated Output | Thermocouple | 32.8 × 130 × 127.2 mm | 0.3 kg |
Popular Yokogawa Models (Same Brand)
| Model | Function | Input Type | Dimensions (W × H × D) | Weight |
|---|---|---|---|---|
| YTA610 | Temperature Transmitter | Thermocouple, RTD | 40.0 × 100 × 120 mm | 0.5 kg |
| YTA610G | Dual-Input Temperature Transmitter | Thermocouple, RTD | 40.0 × 100 × 120 mm | 0.5 kg |
| YFGW510 | Field Gateway | Digital, Analog Inputs | 90.0 × 130 × 60 mm | 0.7 kg |
| YTA100 | Temperature Transmitter | Thermocouple, RTD | 60.0 × 100 × 130 mm | 0.6 kg |
| YS1700 | Temperature Controller | Thermocouple, RTD | 72.0 × 144 × 149 mm | 1.2 kg |
FAQ – Yokogawa AAT145-S00
Q: What types of inputs does the AAT145-S00 module support?
A: The AAT145-S00 supports thermocouple inputs (types J, K, T, E, R, S, B, etc.) and mV signals.
Q: What is the accuracy of the module?
A: The module offers an accuracy of ±0.1% of reading or ±0.5°C (whichever is greater), ensuring reliable measurements.
Q: What is the maximum operating temperature for the module?
A: The module can operate in temperatures ranging from –20°C to 60°C.
Q: How is the AAT145-S00 module mounted?
A: The module is designed for DIN rail mounting, making it easy to integrate into control panels.
Q: What is the size of the AAT145-S00 module?
A: The module’s dimensions are 32.8 × 130 × 127.2 mm.
Q: What is the weight of the AAT145-S00 module?
A: The module weighs 0.3 kg.
Q: What communication protocol does the module support?
A: The module supports Modbus RTU, enabling easy integration into industrial communication systems.
Q: Is the AAT145-S00 suitable for high-precision applications?
A: Yes, the module is designed for high-precision applications with its ±0.1% accuracy and fast response time.
Q: Can the AAT145-S00 be used in outdoor environments?
A: The module is rated IP20, meaning it is dust-protected but should not be exposed to outdoor elements without additional protection.
Q: Is the module energy-efficient?
A: Yes, the module is designed to be energy-efficient, requiring only a 24 V DC power supply.
