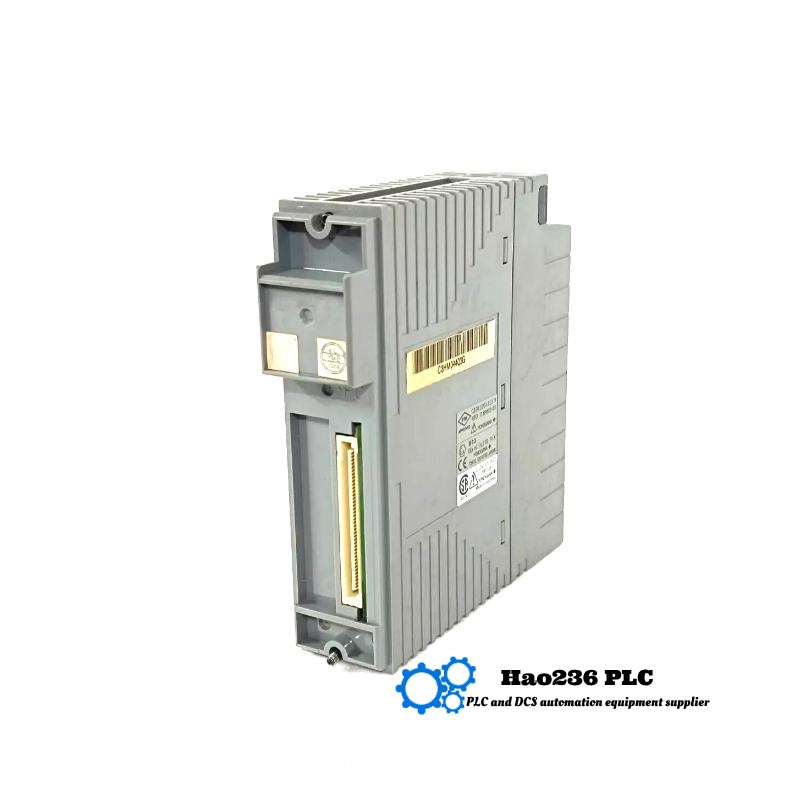

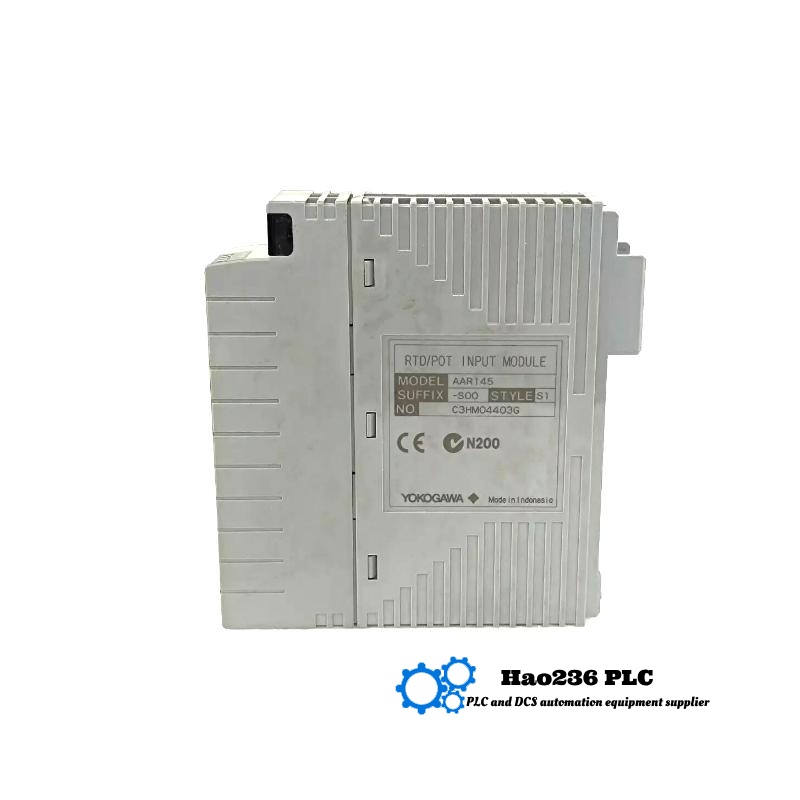

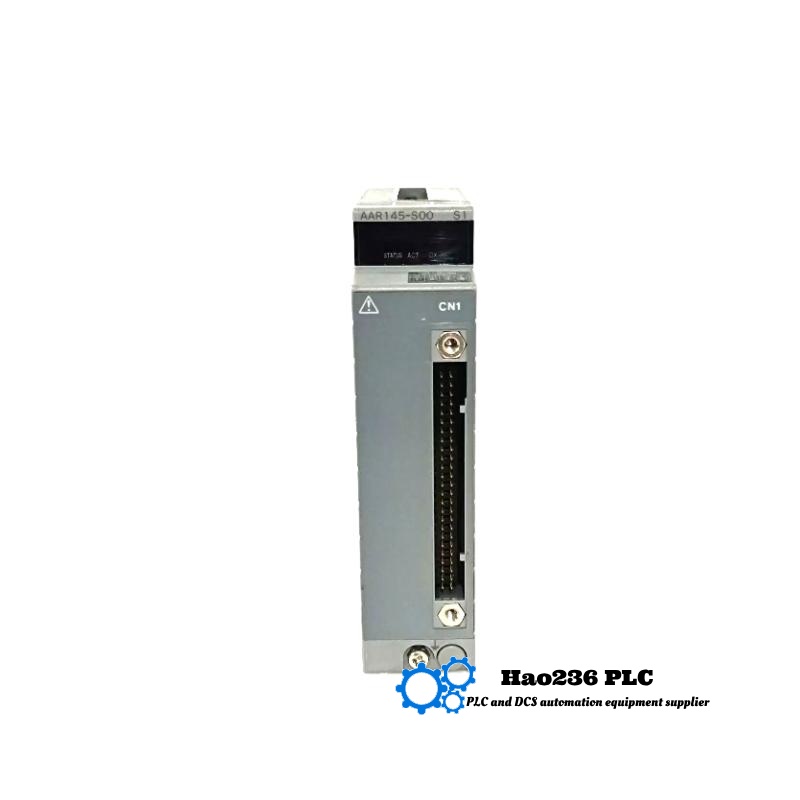

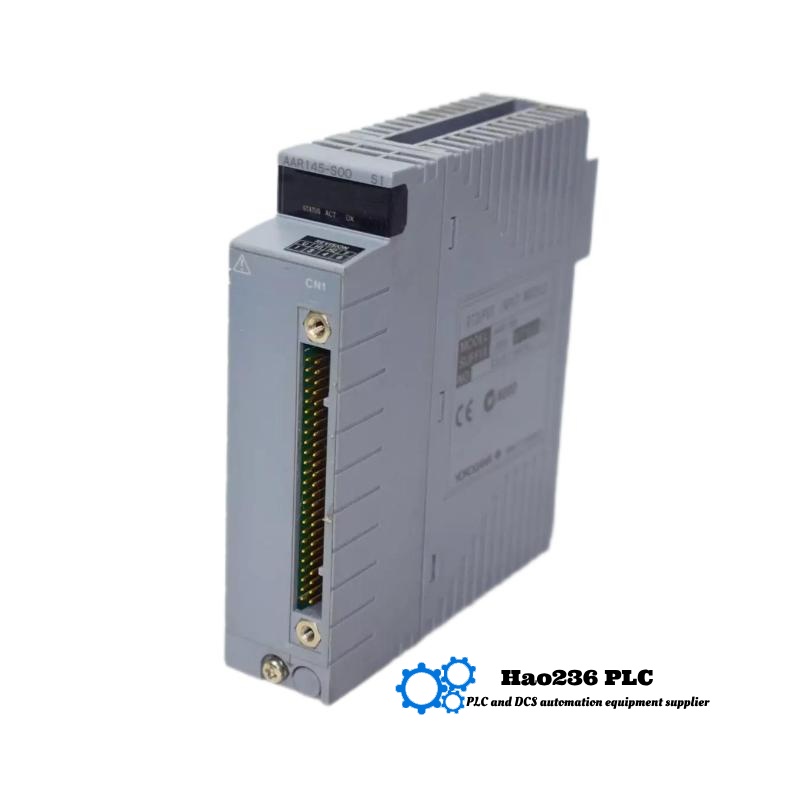

Yokogawa AAR145-S00 S1 RTD/POT 16 Channel Input Module (Isolated)
Product Introduction
The Yokogawa AAR145-S00 S1 is a high-performance RTD (Resistance Temperature Detector) / POT (Potentiometer) 16-channel input module designed to meet the needs of demanding industrial environments. It offers isolation between input and output signals, making it ideal for applications requiring safe and reliable data acquisition. This module supports multiple input types, including RTDs and potentiometers, which are commonly used for temperature and position monitoring in various industrial processes.
The AAR145-S00 S1 is part of Yokogawa’s renowned AAR Series, known for its robust design, flexibility, and ease of integration into a wide range of control systems.
Applications
The AAR145-S00 S1 module is typically used in applications such as:
-
Temperature Monitoring: Used in industries like oil & gas, chemical, and power plants for precise temperature measurement with RTD sensors.
-
Position Sensing: Integrated into systems where potentiometers are used to monitor mechanical movements, such as valve positioners in control systems.
-
Industrial Automation: Applied in data acquisition systems for temperature control, environmental monitoring, and industrial process optimization.
-
PLC and SCADA Systems: Provides input data to programmable logic controllers (PLCs) or supervisory control and data acquisition (SCADA) systems.
Advantages
-
16 Independent Channels: The module supports up to 16 independent input channels, making it suitable for large-scale industrial applications with multiple measurement points.
-
Isolation: Each channel is isolated, ensuring that voltage spikes or electrical interference on one channel do not affect the performance of other channels.
-
Flexible Input Options: Supports both RTD and potentiometer inputs, providing flexibility for diverse sensor types and application needs.
-
Compact Design: The module’s compact size (130 x 127.2 x 32.8 mm) makes it easy to integrate into tight spaces without compromising performance.
-
High Accuracy: Delivers high-precision data collection, which is essential for critical industrial processes that rely on accurate temperature or position data.
-
Durability: Built to withstand harsh industrial environments, ensuring long-term reliability and minimal maintenance requirements.
Brand Information
Yokogawa Electric Corporation, established in 1915, is a leading global provider of industrial automation, control systems, and measurement solutions. Known for its innovative technology, Yokogawa is dedicated to providing high-quality, reliable products that enhance operational efficiency and ensure safety across various industries. The AAR145-S00 S1 is part of the AAR Series that offers modular and highly adaptable solutions for industrial control applications.
Technical Specifications
| Parameter | Details |
|---|---|
| Module Type | RTD/POT Input Module |
| Channels | 16 Channels |
| Input Types | RTD (Resistance Temperature Detector), POT (Potentiometer) |
| Isolation | Channel-to-channel isolation |
| Power Supply | 24 V DC |
| Dimensions | 130 x 127.2 x 32.8 mm |
| Weight | 0.3 kg |
| Operating Temperature | –40 to +70°C |
| Mounting | DIN Rail Mountable |
Related Models
Here are 5 related models from the Yokogawa AAR Series:
| Model | Module Type | Channels | Input Types | Power Supply |
|---|---|---|---|---|
| AAR150-S00 | RTD/POT Input Module | 8 | RTD, POT | 24 V DC |
| AAR143-S00 | RTD Input Module | 12 | RTD | 24 V DC |
| AAR161-S00 | Analog Input Module | 16 | Voltage, Current | 24 V DC |
| AAR141-S00 | RTD/POT Input Module | 4 | RTD, POT | 24 V DC |
| AAR200-S00 | Multi-Input Module | 16 | RTD, Thermocouple, POT | 24 V DC |
Popular Yokogawa Models
Here are 5 popular models from Yokogawa:
| Model | Module Type | Channels | Input Types | Power Supply |
|---|---|---|---|---|
| AAR181-S00 | RTD Input Module | 8 | RTD | 24 V DC |
| AAM50-S1 | Analog Output Module | 16 | — | 24 V DC |
| AAR160-S00 | Analog Input Module | 16 | Voltage, Current | 24 V DC |
| AAR190-S00 | Thermocouple Input Module | 8 | Thermocouple | 24 V DC |
| AAR149-S00 | Potentiometer Input Module | 4 | POT | 24 V DC |
FAQs
Q1: What is the maximum number of channels the AAR145-S00 S1 can support?
A1: The AAR145-S00 S1 supports a total of 16 channels.
Q2: What types of inputs are supported by the AAR145-S00 S1 module?
A2: The module supports both RTD (Resistance Temperature Detector) and potentiometer (POT) inputs.
Q3: Does the AAR145-S00 S1 provide isolation between channels?
A3: Yes, the module offers channel-to-channel isolation, which ensures that interference on one channel does not affect the others.
Q4: What is the power supply requirement for the AAR145-S00 S1?
A4: The module requires a 24 V DC power supply.
Q5: Can this module be used in a wide temperature range environment?
A5: Yes, the module operates in a temperature range of –40°C to +70°C.
Q6: What are the main applications for the AAR145-S00 S1?
A6: The module is commonly used for temperature measurement and position sensing in industrial automation, SCADA systems, and process control.
Q7: How compact is the AAR145-S00 S1 module?
A7: The module has compact dimensions of 130 x 127.2 x 32.8 mm, making it easy to integrate into various systems.
Q8: How is the module mounted?
A8: The module is DIN rail mountable for easy installation.
Q9: What is the weight of the AAR145-S00 S1 module?
A9: The module weighs 0.3 kg.
Q10: Can the AAR145-S00 S1 be used in hazardous environments?
A10: Yes, the module is designed for use in industrial environments but should be checked for specific certifications for hazardous locations.
