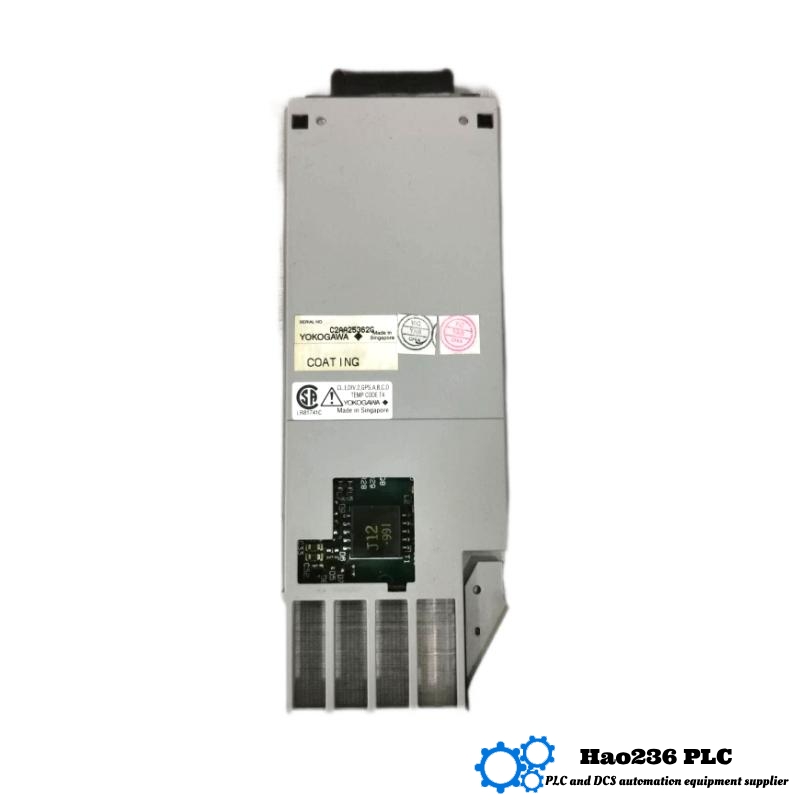

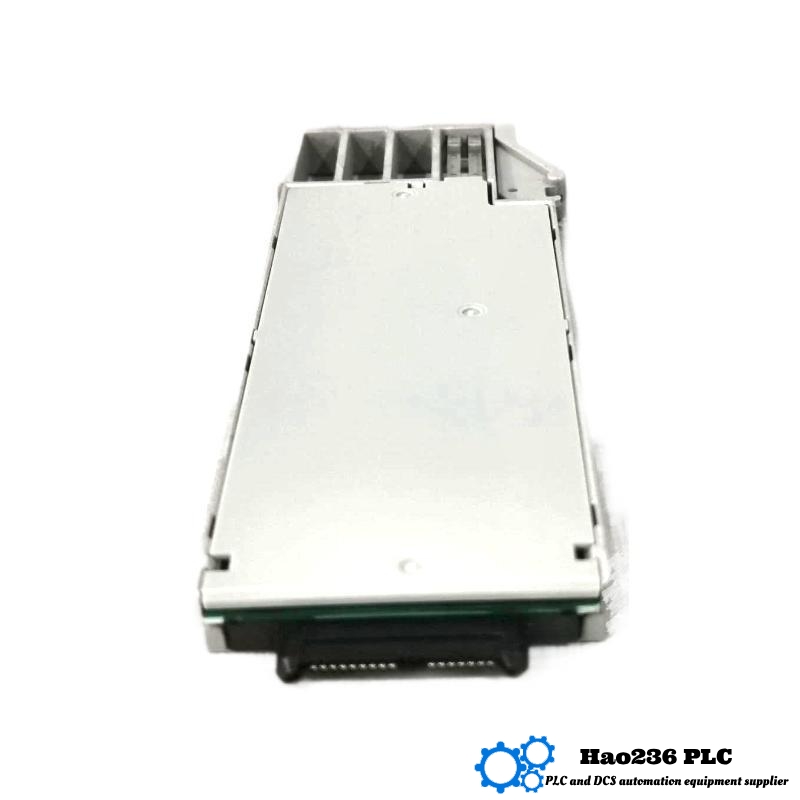

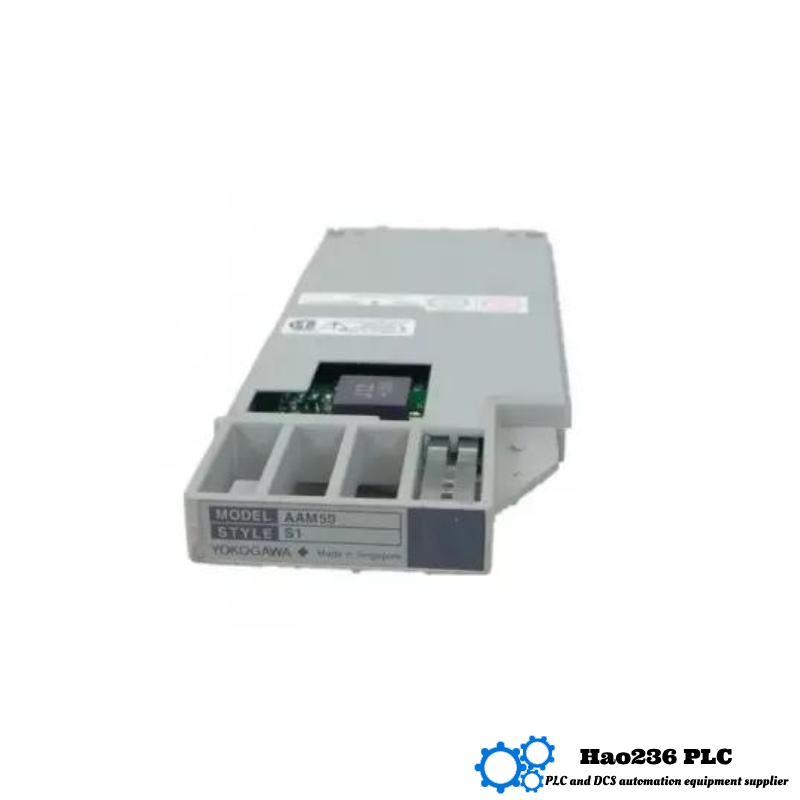

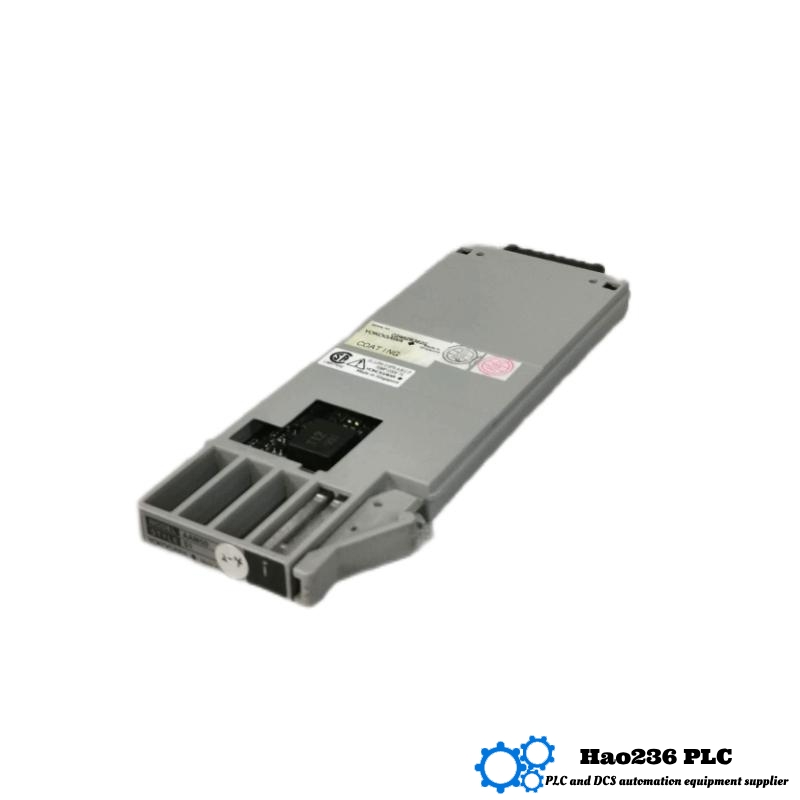

Yokogawa AAM50-S1 Current/Voltage Output Module
Product Overview
The Yokogawa AAM50-S1 is an advanced current/voltage output module designed for precise and stable output control in industrial applications. It is built to handle a variety of output signals, including 4-20 mA current and 0-10 V voltage, making it versatile for different industrial systems that require reliable control signals.
This output module is engineered to provide high-performance results with minimal drift over time, ensuring long-term stability in demanding applications. The AAM50-S1 is ideal for use in systems that require precise feedback loops or signal transmission, such as monitoring systems, automated control systems, and industrial equipment interfacing.
With easy installation and configuration, this module integrates seamlessly into Yokogawa’s control systems, offering a user-friendly experience for engineers and operators. Its compact size and lightweight design make it suitable for environments with limited space.
Product Features and Advantages
-
Dual Output Types: Supports both 4-20 mA and 0-10 V outputs for flexible applications.
-
Precision Control: Offers high accuracy and low drift, ensuring reliable long-term operation.
-
Compact Design: Saves space in control panels with its small form factor.
-
Easy Integration: Fully compatible with Yokogawa’s control systems for seamless operation.
-
Built-in Diagnostics: Includes monitoring for signal faults such as wire break or short circuit, enhancing reliability.
-
Wide Application Range: Suitable for use in a variety of industries including power, manufacturing, and chemical processing.
Applications
-
Industrial Automation: Provides accurate control signals for PLCs, DCS, and other automation systems.
-
Process Control: Controls process variables such as flow, pressure, temperature, and level with high precision.
-
Building Management: Used for HVAC systems, lighting, and other building management systems that require stable output signals.
-
Energy and Power: Ensures accurate feedback for power systems, turbines, and other energy generation applications.
-
Test Equipment: Serves as a reliable output module for calibration and testing equipment in industrial environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Output Type | 4-20 mA, 0-10 V |
| Output Range | 4-20 mA, 0-10 V |
| Number of Channels | 8 |
| Power Supply | 24 V DC |
| Isolation Voltage | 1500 V AC |
| Operating Temperature | –10°C to +60°C |
| Mounting | DIN Rail |
| Dimensions | 42.9 × 130 × 146.8 mm |
| Weight | 0.1 kg |
| Material | Industrial-grade polymer with EMI shielding |
| Diagnostic Functions | Wire break, short circuit, and signal failure detection |
Product Benefits
-
Dual Output Capability: Provides both current and voltage outputs to suit different control requirements.
-
Accurate and Stable: Offers excellent accuracy with minimal drift, ensuring long-term reliability.
-
Compact and Space-Saving: Its small footprint allows for efficient use of limited space in control cabinets.
-
Seamless Integration: Easily integrates into Yokogawa’s existing DCS and control systems, reducing setup time.
-
Enhanced Reliability: Built-in diagnostics ensure early detection of faults, enhancing system reliability.
Recommended Related Models (Same Type or Usage)
| Model | Output Type | Channels | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| AAM51-S1 | 4-20 mA, 0-10 V | 8 | 42.9 × 130 × 146.8 | 0.1 |
| AAM52-S1 | 4-20 mA, 0-10 V | 8 | 42.9 × 130 × 146.8 | 0.1 |
| AAM53-S1 | 4-20 mA, 0-10 V | 16 | 42.9 × 130 × 146.8 | 0.2 |
| AAM54-S1 | 4-20 mA, 0-10 V | 16 | 42.9 × 130 × 146.8 | 0.2 |
| AAM55-S1 | 4-20 mA, 0-10 V | 24 | 42.9 × 130 × 146.8 | 0.3 |
Other Popular Yokogawa Models
| Model | Output Type | Channels | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| AAM01-S1 | 4-20 mA | 8 | 42.9 × 130 × 146.8 | 0.1 |
| AAM02-S1 | 4-20 mA, 0-10 V | 8 | 42.9 × 130 × 146.8 | 0.1 |
| AAM10-S1 | 4-20 mA | 8 | 42.9 × 130 × 146.8 | 0.1 |
| AAM20-S1 | 4-20 mA, 0-10 V | 16 | 42.9 × 130 × 146.8 | 0.2 |
| AAM25-S1 | 4-20 mA, 0-10 V | 24 | 42.9 × 130 × 146.8 | 0.3 |
Frequently Asked Questions (FAQ)
Q1: What types of outputs does the AAM50-S1 module support?
A1: The AAM50-S1 supports both 4-20 mA and 0-10 V output signals.
Q2: How many channels does the AAM50-S1 have?
A2: It has 8 output channels.
Q3: What is the operating voltage for the AAM50-S1?
A3: The AAM50-S1 operates with a 24 V DC power supply.
Q4: Can I use the AAM50-S1 for high-power applications?
A4: Yes, it can be used for control and feedback loops in various industrial applications, but ensure the connected equipment is compatible with the module’s output range.
Q5: Is the AAM50-S1 compatible with Yokogawa’s other products?
A5: Yes, it integrates seamlessly with Yokogawa’s distributed control systems (DCS).
Q6: What is the maximum distance I can run the wires for the outputs?
A6: The module supports signal transmission up to 1500 V isolation, so you can safely run the wires over significant distances, depending on your specific system.
Q7: What is the range of output signals from the AAM50-S1?
A7: The output range for current is 4-20 mA, and for voltage, it is 0-10 V.
Q8: How is the AAM50-S1 mounted?
A8: The AAM50-S1 is designed for DIN rail mounting, making it easy to install in control panels.
Q9: Does the AAM50-S1 include diagnostic functions?
A9: Yes, the AAM50-S1 includes built-in diagnostics for wire break, short circuit, and signal error detection.
Q10: What is the size and weight of the module?
A10: The dimensions are 42.9 × 130 × 146.8 mm, and the weight is 0.1 kg.
