- Yokogawa
- AAI835-S03
- Analog I/O Module
- Japan
- 100 mm (W) × 130 mm (H) × 30 mm (D)
- 0.3kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 69
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| sales@plc-automations.com | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |

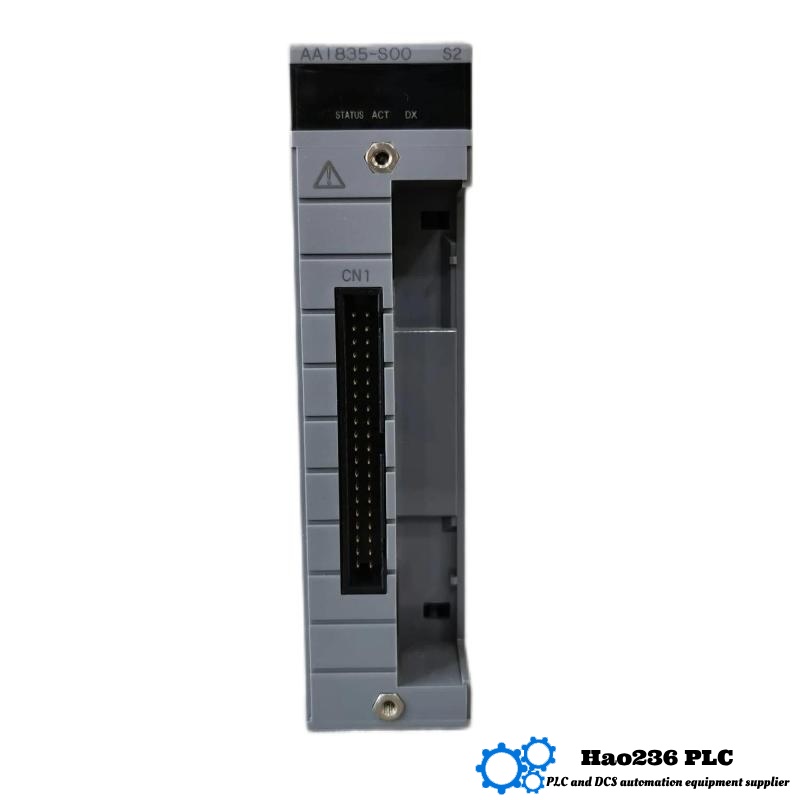

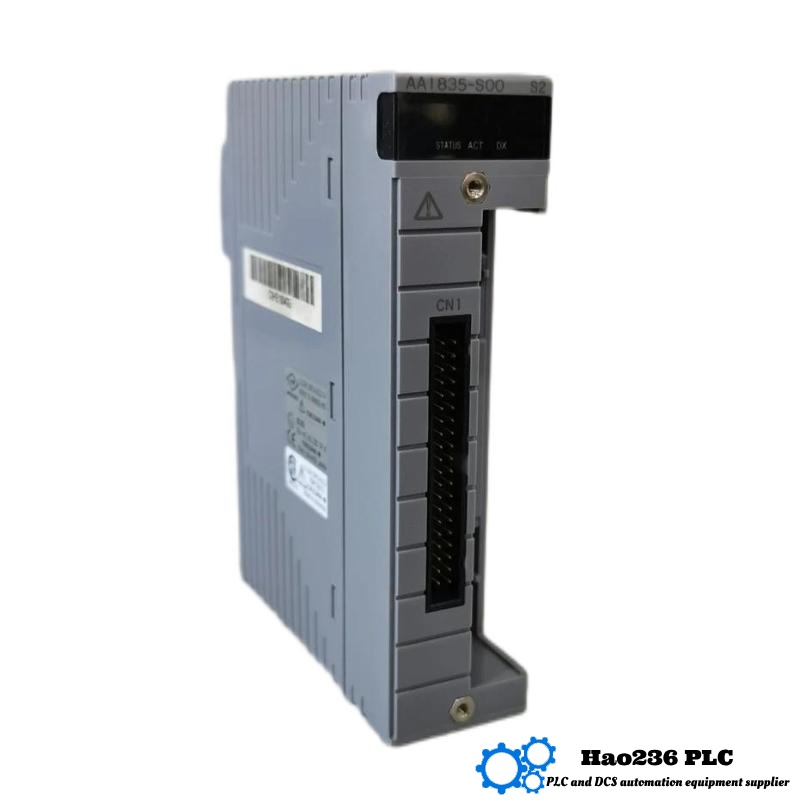

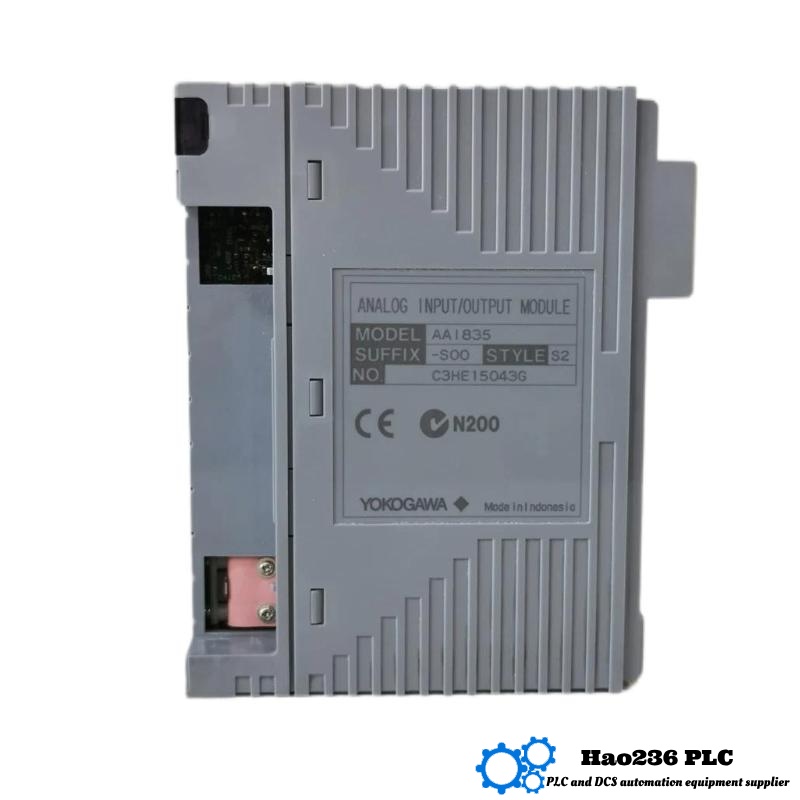

Product Overview: AAI835‑S03
Product Parameters
| Parameter | Specification |
|---|---|
| Power Supply | 24 V DC; typical current draw ~360 mA; maximum ~450 mA |
| Input Signal | 4 two‑wire current‑loop inputs (4–20 mA), isolated per channel |
| Output Signal | 4 isolated analog outputs (4–20 mA) |
| Signal Update Period | Approximately 10 ms |
| Accuracy | ±16 µA per channel |
| Temperature Drift | ±16 µA per 10 °C |
| Isolation Voltage | 500 V AC between channels and between channel/system for 1 minute |
| Interface Options | Available with KS cable (K4A00), pressure clamp terminal (13S00), or others |
| Dimensions | Approximately 100 mm (W) × 130 mm (H) × 30 mm (D) |
| Weight (kg) | Approximately 0.30 kg |
Product Introduction
The AAI835‑S03 is a compact, high-performance analog I/O module with four isolated 4–20 mA inputs and outputs. Designed for modular control systems, it offers exceptional signal integrity, swift 10 ms update cycles, and robust 500 V isolation. Available in multiple connection styles—including KS cable and clamp‑terminal—it suits installations from compact racks to retrofit projects demanding precise, noise‑free signal transfer with modular ease.
Applications
This module is ideal for:
-
High-density analog signal acquisition in modular automation racks
-
Interfacing multiple field transmitters with centralized control systems
-
Signal conversion and retransmission in process loops across manufacturing or treatment facilities
-
Compact retrofits requiring clean, isolated analog I/O
-
Deployments where fast analog feedback and smooth integration are critical
Advantages
-
Fast, precise updates – With just a 10 ms refresh rate and ±16 µA accuracy, it supports tight control loops.
-
Clean signal integrity – 500 V isolation ensures stable, noise-aware performance.
-
Flexible mounting – Choose KS cable or clamp wiring to suit wiring needs.
-
Efficient design – Slim (~100 × 130 × 30 mm), lightweight (~0.3 kg) modular footprint for varied rack setups.
Brand & Series Context
-
Brand: A well‑known leader in industrial instrumentation, especially noted for process I/O performance.
-
Series: Member of the AAI835 analog I/O family, within the ‘S’ subgroup for standard current-loop signaling. The “S03” indicates this configuration with four I/O channels and timing enhancements.
Related & Popular Models
A. Same Series / Related Options
| Model | Description | Dimensions (mm) | Weight (kg) |
|---|---|---|---|
| AAI835‑S03/K4A00 | Same analog I/O set; KS cable interface | ~100 × 130 × 30 | 0.30 |
| AAI835‑S03/13S00 | Same I/O but with clamp‑terminal connections | ~100 × 130 × 30 | 0.30 |
| AAI835‑S00/S50 | Basic variant: current I/O, simpler options | ~100 × 130 × 30 | 0.30 |
| AAI835‑H03/S03 | Adds HART communication | ~100 × 130 × 30 | 0.30 |
| AAI835‑S50/S3 | Current I/O in compact form factor | ~107 × 130 × 33 | 0.30 |
B. Other Popular Models from the Same Brand
| Model | Feature Highlight | Use Case | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| AAI835‑H00 | HART-compatible standard I/O | Remote calibration and diagnostics | ~107.5 × 32.8 × 130 | 0.30 |
| AAI835‑S50 | 4 ch input/output, isolated, clamp style | Dense rack I/O | ~107 × 130 × 33 | 0.30 |
| AAI835‑H53 | 16 ch high-density I/O | Large-scale analog systems | N/A | 0.50 |
| AAI135‑S00 | 8-ch analog input only | Intermediate I/O expansion | N/A | N/A |
| AAI841‑S50 | 8-ch universal I/O | Multi-signalling flexibility | N/A | N/A |
Frequently Asked Questions (QA Format)
-
Q: What kind of signals does the AAI835‑S03 handle?
A: It manages four isolated 4–20 mA analog inputs and outputs. -
Q: How fast does it process signal changes?
A: It refreshes signals approximately every 10 ms. -
Q: What level of signal accuracy can be expected?
A: It delivers ±16 µA accuracy per channel. -
Q: How stable is it across temperature variations?
A: It maintains performance with a drift of about ±16 µA per 10 °C. -
Q: What isolation level does it provide?
A: It offers 500 V AC isolation between I/O channels and between channels and the system. -
Q: Is it configurable for rack integration?
A: Yes—it comes with options like KS cable (K4A00) or clamp connectors (13S00). -
Q: What is its physical size and form factor?
A: It measures around 100 × 130 × 30 mm. -
Q: How heavy is the module?
A: Its weight is roughly 0.30 kg. -
Q: Does it support hazardous area features like options?
A: The base model supports standard usage; explosion- or extended-temp options may exist in variants. -
Q: Which series does the “S03” belong to?
A: It’s part of the AAI835 “S-type” family—standard analog I/O, 4-channel design, with fast scanning features.
