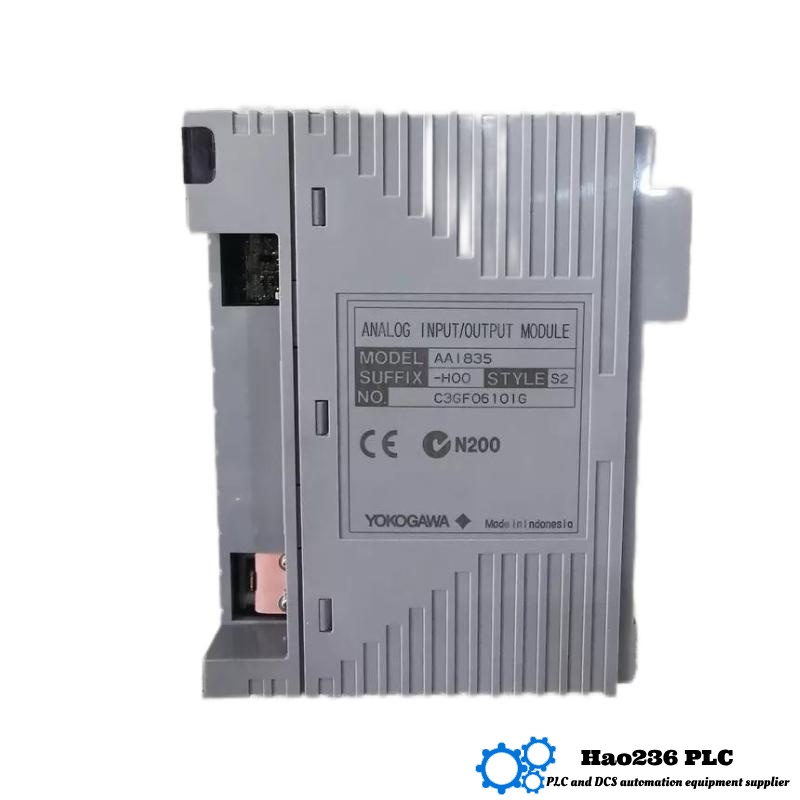

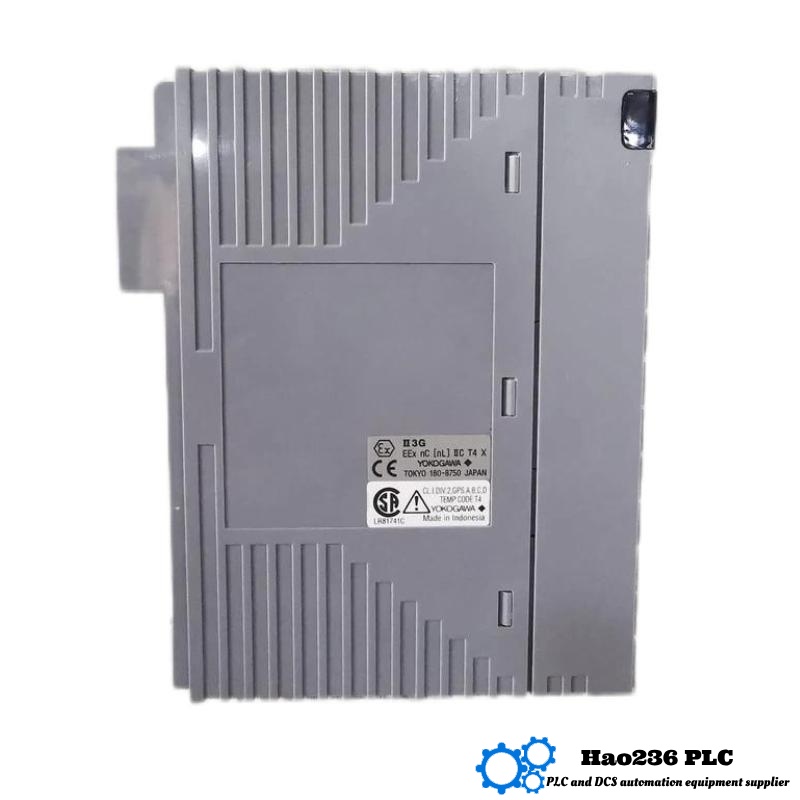

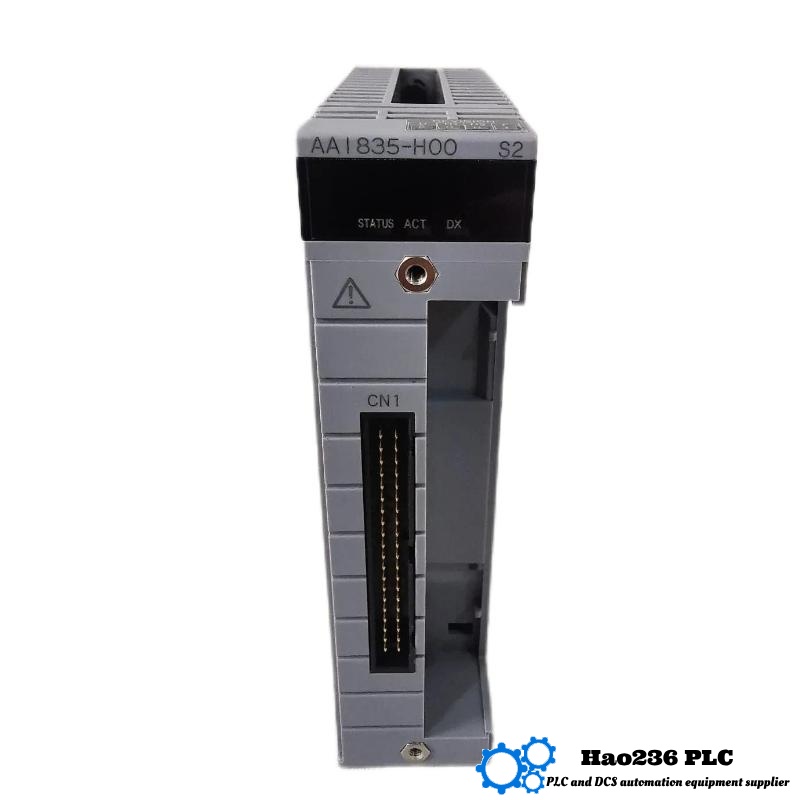

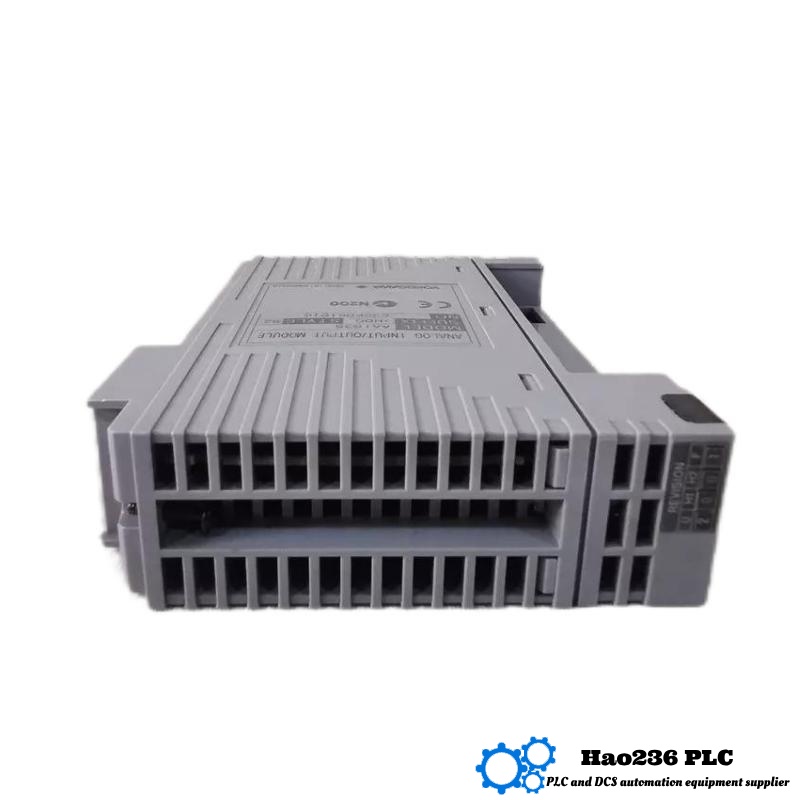

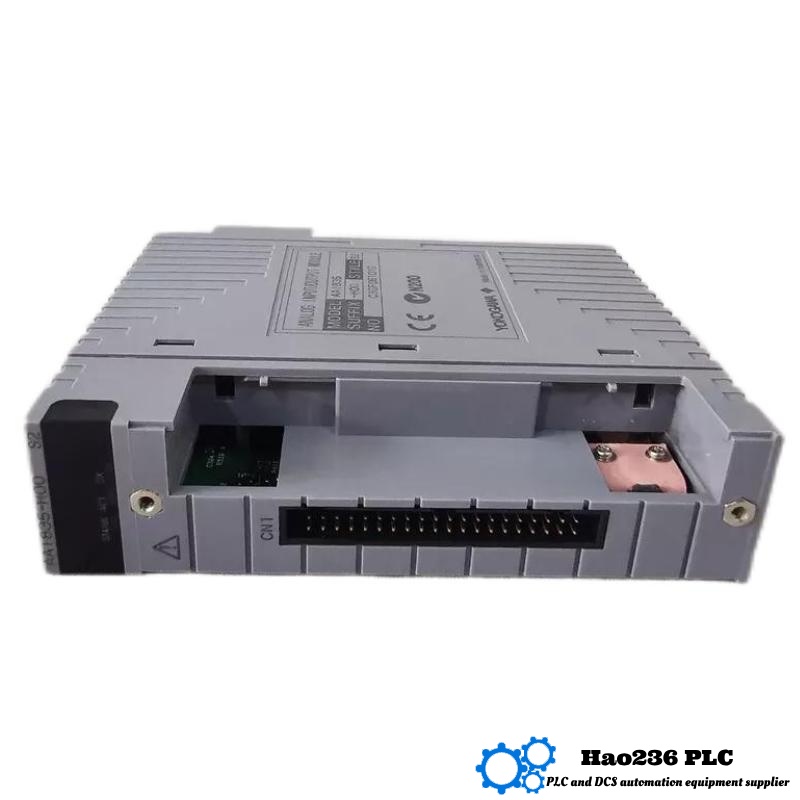

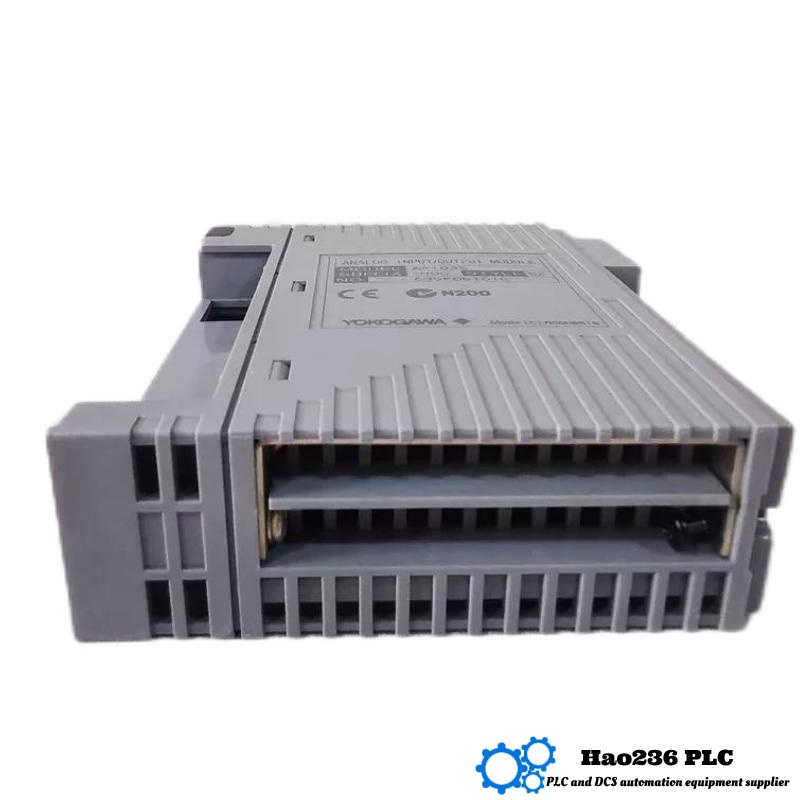

Product Overview: Yokogawa AAI835‑H00/K4A00
The AAI835‑H00/K4A00 is an analog I/O module designed for distributed control systems, featuring 4 isolated analog inputs and 4 isolated analog outputs (4–20 mA signals). It includes HART digital communication support and comes with a KS Cable Interface Adapter for robust field wiring. Built for high accuracy and isolation, this module is ideal for critical industrial environments where signal integrity is paramount.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | AAI835‑H00/K4A00 |
| I/O Channels | 4‑channel input / 4‑channel output (isolated) |
| Signal Type | 4–20 mA DC for both input and output |
| HART Support | Yes (digital communication overlay on analog lines) |
| Cable Interface | KS Cable Interface Adapter included |
| Input Resistance (Power ON) | ~290 Ω @20 mA to ~450 Ω @4 mA |
| Allowable Input Current | Up to 25 mA |
| Withstanding Voltage | 500 V AC between I/O and system, and between channels |
| Accuracy | ±16 µA (input); ±48 µA (output) |
| Data Update Interval | ~10 ms |
| Drift Due to Ambient Temperature | ±16 µA per 10 °C |
| Power Consumption | ~450 mA @24 V DC (approx. 10.8 W) |
| Mounting Type | Rack-mounted via module base |
| Operating Temperature Range | Standard industrial range |
| Weight | 0.2 kg |
Product Applications
-
High-demand analog control loops in petrochemical and refining
-
Process instrumentation in chemical and pharmaceutical facilities
-
Hybrid analog–digital process setups leveraging HART sensors
-
Upgrading legacy 4–20 mA systems with modern communication capabilities
-
Compact analog I/O consolidation in distributed automation racks
Advantages
-
HART-enabled mix of analog and digital signals enables rich diagnostics
-
High isolation ensures robust performance in electrically noisy environments
-
Compact 4‑in/4‑out design saves rack space while maintaining flexibility
-
Accurate analog processing (±16 µA / ±48 µA) supports tight control
-
Strong environmental tolerance with wide operating temperature and voltage margins
Related or Similar Models (Same Series)
| Model | I/O Channels | HART Support | Cable Option | Weight (kg) |
|---|---|---|---|---|
| AAI835‑H00/K4A00 | 4 in / 4 out | Yes | KS Cable interface | 0.2 |
| AAI835‑S00/K4A00 | 4 in / 4 out | No | KS Cable interface | 0.2 |
| AAI835‑H50/K4A00 | 4 in / 4 out | Yes | KS Cable interface | 0.2 |
| AAI835‑S50/K4A00 | 4 in / 4 out | No | KS Cable interface | 0.2 |
| AAI135‑H00/K4A00 | 8 inputs only | Yes | KS Cable interface | 0.3 |
Other Popular Yokogawa Modules (Same Brand)
| Model | Function | Channels | Weight (kg) |
|---|---|---|---|
| AAI835‑H00/K4A00 | Analog I/O (4‑in, 4‑out, HART) | 4 / 4 | 0.2 |
| AAI543‑H50 | Analog output (16 ch, HART) | 16 out | ~0.3 |
| AAI143‑H00 | Analog input (16 ch, HART) | 16 in | ~0.3 |
| AAI841‑S00 | Analog I/O (8 in, 8 out) | 8 / 8 | ~0.3 |
| ADV151 Digital Input | Digital input module | N/A | ~0.2 |
Frequently Asked Questions (FAQ)
Q1: How many analog channels are on the AAI835‑H00/K4A00?
A1: It has 4 isolated analog inputs and 4 isolated analog outputs.
Q2: Does this module support HART communication?
A2: Yes, it includes HART digital protocol on its analog lines.
Q3: How well is the module isolated?
A3: It is isolated 500 V AC between inputs, outputs, and the system base.
Q4: What are the signal accuracy limits?
A4: Input accuracy is ±16 µA; output accuracy is ±48 µA.
Q5: Is there a special cable interface included?
A5: Yes, the module comes with a KS Cable Interface Adapter.
Q6: Can it handle industrial temperature variations?
A6: Yes, it’s designed for standard industrial operating ranges.
Q7: What is the power requirement?
A7: Approximately 450 mA at 24 V DC (around 10.8 W consumption).
Q8: Is the module compact and lightweight?
A8: Yes, it weighs about 0.2 kg and fits standard baseplates.
Q9: How fast are the analog updates?
A9: Updates occur approximately every 10 ms.
Q10: How does temperature affect accuracy?
A10: Drift is about ±16 µA per 10 °C change.
