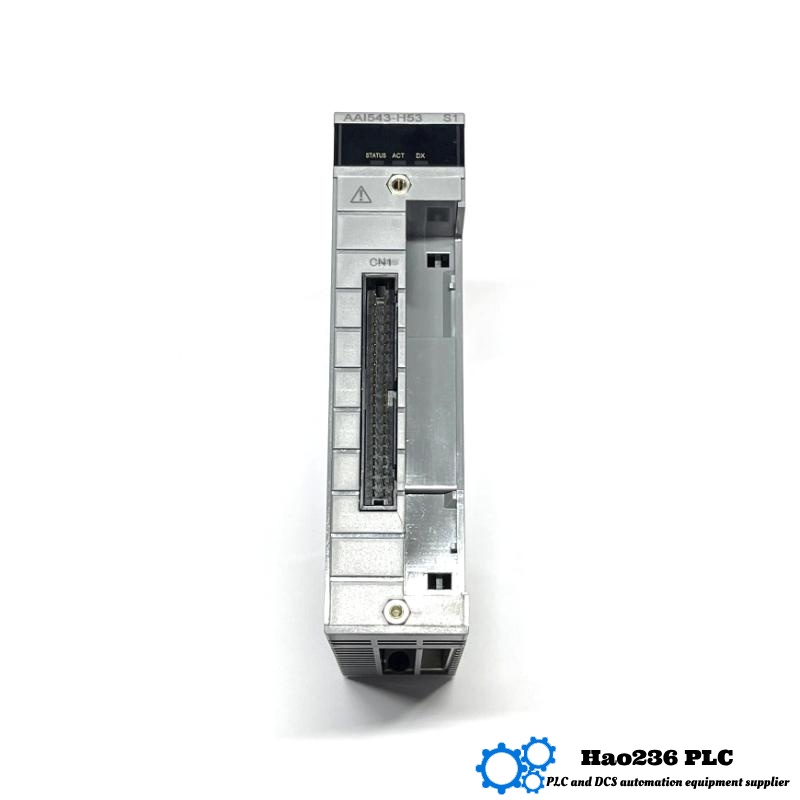

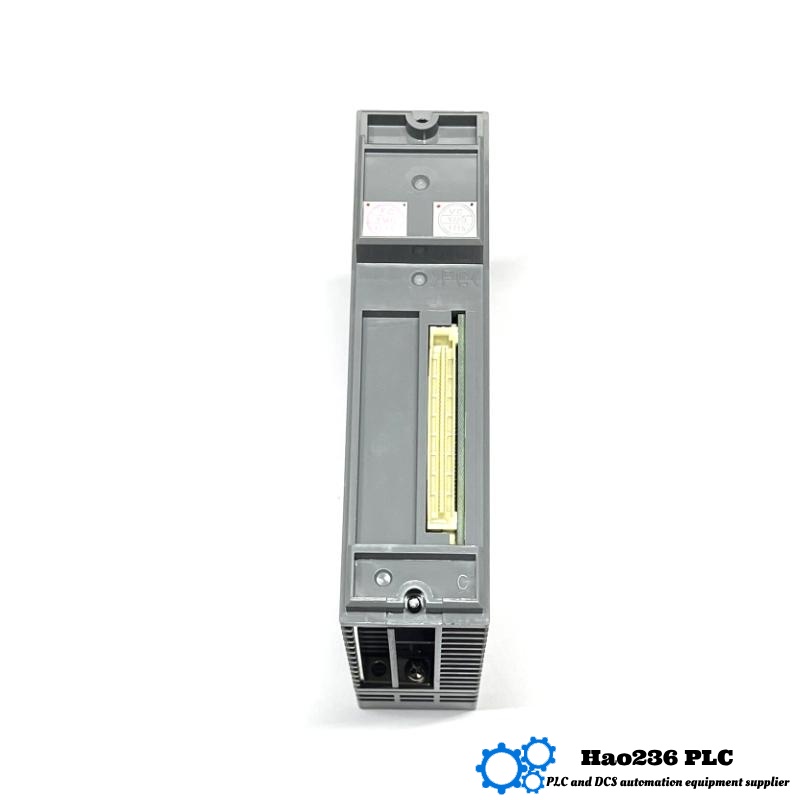

Product Overview – AAI543‑S50/A4S00
The AAI543‑S50/A4S00 is a premium 16‑channel analog output module from the AAI543 series. Crafted for precise industrial control, it delivers isolated 4–20 mA signals, features HART communication for remote calibration and diagnostics, and includes a pressure‑clamp terminal block (A4S00) for reliable field wiring. This module is built for environments demanding both signal integrity and minimal maintenance, such as power generation, water treatment, and manufacturing automation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | AAI543‑S50/A4S00 |
| Output Channels | 16 fully isolated |
| Output Signal | 4–20 mA analog |
| Communication | HART (remote diagnostics and configuration) |
| Update Rate | 10 ms |
| Accuracy | ±48 µA |
| Temperature Drift | ±16 µA per 10 °C |
| Withstand Voltage | 1500 V AC (1 min, output vs system) |
| Load Resistance | 0–750 Ω |
| Power Consumption | 230 mA @ 5 V DC; 540 mA @ 24 V DC |
| Terminal Block | Pressure‑clamp (A4S00) |
| External Connections | Clamp, MIL connector, KS cable |
| Switch‑over Response | Standard (redundant-ready) |
| Temperature Range | –20 °C to +60 °C |
| Dimensions (W×H×D) | 27 mm × 130 mm × 110 mm |
| Weight | 0.40 kg |
Applications
-
Power Generation – Controls valves and turbines with precision and up to date diagnostics.
-
Chemical Processing – Regulates flow, pressure, and temperature with high reliability.
-
Water & Waste Treatment – Manages dosing and hydraulics with stable analog outputs.
-
Pharmaceutical Production – Offers accurate control in sanitized environments.
-
Manufacturing Automation – Drives coordinated analog control in assembly lines and robotics.
Key Advantages
-
HART-Enabled Smart Control – Enables remote status checks, diagnostics, and calibration.
-
Secure Wiring with Clamp Terminal – Ensures installation reliability and reduces wiring effort.
-
Fast, Accurate Outputs – 10 ms updates and ±48 µA precision support real-time control.
-
Redundancy-Ready – Supports standard switch-over in dual-module setups.
-
Compact, Rugged – Small form factor handles industrial conditions with ease.
Brand & Series
-
Brand: Industrial automation series (generic)
-
Series: AAI543 – 16‑channel analog output modules
5 Related Models (Same Series)
| Model | Key Feature | HART | Temp Range |
|---|---|---|---|
| AAI543‑S50 | Base S50 without clamp | Yes | –20 °C to +60 °C |
| AAI543‑S50/K4A00 | S50 with KS interface | Yes | –20 °C to +60 °C |
| AAI543‑H50/A4S10 | H50 with surge clamp | Yes | –20 °C to +60 °C |
| AAI543‑S53/A4S00 | S50 with extended temperature support | Yes | –20 °C to +70 °C |
| AAI543‑H53/A4D00 | H53 plus dual clamp, extended temp | Yes | –20 °C to +70 °C |
5 Popular Models from the Same Brand
| Model | Functionality | Highlight |
|---|---|---|
| AAI143‑S50 | 16‑channel analog input | Mirrored analog input functionality |
| ADV151‑P50 | 32‑channel digital output | High-speed solid-state switching |
| ATD5A‑00 | Thermocouple input (8 channels) | Temperature input versatility |
| AAR181‑S00 | Remote I/O communication unit | Field distribution of I/O with communication |
| AFV10D‑S00 | Field control node | Combines logic control with analog output |
Top 10 FAQs (Q&A Format)
Q1: What sets the AAI543‑S50/A4S00 apart?
A1: HART communication, clamp-style wiring, high precision outputs, and redundancy readiness—packaged in a slim module.
Q2: Does it support remote configuration?
A2: Yes—HART enables remote diagnostics and setting adjustments.
Q3: What is its output accuracy?
A3: ±48 µA with excellent stability across the temperature range.
Q4: How fast do outputs update?
A4: Every 10 ms—ideal for dynamic process control.
Q5: What temperature range is supported?
A5: Robust operation from –20 °C to +60 °C.
Q6: How is wiring handled?
A6: Pressure clamp terminals offer a secure, maintenance-friendly wiring approach.
Q7: Is it redundant-ready?
A7: Yes—support for standard switch-over in redundant configurations.
Q8: What is its size and weight?
A8: Compact 27 × 130 × 110 mm design, weighing 0.40 kg—perfect for dense panel installations.
Q9: What industries benefit most?
A9: Power, chemical, pharmaceutical, water treatment, and automation sectors requiring precise analog control.
Q10: Does it handle electrical noise and surges well?
A10: Yes—protected against 1500 V AC surges and built to resist industrial electrical interference.
