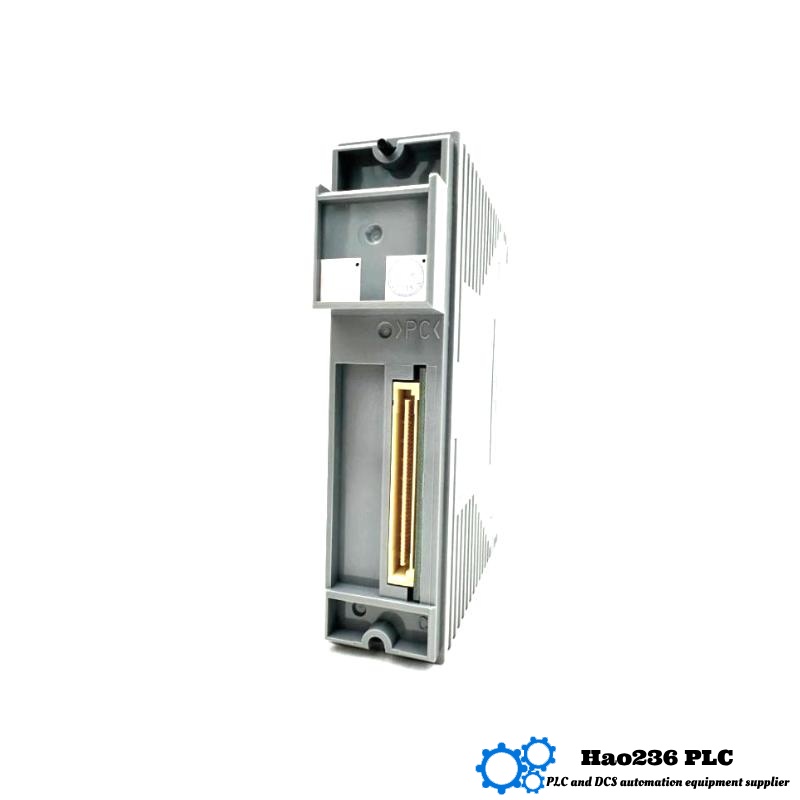

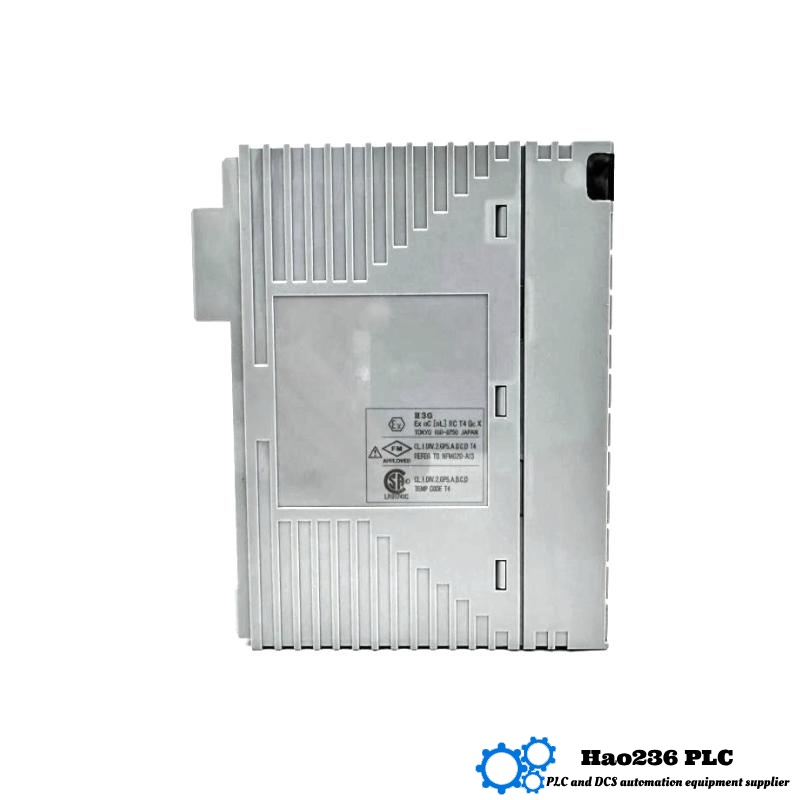

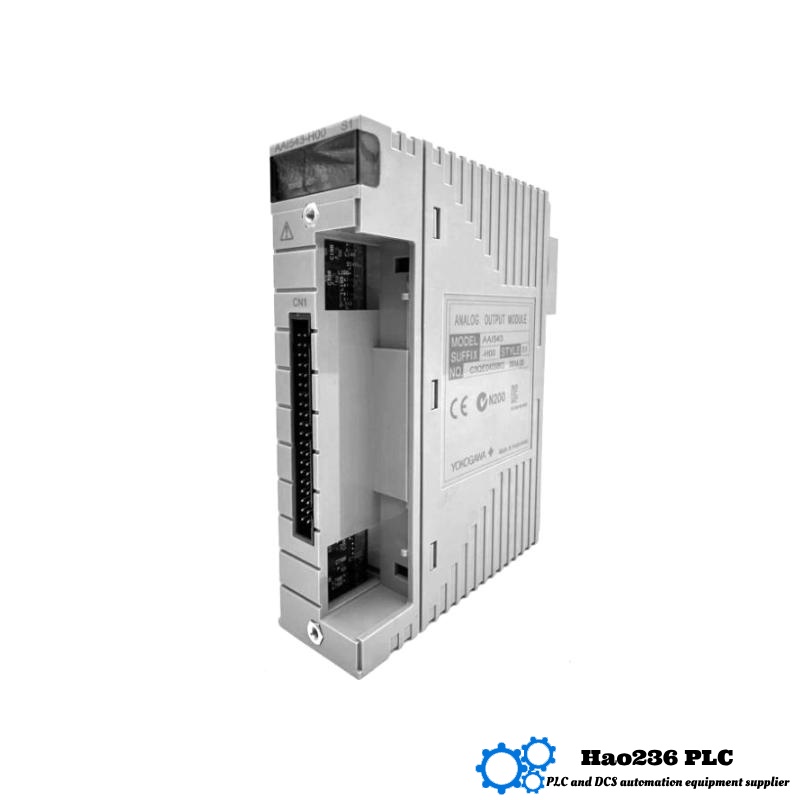

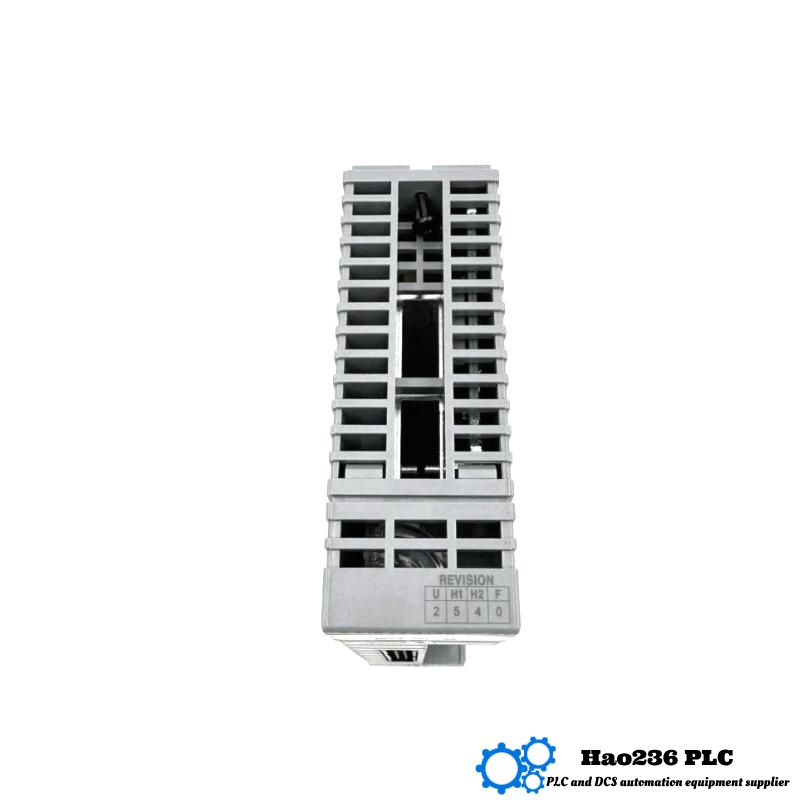

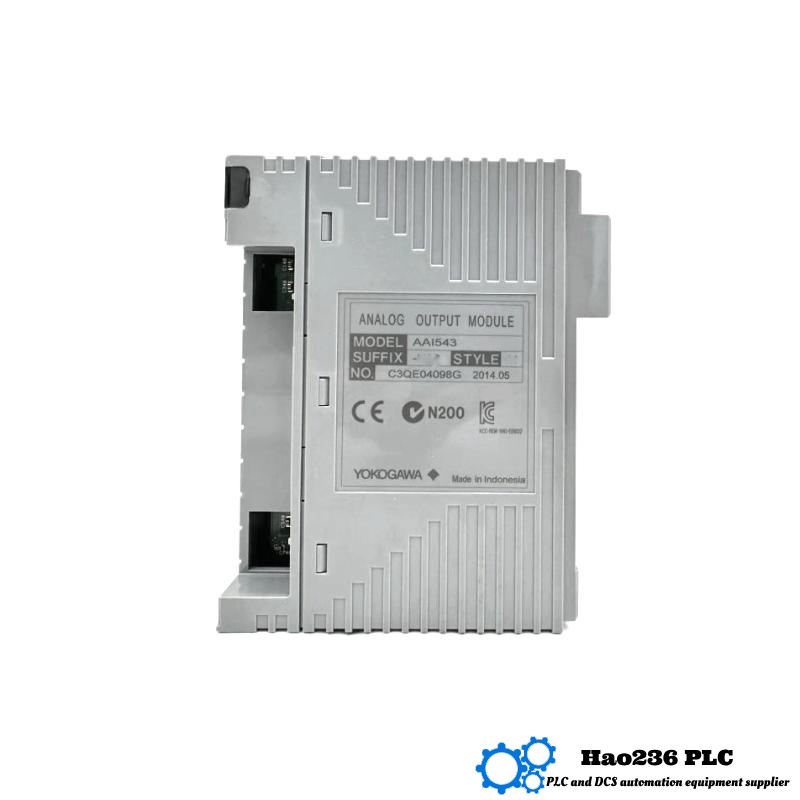

Product Overview – AAI543‑H60/K4A00
The AAI543‑H60/K4A00 is a top-tier analog output module designed for advanced distributed control systems (DCS). It delivers 16 isolated 4–20 mA analog output channels with HART communication, enabling precise control and remote diagnostics. The H60 variant supports high-temperature and industrial-grade applications, and the K4A00 suffix denotes a KS Cable Interface, simplifying wiring and maintenance without sacrificing durability.
This module is built for environments that demand rugged performance, operator efficiency, and signal integrity—all in a compact footprint.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | AAI543‑H60/K4A00 |
| Number of Channels | 16 (fully isolated) |
| Output Signal | 4–20 mA analog |
| Output Update Time | 10 ms |
| Load Resistance | 0–750 Ω |
| Accuracy | ±48 µA |
| Drift (per 10 °C) | ±16 µA |
| Temperature Range | –20 °C to +70 °C (industrial grade) |
| Withstand Voltage | 1500 V AC (1 minute, output vs system) |
| HART Communication | Yes |
| Power Consumption | 230 mA @ 5 V DC; 540 mA @ 24 V DC |
| Connection Interface | KS Cable Interface (K4A00) |
| Mounting Style | Slim base-mount |
| Dimensions (W × H × D) | 27 mm × 130 mm × 110 mm |
| Weight | 0.45 kg |
Applications
-
Power Generation
Reliably drives control valves and actuators in high-heat environments. -
Oil & Gas / Petrochemicals
Maintains precision control in harsh processing zones, leveraging HART for diagnostics. -
Water & Wastewater Treatment
Controls dosing valves and pump systems with accuracy under variable conditions. -
Pharmaceutical Operations
Interfaces with sanitary actuators within strict regulatory environments. -
Heavy Industry (Steel, Mining, etc.)
Withstands harsh industrial conditions while maintaining signal integrity and fast response.
Key Advantages
-
Extended Temperature Capability
Operates from –20 °C to +70 °C, suitable for extreme conditions. -
HART-Enabled Intelligence
Enables remote diagnostics, asset management, and calibration. -
KS Cable Interface
Quick, error‑resistant installation—ideal for field servicing. -
Fast Response Time
10 ms output refresh ensures real-time system performance. -
High Signal Fidelity
Isolated channels and ±48 µA accuracy uphold stable control in electrically noisy environments. -
Compact & Light
Slim 27 mm profile and ~0.45 kg weight conserve panel space without compromising durability.
Brand & Series
-
Brand: Generic industrial automation brand
-
Series: AAI543 (16‑channel analog output modules)
5 Related Models (Same Series / Variants)
| Model | Description | Channels | HART | Temp Range |
|---|---|---|---|---|
| AAI543‑H53/K4A00 | High-temp operation with KS interface | 16 | Yes | –20 °C to +70 °C |
| AAI543‑H50/A4S10 | Standard temp HART with surge clamp | 16 | Yes | –20 °C to +60 °C |
| AAI543‑S53 | High-temp standard output | 16 | No | –20 °C to +70 °C |
| AAI543‑H03/K4A00 | Medium temp with KS interface | 16 | No | –20 °C to +60 °C |
| AAI543‑S50 | Standard output, base configuration | 16 | No | –20 °C to +60 °C |
5 Popular Models from the Same Brand
| Model | Function | Channels |
|---|---|---|
| AAI143‑H60/K4A00 | High-temp analog input module | 16 |
| ADV151‑P00 | High-speed digital output module | 32 |
| ATD5A‑00 | Thermocouple input (8 channels) | 8 |
| AAR181‑S00 | Remote I/O communication module | – |
| AFV10D‑S00 | Field control station | – |
Top 10 FAQs
Q1: What does this module do?
A1: Converts control signals into 16 isolated analog outputs (4–20 mA) with integrated HART communication.
Q2: What temperature range can it operate in?
A2: It supports –20 °C to +70 °C, making it suitable for high-grade industrial applications.
Q3: How accurate are the outputs?
A3: The module maintains a ±48 µA output accuracy with minimal temperature drift.
Q4: What is the response time?
A4: Outputs are updated every 10 milliseconds, enabling real-time control.
Q5: What is the KS interface?
A5: A convenient cable interface that simplifies wiring and module handling.
Q6: How heavy is it?
A6: The unit weighs approximately 0.45 kg.
Q7: Does it support diagnostics?
A7: Yes, through HART communication for remote monitoring and configuration.
Q8: Can it handle electrical noise?
A8: Yes, with isolated channels and high signal integrity, it resists interference.
Q9: What industries benefit most?
A9: Power, chemical, water, pharmaceutical, and heavy industries are ideal environments.
Q10: Is it compact for panel use?
A10: Absolutely. The slim 27 mm design saves space without sacrificing performance.
