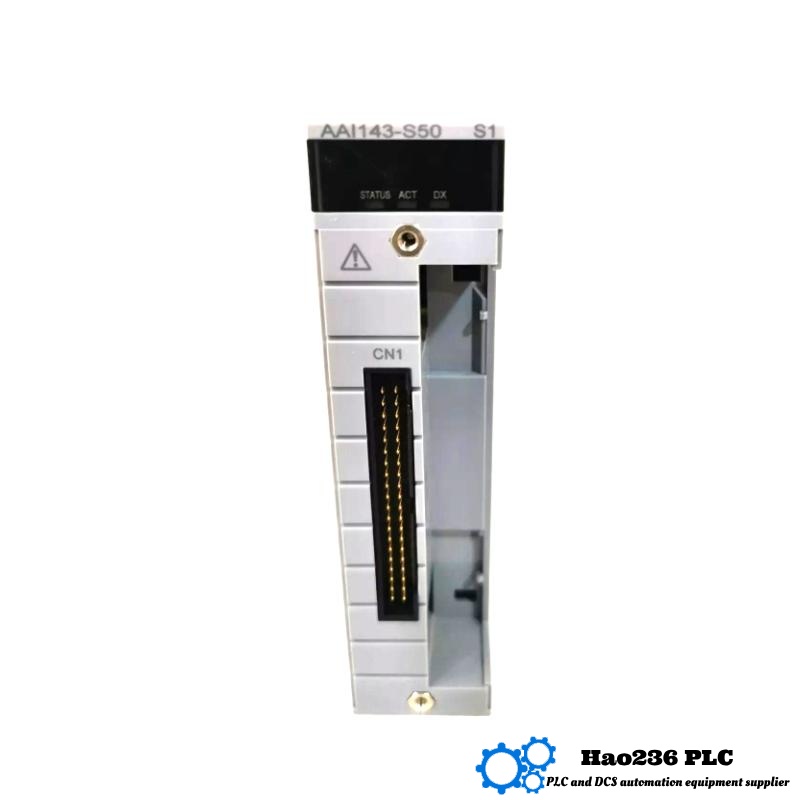

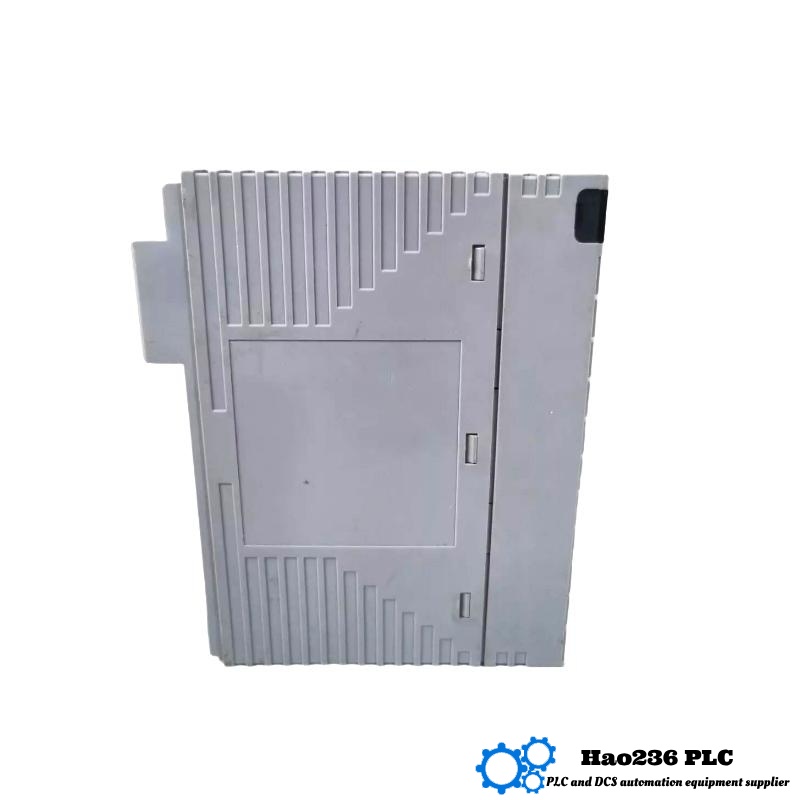

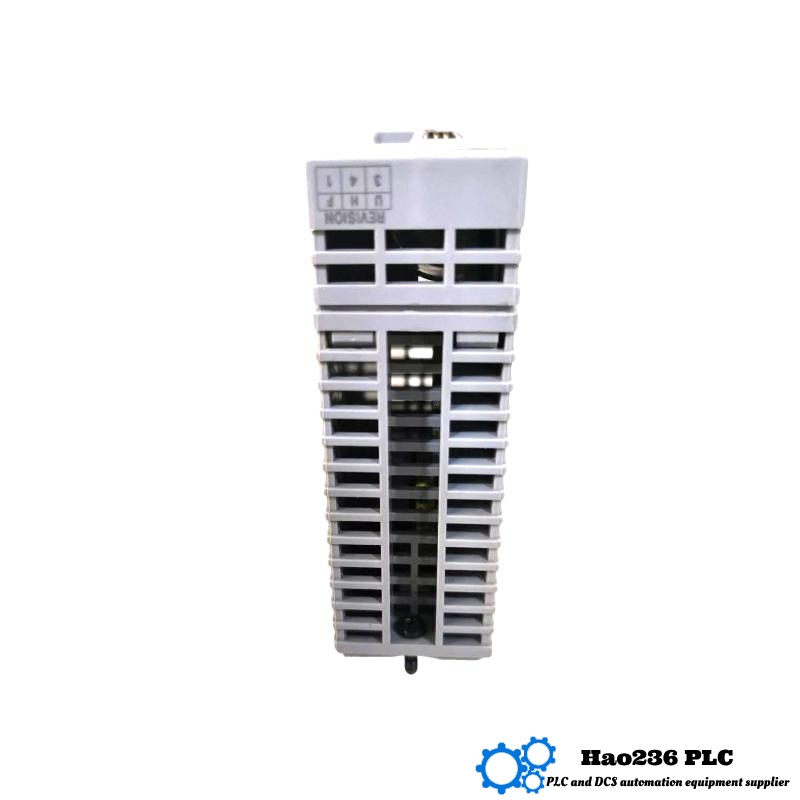

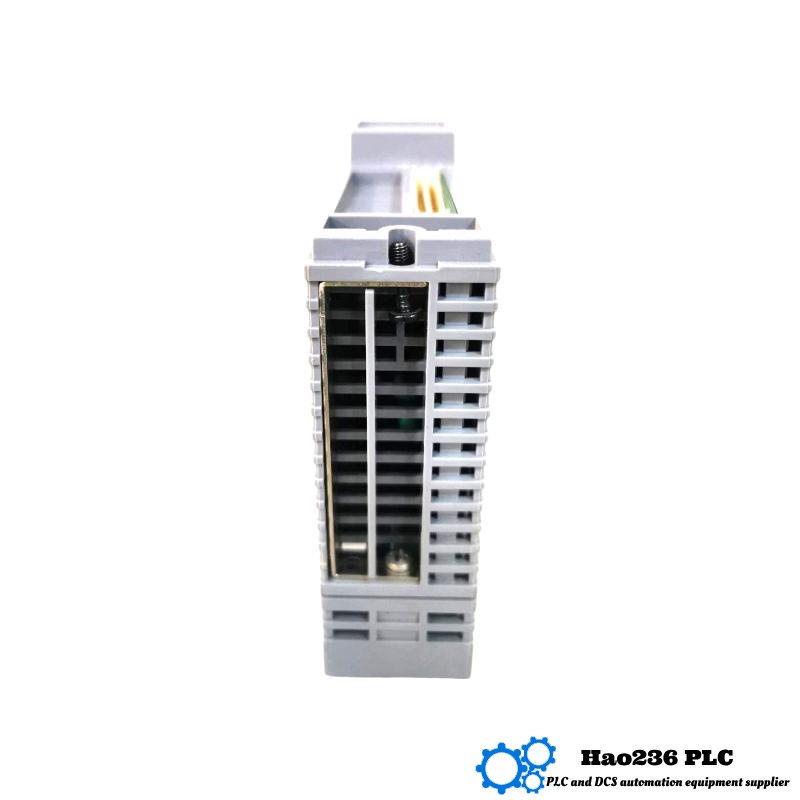

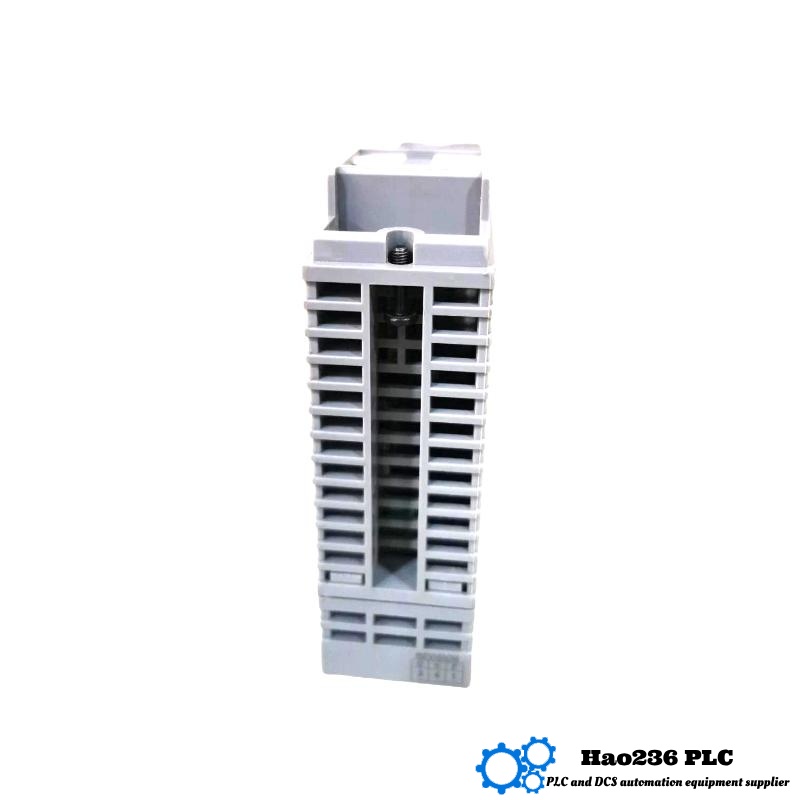

📦 Product Overview: Yokogawa AAI143-S50/A4800
The Yokogawa AAI143-S50/A4800 is a sophisticated analog input module designed for industrial process automation and control systems. This model belongs to the well-known AAI100 series and features enhanced input capabilities along with advanced diagnostic functions tailored for large-scale and safety-critical environments.
This module supports 16 channels of 4–20 mA current input signals, providing high accuracy and reliability essential for monitoring and controlling complex industrial processes. The A4800 suffix indicates specific hardware or firmware optimizations, improving stability and integration within distributed control systems (DCS).
📋 Product Specifications
| Parameter | Value |
|---|---|
| Model Number | AAI143-S50/A4800 |
| Product Type | Analog Input Module |
| Number of Channels | 16 channels (4–20 mA current input) |
| Input Signal Type | DC current (4–20 mA) |
| Signal Range | 4–20 mA standard current loop |
| Resolution | 16-bit |
| Input Impedance | Approximately 250 Ω |
| Isolation | Channel-to-channel and channel-to-ground isolation |
| Power Supply | 24 V DC (via base unit) |
| Accuracy | ±0.1% full scale |
| Diagnostics | Advanced diagnostics with hardware and loop checks |
| Mounting | DIN Rail or Baseplate |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -20°C to 70°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Dimensions (W x H x D) | 27 x 130 x 130 mm |
| Weight | 0.28 kg |
| Series | AAI100 Series |
| Compatible Systems | CENTUM VP, ProSafe-RS |
| Certifications | CE, RoHS, CSA, UL |
🌐 Product Applications
-
Process Automation: Precision data input for various analog sensors in chemical, petrochemical, and pharmaceutical plants.
-
Safety Instrumented Systems: Supports safety-related measurement and control with robust diagnostics.
-
Power Industry: Monitoring sensors in thermal, hydro, and nuclear power generation systems.
-
Oil & Gas: Reliable input for pressure, temperature, and flow measurement instruments in harsh environments.
-
Water & Wastewater Treatment: High reliability data acquisition for treatment process control and monitoring.
🌟 Product Advantages
-
High Channel Density: Offers 16 channels per module for efficient space utilization.
-
Superior Accuracy: ±0.1% full scale accuracy ensures precise analog signal processing.
-
Robust Isolation: Each channel is electrically isolated, preventing cross-talk and signal interference.
-
Comprehensive Diagnostics: Advanced hardware and loop diagnostics allow early fault detection and improved system reliability.
-
Flexible Mounting Options: Supports DIN rail or baseplate mounting for installation versatility.
-
Wide Operating Range: Reliable performance under industrial temperature and humidity conditions.
🏢 Brand Information
-
Brand: Yokogawa
-
Product Series: AAI100 Series
-
Category: Analog Input Modules
-
Industry Focus: Industrial automation, safety systems, and process control
🔄 5 Related Models (Same or Related Series)
| Model | Channels | Input Type | Resolution | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| AAI143-S50 | 16 | 4–20 mA | 16-bit | 27 x 130 x 130 | 0.28 |
| AAI143-S03 | 16 | 4–20 mA | 16-bit | 27 x 130 x 130 | 0.28 |
| AAI143-S00 | 16 | 4–20 mA | 16-bit | 27 x 130 x 130 | 0.28 |
| AAI141-S00 | 8 | 4–20 mA | 16-bit | 27 x 130 x 130 | 0.28 |
| AAI135-S00 | 8 | Thermocouple | 16-bit | 27 x 130 x 130 | 0.30 |
🔥 5 Popular Models from the Same Brand
| Model | Function | Channels | Signal Type | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| ADV551-P00 | Analog Output Module | 8 | 4–20 mA | 27 x 130 x 130 | 0.29 |
| CP451-10 | CPU Module | — | — | 45 x 130 x 130 | 0.50 |
| SCP451-50 | Power Supply Module | — | — | 45 x 130 x 130 | 0.48 |
| ADM52C | Digital Input Module | 32 | Dry Contact | 27 x 130 x 130 | 0.27 |
| AAR181-S00 | RTD Input Module | 8 | RTD | 27 x 130 x 130 | 0.30 |
❓ Frequently Asked Questions (FAQ)
Q1: What input signal type does the AAI143-S50/A4800 accept?
A1: It accepts standard 4–20 mA DC current signals.
Q2: How many channels does this module support?
A2: This module supports 16 input channels.
Q3: What is the accuracy level of the module?
A3: The accuracy is ±0.1% full scale.
Q4: What kind of isolation does the module provide?
A4: It offers channel-to-channel and channel-to-ground isolation.
Q5: Can this module be used in safety instrumented systems?
A5: Yes, it includes diagnostics and features compatible with safety systems.
Q6: What is the power requirement for this module?
A6: The module operates on 24 V DC supplied through the base unit.
Q7: What are the operating temperature limits?
A7: The module is rated for operation between 0°C and 55°C.
Q8: What are the physical dimensions and weight?
A8: Dimensions are 27 mm (W) x 130 mm (H) x 130 mm (D), weight is approximately 0.28 kg.
Q9: Is the module compatible with major DCS systems?
A9: Yes, it is compatible with CENTUM VP and ProSafe-RS systems.
Q10: How is the module mounted?
A10: It supports mounting on DIN rails or baseplates.
