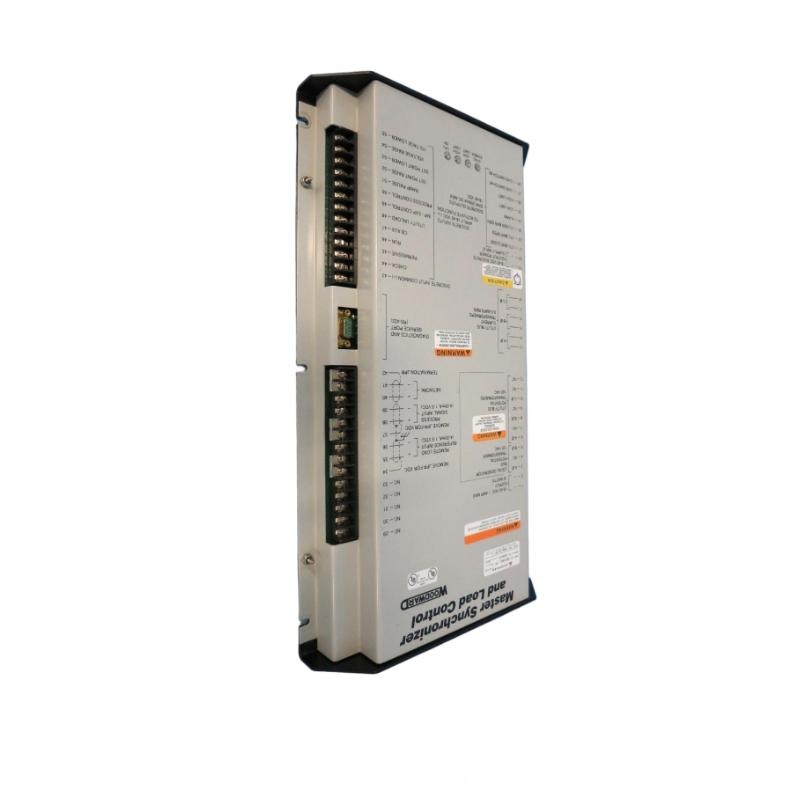

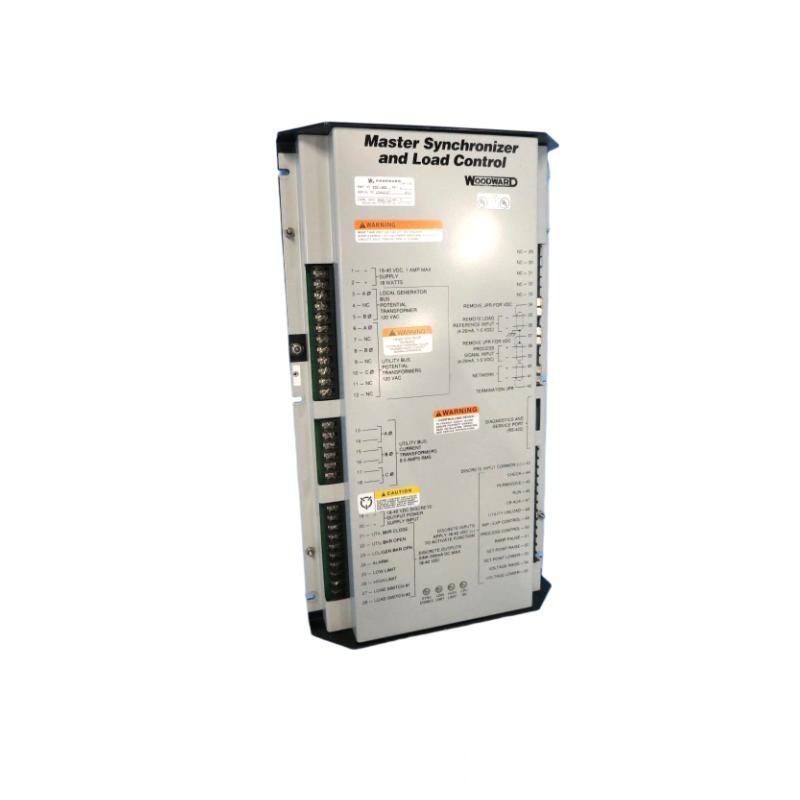

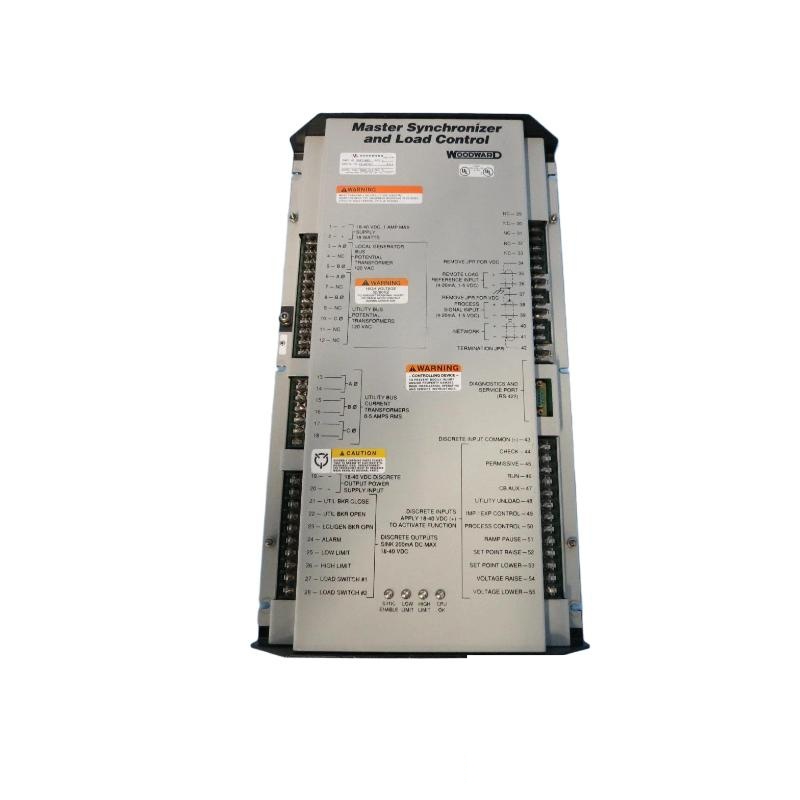

Woodward 9907-005 Master Synchronizer and Load Control Module
Product Overview
The Woodward 9907-005 is a high-performance master synchronizer and load control module designed to manage generator synchronization and load sharing in power generation systems. It automatically controls the process of bringing generator sets online in phase with the utility or other generators, while ensuring balanced load distribution and stable frequency control.
This module is a critical component in Woodward’s power management and control system, offering both manual and automatic control modes. With robust algorithms and fast response, it ensures seamless synchronization, smooth paralleling, and efficient load transfer operations. Built for industrial-grade applications, the 9907-005 supports critical infrastructure in sectors like utilities, marine, oil & gas, and industrial power plants.
Technical Specifications
| Parameter | Description |
|---|---|
| Product Model | 9907-005 |
| Function | Master Synchronizer & Load Control Module |
| Synchronization Type | Automatic & Manual |
| Supported Systems | Single/Multiple Generator Synchronization |
| Frequency Range | 45–65 Hz |
| Voltage Input Range | 90–240 VAC nominal |
| Load Control Function | Base Load, Peak Shaving, Load Sharing |
| Phase Detection Accuracy | ±1 degree |
| Response Time | < 100 ms |
| Communications | Hardwired, optional serial interfaces |
| Operating Temperature | -40°C to +70°C |
| Mounting Type | Rack or Panel Mount |
| Dimensions (W × H × D) | 355.6 × 279.4 × 101.6 mm |
| Weight | 4.13 kg |
| Brand | Woodward |
| Product Series | Power Generation & MicroNet Series |
Product Applications
-
Utility Power Plants: Ensures safe synchronization and load balancing between generator sets and utility grids.
-
Marine Vessels: Controls onboard generator synchronization and paralleling for propulsion and auxiliary systems.
-
Industrial Facilities: Maintains load balance across generators in manufacturing plants or data centers.
-
Oil & Gas Sites: Provides reliable synchronization and load control for drilling rigs and offshore platforms.
-
Microgrid Systems: Enables seamless integration of distributed generation into localized or islanded grid systems.
Product Advantages
-
Precise Synchronization: Delivers fast, accurate phase, frequency, and voltage matching for secure paralleling.
-
Versatile Load Management: Supports various control modes including base load, peak shaving, and load sharing.
-
Robust Construction: Engineered to withstand extreme temperatures and industrial environments with high reliability.
-
Flexible Control Options: Can operate autonomously or in conjunction with SCADA and Woodward governors.
-
Proven Compatibility: Seamlessly integrates with Woodward’s MicroNet and easYgen control architectures.
Brand
-
Brand: Woodward
The 9907-005 is part of Woodward’s proven MicroNet family, designed to meet the needs of advanced power control, synchronization, and protection in mission-critical applications.
Recommended Related Models (Same Series or Function)
| Model | Description | Function | Dimensions (mm) | Weight |
|---|---|---|---|---|
| 9907-014 | Load Sharing & Synchronizer Module | Load Sharing & Sync | 355 × 280 × 100 | 4.10 kg |
| 9907-018 | Redundant Power Supply Unit | Power Backup | 300 × 200 × 120 | 3.85 kg |
| 9905-971 | 16-Channel Digital Input Module | Digital Input | 355 × 279 × 101 | 0.50 kg |
| 9905-870 | Relay Output Module | Discrete Output Control | 355 × 279 × 101 | 0.52 kg |
| 9905-969 | Analog Input Module | Analog Signal Monitoring | 355 × 279 × 101 | 0.48 kg |
Popular Woodward Modules (Same Brand)
| Model | Description | Dimensions (mm) |
|---|---|---|
| 9907-1198 | Woodward control module, standard governor interface board | 190 x 120 x 40 |
| 9907-1200 | Woodward load sharing and synchronizer control module | 200 x 130 x 45 |
| 9907-135 | Woodward analog actuator driver board, legacy series | 180 x 115 x 38 |
| 9907-138 | Woodward digital control interface, enhanced functionality | 195 x 125 x 42 |
| 9907-142 | Woodward power distribution and monitoring module | 200 x 130 x 45 |
Frequently Asked Questions (FAQ)
Q1: What is the main purpose of the 9907-005 module?
A1: It synchronizes generator sets with other power sources and manages load sharing during parallel operation.
Q2: Can this module work with both manual and automatic synchronization?
A2: Yes, the 9907-005 supports both modes for flexibility in different operating environments.
Q3: What kind of load control does it support?
A3: It supports base load, peak shaving, and load sharing operations.
Q4: What voltage and frequency ranges are supported?
A4: It operates within 90–240 VAC input and supports 45–65 Hz frequency ranges.
Q5: Is the unit compatible with SCADA systems?
A5: Yes, it can interface with SCADA through hardwired I/O or optional serial communication.
Q6: What is the accuracy of its phase matching?
A6: It can match phase within ±1 degree for precise synchronization.
Q7: What type of mounting does it support?
A7: It supports both panel and rack mounting.
Q8: Is it suitable for harsh environments?
A8: Yes, it operates reliably in temperatures ranging from -40°C to +70°C.
Q9: What is the response time of the module?
A9: It offers fast response times, typically under 100 milliseconds.
Q10: Can it be integrated with other Woodward control devices?
A10: Yes, it is fully compatible with Woodward’s MicroNet series and other control modules.
