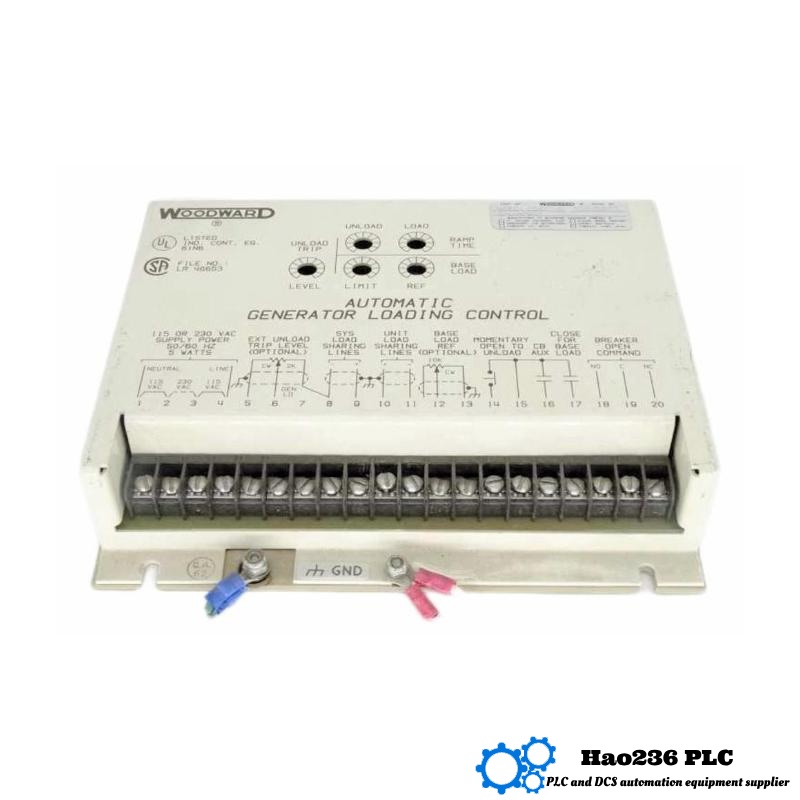

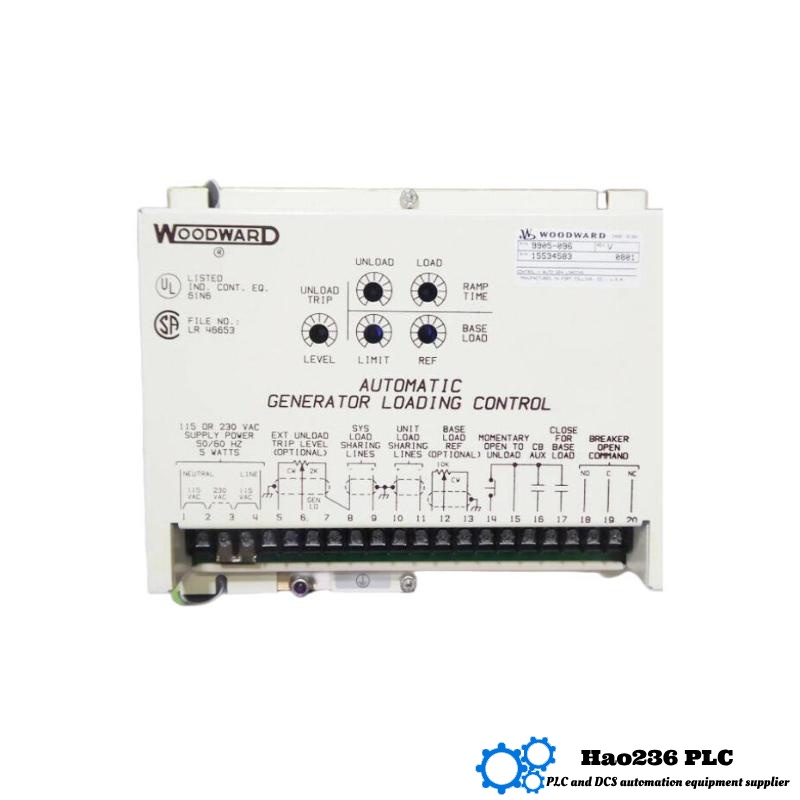

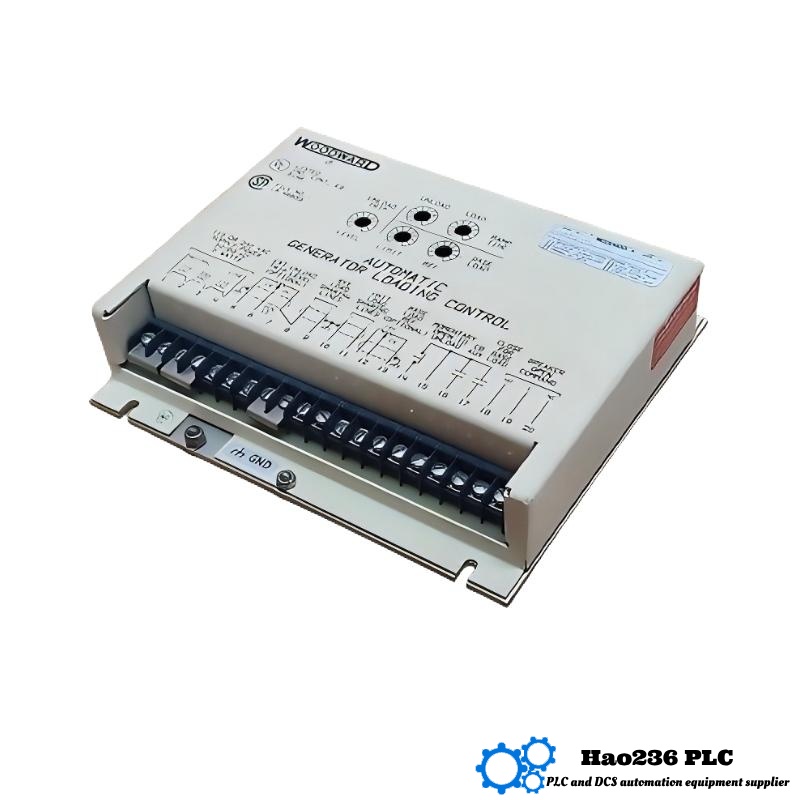

Woodward 9905-096 Automatic Generator Load Control Module
Product Introduction
The Woodward 9905-096 is an advanced automatic generator load control module designed for precise regulation and management of generator sets in various industrial applications. This module ensures reliable and efficient load sharing, speed control, and system stability in generator operations. Known for its robust construction and user-friendly interface, the 9905-096 plays a critical role in automatic power management systems.
Equipped with multiple inputs and outputs, it provides seamless integration with a wide range of generator control systems, enabling real-time monitoring and adaptive load distribution. The module supports advanced logic control functions to optimize generator performance under fluctuating loads and varying operational conditions.
Technical Parameters
| Parameter | Specification |
|---|---|
| Model Number | 9905-096 |
| Dimensions | 215.9 x 190.5 x 50.8 mm |
| Weight | 1.02 kg |
| Power Supply | 24 VDC (nominal) |
| Input Voltage Range | 18 – 32 VDC |
| Operating Temperature | -40°C to +85°C |
| Communication Protocol | Modbus RTU (RS-485) |
| Control Outputs | Multiple relay and analog outputs |
| Load Control Type | Automatic load sharing and regulation |
| Protection | Overload, short circuit, and surge |
| Mounting | Panel mount |
Product Applications
The Woodward 9905-096 module is widely used in:
-
Power generation plants for automatic load sharing among multiple generators
-
Backup power systems to ensure seamless transfer and load balancing
-
Industrial facilities requiring reliable generator control under variable load conditions
-
Remote power installations where precise load management is critical
-
Marine and mobile power systems to optimize fuel efficiency and system stability
Its flexibility and adaptability make it suitable for both new installations and retrofit projects, enhancing system reliability and operational safety.
Product Advantages
-
Precision Control: Offers highly accurate load sharing and speed regulation for generators, minimizing wear and fuel consumption.
-
Robust Design: Built to withstand harsh industrial environments with wide operating temperature tolerance and surge protection.
-
Easy Integration: Supports standard communication protocols like Modbus RTU for straightforward integration into existing control systems.
-
User-Friendly Interface: Simplified setup and configuration via intuitive software tools reduce commissioning time.
-
Scalability: Supports expansion and integration with other Woodward modules, making it ideal for complex multi-generator systems.
-
Enhanced Reliability: Built-in protections and diagnostic features minimize downtime and maintenance needs.
Brand Information
Woodward is a globally recognized leader in energy control and automation solutions. With over a century of expertise, Woodward specializes in developing high-quality control systems for power generation, aerospace, and industrial automation. Their products are known for durability, precision, and innovation, serving customers worldwide in critical power and engine control applications.
Recommended Related Models in the Same Series
| Model Number | Description | Dimensions (mm) | Weight (kg) | Key Features |
|---|---|---|---|---|
| 9905-095 | Automatic Generator Load Control | 215.9 x 190.5 x 50.8 | 1.00 | Load sharing, speed control |
| 9905-097 | Generator Synchronizer Module | 215.9 x 190.5 x 50.8 | 1.05 | Synchronization, load management |
| 9905-100 | Load Control with Voltage Regulation | 215.9 x 190.5 x 50.8 | 1.10 | Voltage and load regulation |
| 9905-104 | Multi-Generator Control Module | 215.9 x 190.5 x 50.8 | 1.15 | Multi-gen control, advanced logic |
| 9905-110 | Generator Load Control with Alarm | 215.9 x 190.5 x 50.8 | 1.20 | Load control plus fault alarms |
Popular Woodward Models from the Same Brand
| Model Number | Description | Dimensions (mm) | Weight (kg) | Key Features |
|---|---|---|---|---|
| 2301-527 | Digital Generator Control Unit | 200 x 180 x 45 | 0.95 | Advanced digital control, modular |
| 2301-561 | Speed Governor Control Module | 210 x 190 x 50 | 1.10 | Precise speed control |
| 9905-150 | Automatic Load Sharing Module | 215 x 190 x 55 | 1.05 | Load sharing, communication support |
| 2301-547 | Generator Protection Relay | 180 x 160 x 40 | 0.85 | Protection against faults |
| 9905-101 | Load Control & Voltage Regulator | 220 x 200 x 60 | 1.20 | Voltage and load regulation |
Frequently Asked Questions (FAQ)
Q1: What is the primary function of the Woodward 9905-096?
A1: It is an automatic load control module that manages load sharing and speed regulation among generators to optimize power generation and system stability.
Q2: What power supply voltage does the 9905-096 require?
A2: The module operates on a nominal 24 VDC power supply, with an input voltage range of 18 to 32 VDC.
Q3: Can this module communicate with other control systems?
A3: Yes, it supports Modbus RTU communication via RS-485, allowing integration with various control networks.
Q4: What are the physical dimensions of this module?
A4: The module measures 215.9 x 190.5 x 50.8 millimeters.
Q5: How much does the 9905-096 weigh?
A5: The weight is approximately 1.02 kilograms.
Q6: What types of protection does the module provide?
A6: It includes overload, short circuit, and surge protections to ensure safe operation.
Q7: Is the module suitable for harsh industrial environments?
A7: Yes, it is designed to operate reliably within a wide temperature range from -40°C to +85°C.
Q8: Can the 9905-096 control multiple generators simultaneously?
A8: It is primarily for single generator load control but can be part of a system managing multiple generators.
Q9: Does the module support retrofit applications?
A9: Yes, it is compatible with both new and existing generator control setups.
Q10: What kind of outputs does the module provide?
A10: It offers multiple relay and analog outputs for load control and system signaling.
