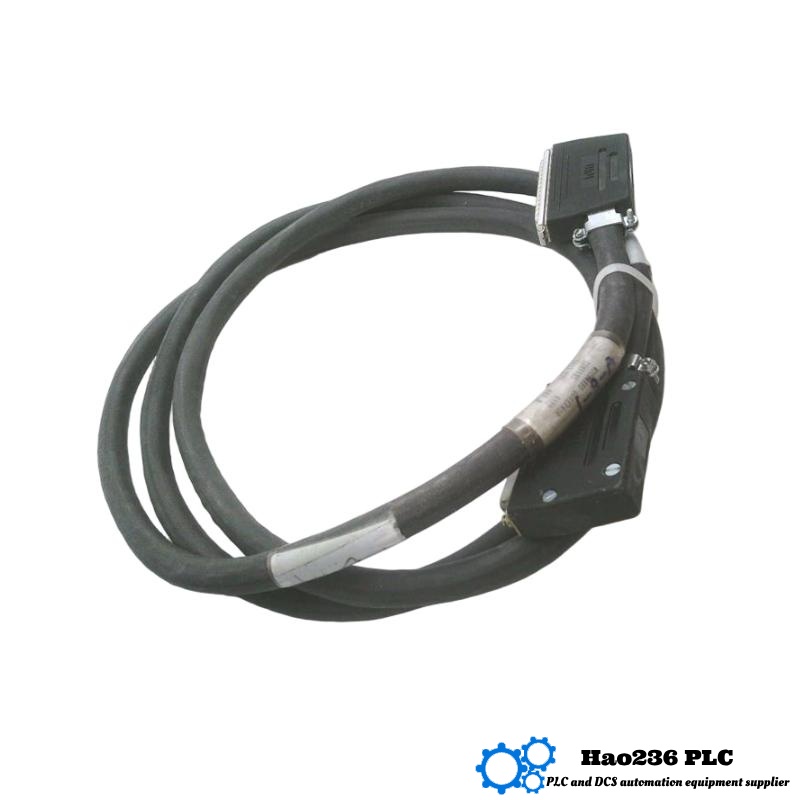

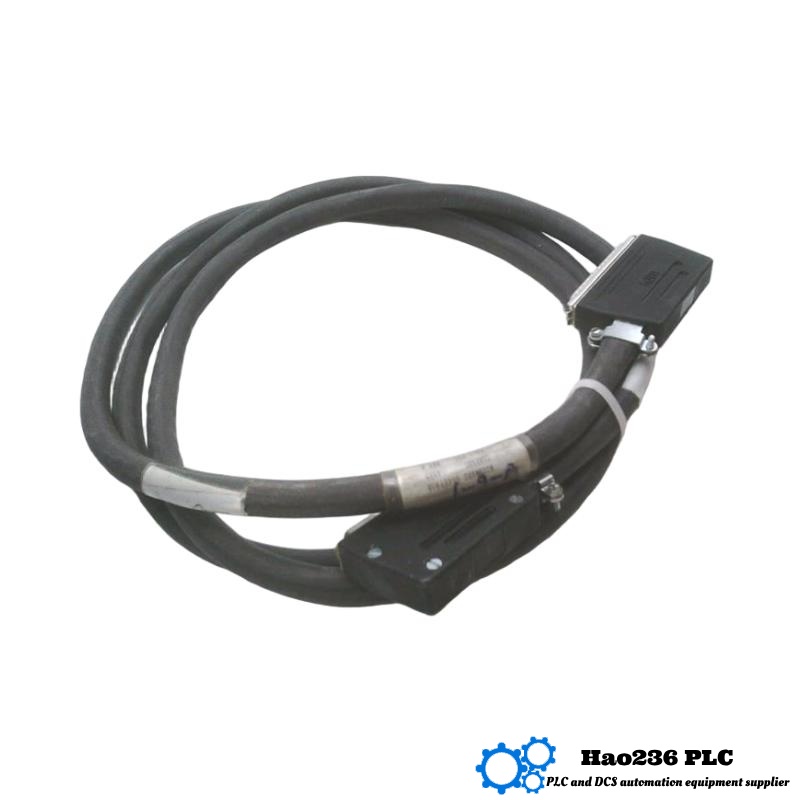

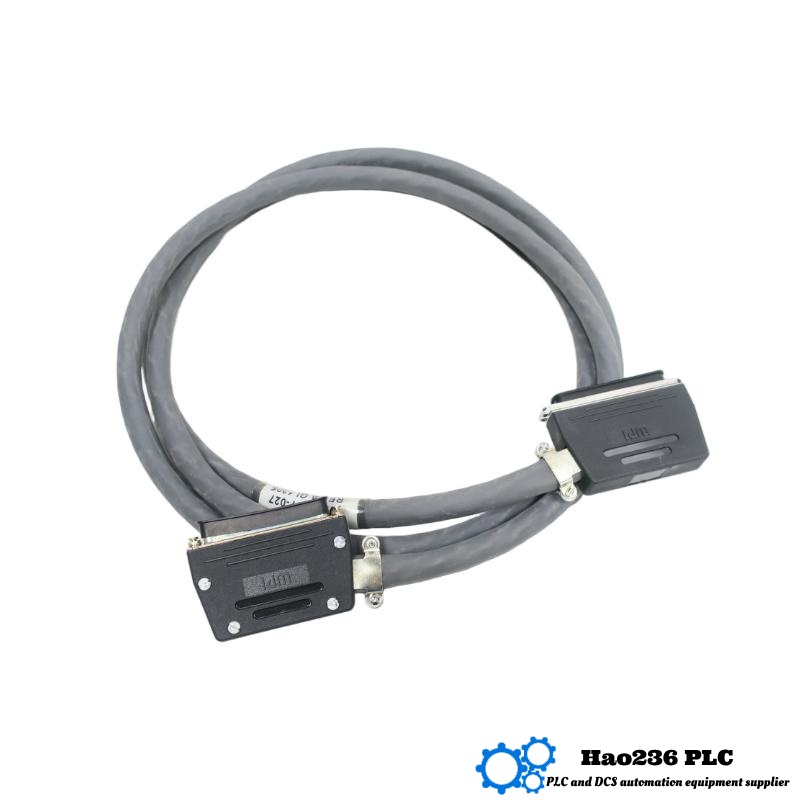

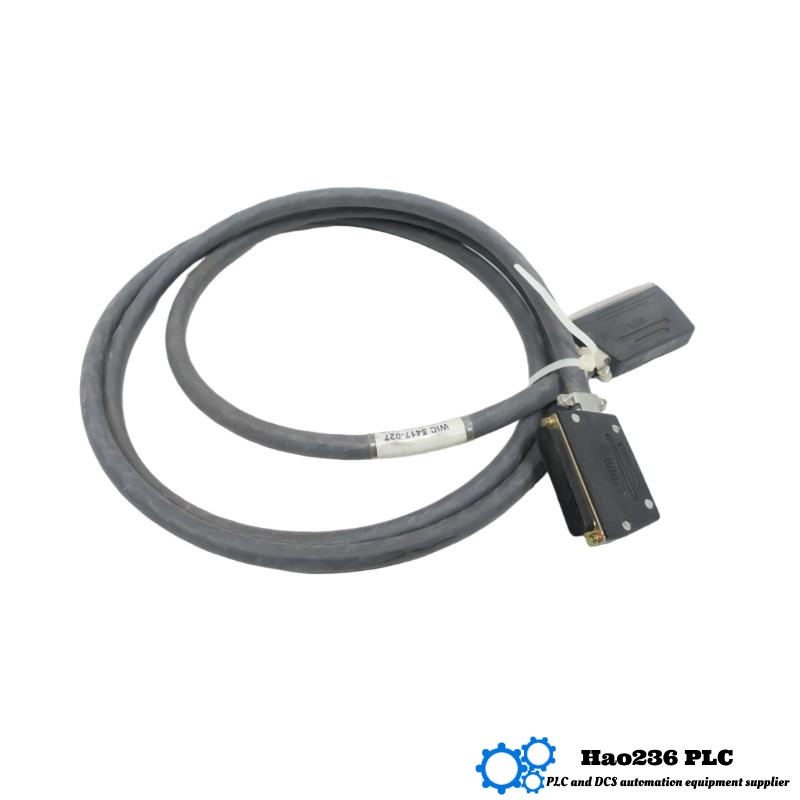

Woodward 5417-027 Cable
Product Introduction
The Woodward 5417-027 is a high-reliability control cable engineered for use with Woodward governor and control systems. This assembly combines ruggedized insulation, precision-molded connectors, and a flexible jacket to ensure consistent signal transmission in harsh industrial environments. The cable’s design adheres to Woodward’s stringent quality standards, providing dependable performance for generator sets, turbine controls, and other critical power-management applications.
Crafted to optimize electrical continuity and minimize interference, the 5417-027 cable is pre-terminated with industry-standard connectors, allowing quick installation and reducing wiring errors. Its robust construction withstands mechanical stress, vibrations, and exposure to oils and solvents, making it ideal for both new equipment installations and retrofit projects where long-term reliability is paramount.
With a length of 10 ft (3.05 m) and a weight of 0.6 kg, the 5417-027 balances flexibility with durability, providing sufficient reach without excess slack. Its standardized interface ensures seamless compatibility with a wide range of Woodward control modules and measurement transducers, streamlining system integration and reducing maintenance time.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 5417-027 |
| Cable Length | 10 ft (3.05 m) |
| Weight | 0.6 kg |
| Conductor Material | Stranded tin-plated copper |
| Insulation | Cross-linked polyethylene (XLPE) |
| Jacket Material | Neoprene-based synthetic rubber |
| Connector Type | 9-pin D-sub male to 9-pin D-sub female |
| Voltage Rating | 300 VAC |
| Current Rating | 5 A per conductor |
| Operating Temperature Range | –40 °C to +85 °C |
| Certifications | UL AWM Style 2464, CE, RoHS |
Product Applications
The Woodward 5417-027 cable is widely utilized in power-generation systems, particularly in synchronizing and governing diesel and gas engine-driven generator sets. It serves as the primary communication link between the engine governor control module and the turbine monitoring unit, carrying critical analog/digital signals for speed regulation and load sharing.
In industrial turbines, the cable facilitates real-time transmission of sensor data—such as speed, temperature, and pressure—from proximity probes and transducers back to the control unit. This ensures precise feedback-driven control, enabling smooth ramp-up and load adjustments.
Because of its robustness, the 5417-027 is also deployed in marine propulsion systems, where it connects clutch actuators, throttle position sensors, and governor modules under constant vibration and exposure to moisture. Its resistance to oils and fluids makes it suitable for petrochemical and offshore platforms, interfacing between control panels and remote field sensors without risk of degradation.
Product Advantages
• Dependable Signal Integrity – The twisted pair, tin-plated copper conductors and high-quality XLPE insulation minimize electrical noise and ensure accurate data transfer over the full 10 ft length.
• Rugged Mechanical Durability – A neoprene-based jacket resists abrasion, oils, UV radiation, and mechanical flexing, extending service life in demanding industrial conditions.
• Precision Pre-Termination – Factory-installed 9-pin D-sub connectors eliminate field crimping or soldering, reducing installation time and risk of wiring errors.
• Wide Temperature Range – Rated from –40 °C to +85 °C, the cable remains flexible and functional in extreme cold-start and high-heat operating environments.
• Compliance and Safety – UL AWM Style 2464 and CE certifications ensure conformance to North American and international electrical standards, providing peace of mind in safety-critical installations.
• Seamless System Integration – Designed specifically for Woodward governor and control modules, the 5417-027 enables plug-and-play compatibility, simplifying system commissioning.
Brand
Woodward is a globally recognized leader in electronic controls and system integration for turbine and engine applications. With a heritage of innovation dating back over seven decades, Woodward products—such as the 5417-027 cable—are engineered for precision, reliability, and longevity. The brand’s commitment to rigorous testing and quality assurance ensures that each cable meets performance standards required by OEMs and maintenance professionals worldwide.
Series
The 5417-027 cable belongs to Woodward’s Control Cable Series, a family of custom-engineered harnesses and interconnects designed to interface with Woodward governor controls, speed sensors, and actuator drives. This series includes a range of lengths, connector styles, and shielding options to accommodate diverse installation requirements.
Recommended Related Models (Control Cable Series)
| Model Number | Cable Length | Weight | Connector Types | Notes |
|---|---|---|---|---|
| 5417-026 | 5 ft (1.52 m) | 0.35 kg | 9-pin D-sub male to 9-pin D-sub female | Shorter length for compact installations |
| 5417-028 | 15 ft (4.57 m) | 0.9 kg | 9-pin D-sub male to 9-pin D-sub female | Extended reach for large engine compartments |
| 5417-030 | 10 ft (3.05 m) | 0.7 kg | 15-pin D-sub male to 15-pin D-sub female | Additional pins for extra sensor channels |
| 5417-032 | 8 ft (2.44 m) | 0.5 kg | 9-pin D-sub male to 7-pin circular MIL-DTL-5015 | Circular MIL connectors for vibration tolerance |
| 5417-035 | 12 ft (3.66 m) | 0.8 kg | 9-pin D-sub male to Deutsch DT04-4P | Deutsch field connector for moisture-resistant seals |
Recommended Popular Woodward Models
| Model Number | Description | Primary Use | Weight |
|---|---|---|---|
| 8411-907 | Woodward 8411 Speed Sensor | Proximity probe for shaft speed feedback | 0.2 kg |
| 2300-101 | Woodward 2300 Series Governor Control Module | Engine speed and load regulation | 0.8 kg |
| 9907-701 | Woodward 9907 Generator Protection Relay | Generator overcurrent and fault monitoring | 0.3 kg |
| 5400-091 | Woodward 5400 Actuator Control Cable | Interfaces actuator to control board | 0.65 kg |
| 8440-380 | Woodward 8440 Optical Tachometer | Non-contact speed measurement | 0.25 kg |
Frequently Asked Questions (FAQ)
Q1: What is the primary function of the Woodward 5417-027 cable?
A1: The 5417-027 provides a pre-terminated, shielded link between Woodward governor/control modules and field sensors or actuators, ensuring accurate signal transmission for speed and position control.
Q2: Which connectors are used on this cable?
A2: It features a 9-pin D-sub male plug on one end mating to Woodward control modules, and a 9-pin D-sub female receptacle on the field device end, simplifying “plug-and-play” installation.
Q3: What is the total cable length and weight?
A3: The cable is 10 ft (3.05 m) long and weighs approximately 0.6 kg, balancing reach with manageable handling.
Q4: In what temperature range can this cable operate?
A4: Rated for –40 °C to +85 °C, it remains flexible and reliable in both sub-freezing and elevated-temperature industrial environments.
Q5: How does the jacket material benefit field installation?
A5: The neoprene-based jacket resists abrasion, oil, UV exposure, and chemical splashes, extending service life in generator rooms, engine compartments, and petrochemical plants.
Q6: Is the 5417-027 suitable for retrofit applications?
A6: Yes, its standardized connectors and length make it ideal for replacing aging or damaged cables without modifying existing control cabinets.
Q7: Does the cable provide shielding to minimize electrical noise?
A7: Yes, the tinned-copper braided shield combined with XLPE insulation ensures minimal electromagnetic interference (EMI) and reliable signal integrity.
Q8: Can this cable be used with non-Woodward equipment?
A8: While designed for Woodward modules, the 9-pin D-sub connectors adhere to standard pinouts, allowing cross-compatibility with third-party devices that follow the same wiring conventions.
Q9: What safety and performance certifications does it have?
A9: It is UL AWM Style 2464 listed, CE approved, and RoHS compliant, guaranteeing adherence to global safety and environmental standards.
Q10: How should I maintain the cable for maximum lifespan?
A10: Periodic inspection for abrasion, tightness of connectors, and ensuring the jacket remains intact will maximize longevity. Avoid excessive bending beyond the specified minimum bend radius (10 mm).
