Siemens 6AG1131-4BD01-2AA0 — Product Overview, Technical Specifications, Applications, Advantages, and Related Models

1. Product Overview

The Siemens 6AG1131-4BD01-2AA0 is an industrial automation order number that should be matched to its exact hardware designation before it is used for engineering, purchasing, or replacement planning.

The 6AG prefix is associated with the SIPLUS range, while the 6AG1131 product-number family is associated with SIMATIC distributed I/O equipment. These systems are used to connect field signals to a programmable logic controller (PLC) through a distributed automation architecture.

For this particular ordering number, the precise module designation, channel count, electrical signal type, dimensions, and net weight should be confirmed against the product label or equipment documentation. Those details are important because different I/O modules can have similar-looking part numbers but support different signal types and wiring arrangements.

The following overview explains the product family, typical applications, selection criteria, and related modules. Specifications that cannot be established confidently for the exact order number are identified as requiring verification rather than being presented as confirmed values.

2. Brand and Product Series

SIPLUS equipment is intended for industrial applications in which environmental conditions may require additional protection. The precise protection features and operating limits vary by product. The SIPLUS designation alone should not be treated as confirmation of a particular temperature range, humidity rating, or chemical resistance.

For this reason, the complete ordering number and product label are essential when identifying the exact module.

3. Detailed Technical Specifications

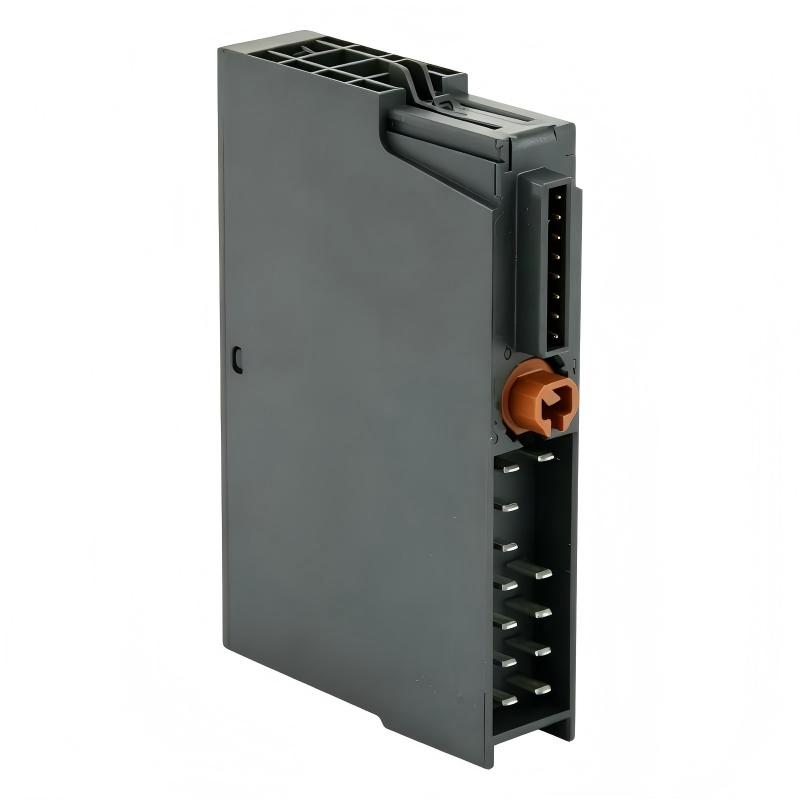

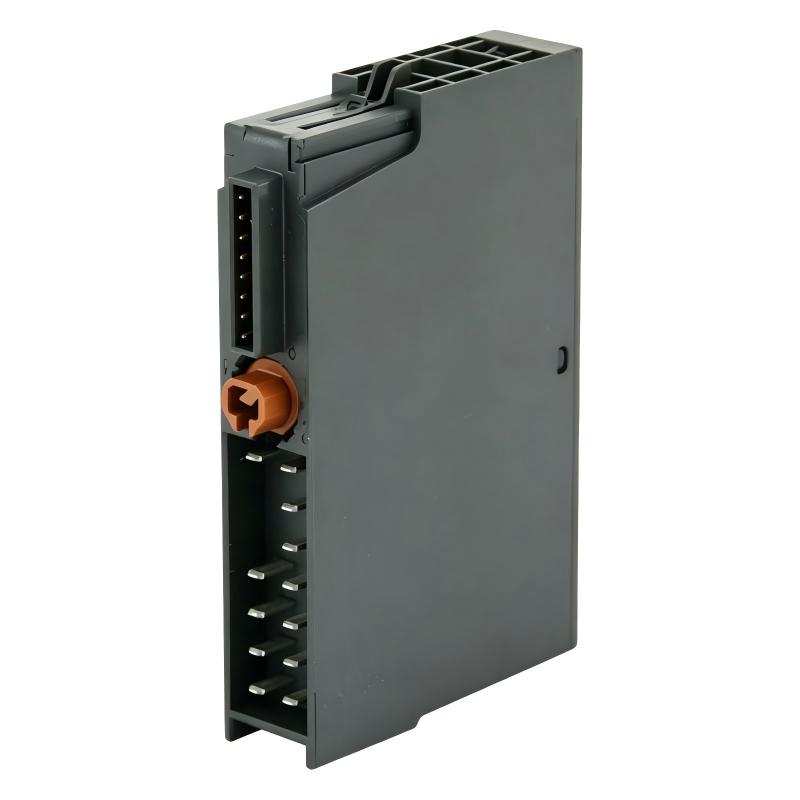

The 6AG1131-4BD01-2AA0 is a SIPLUS ET 200S electronic module with four digital inputs for 24 V DC signals. It is based on the standard module 6ES7131-4BD01-0AA0 and incorporates conformal coating for specified industrial environmental conditions.

It belongs to the ET 200S distributed I/O system. The module receives discrete signals from field devices and makes their states available to the controller through the compatible ET 200S station.

3.1 General specifications

Weight clarification: The module itself weighs approximately 0.035 kg. The 0.234 kg figure refers to the net weight associated with the five-module packaging unit, not the weight of a single electronic module.

3.2 Digital input characteristics

The four input channels are intended to detect discrete electrical states rather than measure continuously varying values. For example, a channel may indicate whether a limit switch is actuated, a guard switch is closed, or a sensor has detected an object.

The actual signal thresholds, input current, input delay, and wiring arrangement should be checked against the applicable module documentation before the module is connected to field equipment.

3.3 Electrical power and energy characteristics

The module is designed to operate within an ET 200S station rather than as a standalone PLC input device. The station’s power distribution, terminal modules, interface module, and wiring must therefore be considered as a complete system.

The available sensor supply current should not be interpreted as an unconditional 500 mA allowance for every wiring arrangement. The connected power module, terminal arrangement, wiring, and load must all remain within their applicable limits.

3.4 Mechanical specifications

The narrow 15 mm width allows the module to be used in dense distributed I/O arrangements. This is useful where a control cabinet needs to accommodate many discrete signals without dedicating excessive rail space to each module.

However, the 15 mm figure describes the electronic module’s width. The complete installation also requires the appropriate terminal module and space for wiring, cable routing, and maintenance access.

3.5 Environmental specifications

The conformal coating is an important feature for industrial environments where moisture or certain airborne contaminants may be present. It provides additional protection to the electronic assembly under specified conditions.

It does not mean the module is waterproof or suitable for unrestricted exposure to corrosive substances. Enclosure selection, cabinet ventilation, condensation management, and correct installation remain necessary.

4. Product Introduction

The Siemens SIPLUS ET 200S 4DI module is designed to acquire discrete field signals in an industrial automation system. It forms part of a distributed input/output architecture in which sensors and switches connect to local I/O stations rather than requiring every field wire to run directly to a central controller cabinet.

The module’s four digital input channels allow a controller to monitor a small group of discrete signals. These signals may represent machine states, sensor detections, equipment-ready indications, or other ON/OFF conditions used by the control program.

In a typical installation, the module is fitted into a compatible ET 200S station. Field devices are connected through the appropriate terminal arrangement, and the station communicates with the controller through a compatible interface module. The controller then processes the input states according to the machine program.

The 6AG1131-4BD01-2AA0 is a SIPLUS version based on the standard 6ES7131-4BD01-0AA0 module. The conformal-coated configuration and specified extended operating temperature range make it a candidate for applications where environmental conditions require additional consideration.

Its compact form factor is particularly useful when the control system needs to collect multiple discrete signals in a limited amount of cabinet space. The four-channel configuration is also convenient for small signal groups, although a higher-density module may be more economical when many inputs are required.

The module should be selected as part of a complete automation system. Compatibility with the ET 200S station, terminal module, interface module, power supply, controller, and field wiring must be established before commissioning.

5. Product Applications

5.1 Machine status monitoring

The module can read discrete status signals from machines and production equipment. These signals may indicate whether a mechanism has reached its home position, whether a component is present, or whether a device has entered a particular operating state.

The controller can use these inputs to determine whether a sequence is ready to continue, whether a machine needs attention, or whether a particular operating condition has been met.

5.2 Sensor signal acquisition

Compatible 24 V DC digital sensors can be used to provide simple ON/OFF information. Examples include proximity sensors, photoelectric sensors, and limit switches with suitable electrical output characteristics.

The module is not intended to replace analog input equipment when a process requires continuous measurements such as pressure, temperature, or flow. Those applications require the appropriate analog signal module and compatible instrumentation.

5.3 Assembly and packaging equipment

Assembly machines frequently rely on discrete signals to detect component presence, confirm actuator positions, monitor station states, and track the progress of a sequence.

A four-channel module can collect a small group of such signals at a local I/O station. The PLC can then combine the input states with timing logic, interlocks, and output commands to control the machine sequence.

5.4 Conveyor and material-handling systems

Conveyor installations use many discrete sensors to detect products, monitor transfer points, and confirm the positions of mechanical devices.

The module may be used to collect a small number of local sensor signals where the station design and signal count make a four-channel module appropriate. Larger installations may benefit from higher-density input modules.

5.5 Utility equipment and auxiliary systems

Pumps, fans, filtration systems, and other utility equipment often provide dry-contact or 24 V DC status signals. Depending on the device’s electrical output and the control design, these signals can be collected by a digital input module.

Typical examples include equipment-running feedback, fault contacts, level-switch states, and maintenance-status indications. Electrical compatibility should be checked for every connected device.

5.6 Distributed control cabinets

Distributed I/O can reduce the distance between field devices and the point where their signals are collected. This may simplify cable routing and improve the organization of large machine installations.

The ET 200S system is particularly relevant to existing automation systems designed around its station architecture. When adding a module to an existing station, engineers should verify compatibility with the interface module, terminal arrangement, station configuration, and controller software.

5.7 Industrial environments with additional protection requirements

The SIPLUS configuration may be considered for specified industrial locations where temperature and environmental exposure make the standard version less suitable.

The final choice must be based on the actual conditions at the installation site. Temperature, humidity, condensation, chemical exposure, cabinet design, and maintenance procedures should all be assessed rather than relying on the SIPLUS name alone.

6. Product Advantages

Compact width

At 15 mm wide, the module makes efficient use of available space in a compatible ET 200S station. This is beneficial in control cabinets where numerous input and output channels need to be installed within a limited footprint.

Four independent digital input channels

The four-channel arrangement is useful for small groups of discrete signals. It can provide a straightforward way to collect a limited number of field states without using a larger module than necessary.

24 V DC industrial signal interface

The module is designed for 24 V DC digital input applications, a common signal level in industrial control systems. This allows it to work with compatible sensors, switches, and field devices when the electrical specifications are matched correctly.

SIPLUS environmental protection features

The conformal-coated configuration offers additional protection for specified environmental conditions. This can be valuable in installations where moisture or airborne contaminants must be considered during equipment selection.

Distributed I/O architecture

The ET 200S system allows field signals to be collected close to the machinery or process area. This can help organize wiring and reduce the need to route every field signal back to a central control cabinet.

Integration with PLC control systems

Once installed in a compatible station, the module supplies input-state information to the controller. The PLC can use this information for sequence control, status monitoring, alarm logic, and other automation functions.

Suitable for modular system expansion

A modular I/O system makes it possible to organize signal acquisition by machine section, function, or physical location. The exact expansion options depend on the station configuration and the limits of the interface and power modules.

Low individual module weight

The electronic module itself weighs approximately 0.035 kg. Its low weight is useful for modular installation and replacement, although the complete station’s mechanical design must account for the terminal modules, interface module, wiring, and mounting rail.

Useful for maintenance and signal isolation of functions

By grouping field signals into identifiable I/O modules, engineers can make cabinet layouts and wiring documentation easier to understand. This can simplify troubleshooting when the electrical drawings, channel assignments, and PLC tags are kept up to date.

7. Recommended Five Related Models

The following models are relevant comparisons within the SIPLUS ET 200S and related distributed I/O families. They serve different input or output functions, so they are alternatives for system design rather than direct replacements for the four-input module.

Where an exact mechanical dimension or module weight is not confidently established for the listed variant, it is marked for verification. The values should be checked before ordering or preparing a cabinet layout.

How these related models differ

– 6AG1131-4BD01-2AA0: The reference model for applications requiring four 24 V DC digital inputs in a SIPLUS ET 200S configuration.

– 6AG1131-4BD01-7AB0: A high-feature input variant to consider when the application requires functions beyond those of the standard input module. Verify the exact feature set and compatibility before substituting it.

– 6AG1131-4BF00-7AA0: A higher-density input option that can collect more digital signals in a single module. It may be useful when the input count is growing and cabinet space is limited.

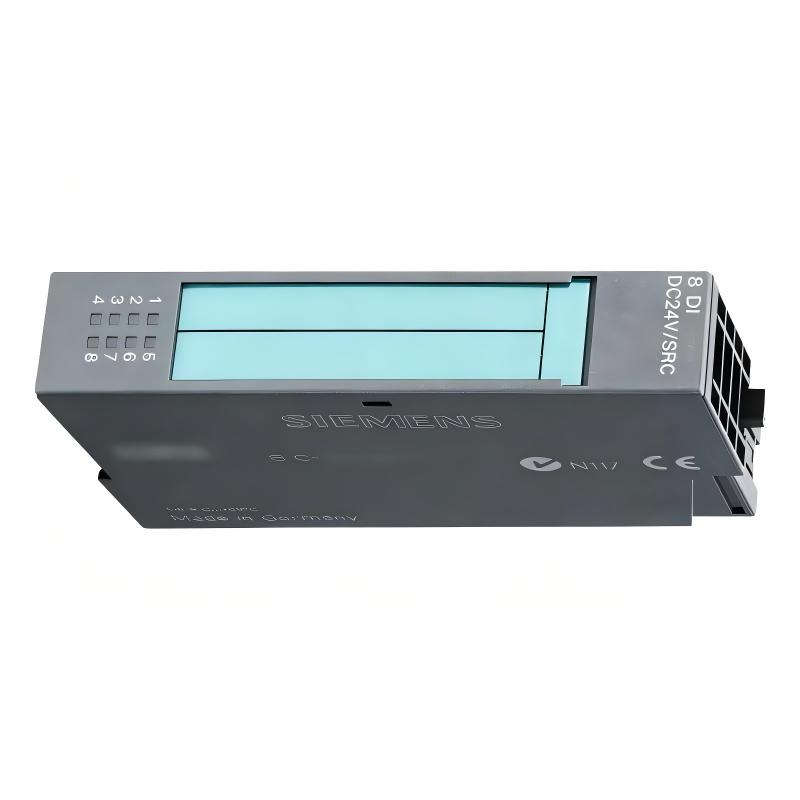

– 6AG1131-4BF50-7AA0: An eight-input variant whose signal arrangement and wiring characteristics should be checked carefully against the field devices.

– 6AG1132-4BD02-7AA0: An output module rather than an input module. It may be useful in the same distributed I/O architecture, but it performs a different function and cannot replace the 4DI module directly.

8. Five Additional Popular Models from the Same Brand

These Siemens automation products cover controller, distributed I/O, and power-supply functions. They are useful reference models when designing or expanding an industrial control system, but they are not direct replacements for the SIPLUS ET 200S input module.

The standard 6ES7131-4BD01-0AA0 is particularly relevant because it is the base hardware identified for the SIPLUS module. The two ET 200SP models belong to a different distributed I/O platform and should not be treated as mechanically interchangeable with ET 200S components.

The S7-1200 controller and SITOP power supply represent complementary system components. A controller processes the automation logic, while a power supply provides the electrical energy required by compatible control equipment. Their suitability depends on the overall system design.

9. Installation and Integration Considerations

Confirm the complete station configuration

The 6AG1131-4BD01-2AA0 is an ET 200S electronic module. Before installation, verify the compatible terminal module, interface module, power module, and station arrangement.

A module that matches the signal type may still be unsuitable if the existing station does not support the hardware configuration or the required communication setup.

Check field-device electrical characteristics

Confirm the rated voltage, output type, current, and switching behavior of each connected sensor or switch. Ensure that the field wiring follows the module’s terminal assignment and that the signal characteristics meet the input specifications.

Do not connect analog signals or incompatible voltage levels directly to the digital inputs.

Plan channel assignments

Document which field device is connected to each input channel. Use consistent PLC tags and electrical drawing references so that a technician can trace a signal from the physical device through the terminal arrangement to the controller program.

This is particularly important in systems where several modules collect similar signals from different parts of the machine.

Assess environmental conditions

The SIPLUS version provides conformal coating and a specified operating temperature range of -25 to +60°C. The complete installation must still meet the applicable requirements for humidity, condensation, chemical exposure, and enclosure protection.

If the equipment is installed in an environment with corrosive vapors or other aggressive substances, check the specific environmental classifications and exclusions before approving the design.

Verify power distribution

Check the power module’s capacity and the requirements of all connected modules and field devices. Account for sensor supply current, wiring losses, protective devices, and the power requirements of the entire station.

Plan maintenance and replacement

Record the full order number, base hardware designation, terminal-module type, channel mapping, and system configuration. This information makes it easier to replace a faulty module and restore the system correctly.

Because the product belongs to the ET 200S family, any replacement plan should also consider the compatibility of the existing station and the availability of the required supporting components.

10. Final Product Summary

Conclusion

The Siemens 6AG1131-4BD01-2AA0 SIPLUS ET 200S EM 4DI is a compact four-channel digital input module designed to collect 24 V DC field signals in a compatible ET 200S distributed I/O station.

Its 15 mm width, four-input configuration, conformal coating, and specified operating temperature range make it a useful option for suitable industrial automation installations. Typical uses include reading sensor states, monitoring machine positions, collecting equipment status signals, and supporting PLC-controlled operating sequences.

When selecting related models, the key distinction is between input modules, output modules, and modules from different distributed I/O platforms. The 4DI model collects digital signals; an output module performs the opposite role, while ET 200SP equipment belongs to a different system architecture.

For purchasing, maintenance, or replacement work, confirm the exact hardware designation, terminal-module compatibility, wiring arrangement, environmental requirements, and station configuration. These checks are essential for ensuring that the selected module fits the existing system and performs the intended function reliably.
