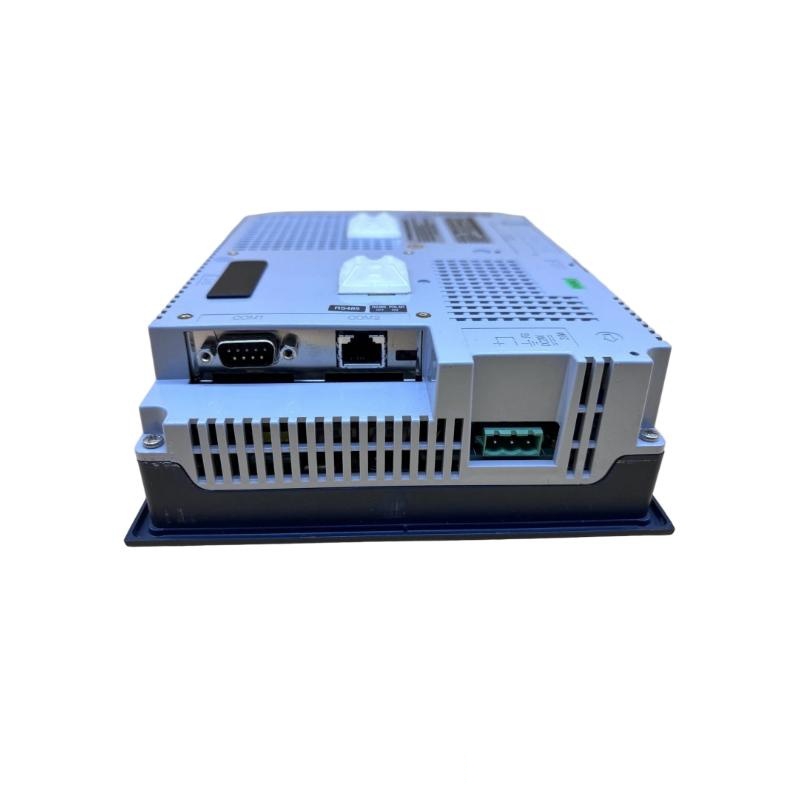

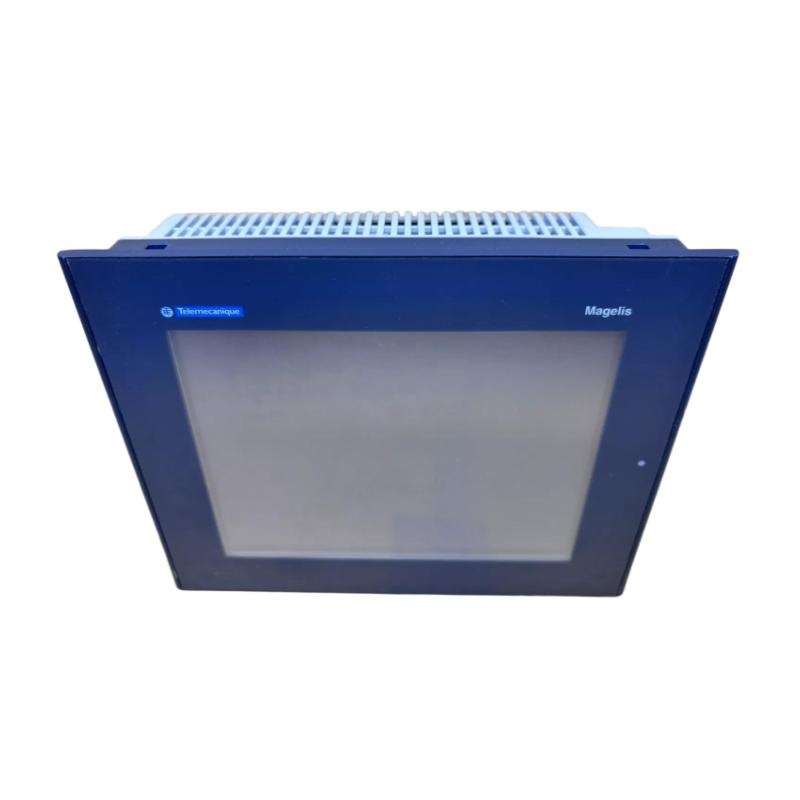

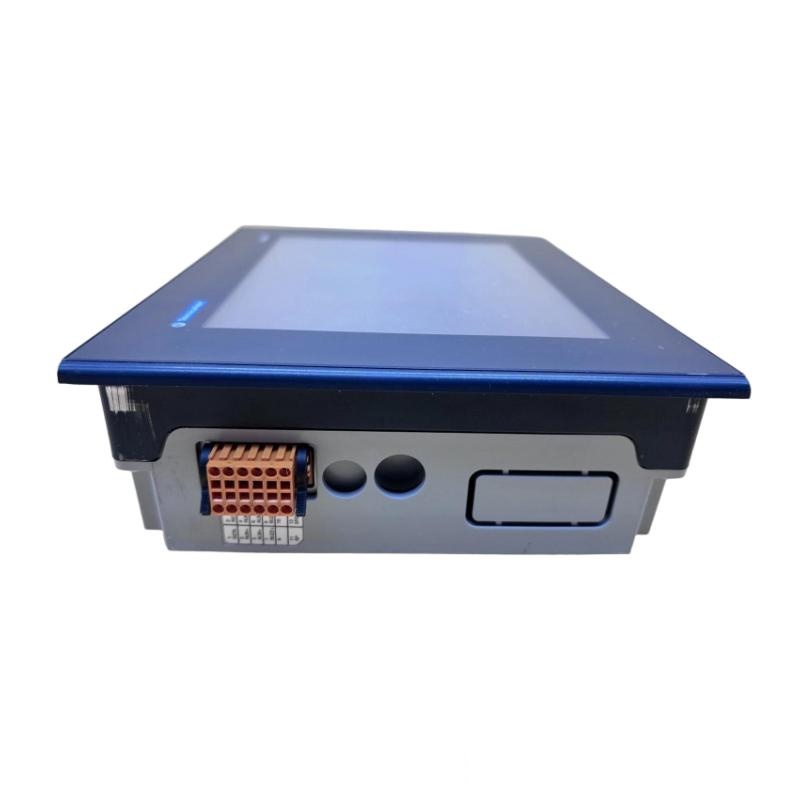

Schneider XBTGT4230 7.5-inch Advanced Touch Screen Panel
Product Overview:
The Schneider XBTGT4230 is a 7.5-inch advanced touch screen panel from Schneider Electric’s Harmony XBTGT series. Designed for industrial environments, this panel offers a high-resolution display and a responsive touch interface, making it ideal for human-machine interface (HMI) applications. It is specifically engineered to simplify control and monitoring of industrial processes while ensuring an intuitive and user-friendly experience for operators.
The XBTGT4230 is built to handle the demanding needs of industrial automation, offering a sleek design and powerful processing capabilities. Its 7.5-inch TFT color display with 800 x 480 resolution offers clear, vivid visuals, ensuring that operators can monitor and control processes efficiently. The 215 x 170 x 60 mm size and 1.8 kg weight make it perfect for mounting in a variety of industrial setups, offering both versatility and robustness.
Additionally, the XBTGT4230 supports a wide range of communication protocols, enabling seamless integration with Schneider Electric PLCs, drives, and other industrial systems. It is ideal for applications requiring advanced diagnostics, data visualization, and real-time control.
Product Specifications:
| Parameter | Value |
|---|---|
| Model | XBTGT4230 |
| Screen Size | 7.5 inches |
| Display Type | TFT Color LCD |
| Resolution | 800 x 480 pixels |
| Dimensions | 215 x 170 x 60 mm |
| Weight | 1.8 kg |
| Operating Temperature | -10°C to 60°C |
| Communication Ports | 1 x RS232, 1 x RS485 |
| Power Supply | 24V DC |
| Touch Screen Type | Resistive Touch |
| Protection Rating | IP65 (Front) |
| Backlight | LED Backlight |
| Compatibility | Schneider PLCs, Modbus, Ethernet/IP |
Product Application:
The Schneider XBTGT4230 7.5-inch touch screen panel is used in various industries where process control, automation, and machine monitoring are key components. Its applications include:
-
Industrial Automation: The XBTGT4230 is widely used in automated manufacturing environments, enabling operators to control machinery, track performance, and adjust parameters in real-time.
-
Building Automation: Ideal for use in building control systems, the panel offers seamless integration for managing HVAC, lighting, and other facility systems.
-
Energy Management: The XBTGT4230 allows operators to visualize and manage energy consumption, making it an essential tool in energy optimization processes.
-
Water Treatment: Used in water treatment plants, the panel helps operators monitor equipment, track water quality parameters, and manage treatment processes.
-
Machine Control: In machine-level control applications, the XBTGT4230 provides an intuitive interface for controlling and monitoring the operation of industrial machines.
Advantages:
-
High-Resolution Display: The 800 x 480 resolution of the 7.5-inch TFT color LCD ensures clear and vibrant visualization of process data, enhancing operator interaction and system monitoring.
-
Intuitive Touch Interface: The resistive touch screen offers fast and responsive interaction, making it easy for operators to manage complex systems with a simple touch.
-
Compact and Robust Design: The XBTGT4230 is compact, with dimensions of 215 x 170 x 60 mm and a weight of 1.8 kg, making it ideal for environments where space is limited but performance is critical.
-
Durability and Protection: With an IP65 rating for the front panel, the XBTGT4230 is resistant to dust, water, and other contaminants, making it suitable for demanding industrial environments.
-
Flexible Connectivity: The panel supports RS232, RS485, and other communication protocols, allowing it to integrate seamlessly with various Schneider Electric systems, PLCs, and industrial equipment.
-
Wide Operating Temperature Range: The XBTGT4230 can operate in a temperature range of -10°C to 60°C, ensuring stable performance in varying environmental conditions.
-
Energy-Efficient: The LED backlight provides bright visibility while being energy-efficient, reducing power consumption during operation.
Brand and Series:
-
Brand: Schneider Electric
-
Series: Harmony XBTGT Series (Schneider Electric’s range of advanced HMI panels designed for seamless integration and intuitive operation in industrial automation systems)
Recommended Models in the Same Series:
| Model | Description | Key Features |
|---|---|---|
| XBTGT5310 | 10.4-inch Touchscreen Panel | Larger screen with high resolution, ideal for advanced applications |
| XBTGT5110 | 5.7-inch Touchscreen Panel | Compact and highly responsive, perfect for smaller machines |
| XBTGT5630 | 15.6-inch Touchscreen Panel | Larger display for complex industrial processes |
| XBTGT5330 | 7-inch Touchscreen Panel | Mid-sized screen with advanced control features |
| XBTGT5230 | 5.7-inch Touchscreen Panel | Cost-effective, versatile HMI for various industrial systems |
Popular Schneider Electric Models:
| Model | Description | Key Specifications |
|---|---|---|
| XBTF023110 | Industrial touch panel with advanced features for automation systems. | 10.1-inch screen, high resolution, rugged design. |
| XBTF024310 | 13.3-inch touch screen designed for industrial control and monitoring. | 13.3-inch display, enhanced touch sensitivity. |
| XBTF024510 | 15-inch touch panel optimized for industrial automation environments. | 15-inch screen, durable, wide viewing angle. |
| XBTF023210 | 12.1-inch version with better resolution for industrial applications. | 12.1-inch, high clarity, resistant to harsh conditions. |
| XBTF024610 | 16-inch industrial touchscreen with advanced touch technology. | 16-inch screen, high precision, temperature resistant. |
FAQ (Frequently Asked Questions):
Q1: What is the main use of the Schneider XBTGT4230?
A1: The Schneider XBTGT4230 is a 7.5-inch advanced touch screen panel used for monitoring and controlling industrial automation processes, offering an intuitive interface for operators.
Q2: What is the resolution of the XBTGT4230’s display?
A2: The XBTGT4230 features an 800 x 480 pixel resolution on its 7.5-inch TFT color LCD display, providing clear and detailed visual feedback.
Q3: What are the dimensions and weight of the XBTGT4230?
A3: The XBTGT4230 has dimensions of 215 x 170 x 60 mm and weighs 1.8 kg, making it compact yet durable for industrial use.
Q4: What type of touch screen does the XBTGT4230 have?
A4: The XBTGT4230 features a resistive touch screen, allowing for precise and responsive interaction in demanding environments.
Q5: Can the XBTGT4230 be used in outdoor environments?
A5: Yes, with its IP65 rating for front protection, the XBTGT4230 is resistant to dust, water, and other environmental elements, making it suitable for outdoor and harsh environments.
Q6: What communication protocols are supported by the XBTGT4230?
A6: The XBTGT4230 supports RS232, RS485, and other protocols, ensuring seamless integration with Schneider Electric PLCs and industrial equipment.
Q7: What is the operating temperature range of the XBTGT4230?
A7: The XBTGT4230 operates within a temperature range of -10°C to 60°C, ensuring reliable performance in various industrial environments.
Q8: How does the XBTGT4230 help improve industrial control?
A8: The XBTGT4230 provides an intuitive interface for managing industrial processes, allowing operators to efficiently control and monitor systems, reducing downtime and improving operational efficiency.
Q9: Is the XBTGT4230 energy-efficient?
A9: Yes, the LED backlight ensures the screen remains bright while being energy-efficient, making it an eco-friendly choice for industrial applications.
Q10: How easy is it to install the XBTGT4230?
A10: The XBTGT4230 is designed for easy installation with flexible mounting options and an intuitive user interface, ensuring quick setup in industrial environments.
