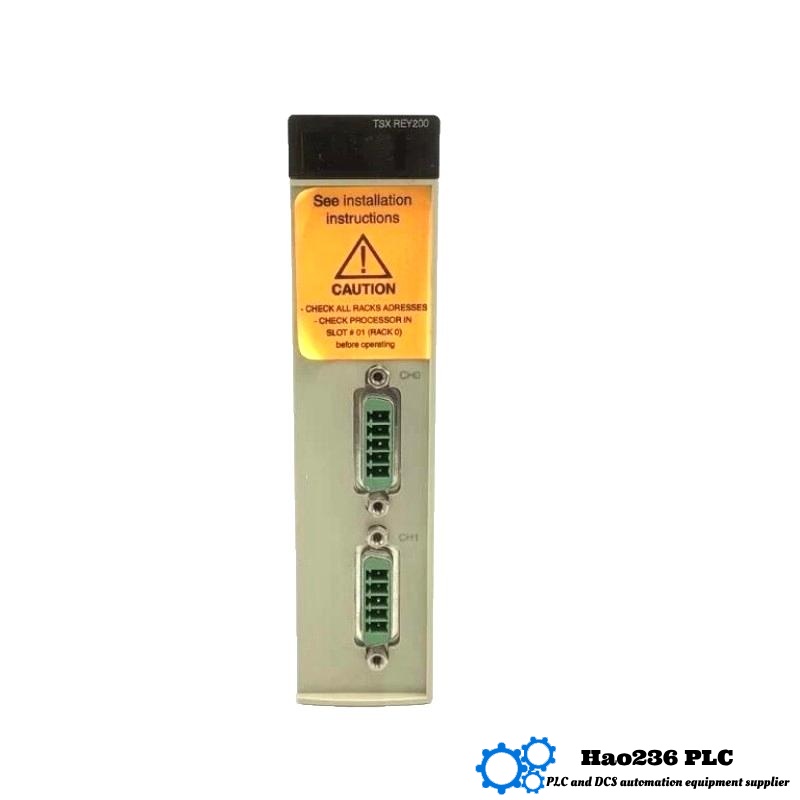

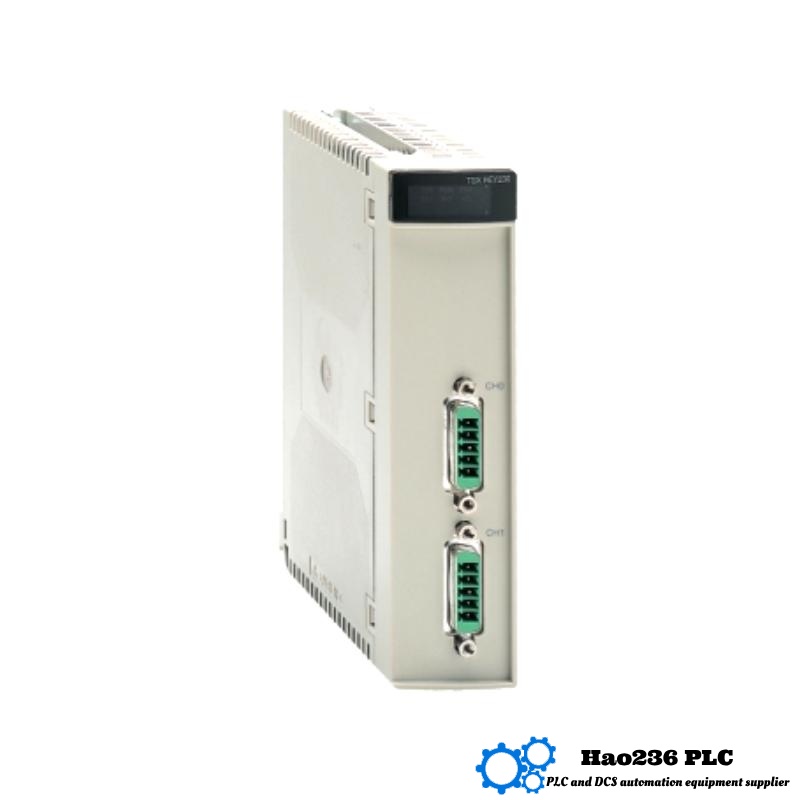

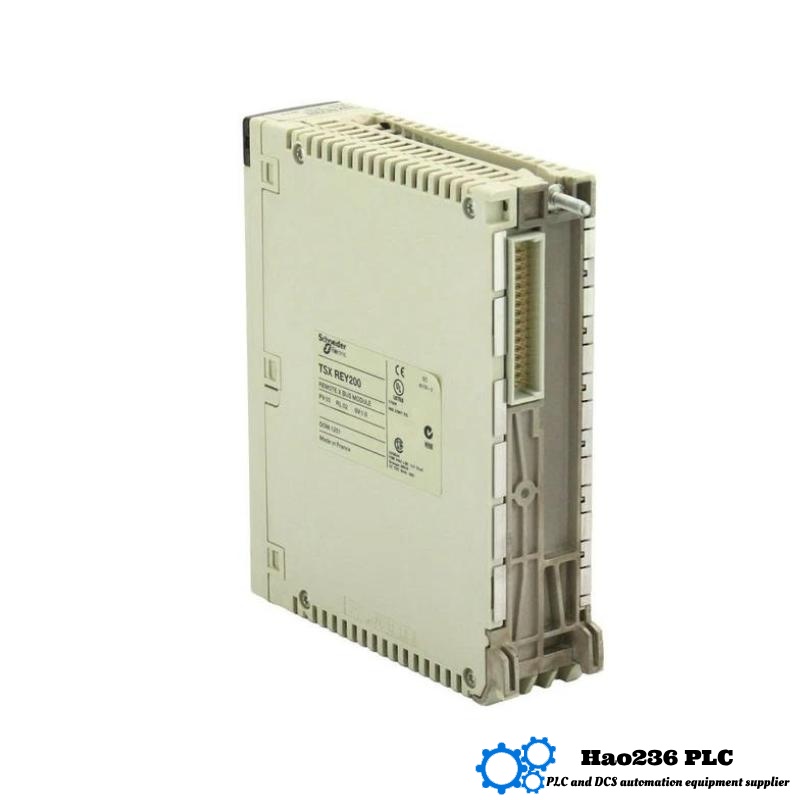

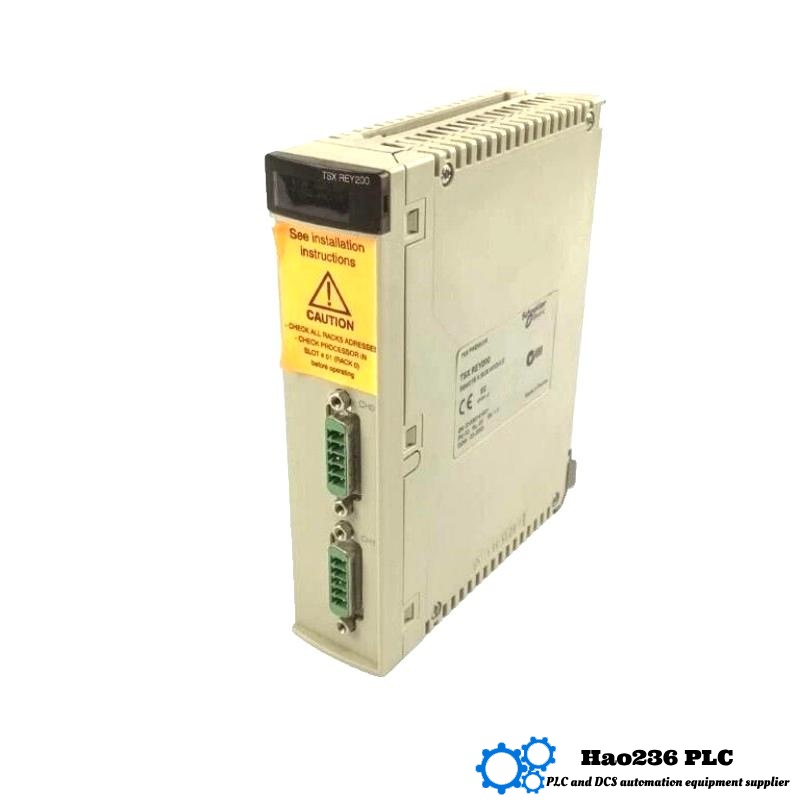

Schneider TSXREY200 Bus X Remote Rack Master Module
Product Introduction
The Schneider TSXREY200 is a Bus X Remote Rack Master Module designed for seamless integration into Schneider Electric’s industrial automation systems. This module acts as the central control unit for a remote I/O system, managing data exchange between the PLC (Programmable Logic Controller) and the remote I/O racks. It is a part of the Modicon series of products and enhances the flexibility and scalability of automation systems by enabling the distribution of I/O processing across multiple locations, connected over a Bus X network.
The TSXREY200 facilitates communication between the master PLC and remote expansion racks, allowing the user to manage up to 10 remote racks via a high-speed data bus. It supports Modbus communication protocols and integrates easily with other Modicon systems, making it a highly compatible solution for both small and large-scale industrial automation systems.
This module ensures that distributed I/O modules can be used effectively without the need for significant wiring, simplifying installation and reducing setup time. With a compact form factor (55 × 180 × 260 mm) and a lightweight design (0.425 kg), the TSXREY200 provides a reliable solution for systems where space is limited but high performance is essential.
Product Parameters
| Parameter | Specification |
|---|---|
| Model | TSXREY200 |
| Type | Bus X Remote Rack Master Module |
| Dimensions (L × W × H) | 55 × 180 × 260 mm |
| Weight | 0.425 kg |
| Number of Remote Racks Supported | Up to 10 remote racks |
| Communication Protocols | Modbus, Bus X |
| Bus Type | High-Speed Data Bus |
| Power Supply | 24 V DC |
| Mounting | DIN Rail Mount |
| Operating Temperature | -20°C to +70°C |
| Environment | Industrial Automation Systems |
| Compatibility | Modicon PLC Systems, Bus X Network |
| Certification | CE, UL |
Product Applications
The Schneider TSXREY200 module is ideal for a wide range of industrial automation applications, particularly in environments that require distributed control and remote I/O systems. Key applications include:
-
Distributed I/O Systems: The module acts as the master for remote I/O racks, enabling efficient communication and control over large automation systems.
-
Manufacturing Process Control: In industries such as automotive, food & beverage, and pharmaceuticals, the TSXREY200 can be used to control and monitor processes spread across different areas of a production facility.
-
Building Automation Systems: It helps integrate various systems within building automation, including lighting, HVAC, and security, by connecting remote I/O devices over a Bus X network.
-
Energy Management Systems: The module enables remote monitoring and control of energy distribution and usage in industrial facilities.
-
Water Treatment Plants: The TSXREY200 is used to connect and control equipment spread across various parts of a water treatment facility, ensuring smooth operations.
Product Advantages
-
Scalability: The TSXREY200 supports the addition of up to 10 remote racks, offering scalability for growing automation needs and large installations.
-
Compact and Lightweight: With its 55 × 180 × 260 mm size and 0.425 kg weight, the module is compact, making it ideal for space-constrained environments without compromising on performance.
-
High-Speed Communication: The Bus X high-speed communication interface allows rapid data exchange between the master PLC and remote racks, ensuring real-time control and monitoring.
-
Reliability: Designed for industrial environments, the TSXREY200 operates in harsh conditions with an operating temperature range of -20°C to +70°C, making it durable and reliable for continuous operation.
-
Easy Integration: Compatible with Modicon PLC systems and utilizing the Modbus protocol, it ensures simple integration with existing automation systems.
-
Improved Installation: The module can be easily mounted on DIN rails, simplifying installation and making maintenance and replacements more convenient.
-
Energy Efficient: The module operates with a 24 V DC power supply, making it energy-efficient while maintaining high performance.
Brand Information
Schneider Electric is a global leader in energy management and industrial automation. The company offers a broad range of solutions for industries, infrastructure, data centers, and homes. Schneider Electric’s expertise in automation, control, energy efficiency, and sustainability is reflected in their range of products, including PLC systems, I/O modules, and remote control solutions like the TSXREY200.
Schneider Electric’s systems are designed to help industries and businesses achieve greater operational efficiency, reduce energy consumption, and enhance safety. With products that ensure reliable communication, flexibility, and scalability, Schneider Electric is a trusted partner for industrial automation needs.
Recommended Related Models (Same Series or Function)
| Model | Type | Dimensions (mm) | Weight (kg) | Number of Remote Racks Supported | Key Features |
|---|---|---|---|---|---|
| TSXREY200 | Bus X Remote Rack Master Module | 55 × 180 × 260 | 0.425 | Up to 10 remote racks | High-speed Bus X communication |
| TSXETB200 | Bus X Remote I/O Module | 55 × 180 × 260 | 0.45 | Up to 5 remote racks | Compact and high-performance remote I/O module |
| TSXREY100 | Bus X Remote Rack Master Module | 55 × 180 × 260 | 0.4 | Up to 8 remote racks | Simple control for smaller installations |
| TSXETY400 | Ethernet Communication Module | 60 × 190 × 280 | 0.5 | – | Ethernet connectivity for remote I/O systems |
| TSXETZ200 | Bus X Extension Module | 55 × 180 × 260 | 0.425 | Up to 10 remote racks | Expands Bus X network for remote devices |
Popular Schneider Electric Models
| Model | Description |
|---|---|
| TSXPSY5500M | Standard 24 V DC power supply module with 5 A output current |
| TSXPSY5500MC | Compact version of TSXPSY5500M with enhanced cooling capabilities |
| TSXPSY5520 | High-capacity power supply unit providing up to 10 A output |
| TSXPSY5530 | Power supply with built-in redundancy and diagnostic features |
| TSXPSY5540 | Advanced power supply unit with extended input voltage range |
Product FAQ (Q&A)
Q1: What is the Schneider TSXREY200 used for?
A1: The TSXREY200 is a Bus X Remote Rack Master Module used for managing communication between Modicon PLCs and remote I/O racks.
Q2: How many remote racks can be connected to the TSXREY200?
A2: The TSXREY200 can manage up to 10 remote racks connected via a high-speed Bus X network.
Q3: What communication protocols does the TSXREY200 support?
A3: It supports Modbus and Bus X communication protocols, ensuring compatibility with various Schneider Electric automation systems.
Q4: Can the TSXREY200 be used with any other PLC brands?
A4: While the module is designed for use with Modicon PLC systems, it can also work with any device that supports Modbus communication.
Q5: What is the power supply required for the TSXREY200?
A5: The TSXREY200 requires a 24 V DC power supply for operation.
Q6: What is the operating temperature range of the TSXREY200?
A6: The module operates in temperatures ranging from -20°C to +70°C, making it suitable for a wide range of industrial environments.
Q7: How is the TSXREY200 mounted?
A7: The module is designed for DIN rail mounting, which simplifies installation and ensures secure attachment in the control cabinet.
Q8: What industries can benefit from the TSXREY200?
A8: The module is ideal for industries like manufacturing, water treatment, and building automation, as well as any system requiring distributed control and remote I/O systems.
Q9: How do I integrate the TSXREY200 into my system?
A9: The module integrates easily with existing Modicon PLC systems and uses Modbus communication for simple setup.
Q10: Does the TSXREY200 have any certifications?
A10: Yes, the TSXREY200 is CE and UL certified, ensuring compliance with international safety and performance standards.
