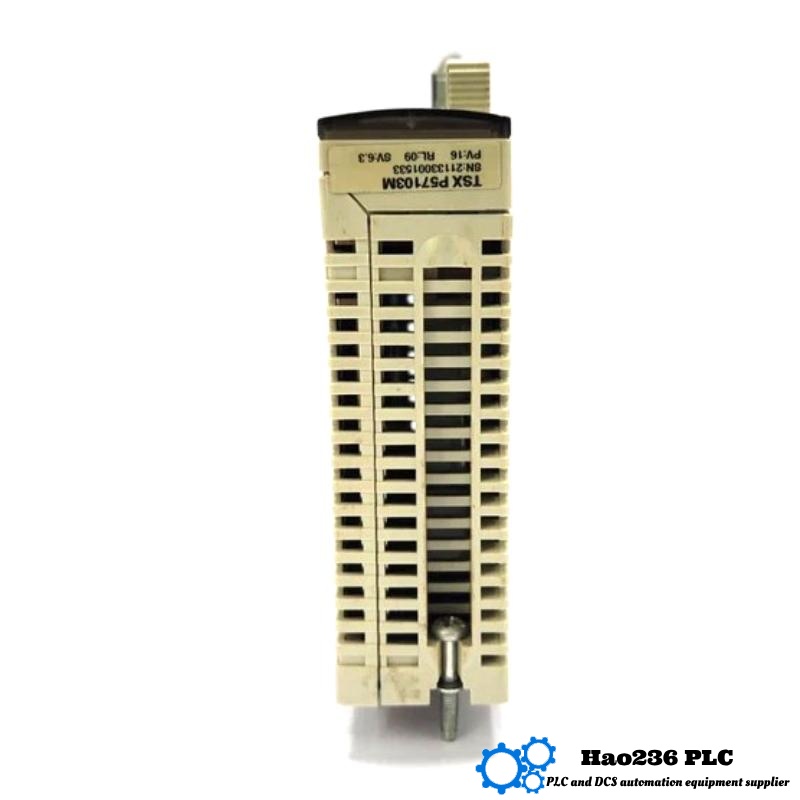

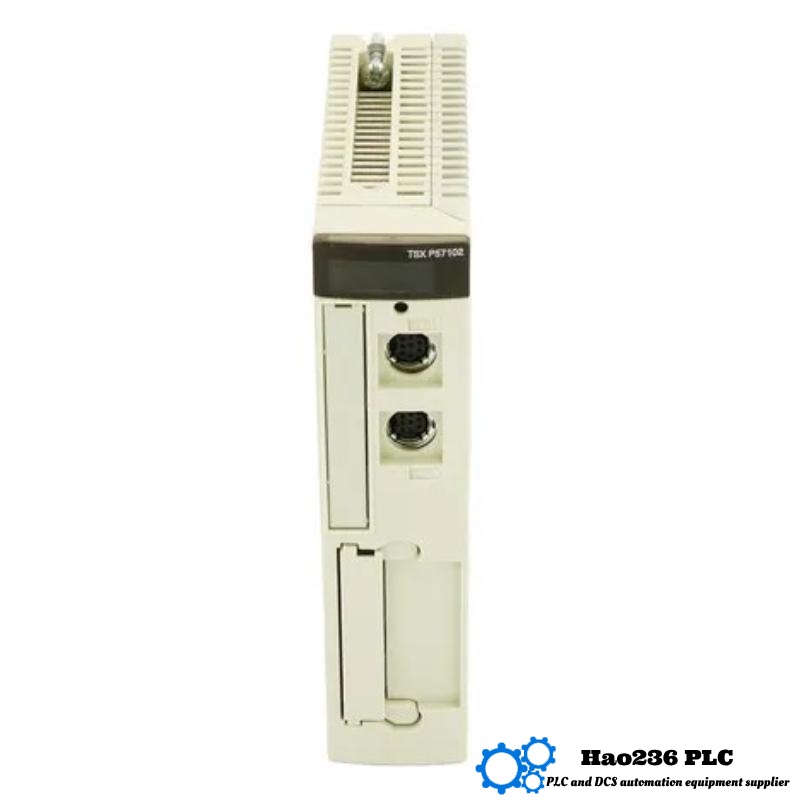

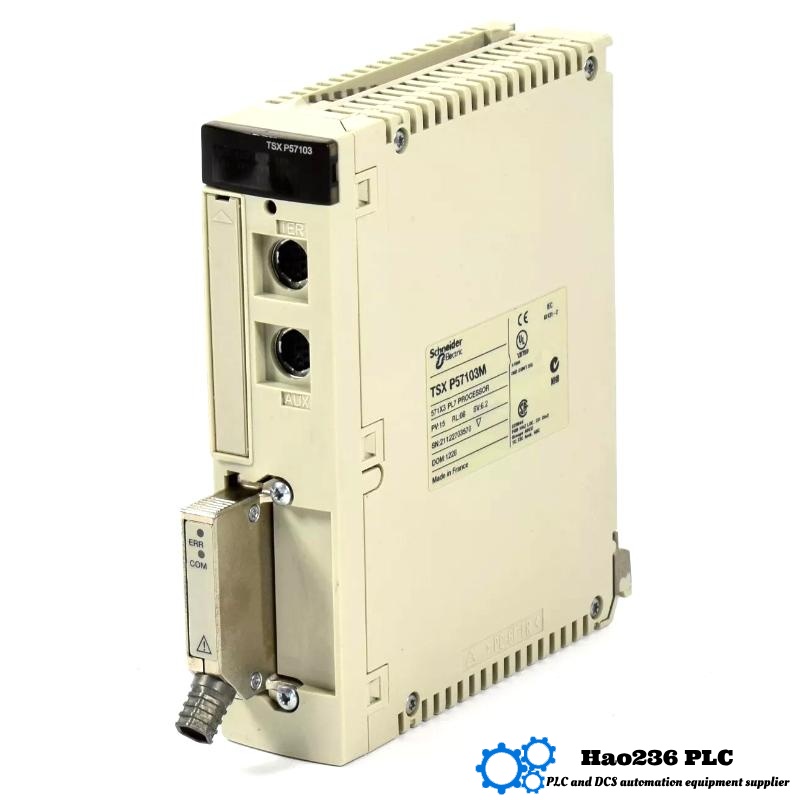

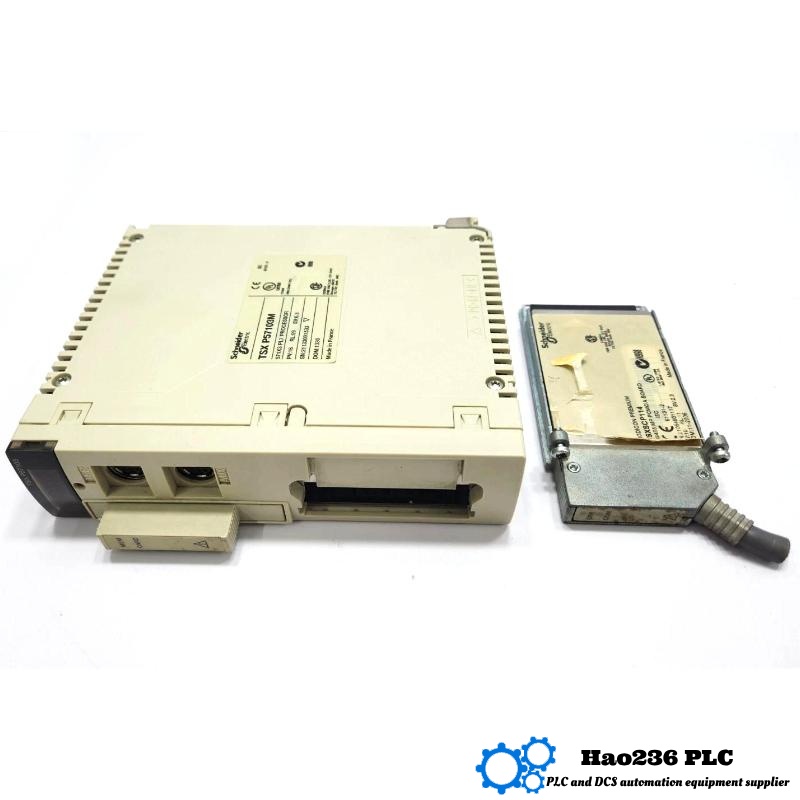

Schneider TSXP57103M Single Format PL7 Processor
Product Introduction
The Schneider TSXP57103M is a robust single-format PL7 processor designed for the Modicon TSX Premium series of programmable logic controllers (PLCs). Engineered for reliable performance in complex automation environments, this processor facilitates efficient control and data processing with high speed and precision. It supports comprehensive programming capabilities via PL7 software, making it ideal for manufacturing, process control, and infrastructure automation applications. The TSXP57103M excels in scalability and seamless integration within the Modicon ecosystem, offering high reliability and flexibility for critical industrial tasks.
Product Parameters
| Parameter | Specification |
|---|---|
| Model | TSXP57103M |
| Package Dimensions | 55 × 180 × 260 mm |
| Weight | 0.38 kg |
| Processor Type | Single Format PL7 Processor |
| Programming Software | PL7 |
| Communication Ports | Ethernet, RS232 |
| Memory Capacity | Up to 512 KB program memory |
| Scan Time | Approx. 1 ms per 1000 steps |
| Power Supply Voltage | 24 V DC |
| Operating Temperature | 0°C to 60°C |
| Mounting | DIN rail / panel mounting |
Product Applications
-
Industrial Automation: Controls manufacturing machinery and assembly lines with precision timing and logic execution.
-
Process Industries: Used in chemical, water treatment, and oil & gas sectors for process monitoring and control.
-
Infrastructure Projects: Manages HVAC systems, lighting, and security systems in large buildings and facilities.
-
Material Handling: Facilitates conveyor systems, robotics, and packaging automation.
-
OEM Equipment: Embedded in custom industrial equipment requiring reliable programmable logic control.
Product Advantages
-
High Processing Speed: Efficient scan times ensure quick execution of control tasks.
-
Flexible Communication: Supports Ethernet and RS232, enabling easy integration into existing networks.
-
Robust Build: Designed for industrial environments with a wide operating temperature range.
-
Scalable Memory: Supports up to 512 KB program memory, accommodating complex automation programs.
-
Compatibility: Seamlessly integrates with the Modicon TSX Premium series and PL7 programming environment.
-
Compact Size: Small footprint allows easy installation in control panels with limited space.
-
User-Friendly Programming: PL7 software provides a comprehensive and intuitive programming experience.
Brand and Series Information
-
Brand: Schneider Electric
-
Series: Modicon TSX Premium Series
The TSX Premium series is known for high-performance processors, modular expansion options, and reliable operation in demanding industrial environments.
Related Models in the Same Series
| Model | Function | Package Dimensions (mm) | Weight (kg) |
|---|---|---|---|
| TSXP57101M | Single Format PL7 Processor | 55 × 180 × 260 | 0.38 |
| TSXP57200M | Dual Format PL7 Processor | 80 × 180 × 260 | 0.65 |
| TSXP57300M | Triple Format PL7 Processor | 110 × 180 × 260 | 0.85 |
| TSXP57400M | Quad Format PL7 Processor | 140 × 180 × 260 | 1.05 |
| TSXP57001M | Basic PL7 Processor | 55 × 180 × 260 | 0.35 |
Popular Schneider Electric Models
| Model | Function | Package Dimensions (mm) | Weight (kg) |
|---|---|---|---|
| TSXP57103M | Single Format PL7 Processor | 55 × 180 × 260 | 0.38 |
| 140CPU65160 | Modicon M340 CPU Module | 130 × 110 × 90 | 0.7 |
| 140CPU65165 | High-Performance CPU Module | 130 × 110 × 90 | 0.7 |
| 140CPU67161 | Modicon M580 CPU Module | 160 × 125 × 115 | 1.5 |
| 140NOE77100 | Ethernet Communication Module | 112 × 16 × 72 | 0.08 |
FAQ (QA Format)
Q1: What programming software is used with the TSXP57103M?
A1: The TSXP57103M uses Schneider’s PL7 programming software.
Q2: What is the operating temperature range of this processor?
A2: It operates reliably between 0°C and 60°C.
Q3: How much memory does the TSXP57103M support?
A3: It supports up to 512 KB of program memory.
Q4: What communication interfaces are available?
A4: It supports Ethernet and RS232 communication ports.
Q5: What is the physical size of this processor?
A5: The package dimensions are 55 × 180 × 260 mm.
Q6: What is the approximate scan time for the TSXP57103M?
A6: It has an approximate scan time of 1 ms per 1000 program steps.
Q7: Is the TSXP57103M compatible with other Modicon TSX series modules?
A7: Yes, it integrates seamlessly with the TSX Premium series.
Q8: What power supply voltage does it require?
A8: The processor operates on a 24 V DC power supply.
Q9: Can it be mounted on a DIN rail?
A9: Yes, it supports both DIN rail and panel mounting.
Q10: Is the TSXP57103M suitable for harsh industrial environments?
A10: Yes, it is designed for industrial-grade durability and reliability.
