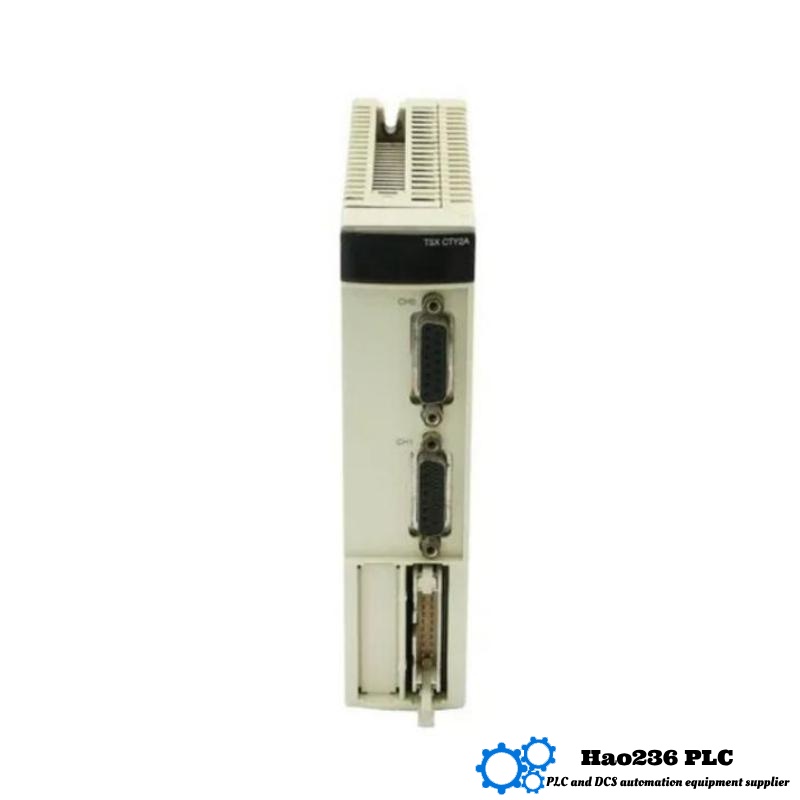

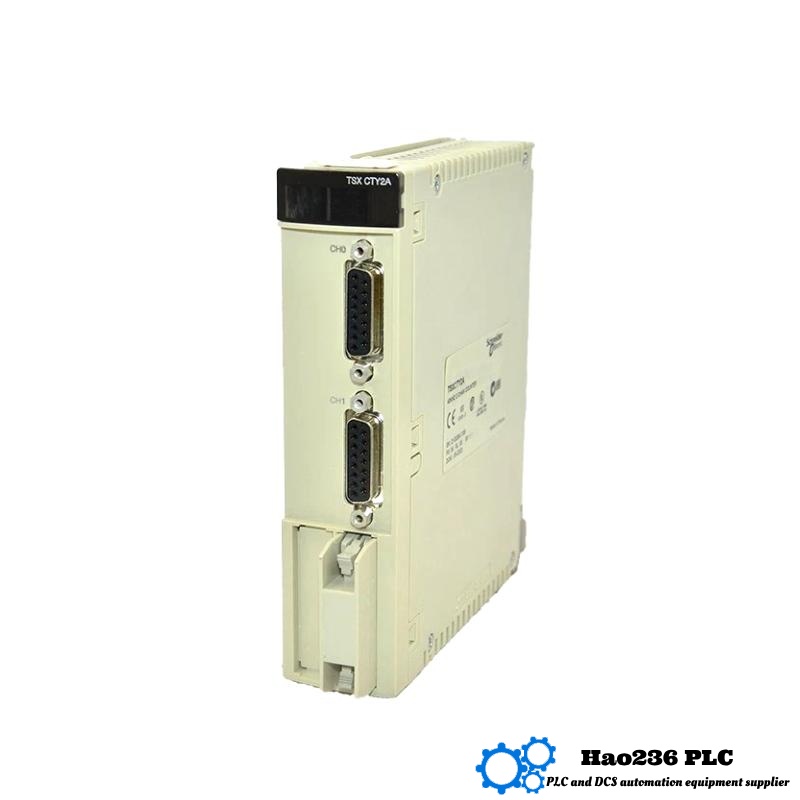

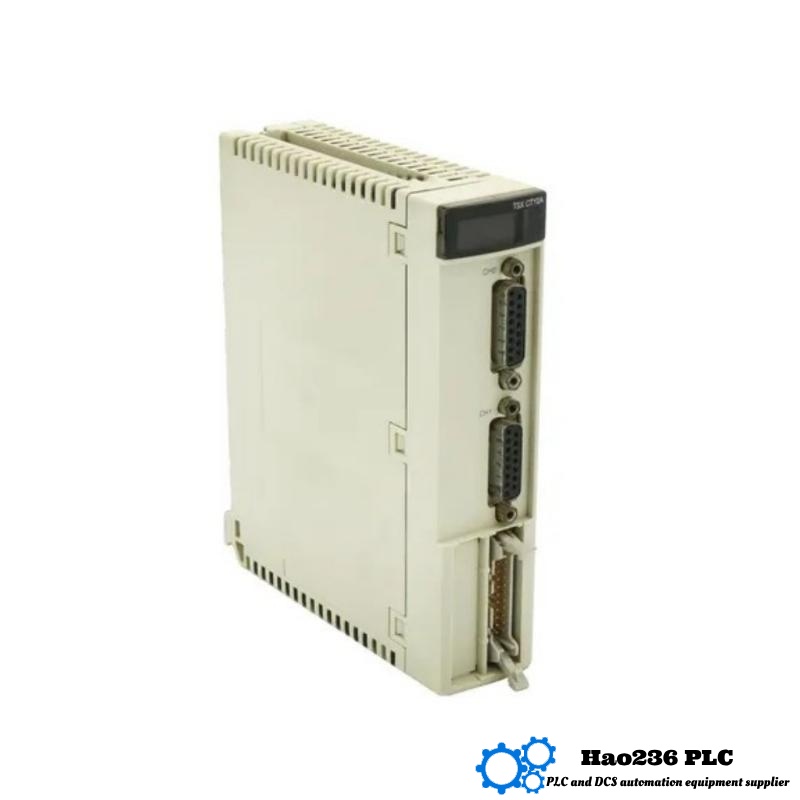

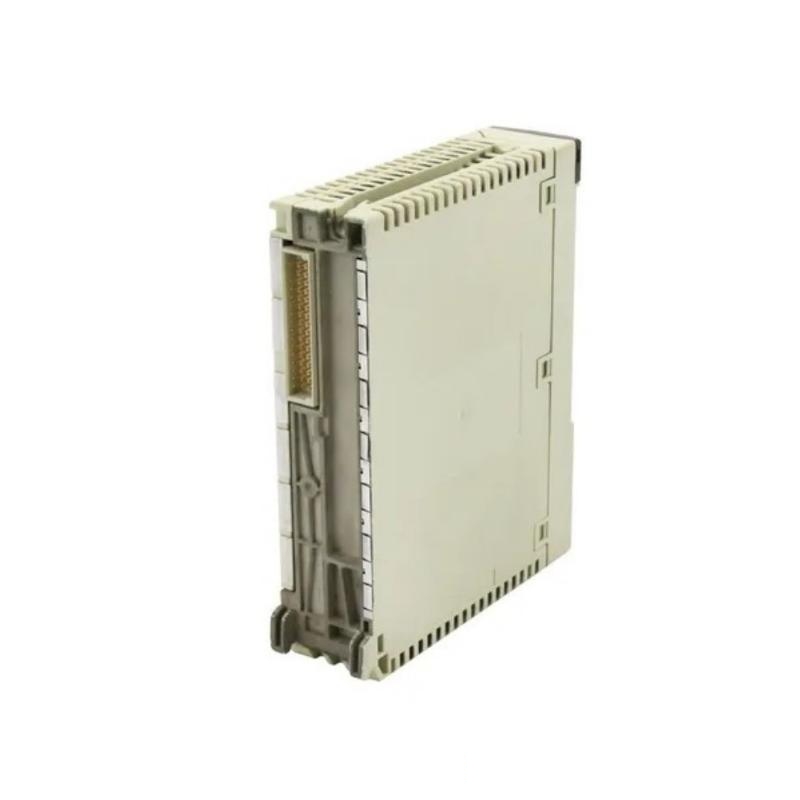

Schneider TSXCTY2A Counter Module
Product Introduction
The Schneider TSXCTY2A is an advanced counter module designed for integration within the Modicon Premium series. This module offers precise and reliable counting and is used in industrial automation systems that require the processing of events, cycles, or counts over time. The TSXCTY2A is a high-performance device that enhances control systems with its efficient processing capabilities, reliable operation, and high-level flexibility.
As part of the Modicon Premium series, the TSXCTY2A module is designed to be highly compatible with Schneider Electric’s Modicon PLCs, allowing for seamless integration into automation systems. This counter module provides real-time counting, and its design makes it ideal for industrial processes where precise monitoring and control of inputs or outputs are necessary.
The TSXCTY2A module supports various counting methods and can be configured for use in both simple and complex applications, offering solutions for high-speed counting, event tracking, and process automation. Its ease of integration, flexibility, and robust performance make it an excellent choice for industrial environments.
Product Parameters
| Feature | Specification |
|---|---|
| Model | TSXCTY2A |
| Dimensions | 55 × 180 × 260 mm |
| Weight | 0.32 kg |
| Series | Modicon Premium |
| Number of Channels | 2 |
| Input Type | Digital, High-speed counting |
| Power Supply | 24V DC |
| Max Count Speed | 100 kHz |
| Count Mode | Up/Down counting |
| Operating Temperature | -20°C to +60°C |
| Mounting | DIN Rail mounting |
| Compatibility | Modicon Premium PLCs |
Product Applications
The Schneider TSXCTY2A counter module is designed for use in a variety of industrial applications where accurate and reliable counting of events or cycles is essential. Its applications include:
-
Production Line Monitoring: Ideal for counting items, products, or packages on production lines, enabling real-time process monitoring.
-
Flow Measurement: Used in industries such as water treatment, oil & gas, and chemical plants, where it helps in tracking the flow of materials, ensuring that measurements are accurate and up-to-date.
-
Packaging Industry: In packaging machinery, the TSXCTY2A can be used to count filled bottles, boxes, or other packaged goods, ensuring that production meets targets.
-
Event Counting: This counter module is well-suited for applications where events such as the number of operations or the number of components produced need to be accurately tracked.
-
Speed Monitoring: Used in automated systems that monitor the speed of machinery or conveyor belts, ensuring that operations remain within prescribed limits.
Product Advantages
-
High Counting Speed: The TSXCTY2A supports high-speed counting with a maximum speed of 100 kHz, ensuring precise and fast data collection even in high-demand applications.
-
Up/Down Counting: It supports up/down counting modes, providing flexibility to adapt to different counting scenarios, whether counting items added to or subtracted from a process.
-
Wide Temperature Range: With an operating temperature range from -20°C to +60°C, this counter module is suitable for use in various environments, from harsh industrial settings to controlled environments.
-
Easy Integration: Designed specifically for use with Modicon Premium PLCs, the module ensures seamless integration, reducing setup time and simplifying the configuration process for industrial applications.
-
Compact Design: The TSXCTY2A counter module features a compact design with dimensions of 55 × 180 × 260 mm and a weight of just 0.32 kg, allowing it to be easily integrated into control panels with limited space.
-
DIN Rail Mounting: The module supports DIN rail mounting, making it easy to install in various industrial setups.
-
Reliable and Robust: Schneider Electric is known for producing durable and high-quality industrial automation products, and the TSXCTY2A lives up to this reputation, providing stable performance in demanding environments.
-
Versatile Count Mode: The module allows for flexible counting configurations, making it ideal for a wide range of automation applications, from simple to more complex counting tasks.
Brand Overview
Schneider Electric is a global leader in energy management and industrial automation solutions. With over 180 years of experience, Schneider Electric provides innovative and sustainable solutions in areas such as energy efficiency, automation, and smart manufacturing. Their products are used in a variety of industries, including energy, water treatment, manufacturing, building automation, and more. Schneider Electric’s Modicon Premium series is known for its high-performance, reliability, and seamless integration in industrial environments.
Related Models
Here are 5 related models from Schneider Electric’s Modicon Premium series that offer similar functionality or are complementary:
| Model | Type | Input Type | Number of Channels | Max Count Speed | Dimensions |
|---|---|---|---|---|---|
| TSXCTY2B | Counter Module | Digital, High-speed | 2 | 100 kHz | 55 × 180 × 260 mm |
| TSXCTY1A | Counter Module | Digital, High-speed | 1 | 100 kHz | 55 × 180 × 260 mm |
| TSXPMC100 | Motion Controller | Digital, Encoder | 2 | 200 kHz | 120 × 160 × 260 mm |
| TSXSCY14 | Analog Input Module | Analog | 8 | N/A | 60 × 180 × 240 mm |
| TSXPBR2 | I/O Expansion Module | Digital | 16 | N/A | 100 × 250 × 220 mm |
Popular Schneider Electric Models
Here are 5 popular Schneider Electric models from their industrial automation product range:
| Model | Description |
|---|---|
| TSXCAY33 | A versatile communication module for reliable data transfer and system integration in industrial automation setups. |
| TSXCAY33C | Enhanced version of the TSXCAY33, offering improved connectivity and performance for larger, more complex systems. |
| TSXCAY41 | High-performance communication module designed for efficient data exchange and integration in industrial control systems. |
| TSXCAY34 | Optimized for high-speed communication and real-time data transfer in automation systems. |
| TSXCAY42 | Advanced communication module with expanded features for seamless data integration and diagnostics in industrial environments. |
FAQs
-
Q: What is the counting speed of the TSXCTY2A?
A: The TSXCTY2A supports a maximum count speed of 100 kHz. -
Q: What is the temperature range for operating the TSXCTY2A?
A: The module operates within a temperature range of -20°C to +60°C. -
Q: How many channels does the TSXCTY2A counter module support?
A: The TSXCTY2A supports 2 channels. -
Q: Is the TSXCTY2A compatible with Modicon Premium PLCs?
A: Yes, it is designed specifically for use with Modicon Premium PLCs. -
Q: Can the TSXCTY2A be used in high-speed counting applications?
A: Yes, it is ideal for high-speed counting with a maximum speed of 100 kHz. -
Q: What type of input does the TSXCTY2A support?
A: The TSXCTY2A supports digital inputs. -
Q: Can the TSXCTY2A be used in a manufacturing environment?
A: Yes, it is suitable for event counting and monitoring in manufacturing environments. -
Q: What is the mounting method for the TSXCTY2A?
A: The module is designed for DIN rail mounting. -
Q: What is the weight of the TSXCTY2A?
A: The weight of the module is 0.32 kg. -
Q: What is the package size for the TSXCTY2A?
A: The package size is 55 × 180 × 260 mm.
