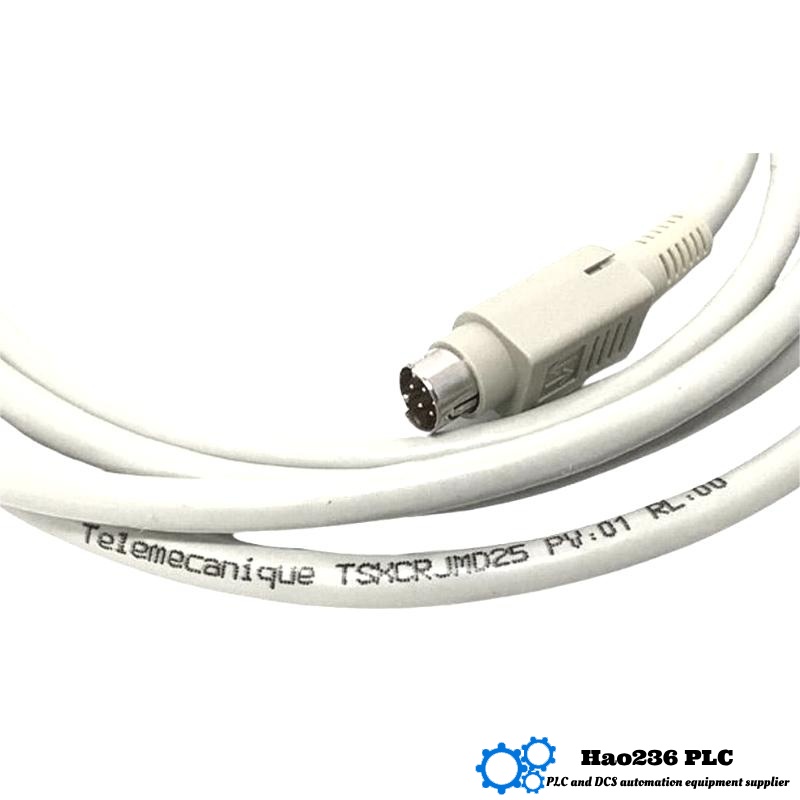

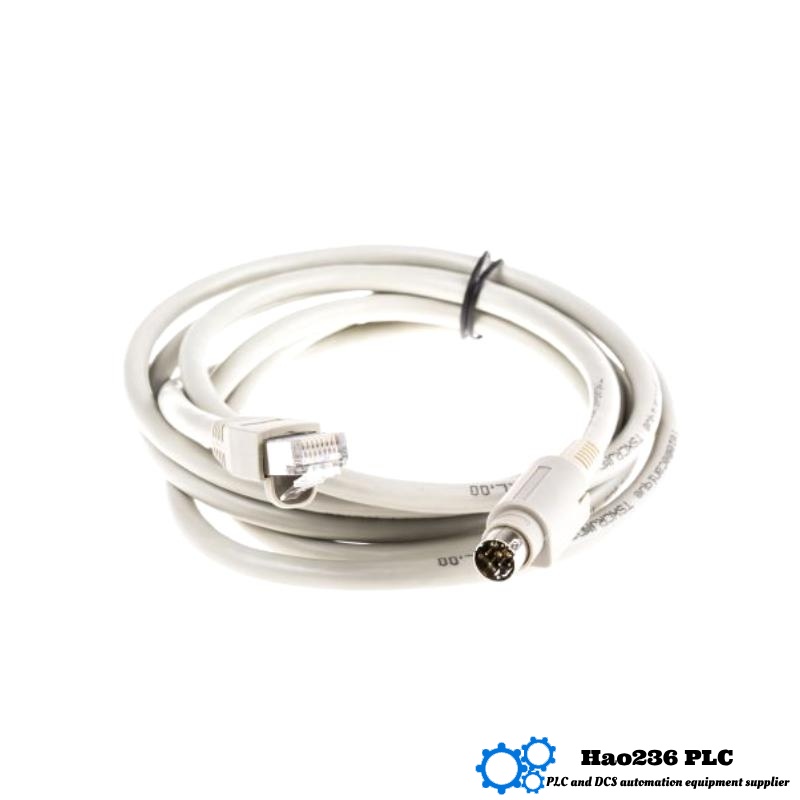

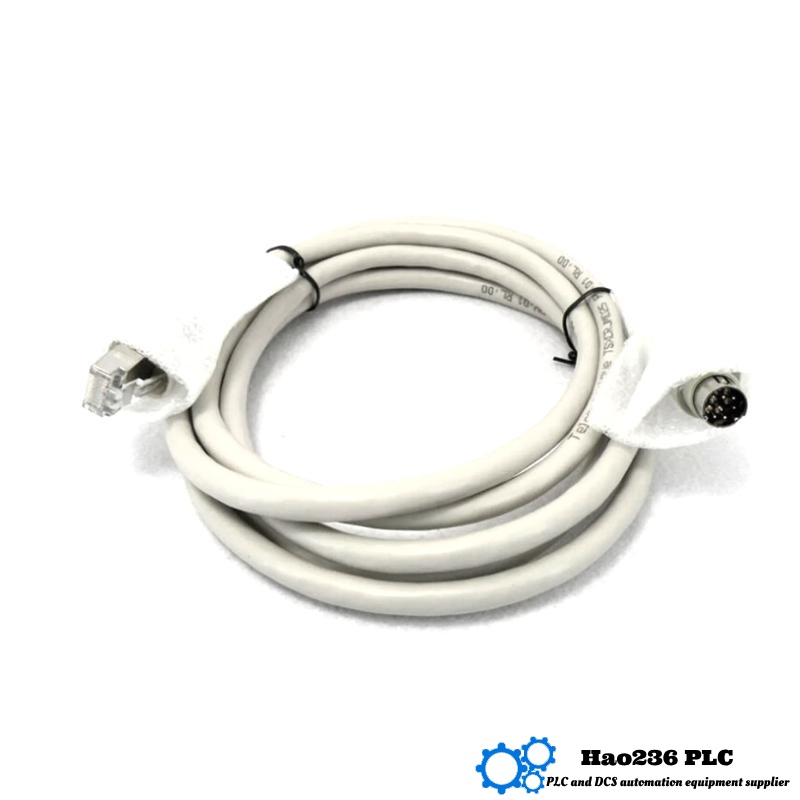

Schneider TSXCRJMD25 PC Terminal Connection Kit
Product Introduction
The Schneider TSXCRJMD25 is a PC terminal connection kit that is part of Schneider Electric’s industrial automation range. This kit is designed to facilitate seamless communication between industrial devices and a PC or control system. The TSXCRJMD25 allows for a reliable connection between programmable logic controllers (PLCs) and supervisory control and data acquisition (SCADA) systems, making it an essential tool for industrial automation and process control applications.
Featuring high-quality connectors, secure wiring, and a 2-meter cable, this kit ensures quick and efficient setup, providing a simple and reliable method for terminal connections. It supports serial communication, allowing smooth data exchange and control between PCs and various automation systems.
The TSXCRJMD25 is particularly beneficial in systems where remote monitoring and data logging are critical. This connection kit is designed for Schneider Electric’s PLC systems, ensuring compatibility and excellent performance in automation environments.
Product Parameters
| Feature | Specification |
|---|---|
| Model | TSXCRJMD25 |
| Cable Length | 2 meters |
| Weight | 0.15 kg |
| Connector Type | Serial RS232/RS485 |
| Compatible Devices | PLC, SCADA systems, HMI |
| Mounting Type | Direct PC connection |
| Cable Type | Shielded, twisted pair |
| Communication Protocol | Modbus RTU, proprietary Schneider Electric protocol |
| Operating Temperature | 0°C to 60°C |
| Connector Pinout | Standard RS232/RS485 pinout |
| Connector Type | DB25 Male to DB9 Female |
Product Applications
The Schneider TSXCRJMD25 PC terminal connection kit is used in a wide variety of industrial automation and control systems, including:
-
PLC Communication: The kit allows for easy connection between Schneider Electric PLCs and a PC or HMI system, enabling real-time data monitoring and control. It is ideal for industries requiring fast, reliable communication between automation devices and centralized systems.
-
SCADA Systems Integration: The TSXCRJMD25 is perfect for supervisory control and data acquisition (SCADA) systems, facilitating data exchange between the PC and SCADA controllers. This allows for effective process control and remote monitoring in sectors like water treatment, energy, and manufacturing.
-
Industrial Monitoring: The kit is essential for remote monitoring of various equipment, ensuring that operators can access critical data and make real-time decisions for equipment control.
-
Data Logging: Ideal for data collection in industrial environments, it allows for seamless connection between the PC and systems for data logging. This is useful in applications requiring detailed operational records for analysis and reporting.
-
HMI Systems: It can be used to interface human-machine interfaces (HMIs) with control systems, providing operators with a simple and effective way to interact with the automation system for adjustments and monitoring.
Product Advantages
-
Reliable Communication: The Schneider TSXCRJMD25 ensures reliable serial communication, crucial for real-time data exchange in industrial automation. It supports RS232 and RS485 protocols, ensuring compatibility with a variety of systems.
-
Easy Installation: The kit comes with a 2-meter cable, making it flexible for installation in different control panel setups. It provides a simple and convenient way to connect a PC to various Schneider Electric devices without the need for complex wiring.
-
Versatile Compatibility: Designed specifically for Schneider Electric PLCs and compatible with Modbus RTU and other communication protocols, the TSXCRJMD25 is highly versatile and ensures seamless integration into any industrial setup.
-
Robust Build Quality: Featuring shielded, twisted pair cables, the TSXCRJMD25 offers signal integrity even in environments with electrical interference, ensuring stable and reliable communication.
-
Compact and Lightweight: At just 0.15 kg and a 2-meter length, this kit is compact and lightweight, making it an easy-to-handle solution for industrial applications.
-
Wide Temperature Range: The module can operate in temperatures ranging from 0°C to 60°C, making it suitable for a wide range of industrial environments, from controlled factory floors to more demanding industrial settings.
-
Enhanced Flexibility: With its ability to connect to various Schneider Electric devices, the TSXCRJMD25 offers flexibility in various automation configurations, saving time and effort during setup and operation.
Brand Overview
Schneider Electric is a global leader in energy management and industrial automation solutions. Known for its innovative approach to providing sustainable and energy-efficient products, Schneider Electric serves industries such as utilities, data centers, manufacturing, and building automation. The TSXCRJMD25 is part of their wide range of products designed to enhance industrial automation and control systems. Schneider Electric’s solutions are known for their reliability, efficiency, and seamless integration with modern industrial environments.
Related Models
Here are 5 related models from Schneider Electric’s range of terminal connection kits:
| Model | Type | Cable Length | Weight | Connector Type |
|---|---|---|---|---|
| TSXCRJMD24 | PC Terminal Kit | 2 meters | 0.15 kg | RS232, RS485 |
| TSXCRJMD30 | PC Terminal Kit | 3 meters | 0.18 kg | RS232, RS485 |
| TSXCRJMD20 | PC Terminal Kit | 1.5 meters | 0.12 kg | RS232, RS485 |
| TSXCRJMD26 | PC Terminal Kit | 2.5 meters | 0.16 kg | RS232, RS485 |
| TSXCRJMD28 | PC Terminal Kit | 2 meters | 0.14 kg | RS232, RS485 |
Popular Schneider Electric Models
Here are 5 popular Schneider Electric models from their industrial automation line:
| Model | Description |
|---|---|
| TSXCAY33 | Compact and versatile communication module designed for efficient data exchange in industrial automation systems |
| TSXCAY33C | Enhanced version of TSXCAY33, optimized for greater connectivity and performance in large-scale industrial environments |
| TSXCAY41 | High-performance communication interface module designed for seamless data integration and control in complex industrial applications |
| TSXCAY42 | Advanced communication module offering enhanced diagnostic capabilities and faster data transfer for real-time monitoring systems |
| TSXCAY44 | Robust communication unit designed to handle high-volume data exchange with minimal latency, ensuring efficient operation in automation systems |
FAQs
-
Q: What is the length of the cable in the TSXCRJMD25?
A: The cable length is 2 meters. -
Q: What is the weight of the TSXCRJMD25 connection kit?
A: The weight of the kit is 0.15 kg. -
Q: What communication protocols does the TSXCRJMD25 support?
A: It supports RS232 and RS485 communication protocols. -
Q: Is the TSXCRJMD25 compatible with Modicon PLCs?
A: Yes, it is compatible with Schneider Electric Modicon PLCs. -
Q: What is the operating temperature range for the TSXCRJMD25?
A: The module operates in temperatures from 0°C to 60°C. -
Q: Does the TSXCRJMD25 support both PC and HMI connections?
A: Yes, it supports connections to both PCs and HMIs. -
Q: Can the TSXCRJMD25 be used in remote monitoring applications?
A: Yes, it is ideal for remote monitoring in industrial automation systems. -
Q: Is the TSXCRJMD25 cable shielded?
A: Yes, the cable is shielded for signal integrity. -
Q: Can I use the TSXCRJMD25 for connecting a PC to a SCADA system?
A: Yes, it is suitable for connecting a PC to SCADA systems. -
Q: What type of devices can I connect using the TSXCRJMD25?
A: It can connect PCs, PLC systems, and HMI devices.
