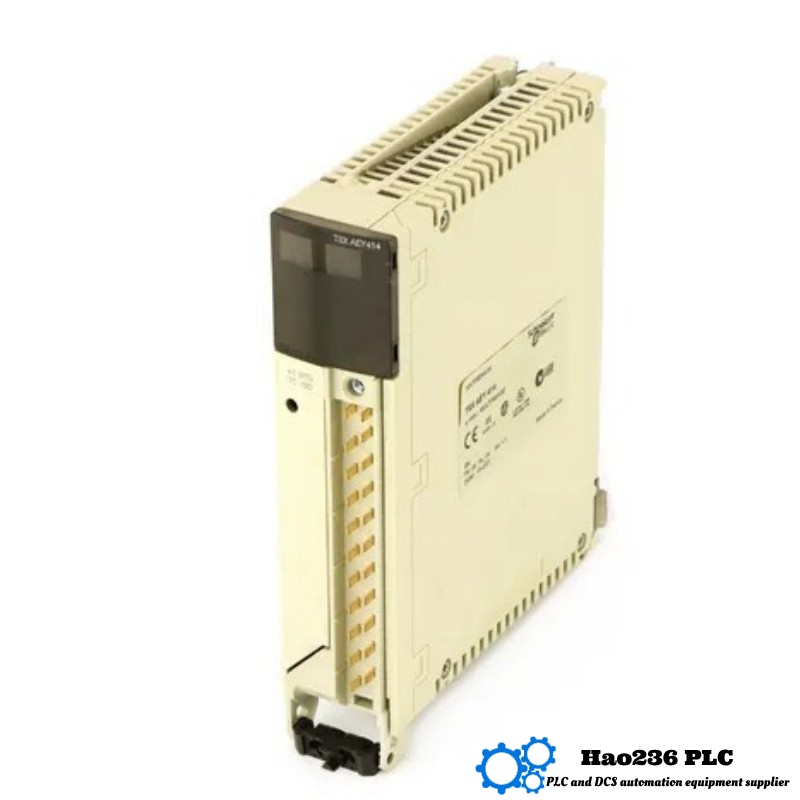

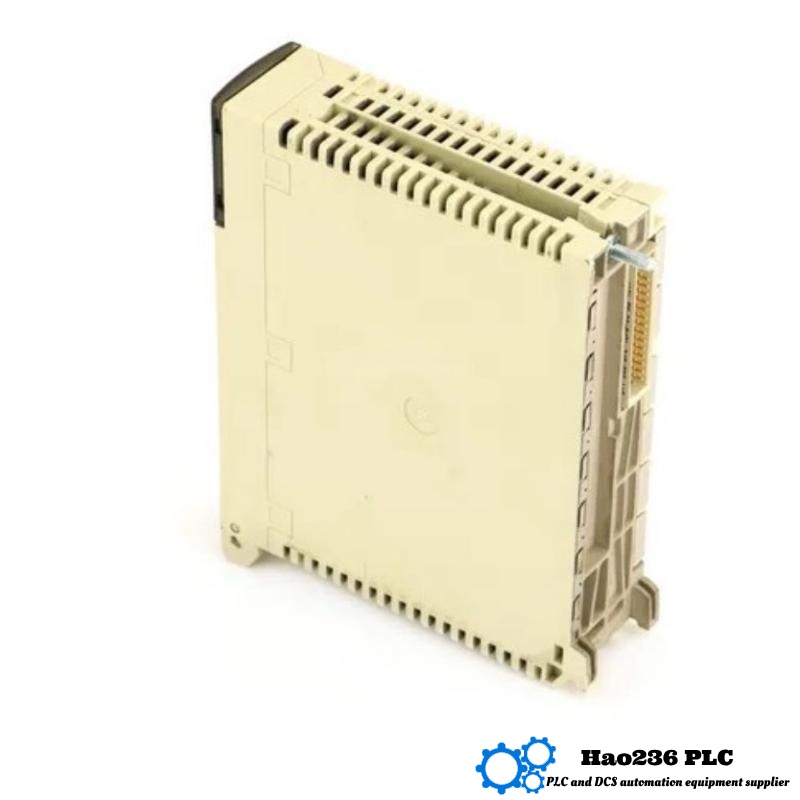

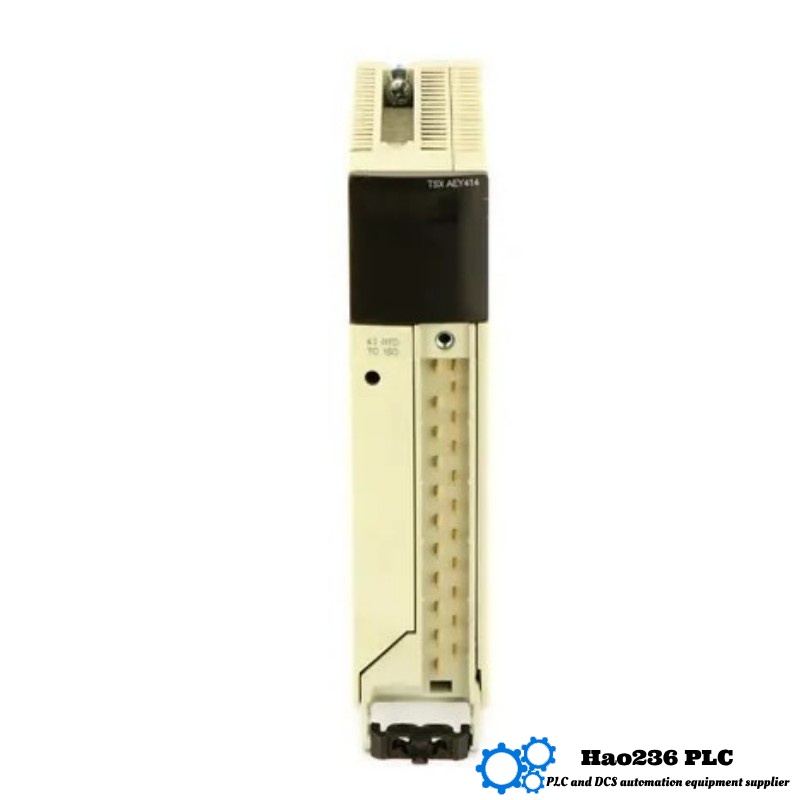

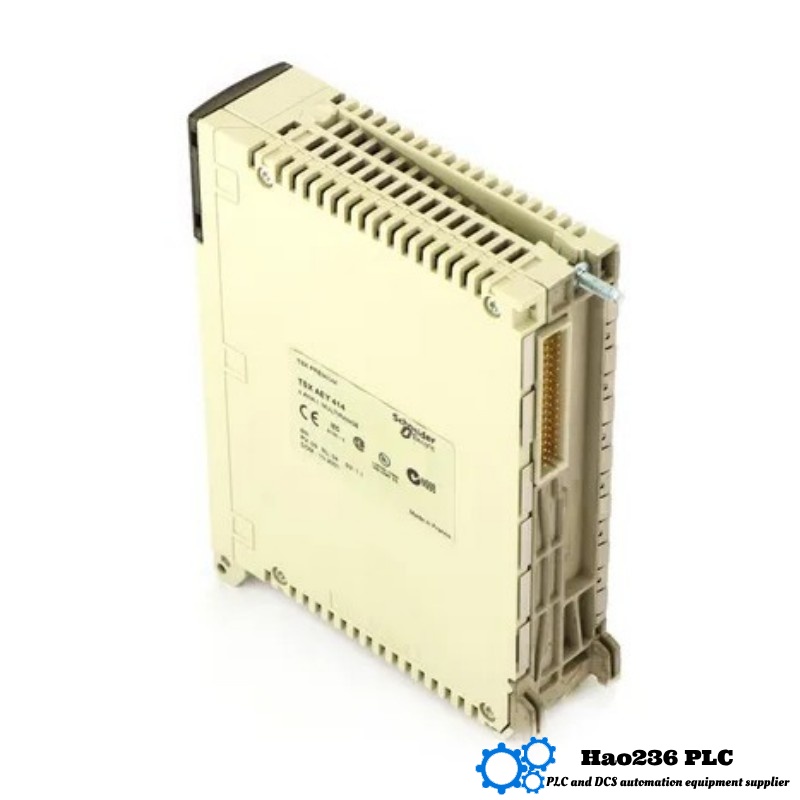

Schneider TSXAEY414 Analog Input Module
Product Introduction
The Schneider TSXAEY414 is a high-performance analog input module designed for use in the Modicon Premium series of programmable logic controllers (PLCs). This module offers 16 input channels that support both voltage and current signals, ensuring that it can accommodate a wide variety of analog sensors. With a 12-bit resolution, the TSXAEY414 ensures that the incoming analog signals are accurately converted to digital values, making it an ideal choice for precise process control applications.
Built for robustness and reliability, the TSXAEY414 is engineered to perform optimally in industrial environments. The compact design facilitates easy integration into existing automation systems, while its modular nature allows for scalability depending on the application’s needs.
The module is optimized for use in industries such as manufacturing, oil and gas, energy, and utilities, providing flexible and precise measurement capabilities that enable high-efficiency control processes.
Product Parameters
| Parameter | Specification |
|---|---|
| Model Number | TSXAEY414 |
| Brand | Schneider Electric |
| Series | Modicon Premium |
| Input Channels | 16 differential analog inputs |
| Input Types | Voltage: 0-10 V, ±10 V; Current: 0-20 mA, ±20 mA |
| Resolution | 12-bit |
| Input Impedance | 10 kΩ |
| Power Supply | 24 V DC |
| Dimensions | 55 x 180 x 260 mm |
| Weight | 0.32 kg |
| Communication Protocol | Modbus/RTU |
| Operating Temperature | -10°C to +60°C |
| Mounting | DIN rail mount |
Product Applications
The TSXAEY414 is widely used in:
-
Process control in industries such as chemical, petrochemical, and pharmaceuticals
-
Energy monitoring and management, including renewable energy systems
-
Factory automation for precise analog signal acquisition
-
Environmental monitoring for sensors that measure temperature, pressure, and flow
-
Data logging systems where accurate analog inputs are critical for system monitoring
Product Advantages
-
Wide input range: Supports both voltage and current inputs, making it compatible with a wide range of industrial sensors.
-
High resolution: Provides 12-bit resolution, offering accurate data conversion for precise process control.
-
Easy installation: Designed for DIN rail mounting, it integrates seamlessly into existing industrial setups.
-
Wide operating temperature: Functions efficiently within a broad temperature range, from -10°C to +60°C.
-
Compatibility: Fully compatible with Schneider Electric’s Modicon Premium series, ensuring easy integration into your automation system.
-
Reliable performance: Built to handle harsh industrial environments and ensure high reliability and uptime.
Brand Information
Schneider Electric is a global leader in energy management and automation solutions. Known for its innovative products, Schneider Electric provides a wide range of solutions that optimize energy consumption and industrial control systems. The Modicon Premium series is a high-performance PLC family renowned for its scalability, flexibility, and integration capabilities.
Related Models (Modicon Premium Series)
| Model Number | Input Channels | Input Type | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| TSXAEY1600 | 16 | Voltage/Current | 55 x 180 x 260 | 0.34 |
| TSXAEY1602 | 8 | Voltage | 55 x 180 x 260 | 0.30 |
| TSXAEY1606 | 16 | Voltage | 55 x 180 x 260 | 0.36 |
| TSXAEY1610 | 32 | Voltage/Current | 55 x 180 x 260 | 0.38 |
| TSXAEY1630 | 16 | Thermocouple Inputs | 55 x 180 x 260 | 0.33 |
Popular Models from Schneider Electric
| Model Number | Description | Dimensions (mm) | Weight (kg) |
|---|---|---|---|
| TSXETZ1100 | CPU Module for Modicon Premium | 55 x 180 x 260 | 0.40 |
| TSXPSY1000 | Power Supply Module | 55 x 180 x 260 | 0.50 |
| TSXAEY1640 | Analog Input Module (Voltage) | 55 x 180 x 260 | 0.35 |
| TSXDEY2000 | Digital Input Module | 55 x 180 x 260 | 0.25 |
| TSXETY4100 | Ethernet Communication Module | 55 x 180 x 260 | 0.45 |
FAQ for Schneider TSXAEY414
Q1: What types of analog signals can the TSXAEY414 handle?
A1: The module supports both voltage signals (0-10 V, ±10 V) and current signals (0-20 mA, ±20 mA).
Q2: How many channels are available on this module?
A2: The TSXAEY414 provides 16 differential analog input channels.
Q3: What is the resolution of the analog inputs?
A3: It offers a 12-bit resolution for accurate signal conversion.
Q4: What is the power supply requirement for the TSXAEY414?
A4: The module requires a 24 V DC power supply.
Q5: Can this module be used with systems other than Modicon Premium PLCs?
A5: The TSXAEY414 is designed for use with Schneider Electric’s Modicon Premium series and may not be compatible with other systems.
Q6: What is the operating temperature range for this module?
A6: The module operates in temperatures ranging from -10°C to +60°C.
Q7: How is the TSXAEY414 installed?
A7: The module is designed for easy installation on a DIN rail.
Q8: What communication protocol does this module use?
A8: The TSXAEY414 uses the Modbus/RTU communication protocol.
Q9: What is the input impedance of the module?
A9: The input impedance is 10 kΩ.
Q10: What are the physical dimensions and weight of the TSXAEY414?
A10: The module measures 55 x 180 x 260 mm and weighs 0.32 kg.
