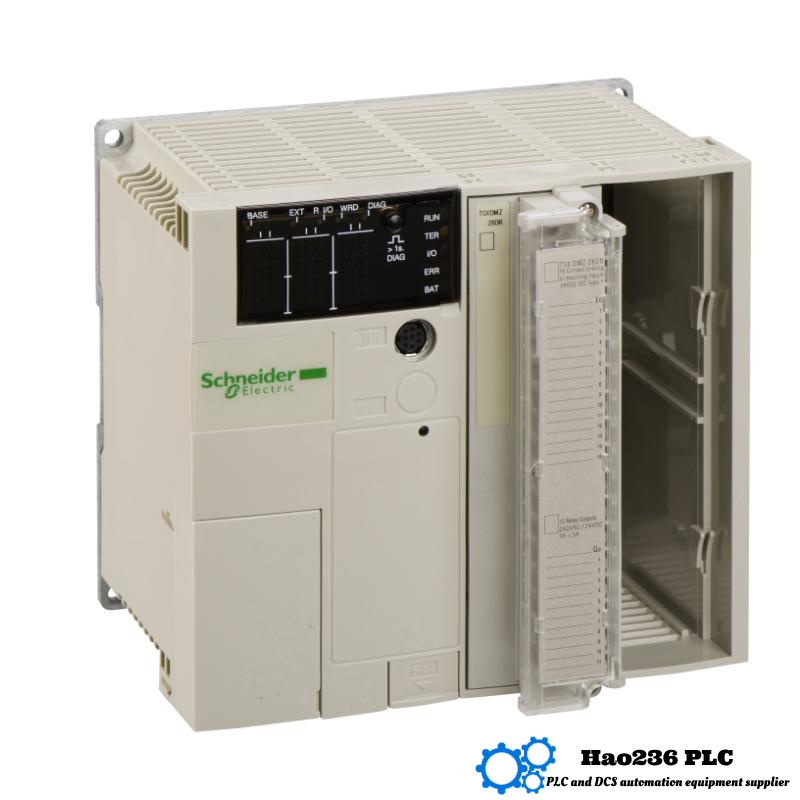

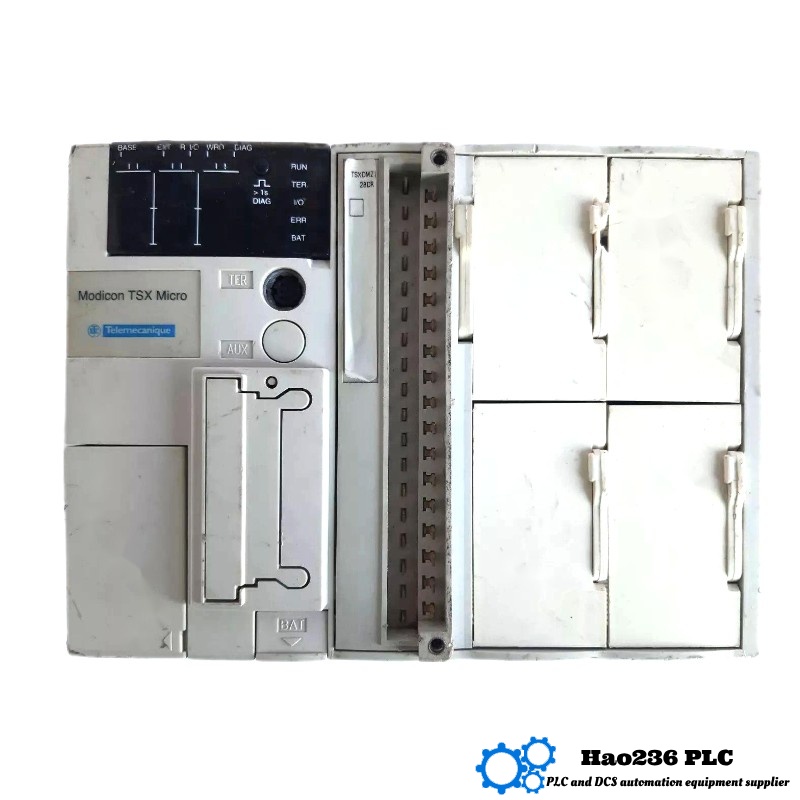

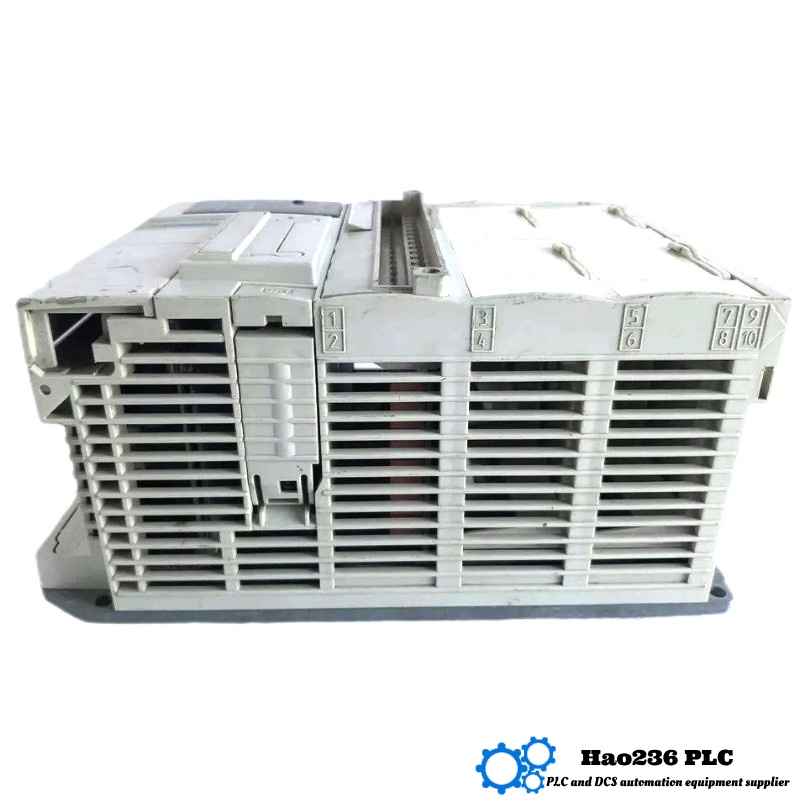

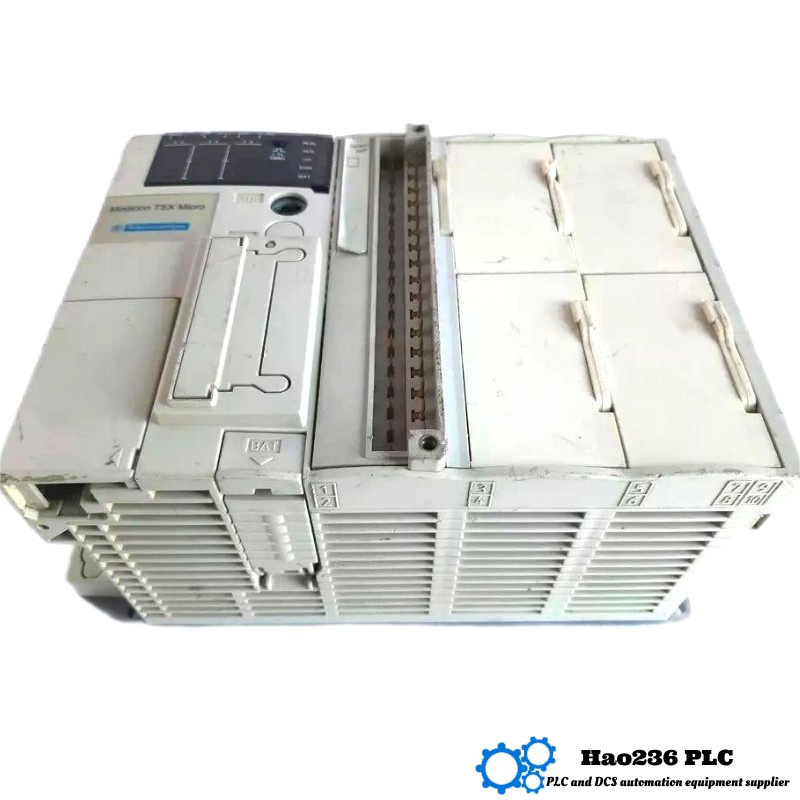

Schneider TSX3708056DR1 Modular Basic Controller
Product Introduction
The Schneider TSX3708056DR1 is a robust modular basic controller designed for industrial automation applications within the Modicon TSX series. Engineered with advanced processing capabilities, this controller enables efficient and reliable control of machinery and processes, providing high precision and operational stability. Its modular design allows easy integration into existing automation architectures, facilitating scalability and flexibility.
With dimensions of 227.9 x 151 x 152 mm and a weight of 1.6 kg, the TSX3708056DR1 offers a compact yet powerful solution for diverse industrial environments. The device is compatible with a variety of input/output modules, communication interfaces, and programming tools within the Modicon ecosystem, making it a preferred choice for automation professionals.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | TSX3708056DR1 |
| Product Type | Modular Basic Controller |
| Series | Modicon TSX |
| Dimensions (WxHxD) | 227.9 x 151 x 152 mm |
| Weight | 1.6 kg |
| CPU Type | 16-bit microprocessor |
| Memory | 64 KB RAM, 128 KB Flash |
| Communication Interface | TSX backplane, Modbus compatible |
| Power Supply | 24 V DC nominal |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -25°C to +70°C |
| Programming Language | Ladder logic, Functional block diagram |
| Mounting | DIN rail or rack mount |
| Certifications | CE, UL, CSA |
Product Applications
The TSX3708056DR1 modular controller is widely used in:
-
Manufacturing Plants: Automated control of production lines, assembly machines, and robotics.
-
Process Industries: Chemical, pharmaceutical, and food processing control systems requiring precise and reliable operation.
-
Energy Management: Supervising and controlling electrical distribution systems and renewable energy assets.
-
Water and Wastewater Treatment: Automation of pumping stations, filtration processes, and monitoring systems.
-
Building Automation: Integration with HVAC, lighting, and security systems for efficient building management.
Product Advantages
-
Modular Flexibility: Easily expandable by adding compatible input/output modules to meet changing application needs.
-
High Reliability: Designed for continuous operation in harsh industrial environments with solid-state components.
-
Advanced Programming: Supports multiple programming languages, allowing flexible application development.
-
Seamless Integration: Compatible with existing Modicon TSX systems and communication protocols for smooth system upgrades.
-
Compact Form Factor: Space-saving design simplifies installation in control cabinets.
-
Global Support: Backed by Schneider Electric’s extensive technical support and documentation.
Brand and Series
Schneider Electric is a global leader in automation and energy management. The Modicon TSX series is a well-established platform known for its modularity, reliability, and adaptability across various industrial sectors.
Recommended Models (Same Series or Related)
| Model Number | Description | Dimensions (mm) | Weight (kg) | Key Features |
|---|---|---|---|---|
| TSX3708001DR1 | Digital Input Module, 16 Inputs | 227.9 x 151 x 152 | 1.4 | Compact digital input module |
| TSX3708020DR1 | Analog Input Module, 8 Channels | 227.9 x 151 x 152 | 1.7 | High precision analog inputs |
| TSX3708030DR1 | Analog Output Module, 8 Channels | 227.9 x 151 x 152 | 1.7 | Versatile analog outputs |
| TSX3708040DR1 | Digital Output Module, 16 Outputs | 227.9 x 151 x 152 | 1.5 | Relay and transistor outputs |
| TSX3720001DR1 | CPU Controller Module | 227.9 x 151 x 152 | 2.0 | Advanced processing power |
Popular Schneider Modicon TSX Models
| Model Number | Description | Dimensions (mm) | Weight (kg) | Application |
|---|---|---|---|---|
| TSX3708056DR1 | Modular Basic Controller | 227.9 x 151 x 152 | 1.6 | Core automation control |
| TSX3708002DR1 | Digital Output Module | 227.9 x 151 x 152 | 1.5 | Control of actuators |
| TSX3708010DR1 | Digital Input Module | 227.9 x 151 x 152 | 1.4 | Sensor and switch inputs |
| TSX3708025DR1 | Analog Input Module | 227.9 x 151 x 152 | 1.7 | Measurement and monitoring |
| TSX3708035DR1 | Analog Output Module | 227.9 x 151 x 152 | 1.7 | Control signals for devices |
Frequently Asked Questions (FAQs)
Q1: What type of communication does TSX3708056DR1 support?
A1: It supports TSX backplane communication and Modbus protocols for seamless integration.
Q2: What are the input voltage requirements for the controller?
A2: The device operates on a nominal 24 V DC power supply.
Q3: Can the module be programmed with standard automation languages?
A3: Yes, it supports ladder logic and functional block diagram programming.
Q4: What is the operating temperature range?
A4: The controller functions reliably from 0°C up to +55°C.
Q5: Is the TSX3708056DR1 compatible with other Modicon TSX modules?
A5: Yes, it integrates fully within the Modicon TSX modular system.
Q6: What mounting options are available?
A6: It supports DIN rail and rack mounting.
Q7: How much memory is available for user programs?
A7: The controller includes 64 KB RAM and 128 KB Flash memory.
Q8: What certifications does the device have?
A8: It is certified under CE, UL, and CSA industrial standards.
Q9: What is the module’s weight and size?
A9: The dimensions are 227.9 x 151 x 152 mm, and it weighs 1.6 kg.
Q10: How does Schneider Electric support this product?
A10: Schneider provides global technical support, software updates, and comprehensive documentation.
