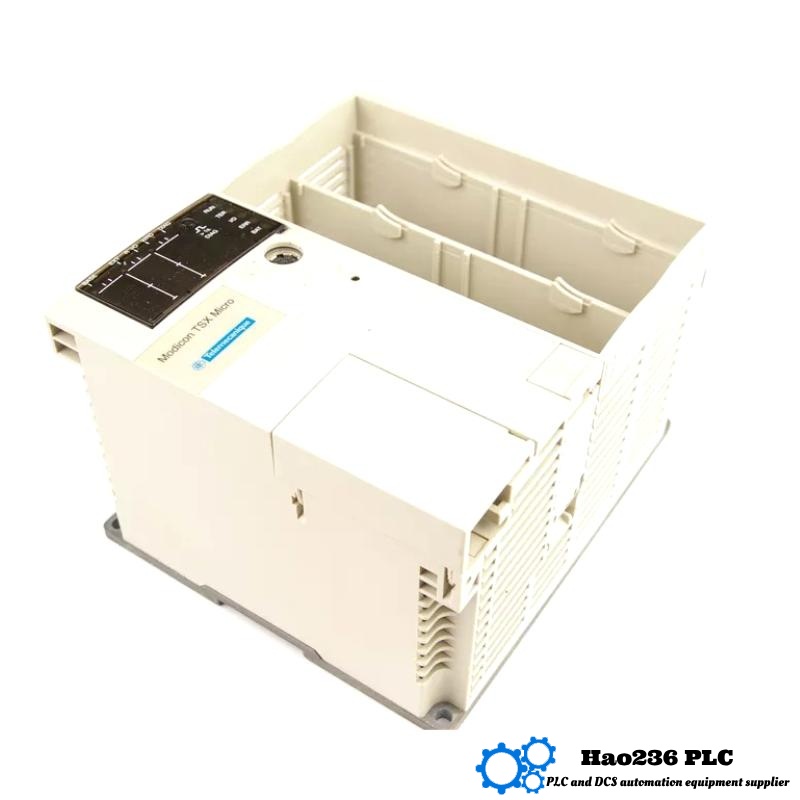

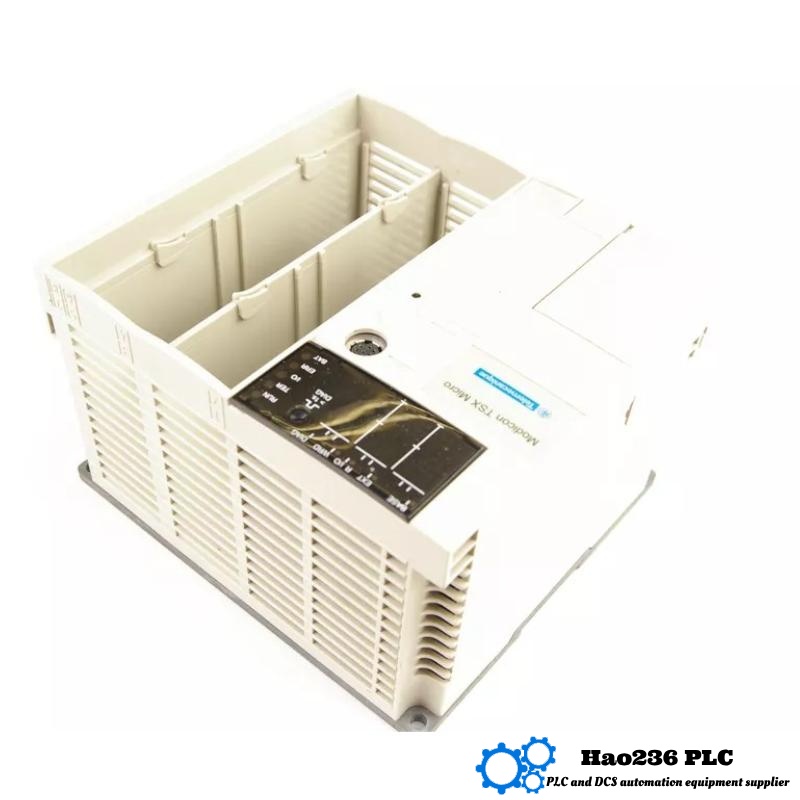

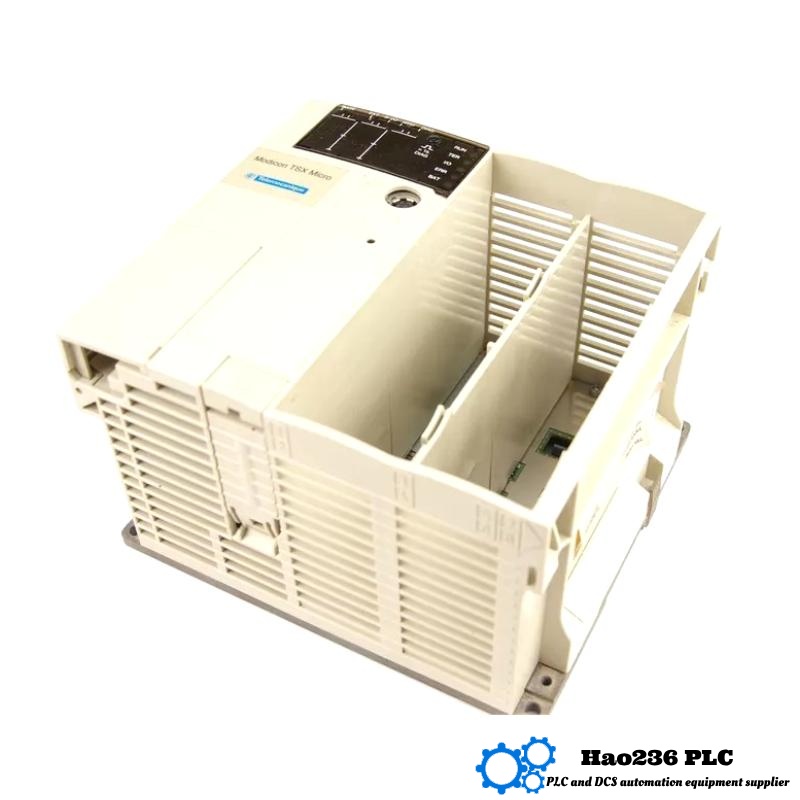

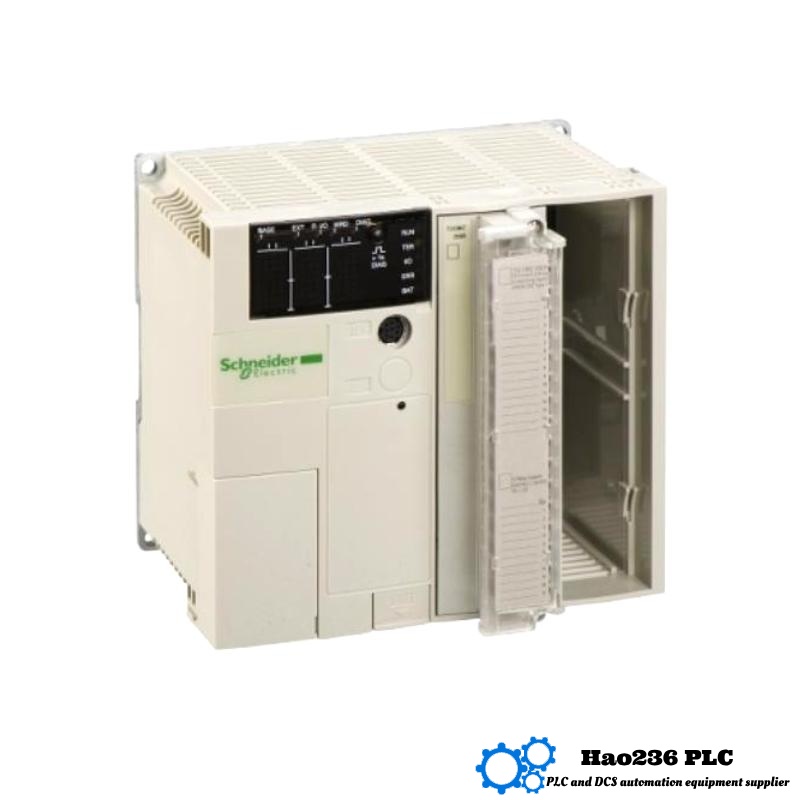

Schneider TSX3705001 Programmable Controller
Product Introduction
The Schneider TSX3705001 is a high-performance Programmable Controller (PLC) designed for industrial automation and control applications. This PLC is part of the Modicon TSX series, a well-known and reliable range of controllers by Schneider Electric. The TSX3705001 offers exceptional flexibility, scalability, and high-speed processing capabilities, making it suitable for a wide range of industrial environments, including manufacturing, process control, and machine automation.
With its robust design and advanced features, the TSX3705001 allows users to program, monitor, and control complex processes efficiently. Its intuitive configuration and versatile I/O capabilities ensure seamless integration with various industrial systems and devices, providing a comprehensive solution for automation and control.
Product Applications
The Schneider TSX3705001 PLC is ideal for a broad spectrum of industrial applications:
-
Manufacturing Automation: Efficiently controls automated production lines, including robotics, assembly lines, and material handling systems.
-
Process Control: Handles complex process control tasks in industries like food and beverage, chemical, and water treatment plants.
-
Machine Automation: Provides real-time monitoring and control for machines and equipment in industries such as automotive and packaging.
-
Building Automation: Controls HVAC, lighting, and security systems in large buildings and commercial spaces.
-
Energy Management: Integrates with energy monitoring and management systems to optimize energy consumption and reduce costs.
-
Transportation: Applied in railway and automotive sectors for system monitoring and control of various transport systems.
Product Advantages
-
High-Speed Processing: The TSX3705001 offers fast processing speeds for time-sensitive industrial applications, ensuring reliable control in real-time systems.
-
Scalability and Flexibility: It supports expansion through various I/O modules, making it suitable for small, medium, and large-scale applications.
-
Ease of Integration: Easily integrates with other Schneider Electric automation products, as well as third-party systems, ensuring a seamless control network.
-
Compact Design: Its compact size of 170.3 x 151 x 152 mm makes it an excellent choice for space-limited installations without sacrificing functionality.
-
Robust Performance: Designed for demanding industrial environments, the TSX3705001 can withstand harsh conditions such as temperature variations and electrical disturbances.
-
User-Friendly Programming: Utilizes Schneider Electric’s user-friendly programming software, simplifying setup and maintenance tasks.
Brand Overview: Schneider Electric
Schneider Electric is a global leader in the field of energy management and industrial automation. With a rich history of innovation, Schneider Electric has been providing integrated solutions for energy and automation in various industries, including buildings, data centers, industrial facilities, and infrastructure. Their product range includes PLCs, I/O modules, energy management systems, and software solutions, all designed to optimize efficiency, sustainability, and safety.
The Modicon TSX series, which includes the TSX3705001, is well-respected for offering flexible, scalable, and powerful PLC solutions, making it ideal for various industrial and automation applications.
Product Parameters
| Parameter | Specification |
|---|---|
| Model | TSX3705001 |
| Module Type | Programmable Controller (PLC) |
| Dimensions (mm) | 170.3 x 151 x 152 |
| Weight (kg) | 1.4 |
| Input Voltage | 24 V DC |
| Output Voltage | 24 V DC |
| Mounting | DIN Rail Mountable |
| Operating Temperature | -10°C to 55°C |
| Protection Class | IP20 |
| I/O Configuration | Expandable I/O Modules |
| Communication Ports | 1 x RS-232, 1 x RS-485 |
| Program Memory | 64 KB |
| I/O Capacity | 256 digital inputs, 256 digital outputs |
| Programming Language | Ladder Logic, Structured Text, Function Block Diagram |
| Ethernet Support | Yes, via expansion modules |
Recommended Related Models
Here are 5 models from the same series or related models:
| Model | Type | Description | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| TSX3705002 | Programmable Controller | Enhanced model with more I/O and memory | 170.3 x 151 x 152 | 1.45 |
| TSX3705003 | Programmable Controller | Suitable for small to medium applications | 170.3 x 151 x 152 | 1.35 |
| TSX3705004 | Programmable Controller | Offers advanced communication options | 170.3 x 151 x 152 | 1.50 |
| TSX3705005 | Programmable Controller | Version with Ethernet support and larger memory | 170.3 x 151 x 152 | 1.55 |
| TSX3705006 | Programmable Controller | Ideal for large-scale automation systems | 170.3 x 151 x 152 | 1.60 |
Recommended Popular Models from Schneider Electric
Here are 5 popular models from Schneider Electric:
| Model | Type | Description | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| TM3DM24R | Digital Input Module | 24 digital inputs, 24V DC, screw terminal connections | 90 x 72 x 68 | 0.4 |
| TM3DM24RG | Digital Input Module | 24 digital inputs, 24V DC, removable terminal blocks | 90 x 72 x 68 | 0.42 |
| TM3DN8R | Digital Output Module | 8 digital outputs, 24V DC, screw terminal connections | 90 x 72 x 68 | 0.35 |
| TM3DM12R | Digital Input Module | 12 digital inputs, 24V DC, screw terminal connections | 90 x 72 x 68 | 0.3 |
| TM3DN16R | Digital Output Module | 16 digital outputs, 24V DC, removable terminal blocks | 90 x 72 x 68 | 0.37 |
FAQ (Frequently Asked Questions)
Q1: What is the primary function of the TSX3705001 PLC?
A1: The TSX3705001 is designed for controlling and automating industrial processes. It manages input and output signals from sensors, switches, and other devices, ensuring smooth operations in manufacturing and control systems.
Q2: How many I/O points does the TSX3705001 support?
A2: The TSX3705001 supports up to 256 digital inputs and 256 digital outputs, which can be expanded with additional I/O modules.
Q3: Can the TSX3705001 handle analog inputs and outputs?
A3: No, the TSX3705001 is designed specifically for digital I/O. For analog inputs and outputs, Schneider Electric offers other models in the Modicon series.
Q4: What programming languages can be used with the TSX3705001?
A4: The PLC supports programming in Ladder Logic, Structured Text, and Function Block Diagram, which are all standard for Schneider Electric controllers.
Q5: Is the TSX3705001 compatible with Schneider Electric’s software?
A5: Yes, it is compatible with Schneider Electric’s SoMachine and Unity Pro software for programming and configuration.
Q6: How is the TSX3705001 mounted?
A6: The TSX3705001 can be mounted on a DIN rail, allowing for easy installation in industrial control cabinets.
Q7: What is the maximum program memory of the TSX3705001?
A7: The TSX3705001 has 64 KB of program memory, which is sufficient for medium-sized control applications.
Q8: Does the TSX3705001 have Ethernet connectivity?
A8: Ethernet support is available through optional expansion modules, allowing the PLC to connect to networks for remote control and monitoring.
Q9: What is the operating temperature range of the TSX3705001?
A9: The TSX3705001 operates within a temperature range of -10°C to 55°C, suitable for most industrial environments.
Q10: What is the weight of the TSX3705001 PLC?
A10: The TSX3705001 weighs 1.4 kg, making it compact and easy to handle during installation.
