1. Product Overview
The Schneider Electric TM5SDO8TA Discrete Output Module is an eight-channel digital output module designed for the Modicon TM5 modular automation platform. It provides transistor-based outputs for controlling compatible 24 V DC field devices in industrial automation applications.
As part of a PLC-based control system, the TM5SDO8TA converts programmed output commands into electrical switching signals. These signals can be used to control suitable actuators, interface relays, indicator lamps, solenoid valves, and other compatible industrial loads.
The module is designed for machine automation applications where multiple output signals must be managed in a compact control system. Its eight output channels support the implementation of automated sequences, equipment status signaling, and auxiliary machine-control functions.
The TM5SDO8TA features source-type transistor outputs, a nominal 24 V DC output supply, and a maximum rated current of 2 A per channel under specified operating conditions. Its output protection and diagnostic indicators help maintenance personnel identify certain electrical faults and monitor operating status.
With supplied dimensions of 99 × 12.5 × 75 mm and a weight of 0.025 kg, the module is suitable for space-conscious control cabinet layouts when installed with the appropriate bus base and terminal block.
For industrial equipment manufacturers, system integrators, and maintenance engineers, selecting the correct output module is essential for reliable automation performance. The TM5SDO8TA should be integrated only into a supported Modicon TM5 configuration, with its electrical ratings, wiring requirements, and load characteristics verified before commissioning.
2. Technical Specifications

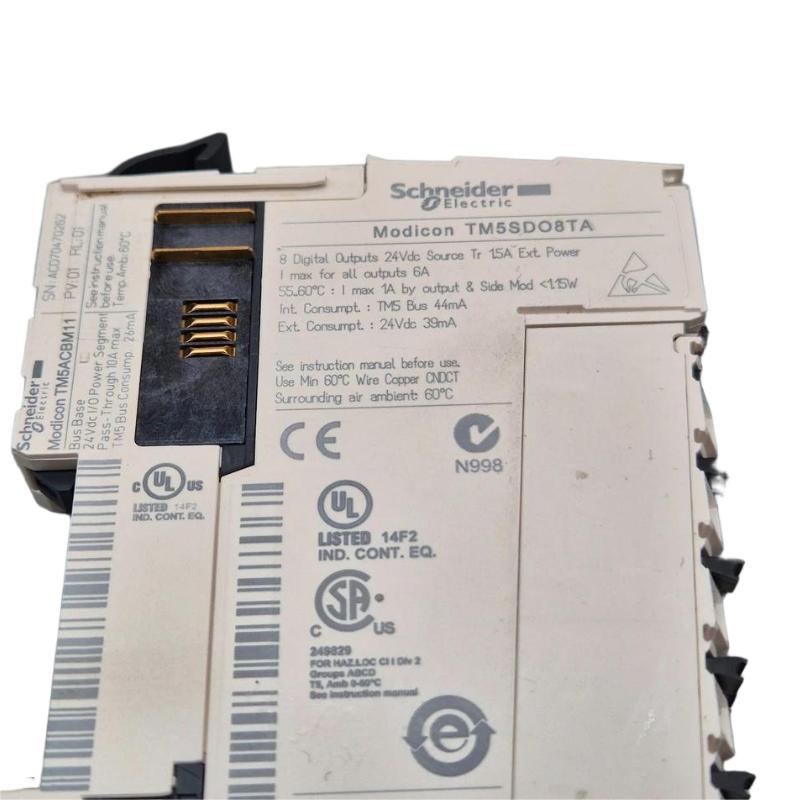

| Parameter | Specification |
|---|---|
| Brand | Schneider Electric |
| Model Number | TM5SDO8TA |
| Product Type | Discrete Output Module |
| Product Family | Modicon TM5 |
| Number of Output Channels | 8 |
| Output Technology | Transistor |
| Output Logic | Source |
| Rated Output Voltage | 24 V DC |
| Output Voltage Range | 20.4–28.8 V DC |
| Maximum Current per Channel | 2 A, subject to derating |
| Maximum Current per Output Common | 8 A |
| Peak Output Current | Up to 12 A under specified conditions |
| Maximum Switching Frequency | 500 Hz for resistive loads |
| Maximum Output Response Time | 300 μs for switching on or off |
| Maximum Off-State Leakage Current | 5 μA |
| Protection Features | Short-circuit, overload, and reverse-polarity protection |
| Isolation | No isolation between output channels; specified isolation between channel circuitry and bus |
| Degree of Protection | IP20 |
| Electrical Connection | Single-wire connection arrangement |
| Listed Dimensions | 99 × 12.5 × 75 mm |
| Listed Weight | 0.025 kg |
| Compatible Controller Families | Modicon M258, Modicon LMC058, and supported PacDrive LMC configurations |
| Mounting | Compatible Modicon TM5 assembly; DIN-rail installation according to system requirements |
| Typical Applications | Packaging, assembly, material handling, and machine control |
Important: The 2 A per-channel rating does not mean all eight channels can continuously operate at 2 A simultaneously under every condition. The maximum current per output common is 8 A, and channel current must be reduced when required by ambient temperature and the manufacturer’s derating specifications.
3. Function and Working Principle
3.1 Digital Output Control
The primary function of the TM5SDO8TA is to provide eight discrete output signals within a compatible PLC system. Each channel is controlled by the automation program and switches according to the assigned output command.
A typical control sequence operates as follows:
- Sensors and input devices send operating information to the PLC.
- The controller evaluates the inputs and executes its programmed logic.
- The program determines which output channels should be activated.
- The TM5SDO8TA switches the corresponding transistor outputs.
- Connected field devices respond to the electrical signals.
This arrangement enables automated equipment to coordinate different operations without requiring manual switching for each machine function.
3.2 Transistor Output Technology
The TM5SDO8TA uses solid-state transistor outputs rather than conventional mechanical relay contacts. This design supports rapid switching and is suitable for applications involving repeated output changes.
The module uses source-type output logic. The external power supply, load connections, and wiring polarity must follow the applicable wiring diagram.
When selecting a field device, engineers should evaluate its operating voltage, normal current, inrush current, inductive characteristics, and switching frequency. A device may require additional interface components or protection depending on its electrical characteristics.
3.3 Eight Independent Output Channels
The eight output channels provide multiple control points within one module. They can be assigned to different functions in the PLC program, depending on the application and system configuration.
For example, an automated machine might use several channels to operate compatible interface devices, control auxiliary equipment, and indicate operating conditions.
Each channel must remain within its permitted current rating. The total current through an output common must also remain within the specified limit.
3.4 Output Protection
The TM5SDO8TA incorporates short-circuit, overload, and reverse-polarity protection. These functions help protect the module against certain electrical faults.
Protection features do not eliminate the need for correct circuit design. Engineers must select appropriate wire sizes, compatible field devices, suitable power supplies, and any additional protective components required by the installation.
If a protection-related diagnostic appears, the underlying wiring or load problem should be corrected before normal operation resumes.

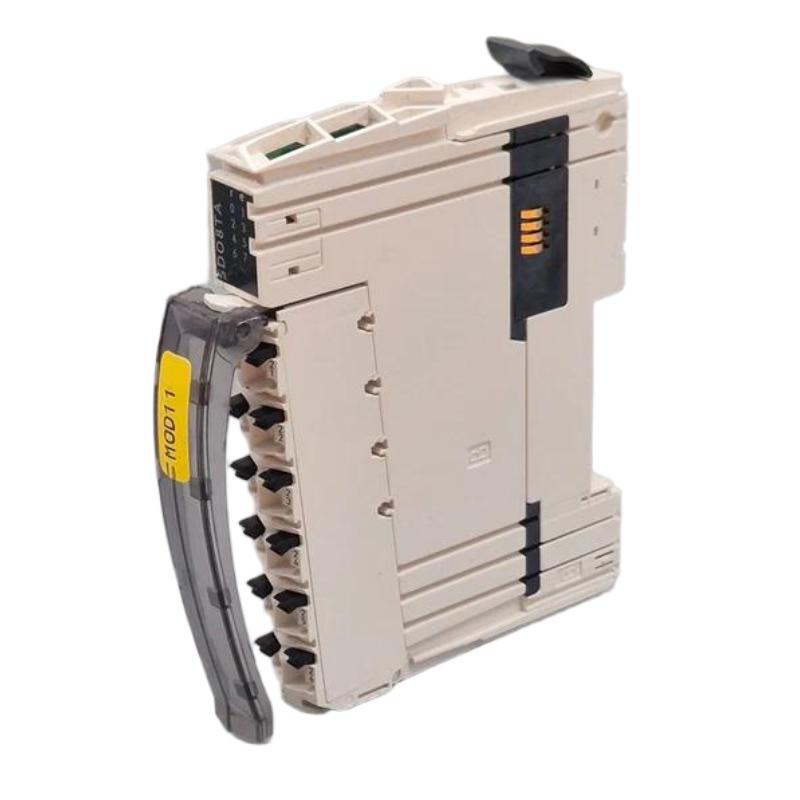

3.5 Local Status Indication
The module includes local status indicators for the power supply and individual output channels. These indicators help maintenance personnel assess whether the module is operating normally and whether specific outputs are activated.
A red diagnostic indication may identify an output fault, such as a short circuit or overload. Another diagnostic state may indicate that the external I/O supply is too low.
The indicators should be interpreted together with controller diagnostics and measurements of the external circuit. An illuminated output indicator does not necessarily prove that the connected field device is functioning correctly.
4. Role in Industrial Automation Systems
4.1 PLC-Based Machine Control
Digital output modules provide the interface between PLC logic and external electrical devices. The TM5SDO8TA allows a compatible controller to issue multiple output commands within a modular automation system.
These commands can support machine sequences, equipment status signaling, and the operation of compatible actuators or interface circuits.
4.2 Packaging and Production Machinery
Packaging machinery often requires several output signals to coordinate feeding, positioning, sealing, conveying, and other automated operations.
An eight-channel output module can support these control requirements when the connected loads are compatible with its electrical characteristics and current limitations.
4.3 Material Handling Systems
Conveyors, transfer stations, and automated handling equipment use discrete output signals to coordinate different machine functions. The TM5SDO8TA can be incorporated into a supported control architecture to manage compatible field circuits.
4.4 Assembly and Inspection Equipment
Automated assembly and inspection systems frequently use PLC outputs to operate fixtures, auxiliary actuators, indicator devices, and other equipment.
The module provides multiple digital output points in a compact assembly, helping system designers organize the control hardware around the required I/O configuration.
4.5 Distributed Automation Configurations
The Modicon TM5 platform supports modular I/O arrangements used in compatible machine-control and motion-control systems. The TM5SDO8TA can be included where eight transistor output channels satisfy the application’s requirements.
The controller, firmware, bus base, terminal block, power supply, and engineering software must be compatible with the intended configuration.
5. Industrial Applications
Packaging Machinery
Packaging systems use digital outputs to coordinate compatible actuators, auxiliary devices, and status indicators. The TM5SDO8TA can support these operations when the load requirements fall within the module’s specifications.
Material Handling and Conveying
Material handling equipment relies on programmed output commands to coordinate machine sequences. The module can provide output signals for suitable field devices within a supported control system.
Automated Assembly Lines
Assembly lines require coordinated control of multiple stations and equipment functions. The eight-channel configuration can help organize output assignments in a modular PLC installation.
Industrial Test Equipment
Automated testing systems may use digital outputs to activate compatible fixtures, indicators, and interface circuits. The module’s switching characteristics can be useful when the connected loads and switching frequency meet the specified limits.
Machine Building and OEM Applications
Original equipment manufacturers may incorporate the TM5SDO8TA into machine-control cabinets where several digital output points are needed. Its compact dimensions can assist cabinet layout planning, provided sufficient room is allocated for wiring and accessories.
General Factory Automation
The module can be considered for other compatible applications requiring 24 V DC source-type transistor outputs. Final selection should be based on the required output count, load current, operating temperature, controller compatibility, and installation requirements.
6. Installation and System Integration
Correct installation is essential for reliable output switching and long-term system performance. Installation and wiring should be performed by qualified personnel familiar with industrial electrical systems.
6.1 Verify the Model and Required Accessories
Before installation, confirm that the module is TM5SDO8TA and that the controller supports the intended hardware configuration.
The documented assembly uses compatible TM5 bus bases, such as TM5ACBM11 or TM5ACBM15, and the TM5ACTB12 terminal block. Confirm the approved combination for the actual installation before ordering or assembling components.
Also verify:
- Controller and firmware compatibility.
- Required I/O power supply.
- Terminal assignments and wiring arrangement.
- Load voltage and current requirements.
- Environmental and mounting conditions.
- Applicable output-current derating.
6.2 Isolate Power Before Installation
Before installing, removing, or rewiring the module, isolate all relevant power sources and follow the site’s lockout/tagout procedures. Verify that the affected circuits are de-energized.
The controller supply and field I/O supply may be separate. Ensure that all relevant power sources have been addressed before handling the hardware.
Do not insert or remove the module under power unless the exact system documentation explicitly permits the operation and the required safety procedures are followed.
6.3 Inspect the Module and Accessories
Check the module housing, contacts, bus base, and terminal block for visible damage or contamination.
Inspect for:
- Bent contacts or damaged connectors.
- Loose terminal connections.
- Signs of overheating.
- Incorrectly identified accessories.
- Damaged field wiring.
Do not install a component with damaged contacts or other defects that could affect reliable electrical connections.
6.4 Mount the Module

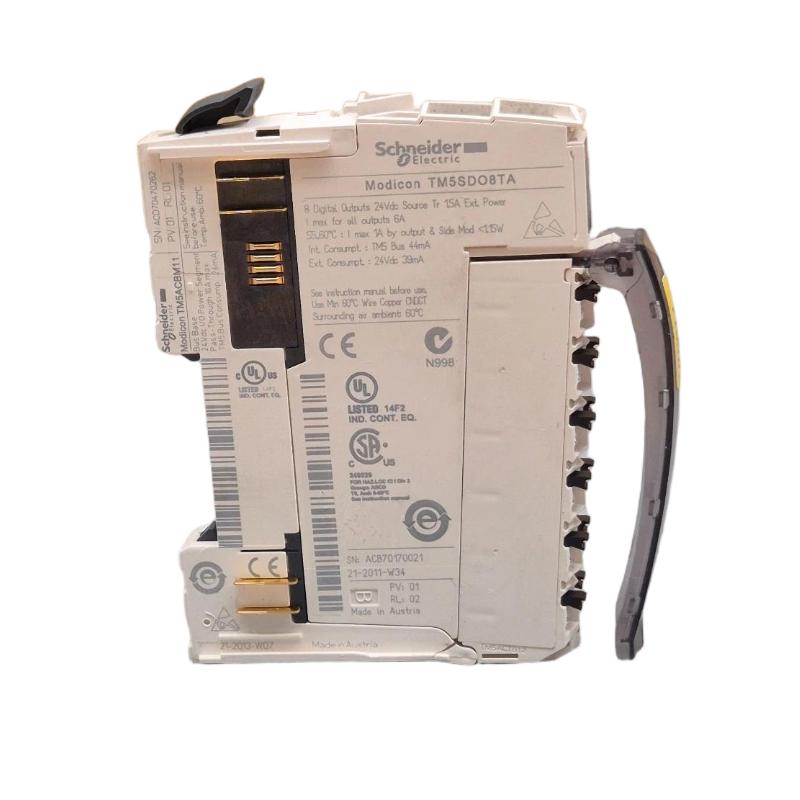

Install the module in the specified Modicon TM5 arrangement. Ensure that the bus base, electronic module, and terminal block are correctly aligned and secured.
Allow sufficient room for wiring access, cable routing, maintenance, and ventilation. Cabinet design should account for the entire assembly rather than the electronic module’s dimensions alone.
6.5 Connect the Field Wiring
Use the correct wiring diagram for the TM5SDO8TA. Verify the 24 V DC supply arrangement, output logic, terminal assignments, load polarity where applicable, and required external protection.
Important electrical considerations include:
- Maximum rated current of 2 A per channel under specified conditions.
- Maximum current of 8 A per output common.
- Appropriate wire sizes for the connected loads.
- Current derating at elevated ambient temperatures.
- Protection for inductive loads where required.
- Correct grounding and cable routing practices.
The output channels are not isolated from one another. Do not assume that each channel has an independent electrical reference.
6.6 Configure the Controller
Use the supported engineering software to configure the module in the control system.
Confirm that the controller recognizes the TM5SDO8TA and that all eight output channels are mapped to the intended program addresses.
Review hardware diagnostics and check that the power supply, bus configuration, and field connections are correct before enabling normal operation.
6.7 Perform Commissioning Tests
After installation, carry out a controlled commissioning procedure:
- Confirm the module model and required accessories.
- Check supply voltage and field wiring.
- Verify controller recognition and configuration.
- Test each required output channel individually.
- Confirm the response of the connected devices.
- Review output status indicators and controller diagnostics.
- Record the final configuration and test results.
If an output controls machinery capable of causing injury or damage, perform tests under controlled conditions with appropriate safeguards in place.
7. Troubleshooting Common Problems
Problem 1: The Module Is Not Recognized by the Controller
Possible causes:
- Incorrect hardware configuration.
- Incompatible controller or firmware.
- Improperly seated module or bus-base connection.
- Missing or unstable system power.
- Damaged module or connector.
Recommended checks:
- Review the controller’s hardware configuration and diagnostic messages.
- Confirm that the controller supports the exact module.
- Isolate power before inspecting physical connections.
- Verify the bus base and terminal block arrangement.
- Check the relevant system and I/O supply conditions.
- Restore power and repeat the approved startup procedure.
If the module remains unrecognized, investigate the system configuration and associated hardware before concluding that the module is defective.
Problem 2: An Output Does Not Activate
Possible causes:
- The PLC program has not commanded the output.
- Incorrect output address mapping.
- Missing external 24 V DC supply.
- Incorrect field wiring.
- A faulty field device.
- An overload or short-circuit condition.
Recommended checks:
Confirm the PLC output command and address mapping. Check the module’s status indicators and controller diagnostics. Inspect the field wiring and external supply using appropriate test equipment and safe procedures.
If the output is commanded but the device does not operate, investigate the external circuit before replacing the module.
Problem 3: The Module Reports an Output Fault
Possible causes:
- Short-circuited field wiring.
- Excessive load current.
- Incorrectly connected load.
- Unstable external supply.
- A damaged field device.
Recommended checks:
Record the diagnostic information, isolate power, and inspect the affected circuit. Verify the load current and compare it with the permitted channel and common-current limits.
Correct the fault before following the documented recovery procedure. Repeatedly resetting an output without addressing the cause can lead to recurring faults.
Problem 4: The External I/O Supply Is Too Low
A low external supply may prevent the output module from operating correctly.
Recommended checks:
- Verify the power supply’s output voltage.
- Inspect supply wiring and terminal connections.
- Check the supply’s capacity under the actual load.
- Investigate voltage drops in the field wiring.
- Review the controller’s diagnostic information.
Restore the supply to the specified operating range before returning the affected outputs to service.
Problem 5: The Output Operates Intermittently
Possible causes:
- Loose wiring.
- Unstable supply voltage.
- Electrical interference.
- Intermittent field-device faults.
- Excessive load current.
- Incorrect application logic.
Inspect the wiring with the circuit safely isolated. Review supply stability and controller diagnostics, and determine whether the problem correlates with a particular machine operation.
Problem 6: The Output Indicator Is On, but the Field Device Does Not Operate
An illuminated output indicator does not guarantee that the external device receives the correct voltage or current.
Possible causes include an open circuit, incorrect terminal assignment, defective field wiring, a faulty load, or an unsuitable power supply.
Check the complete circuit against the wiring diagram and verify the field device’s electrical requirements.
Problem 7: The Module Overheats or Repeatedly Enters Protection
Possible causes:
- Excessive channel current.
- Total current exceeding the permitted limit.
- High ambient temperature.
- A short circuit or incompatible load.
- Insufficient cabinet ventilation.
Check the current on each channel and the combined load on each output common. Apply the manufacturer’s temperature-dependent derating requirements and verify the cabinet’s environmental conditions.
Do not continue operating the module while recurring overload or overheating conditions remain unresolved.
8. Compatible System Components
The TM5SDO8TA is designed for use in a supported Modicon TM5 configuration. The following table summarizes important component categories.
| Component | Function | Verification Requirement |
|---|---|---|
| TM5SDO8TA | Provides eight transistor output channels | Confirm output ratings and load compatibility |
| TM5ACBM11 Bus Base | Provides the module’s base interface | Confirm compatibility with the installed configuration |
| TM5ACBM15 Bus Base with Address Setting | Provides the supported bus-base arrangement with address-setting capability | Verify system requirements |
| TM5ACTB12 Terminal Block | Provides field wiring connections | Confirm the terminal arrangement |
| Compatible Modicon M258 Controller | Executes application logic | Verify hardware and firmware support |
| Compatible Modicon LMC058 Controller | Supports compatible motion-control configurations | Confirm the complete system arrangement |
| Compatible PacDrive LMC Controller | Supports approved automation configurations | Check controller and software compatibility |
| 24 V DC Power Supply | Supplies the relevant output circuits | Verify voltage and current capacity |
| Field Devices | Receive output signals | Confirm voltage, current, and load characteristics |
| Engineering Software | Supports configuration and diagnostics | Use a version that supports the installed hardware |
This table identifies relevant component categories and documented accessory examples. Confirm the complete approved hardware arrangement before installing or replacing components.
9. Replacement and Alternative Selection
Selecting a replacement for the TM5SDO8TA requires checking electrical characteristics, channel configuration, physical dimensions, and controller compatibility.
| Selection Factor | What to Verify |
|---|---|
| Exact Model Number | TM5SDO8TA |
| Output Channel Count | 8 channels |
| Output Technology | Transistor |
| Output Logic | Source |
| Nominal Output Voltage | 24 V DC |
| Maximum Channel Current | 2 A under specified conditions |
| Maximum Current per Output Common | 8 A |
| Peak Output Current | Up to 12 A under specified conditions |
| Protection Features | Short-circuit, overload, and reverse-polarity protection |
| Switching Characteristics | Response time and switching frequency for the intended load |
| Temperature Derating | Permitted channel current at the installation temperature |
| System Compatibility | Controller, bus base, terminal block, and firmware |
| Dimensions | 99 × 12.5 × 75 mm |
| Weight | 0.025 kg |
| Product Condition | New or tested refurbished, according to purchasing requirements |
| Availability | Confirm stock and delivery lead time |
An identical TM5SDO8TA is generally the most straightforward replacement when it matches the required hardware configuration and product condition.
Other output modules may have different channel counts, current ratings, output logic, or wiring requirements. A replacement should not be selected solely because it belongs to the Modicon TM5 family.
Before substituting another model, verify that it is supported by the controller and that the revised configuration meets the application’s output requirements.
10. Key Advantages
Eight Output Channels
The TM5SDO8TA provides eight digital output points in one module, supporting multiple machine-control functions within a compact assembly.
24 V DC Transistor Outputs
The module supports compatible 24 V DC field circuits and solid-state switching. The load’s electrical characteristics must remain within the specified limits.
High Channel Current Capacity
The rated current of up to 2 A per channel supports compatible loads requiring more current than many low-current digital output applications. Channel and common-current limits must still be observed.
Integrated Electrical Protection
Short-circuit, overload, and reverse-polarity protection help the module handle certain electrical fault conditions under specified circumstances.
Local Diagnostic Indicators
Status indicators assist maintenance personnel in checking power, output states, and certain detected faults. Controller diagnostics provide additional information for troubleshooting.
Compact Modular Design
The supplied dimensions of 99 × 12.5 × 75 mm and weight of 0.025 kg support compact control cabinet planning. The complete assembly must include suitable space for wiring, mounting components, and maintenance access.
Flexible Automation Integration
The TM5 platform supports modular control configurations for compatible industrial applications. The eight-channel arrangement can simplify I/O planning when its electrical characteristics match the system requirements.
11. Technical FAQs
Q1. What is the Schneider TM5SDO8TA?
The TM5SDO8TA is an eight-channel discrete output module from Schneider Electric’s Modicon TM5 family. It uses source-type transistor outputs to control compatible 24 V DC field circuits.
Q2. What are the dimensions and weight?
The supplied product data lists dimensions of 99 × 12.5 × 75 mm and a weight of 0.025 kg.
Q3. How many output channels does it have?
The module has eight digital output channels.
Q4. What is the nominal output voltage?
The nominal output voltage is 24 V DC, with a specified operating range of 20.4–28.8 V DC.
Q5. What is the maximum current per channel?
The rated maximum is 2 A per channel under specified conditions. Temperature-dependent derating and the maximum current per output common must also be considered.
Q6. What is the maximum total current per output common?
The specified maximum is 8 A per output common. The actual permitted load depends on the system configuration and operating conditions.
Q7. Does the module support short-circuit protection?
Yes. The TM5SDO8TA includes short-circuit and overload protection, as well as reverse-polarity protection. Investigate and correct the underlying cause of a fault before returning the output to service.
Q8. Which controllers are compatible with the TM5SDO8TA?
The module is listed for supported Modicon M258, Modicon LMC058, and PacDrive LMC configurations. Verify the exact controller, firmware, and system architecture before installation.
Q9. Can it control solenoid valves and other inductive loads?
It may control compatible inductive loads if their electrical characteristics meet the module’s specifications. Additional suppression or interface components may be required, depending on the load and circuit design.
Q10. Can all eight channels operate at 2 A continuously?
Not necessarily. The module has a maximum current of 8 A per output common, and the permitted channel current is subject to temperature-dependent derating. The complete load distribution must comply with the applicable specifications.
Q11. Can the TM5SDO8TA replace another TM5 digital output module?
Not automatically. Other modules may have different output counts, current ratings, wiring arrangements, or electrical characteristics. Confirm compatibility and application requirements before substitution.
Q12. What should be checked before replacing a faulty module?
Confirm the exact model, controller compatibility, required base and terminal block, external supply, field wiring, and load current. After replacement, test the required output functions and review all relevant diagnostics.
12. Conclusion
The Schneider Electric TM5SDO8TA Discrete Output Module is an eight-channel transistor output module designed for compatible Modicon TM5 industrial automation systems. Its 24 V DC output operation, rated current of up to 2 A per channel, and integrated electrical protection make it suitable for a range of machine-control applications when used within the specified operating limits.
The module’s listed dimensions of 99 × 12.5 × 75 mm and weight of 0.025 kg provide useful information for product identification and cabinet planning. Reliable integration also requires the correct bus base, terminal block, power supply arrangement, controller configuration, and field wiring.
For installation, maintenance, and replacement, engineers should pay particular attention to output-current limits, temperature derating, load compatibility, and controller support. Careful commissioning and systematic troubleshooting help maintain reliable output operation and reduce unnecessary component replacement.
