1. Product Overview

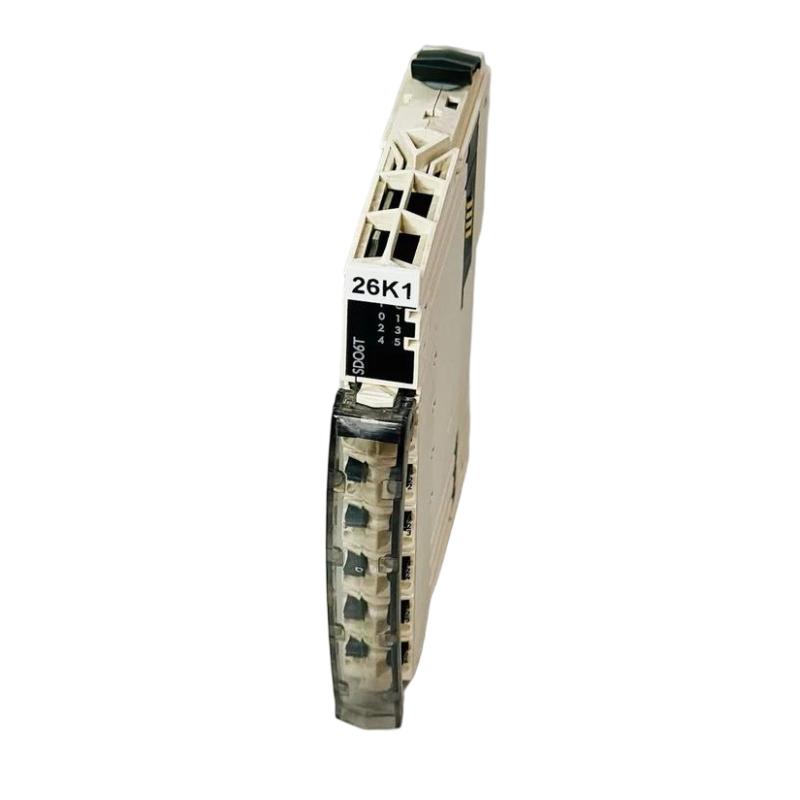

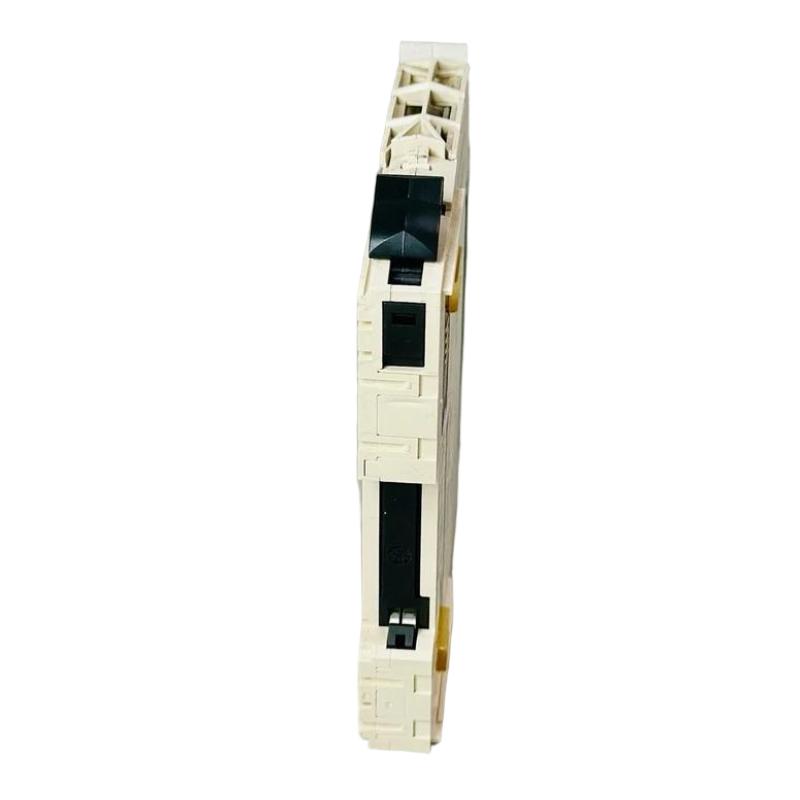

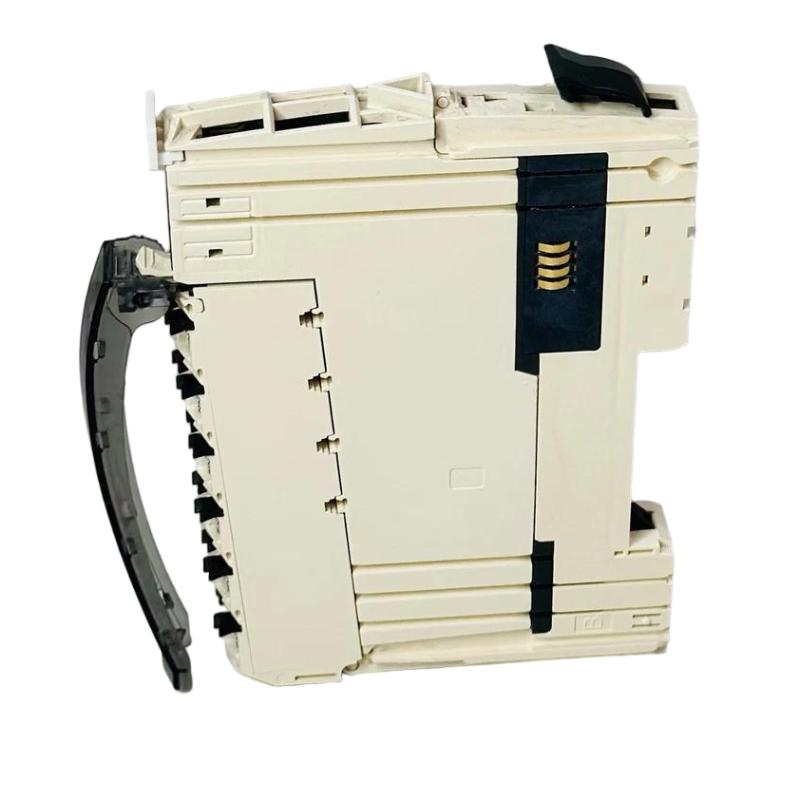

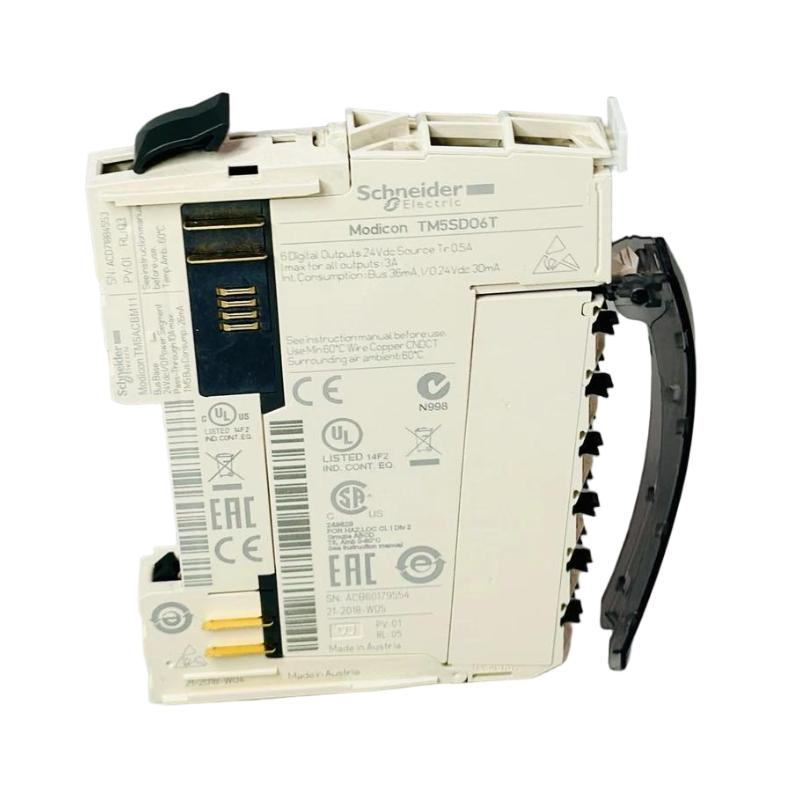

The Schneider Electric TM5SDO6T Digital Output Module is a six-channel digital output module designed for the Modicon TM5 modular automation platform. It provides transistor-based discrete outputs for controlling compatible 24 V DC field devices in industrial automation systems.
In a PLC-controlled machine, the controller executes application logic and determines when an output should switch on or off. The TM5SDO6T translates these commands into electrical output signals that can operate compatible devices, such as interface relays, indicator lamps, solenoid valves, and other suitable loads.
The module is designed for modular machine-control applications where compact installation, organized wiring, and reliable digital output operation are important. Its six output channels allow multiple control signals to be managed within a single module, helping engineers build flexible automation configurations.
The TM5SDO6T uses source-type transistor outputs and supports a nominal 24 V DC output supply. Each output channel is rated for up to 0.5 A, subject to the module’s total current limitations and specified operating conditions.
With dimensions of 99 × 12.5 × 75 mm and a listed weight of 0.025 kg, the module is suitable for space-conscious control cabinet designs when installed with its required compatible base and terminal components.
Before installation or replacement, engineers should verify the complete model number, controller compatibility, terminal arrangement, and electrical requirements. A module with a similar appearance or a related model number may have a different channel count, wiring arrangement, or output capability.
2. Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Schneider Electric |
| Model Number | TM5SDO6T |
| Product Type | Digital Output Module |
| Product Family | Modicon TM5 |
| Number of Output Channels | 6 |
| Output Technology | Transistor |
| Output Logic | Source |
| Rated Output Voltage | 24 V DC |
| Output Voltage Range | 20.4–28.8 V DC |
| Maximum Current per Channel | 0.5 A |
| Maximum Total Output Current | 3 A |
| Maximum Output Switching Frequency | 500 Hz for resistive loads |
| Maximum Output Response Time | 300 μs, depending on switching direction and specified conditions |
| Maximum Off-State Leakage Current | 5 μA |
| Output Protection | Short-circuit and overload protection |
| Degree of Protection | IP20 |
| Listed Dimensions | 99 × 12.5 × 75 mm |
| Listed Weight | 0.025 kg |
| Electrical Connection | Compatible TM5 terminal block; verify wiring arrangement |
| Mounting | Compatible Modicon TM5 system, typically on a 35 mm DIN rail |
| Compatible Controller Families | Supported Modicon M258, LMC058, and compatible PacDrive configurations; verify the exact system |
| Typical Applications | Machine control, packaging, assembly, and material handling |
The specifications describe the module’s principal characteristics. Total current, switching frequency, load type, and operating conditions must be considered together when designing the output circuits.
3. Function and Working Principle
3.1 Digital Output Signal Control
The TM5SDO6T provides six digital output channels for controlling compatible external devices. Each channel represents a discrete output state that can be commanded by the controller’s application program.
A typical control sequence works as follows:
- Sensors and other input devices provide information to the PLC.
- The PLC evaluates the input conditions and programmed logic.
- The controller determines which output channels should be activated.
- The TM5SDO6T switches the corresponding transistor outputs.
- Connected field devices respond to the output signals.
This arrangement enables automated equipment to execute programmed sequences without requiring manual switching for every operation.
3.2 Transistor Output Technology
The TM5SDO6T uses transistor-based outputs rather than conventional mechanical relay contacts. Solid-state switching is useful in applications requiring frequent output changes and relatively fast switching.
The module supports source-type output logic. The electrical connection must therefore follow the specified wiring diagram and supply arrangement.
Although transistor outputs can support fast switching, their suitability depends on the connected load. Engineers must consider inrush current, inductive characteristics, leakage current, switching frequency, and the module’s current limitations before connecting a field device.
3.3 Six Independent Output Commands
The module provides six output channels that can be assigned to different control functions in the application program. For example, a machine may use several outputs for status indication, auxiliary actuators, or interface circuits.
The actual number of devices that can be controlled depends on the system design. Each channel must remain within its electrical limits, and the combined load must not exceed the maximum permitted total output current.
3.4 Output Monitoring and Diagnostics
The TM5SDO6T provides local status indicators for the module and its output channels. These indicators help maintenance personnel check whether the module is powered, whether it is operating normally, and whether individual outputs are commanded on.
Diagnostic indicators can also help identify certain output faults, including short circuits, overloads, or loss of the relevant 24 V DC I/O power supply under specified conditions.
LED status should be interpreted alongside the controller’s diagnostic information. An illuminated output indicator does not by itself prove that the connected field device is operating correctly.
4. Role in Industrial Automation Systems
4.1 PLC-Based Machine Control
Digital output modules are fundamental components of PLC-based automation. The TM5SDO6T provides the output interface between controller logic and compatible field circuits.
In production equipment, outputs can be assigned to commands such as activating an indicator, operating an interface relay, or controlling a compatible actuator circuit. The controller coordinates these commands with sensor inputs and programmed operating sequences.
4.2 Packaging and Assembly Equipment
Packaging and assembly machinery often requires multiple discrete output signals to coordinate machine operations. A six-channel module can provide several output points in a compact installation.
Applications may include controlling suitable auxiliary devices, indicating machine status, and operating compatible interface circuits. The output rating and load type must be checked for each connection.
4.3 Material Handling Systems
Conveyors, transfer stations, and automated material-handling equipment use digital outputs to execute commands based on position sensors, machine states, and production sequences.
The TM5SDO6T can form part of these systems when the controller, field devices, and wiring are compatible with its specifications.
4.4 Distributed I/O Configurations
The Modicon TM5 platform supports modular I/O arrangements that can be configured for different machine-control requirements. The TM5SDO6T provides six digital output points within a compatible TM5 configuration.
System designers should verify the complete hardware arrangement, including the controller, bus base, terminal block, power distribution, and engineering software.
4.5 Equipment Maintenance and Replacement
A digital output module may require replacement when a hardware fault has been confirmed or when maintenance activities require an approved spare part.
Before replacement, technicians should record the existing configuration, verify the exact model, inspect field wiring, and check the module’s diagnostic state. After installation, the affected output channels should be tested under controlled conditions.
5. Industrial Applications
Packaging Machinery
Packaging systems use output signals to coordinate compatible actuators, indicators, and auxiliary control circuits. The TM5SDO6T can be considered where six discrete output points meet the application’s requirements.
Automated Assembly Lines
Assembly machines rely on controller commands to coordinate stations, tooling, and material movement. The module can support these operations by switching compatible field circuits in accordance with the programmed sequence.
Conveyor and Material Handling Equipment
Conveyor systems often use digital outputs for auxiliary control functions and equipment status signaling. The TM5SDO6T may be incorporated into a supported control architecture when its electrical ratings meet the load requirements.
Industrial Test Equipment
Automated inspection and test systems use discrete outputs to operate suitable fixtures, indicators, and interface devices. The module’s switching characteristics can be useful in applications requiring repeated digital control signals, provided the connected loads are compatible.
OEM Machine Control Panels
Original equipment manufacturers can use modular output modules to organize machine-control functions in compact cabinets. The six-channel configuration may help simplify I/O planning for machines that require a limited number of digital output points.
General Factory Automation
The module may also be used in other supported industrial automation applications requiring 24 V DC transistor outputs. Final selection should account for controller compatibility, load requirements, total output current, and installation conditions.
6. Installation and System Integration
Correct installation helps maintain reliable output operation and reduces the risk of wiring errors or hardware damage.
6.1 Verify the Model and Accessories
Before installation, confirm that the module is TM5SDO6T and that the selected controller and system components support it.
Check the required:
- TM5 bus base.
- Compatible terminal block.
- Controller and firmware configuration.
- 24 V DC I/O power supply.
- Field wiring and load arrangement.
- Mounting and environmental requirements.
The TM5SDO6T is an electronic module used with compatible TM5 base and terminal components. Do not assume that the module can be installed directly without its required supporting hardware.
6.2 Isolate the Power Supply
Before mounting, removing, or rewiring the module, isolate the relevant power sources and follow the site’s lockout/tagout procedures. Verify that the affected circuits are de-energized.
The controller supply and the field I/O supply may be separate. Ensure that all relevant sources are addressed before handling the hardware.
6.3 Inspect the Module
Check the module housing, contacts, bus base, and terminal block for visible damage. Inspect for contamination, bent contacts, loose connections, or signs of overheating.
Do not install damaged components. Replace defective accessories with components approved for the actual TM5 configuration.
6.4 Mount the Module
Install the module in the supported TM5 arrangement according to the applicable mounting instructions. Ensure that the base and electronic module are properly aligned and secured.
When installing the complete assembly on a DIN rail, allow sufficient space for wiring, maintenance access, and the system’s ventilation requirements.
6.5 Connect the Output Wiring
Use the correct wiring diagram and terminal assignments for the TM5SDO6T. Confirm the 24 V DC supply arrangement, output logic, field-device polarity where applicable, and load requirements.
Important considerations include:
- Maximum current of 0.5 A per channel.
- Maximum total output current of 3 A.
- Suitable wiring and terminal preparation.
- Correct protection for inductive loads.
- Separation of signal wiring from sources of significant electrical interference where appropriate.
Do not connect a load based solely on its physical connector or wire color. Always verify the terminal functions.
6.6 Configure the Controller
After installation, configure the module using the supported engineering software and controller configuration.
Verify that the module is recognized, that the six output channels are mapped correctly, and that the application program assigns each output to the intended function.
If the controller does not recognize the module, investigate the hardware configuration, bus connection, supply conditions, and firmware compatibility before attempting normal operation.
6.7 Perform Commissioning Tests
Commissioning should include:
- Checking the installed model and accessories.
- Verifying the wiring and supply voltage.
- Confirming that the controller recognizes the module.
- Testing each output channel individually.
- Confirming that each connected device responds correctly.
- Reviewing the module and controller diagnostic indicators.
- Recording the final configuration and test results.
If an output controls moving machinery or another potentially hazardous device, perform tests under controlled conditions and ensure that required safeguards are in place.
7. Troubleshooting Common Problems
Problem 1: The Module Is Not Recognized by the Controller
Possible causes:
- Incorrect hardware configuration.
- Incompatible controller or firmware.
- Improperly seated module or bus-base connection.
- Missing or unstable system power.
- Damaged connector or module.
Recommended checks:
- Review the controller’s hardware configuration and diagnostic messages.
- Verify the module model and supported controller combination.
- Isolate power before inspecting the physical connections.
- Check the required supply and bus arrangement.
- Restore power and repeat the approved startup procedure.
If the module remains unrecognized, check the system configuration and associated components before concluding that the module itself has failed.
Problem 2: An Output Does Not Activate
Possible causes:
- The application program has not commanded the output.
- Incorrect output address mapping.
- Missing 24 V DC I/O power.
- Incorrect field wiring.
- A faulty connected device.
- An output protection event.
Recommended checks:
Confirm the output command in the PLC program, verify the output address, and check the module’s status indicators. Inspect the field circuit and supply arrangement using safe, approved procedures.
If the controller commands an output but the field device does not operate, investigate the load, wiring, and supply before replacing the module.
Problem 3: The Output Fault Indicator Is Active
The module may indicate a detected output-channel error, such as a short circuit, overload, or loss of the required I/O power segment under applicable conditions.
Recommended checks:
- Record the module and controller diagnostic information.
- Isolate power before inspecting the field wiring.
- Check the connected load for shorts or excessive current.
- Verify the 24 V DC I/O power supply.
- Correct the underlying fault before attempting recovery.
Do not repeatedly reset the output without identifying the reason for the fault.
Problem 4: The Output Operates Intermittently
Possible causes:
- Loose wiring.
- Unstable supply voltage.
- Electrical interference.
- Intermittent field-device operation.
- Excessive load current.
- Configuration or application-logic issues.
Inspect wiring and terminals with the circuit safely isolated. Review supply stability and controller diagnostics, and determine whether the problem occurs during a particular machine operation.
Problem 5: The Output Indicator Is On, but the Device Does Not Operate
An active output indicator does not necessarily mean that the field device is receiving the correct voltage or sufficient current.
Possible causes include an open circuit, incorrect terminal assignment, a defective load, an incompatible supply arrangement, or a wiring fault.
Check the complete circuit against the wiring diagram. Use appropriate test equipment and follow the required electrical safety procedures.
Problem 6: The Module Becomes Hot or Repeatedly Enters Protection
Possible causes:
- Excessive channel current.
- Total output current above the permitted limit.
- Short-circuited field wiring.
- Incompatible inductive loads.
- Unsuitable installation or environmental conditions.
Compare the connected loads with the module’s specified ratings. Verify that each output remains within 0.5 A and that the total output current does not exceed 3 A. Check any additional restrictions in the hardware documentation.
Do not continue operating the module if overheating or recurring protection events remain unresolved.
8. Compatible System Components
The TM5SDO6T is designed for use in a supported Modicon TM5 configuration. The following table describes the principal component categories and relevant integration considerations.
| Component | Function | Verification Requirement |
|---|---|---|
| TM5SDO6T | Provides six transistor output channels | Confirm electrical ratings and output mapping |
| TM5ACBM11 or TM5ACBM15 Bus Base | Provides the supported module base interface | Confirm the approved base arrangement |
| TM5ACTB06 or TM5ACTB12 Terminal Block | Provides the field wiring connection interface | Verify terminal type and wiring diagram |
| Compatible Modicon M258 Controller | Executes application logic | Confirm hardware and firmware support |
| Compatible Modicon LMC058 Controller | Supports compatible motion-control configurations | Verify the complete system arrangement |
| Compatible PacDrive Controller | Supports approved automation configurations | Check exact controller and software compatibility |
| 24 V DC I/O Power Supply | Supplies the output power segment | Verify voltage and current capacity |
| Field Devices | Receive the output signals | Confirm voltage, current, and load compatibility |
| Engineering Software | Supports configuration and diagnostics | Use a version that supports the installed hardware |
The compatibility of each component must be confirmed for the complete installation. Similar model numbers do not guarantee that bases, terminal blocks, or controllers can be substituted directly.
9. Replacement and Alternative Selection
When selecting a replacement or alternative for the TM5SDO6T, compare the complete electrical and mechanical specifications.
| Selection Factor | What to Verify |
|---|---|
| Model Number | Exact TM5SDO6T identification |
| Number of Outputs | Six discrete output channels |
| Output Technology | Transistor output |
| Output Logic | Source-type logic |
| Rated Voltage | 24 V DC |
| Channel Current | Maximum 0.5 A per output |
| Total Current | Maximum 3 A across the specified output group |
| Switching Characteristics | Response time and switching frequency for the intended load |
| Protection | Short-circuit and overload protection |
| System Compatibility | Controller, bus base, terminal block, and firmware |
| Dimensions | 99 × 12.5 × 75 mm |
| Weight | 0.025 kg |
| Product Condition | New, unused, or tested refurbished, as required |
| Availability | Confirm current stock and delivery lead time |
The preferred replacement is an identical TM5SDO6T that matches the required hardware configuration.
Other TM5 output modules may have different channel counts, wiring arrangements, or electrical characteristics. For example, a four-channel or twelve-channel module should not be assumed to be a direct substitute simply because it belongs to the same product family.
Before changing to an alternative model, confirm that it is supported by the controller and that the revised configuration meets the application’s I/O and electrical requirements.
10. Key Advantages
Six Digital Output Channels
The TM5SDO6T provides six discrete output points in one module, helping organize machine-control signals within a modular automation system.
Compact Installation Footprint
Its listed dimensions of 99 × 12.5 × 75 mm support space-conscious control cabinet planning. The complete assembly must also allow for the bus base, terminal block, wiring, and maintenance access.
Solid-State Switching
Transistor outputs are suitable for compatible applications requiring repeated switching. The load characteristics and specified switching limits must be considered during system design.
Integrated Output Diagnostics
Local indicators and controller diagnostics help maintenance personnel investigate output faults, supply problems, and certain overload or short-circuit conditions.
Modular System Integration
The TM5 architecture supports flexible I/O configurations. The module can be included in a supported system where six output channels meet the application requirements.
Simplified Maintenance Planning
Using the exact model number and documented wiring arrangement helps maintenance teams identify replacement components and reduce the risk of installing incompatible hardware.
11. Technical FAQs
Q1. What is the Schneider TM5SDO6T?
The TM5SDO6T is a six-channel digital output module from Schneider Electric’s Modicon TM5 family. It uses transistor outputs to control compatible 24 V DC field circuits.
Q2. What are the dimensions and weight of the TM5SDO6T?
The supplied product data lists dimensions of 99 × 12.5 × 75 mm and a weight of 0.025 kg.
Q3. How many output channels does it have?
The module has six digital output channels.
Q4. What is the rated output voltage?
The nominal output voltage is 24 V DC, with a specified range of 20.4–28.8 V DC.
Q5. What is the maximum current per output?
Each output supports a maximum current of 0.5 A, subject to the applicable operating conditions and load requirements.
Q6. What is the maximum total output current?
The specified maximum total output current is 3 A. Engineers should also consider channel-level current limits and the permitted load distribution.
Q7. Does the TM5SDO6T support short-circuit protection?
Yes. The module includes short-circuit and overload protection. A fault should be investigated and corrected before the output is returned to service.
Q8. Which controllers can be used with the module?
The module is associated with supported Modicon M258, LMC058, and compatible PacDrive configurations. Verify the exact controller, firmware, and system arrangement before installation.
Q9. Can it directly control every 24 V DC device?
No. The load must be compatible with the module’s output logic, voltage, current, switching characteristics, and protection requirements. Some devices may require an interface relay or additional circuitry.
Q10. Can the TM5SDO6T replace the TM5SDO4T?
Not automatically. The TM5SDO6T has six channels, whereas the TM5SDO4T has four. Their wiring arrangements and configuration details must also be checked before any substitution.
Q11. What should be checked if an output stops working?
Check the PLC command, output mapping, 24 V DC I/O supply, field wiring, connected load, and diagnostic indicators. Replace the module only after the external circuit and configuration have been investigated.
Q12. Is the TM5SDO6T suitable for new automation projects?
It can be evaluated for projects requiring six compatible 24 V DC transistor outputs in a supported Modicon TM5 system. Confirm lifecycle status, availability, controller support, and the application’s electrical requirements before final selection.
12. Conclusion
The Schneider Electric TM5SDO6T Digital Output Module is a compact six-channel transistor output module designed for compatible Modicon TM5 industrial automation systems. Its 24 V DC output operation, 0.5 A maximum current per channel, and integrated diagnostic and protection functions support a range of machine-control applications.
The module’s listed dimensions of 99 × 12.5 × 75 mm and weight of 0.025 kg are useful for product identification and cabinet planning. Successful integration also requires the correct bus base, terminal block, controller configuration, and field wiring.
For installation, maintenance, or replacement, engineers should verify the module’s electrical ratings, total current limits, connected-load requirements, and system compatibility. A structured commissioning and troubleshooting process helps maintain reliable output operation and reduces the risk of unnecessary hardware replacement.
