Product Overview

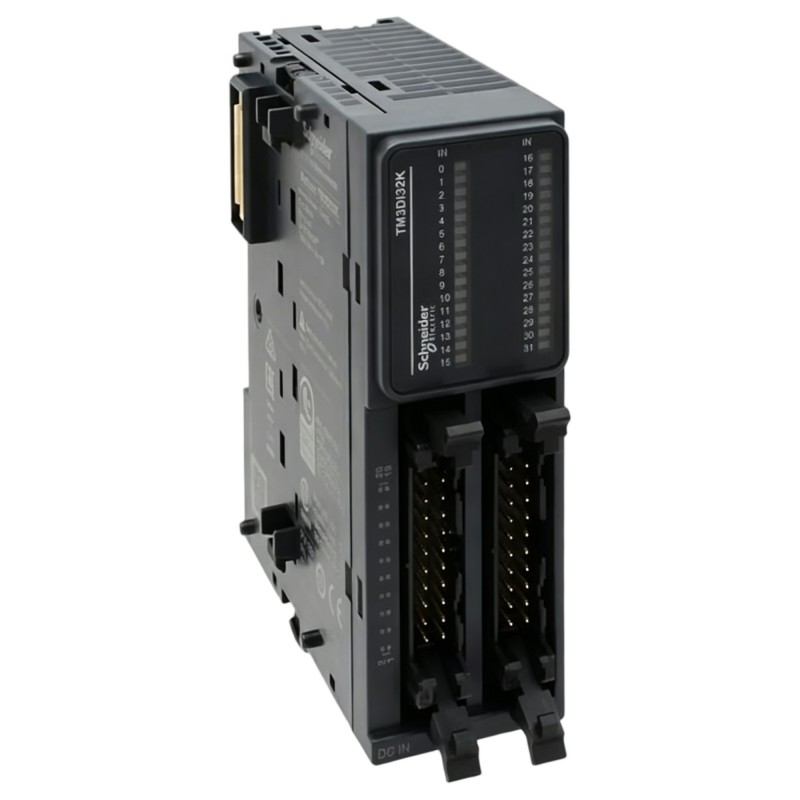

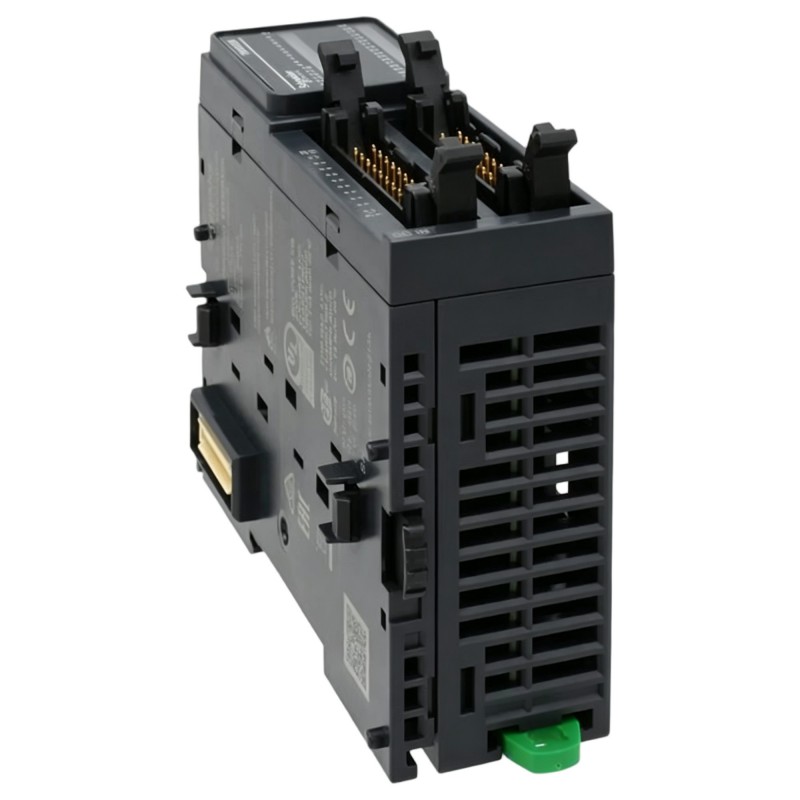

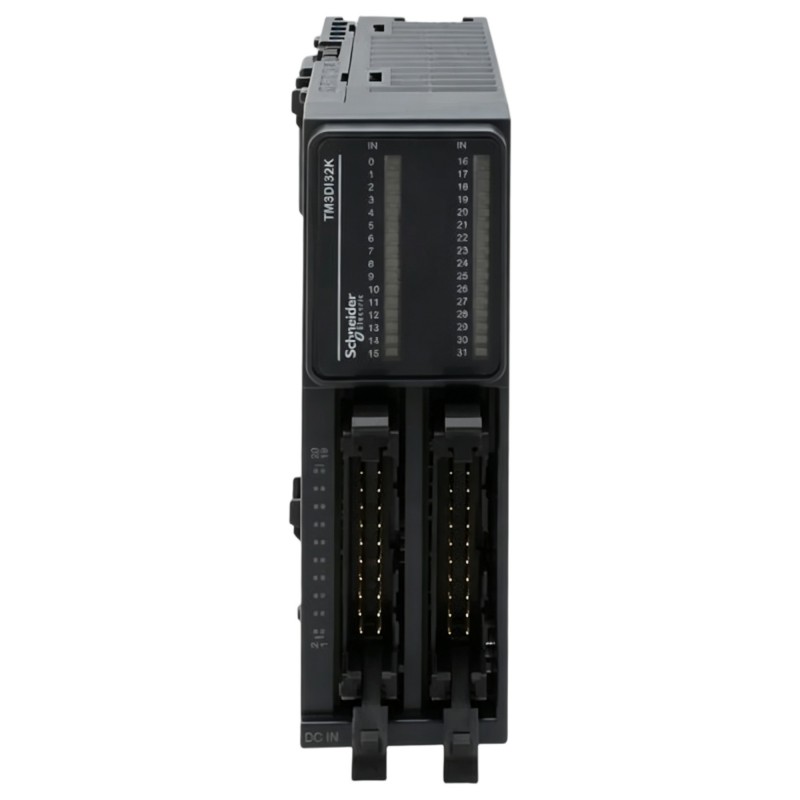

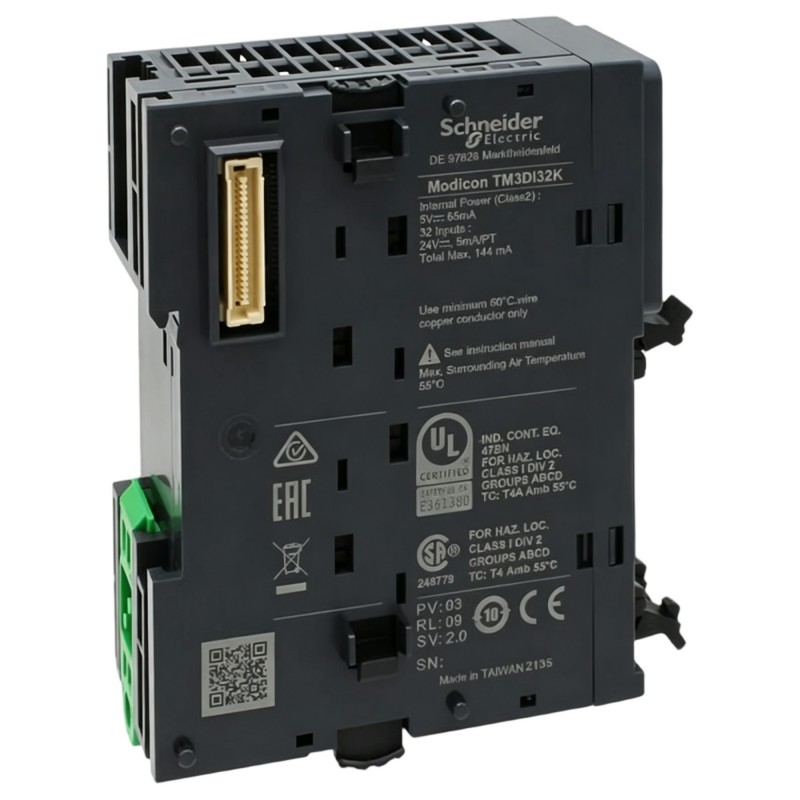

The Schneider TM3DI32K is a Modicon TM3 Discrete Input Module used to expand the digital input capacity of compatible Modicon controllers. With 32 discrete input channels, it is suited to machines where a large number of switches, sensors, status contacts, and other ON/OFF field signals must be collected within a modular I/O system.

The module acts as the field input interface between the machine and the controller. Signals from devices such as proximity sensors, limit switches, push buttons, selector switches, and auxiliary contacts are collected through the input channels and passed to the controller for logic processing.

A 32-channel configuration is useful when the control system has a relatively high density of discrete signals. It can reduce the number of separate input modules needed in a panel while allowing machine status, position feedback, operator commands, and interlock conditions to be handled within the same TM3 expansion architecture.

Technical Specifications

Product Features

• Provides 32 discrete input channels for compatible Modicon control systems.
• Offers high-density digital input expansion for machine automation applications.
• Receives ON/OFF signals from industrial sensors, switches, and auxiliary contacts.
• Suitable for machine position, status, command, and interlock signals.
• Supports applications with a relatively large number of discrete field devices.
• Integrates into a modular Modicon TM3 I/O architecture.
• Can be combined with other TM3 input, output, and mixed I/O modules.

Working Principle

The TM3DI32K monitors the electrical state of 32 discrete input channels. Each channel receives a signal from an external field device and reports its input state to the connected Modicon controller.

The basic signal path is:

Field Devices → TM3DI32K Discrete Inputs → Modicon Controller → Control Logic

When a field device changes state, the corresponding input channel detects the change. The controller receives this information and applies the programmed logic. For example, multiple proximity sensors can report the position of products on a conveyor, while limit switches can confirm the positions of machine mechanisms and auxiliary contacts can provide equipment status information.

With 32 channels available in one module, multiple discrete signals can be collected in a concentrated I/O arrangement rather than being distributed across a larger number of individual input modules.

Role in a Modicon TM3 Control Architecture

The TM3DI32K serves as a high-density discrete signal acquisition point between field devices and the controller.

The module handles the acquisition of field-level discrete signals, while the controller uses those signals to manage machine sequences, interlocks, alarms, and output commands.

Industrial Applications

• Automated production machinery
• Packaging and filling equipment
• Conveyor and material handling systems
• Assembly lines
• Machine tool control
• Pump and motor control panels
• Automated storage and material handling equipment
• Position and limit monitoring
• Industrial operator interfaces
• High-density PLC digital input applications

Installation and Maintenance

1. Verify controller compatibility — Confirm that the TM3DI32K is supported by the intended Modicon controller and TM3 expansion configuration.
2. Create the I/O channel list — Assign each of the 32 input channels to its corresponding field device before wiring.
3. Check field signal characteristics — Verify that connected sensors, switches, and contacts provide suitable discrete electrical signals.
4. Install the module securely — Mount the module correctly and ensure that its connection to the TM3 expansion system is secure.
5. Verify terminal connections — Check each field signal and associated reference connection against the electrical drawings.
6. Organize the wiring — Keep the 32 input circuits clearly routed and separated from sources of excessive electrical interference where appropriate.
7. Label each channel — Identify every input according to the connected sensor, switch, status contact, or machine function.
8. Test channels individually — Operate each field device during commissioning and confirm the corresponding controller input status.
9. Confirm controller addressing — Verify that the application program uses the correct input addresses for the TM3DI32K.
10. Inspect wiring during maintenance — Check terminals and field wiring for looseness, corrosion, insulation damage, or other installation problems.
11. Troubleshoot abnormal inputs systematically — Check the field device, wiring, reference connection, and module status before determining whether a hardware replacement is required.
12. Maintain I/O documentation — Keep the channel assignment list, electrical drawings, and controller configuration updated after modifications or maintenance.

Related Components

• Schneider Modicon TM3 controller systems
• Modicon TM3 digital input modules
• Modicon TM3 digital output modules
• Modicon TM3 analog I/O modules
• Modicon M221 controllers
• Modicon M241 controllers
• Modicon M251 controllers
• Proximity sensors
• Limit switches
• Push buttons and selector switches
• Machine control HMIs

Recommended Related Models

• Schneider Modicon TM3 Digital Input Modules
• Schneider Modicon TM3 Digital Output Modules
• Schneider Modicon TM3 Mixed I/O Modules
• Schneider Modicon M221 Controllers
• Schneider Modicon M241 Controllers
• Schneider Modicon M251 Controllers

Key Advantages

• Provides 32 discrete input channels in a high-density configuration.
• Expands digital input capacity for machines with many field signals.
• Supports sensors, switches, auxiliary contacts, and operator devices.
• Suitable for machine status, position, command, and interlock signals.
• Integrates into the modular Modicon TM3 architecture.
• Helps consolidate a large number of discrete field signals within the control system.

Technical FAQs

What is the main difference between the TM3DI32K and a 16-channel TM3 digital input module?

The TM3DI32K provides 32 discrete input channels, allowing more field signals to be collected through one module. A 16-channel module provides fewer input points and may be selected when the machine has a smaller number of discrete signals.

What types of signals can the TM3DI32K collect?

It is intended for discrete ON/OFF field signals. Typical sources include proximity sensors, limit switches, push buttons, selector switches, and auxiliary contacts, subject to the applicable input electrical requirements.

Why use a 32-channel input module in a machine control panel?

A higher channel count is useful when many digital field signals must be connected. It allows a greater number of machine status, position, command, and interlock signals to be organized within a compact modular I/O architecture.

How should a faulty input channel be checked?

Start with the field device and verify its operating state, then check the wiring, reference connection, terminal condition, and controller input status. If the correct field signal reaches the module but the controller reports an incorrect state, inspect the module connection and I/O configuration.
