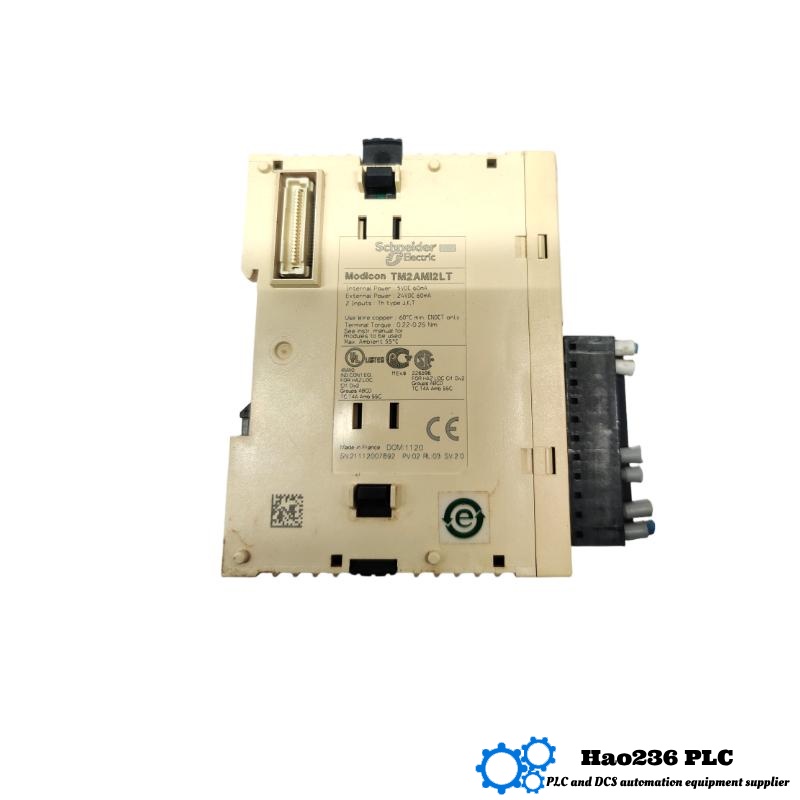

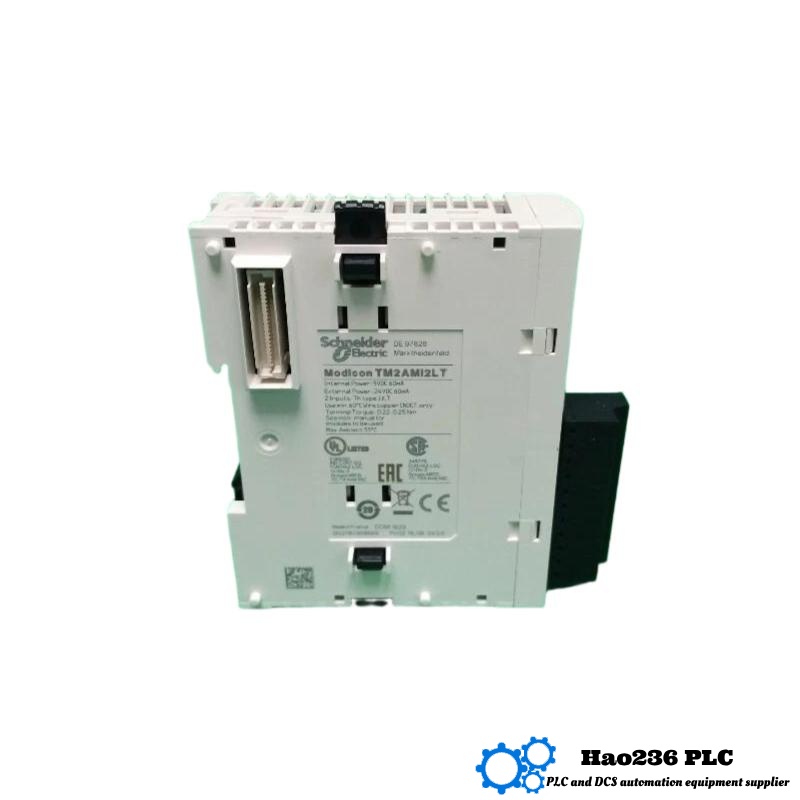

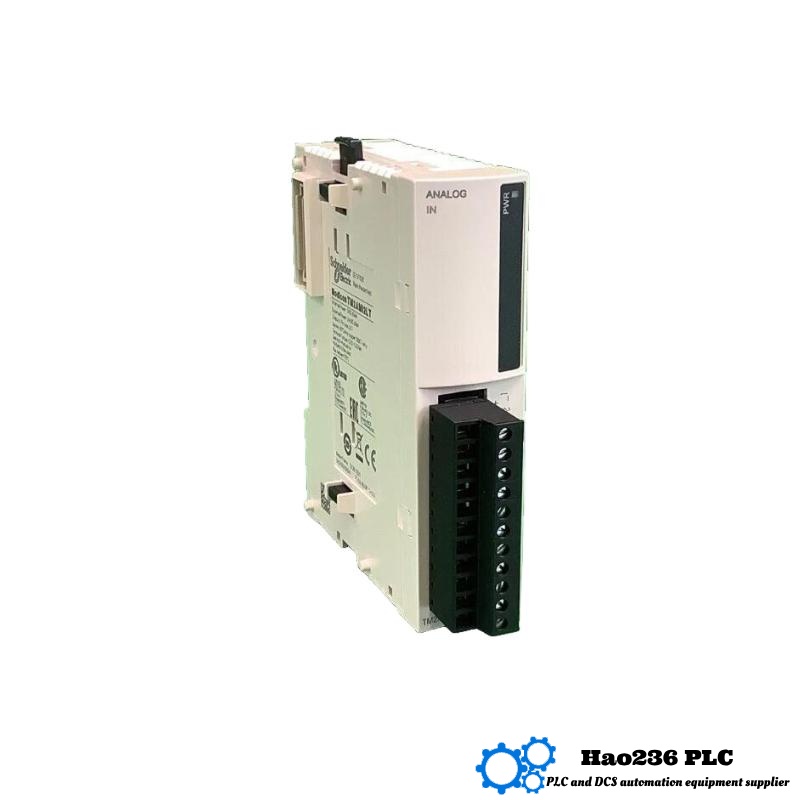

Schneider TM2AMI2LT Analog Input Module
Product Overview
The Schneider TM2AMI2LT is an advanced analog input module designed for use with the Modicon M238 PLC series. This module is ideal for applications requiring the acquisition and processing of analog signals from various sensors and devices in industrial automation and control systems. It provides accurate analog-to-digital signal conversion, ensuring that the control system can effectively monitor and respond to physical parameters such as temperature, pressure, flow rate, and other important variables.
The TM2AMI2LT is highly versatile, offering compatibility with a wide range of industrial sensors and instrumentation. With a compact design and robust build, it is well-suited for integration into both small and medium-scale systems. The module measures 23.5 x 70 x 90 mm and weighs just 0.085 kg, making it both lightweight and easy to install in space-constrained environments. It is particularly suitable for industries that demand reliable, high-performance analog input processing in real-time.
Key Features
-
High-Precision Signal Conversion: Converts analog signals to digital data with high accuracy, ensuring that the control system receives precise information for reliable operation.
-
Compact and Space-Efficient: With dimensions of 23.5 x 70 x 90 mm, this module offers a space-saving design, making it ideal for installations with limited space.
-
Wide Compatibility: Supports various input types, including voltage (0-10V) and current (4-20mA), providing flexibility in sensor and device integration.
-
Durability and Reliability: Built for use in harsh industrial environments, the module delivers consistent and stable performance over long periods.
-
Seamless Integration: Compatible with the Schneider Modicon M238 PLC, the TM2AMI2LT module integrates easily into existing automation systems, offering enhanced scalability and control.
Product Applications
The Schneider TM2AMI2LT analog input module can be applied in numerous industrial automation and control environments, where reliable data from analog sensors is essential. Some common applications include:
-
Industrial Process Control: Used to monitor and control parameters like pressure, temperature, and flow rate in manufacturing plants, chemical industries, and other process-based environments.
-
Building Automation: Integrated into HVAC systems, lighting control, and other building management systems for monitoring and control of various environmental parameters.
-
Energy Management: Measures power consumption, voltage, current, and other critical parameters, enabling optimized energy management and reporting in industries like utilities and manufacturing.
-
Water and Wastewater Treatment: Collects data from sensors measuring water quality, flow rates, chemical levels, and other vital metrics in water treatment and distribution systems.
-
Agricultural Automation: Used in agriculture for monitoring environmental conditions such as humidity, temperature, and soil moisture to optimize farming processes and improve crop yields.
Advantages
-
Precision and Accuracy: The TM2AMI2LT module ensures high-quality data acquisition with its precise analog-to-digital conversion, improving system reliability.
-
Space-Saving Design: The compact size allows for installation in smaller control panels or machines where space is limited, making it ideal for tight environments.
-
Wide Sensor Compatibility: The module supports both voltage (0-10V) and current (4-20mA) inputs, making it versatile for various industrial sensors and devices.
-
Long-Lasting Durability: Built to withstand the demands of industrial environments, this module offers high reliability and long-term performance.
-
Cost-Effective: Offers high performance at a competitive price point, making it a great solution for small to medium-scale automation systems.
Brand
-
Schneider Electric: Schneider Electric is a global leader in energy management and automation solutions. Their products are trusted by industries worldwide for their innovation, efficiency, and sustainability. Schneider Electric’s commitment to providing reliable, safe, and efficient products makes them a go-to provider for industrial automation solutions.
Series
-
Modicon M238 Series: The Modicon M238 series is a versatile range of programmable logic controllers (PLCs) designed for small to medium-sized automation systems. These PLCs provide a flexible, cost-effective solution with various input/output modules, offering excellent control and monitoring capabilities for industrial applications.
Product Specifications
| Parameter | Value |
|---|---|
| Model | TM2AMI2LT |
| Dimensions | 23.5 x 70 x 90 mm |
| Weight | 0.085 kg |
| Input Type | Analog Input (2 channels) |
| Input Signal Type | Voltage (0-10V), Current (4-20mA) |
| Power Supply | 24V DC |
| Mounting | Rail Mount |
| Operating Temperature | -20°C to 60°C |
| Input Resolution | 12-bit |
Related Models in the Modicon M238 Series
| Model | Dimensions | Weight | Input Type | Input Channels | Power Supply |
|---|---|---|---|---|---|
| TM2AMI4LT | 23.5 x 70 x 90 mm | 0.085 kg | Analog Input (4 channels) | 4 Channels | 24V DC |
| TM2AMI8LT | 23.5 x 70 x 90 mm | 0.090 kg | Analog Input (8 channels) | 8 Channels | 24V DC |
| TM2DI16HTN | 23.5 x 70 x 90 mm | 0.085 kg | Digital Input (16 channels) | 16 Channels | 24V DC |
| TM2DO16LT | 23.5 x 70 x 90 mm | 0.085 kg | Digital Output (16 channels) | 16 Channels | 24V DC |
| TM2AI2LT | 23.5 x 70 x 90 mm | 0.085 kg | Analog Input (2 channels) | 2 Channels | 24V DC |
Other Popular Schneider Electric Models
| Model | Dimensions | Weight | Input Type | Input Channels | Power Supply |
|---|---|---|---|---|---|
| TM3AMM4H | 23.5 x 70 x 90 mm | 0.085 kg | Analog Input (4 channels) | 4 Channels | 24V DC |
| TM3AMI8H | 23.5 x 70 x 90 mm | 0.090 kg | Analog Input (8 channels) | 8 Channels | 24V DC |
| TM3AO4H | 23.5 x 70 x 90 mm | 0.090 kg | Analog Output (4 channels) | 4 Channels | 24V DC |
| TM3DI16H | 23.5 x 70 x 90 mm | 0.085 kg | Digital Input (16 channels) | 16 Channels | 24V DC |
| TM3DO16H | 23.5 x 70 x 90 mm | 0.085 kg | Digital Output (16 channels) | 16 Channels | 24V DC |
FAQs
Q1: What is the Schneider TM2AMI2LT used for?
A1: The TM2AMI2LT is an analog input module used to connect and process signals from various industrial sensors and devices, converting them into digital data for control systems.
Q2: How many input channels does the TM2AMI2LT support?
A2: The module supports 2 analog input channels.
Q3: What types of input signals are supported by the TM2AMI2LT?
A3: The TM2AMI2LT supports both voltage (0-10V) and current (4-20mA) input signals.
Q4: What is the power supply requirement for the TM2AMI2LT module?
A4: The module requires a 24V DC power supply.
Q5: Can the TM2AMI2LT module be used in outdoor applications?
A5: The module is designed for indoor industrial environments with an operating temperature range of -20°C to 60°C, so it may not be suitable for extreme outdoor conditions.
Q6: How is the TM2AMI2LT mounted?
A6: It is designed for rail mounting, which allows easy installation in control panels.
Q7: What is the resolution of the analog inputs on the TM2AMI2LT?
A7: The module offers a 12-bit resolution for its analog inputs.
Q8: What industries use the Schneider TM2AMI2LT?
A8: It is commonly used in industries like manufacturing, energy management, process control, and building automation.
Q9: Can the TM2AMI2LT be used with other Schneider PLCs?
A9: The TM2AMI2LT is designed for use with the Modicon M238 PLC, but it may also be compatible with other Schneider PLCs in the M238 series.
Q10: What is the weight of the TM2AMI2LT module?
A10: The module weighs 0.085 kg, making it lightweight and easy to install.
