Product Overview

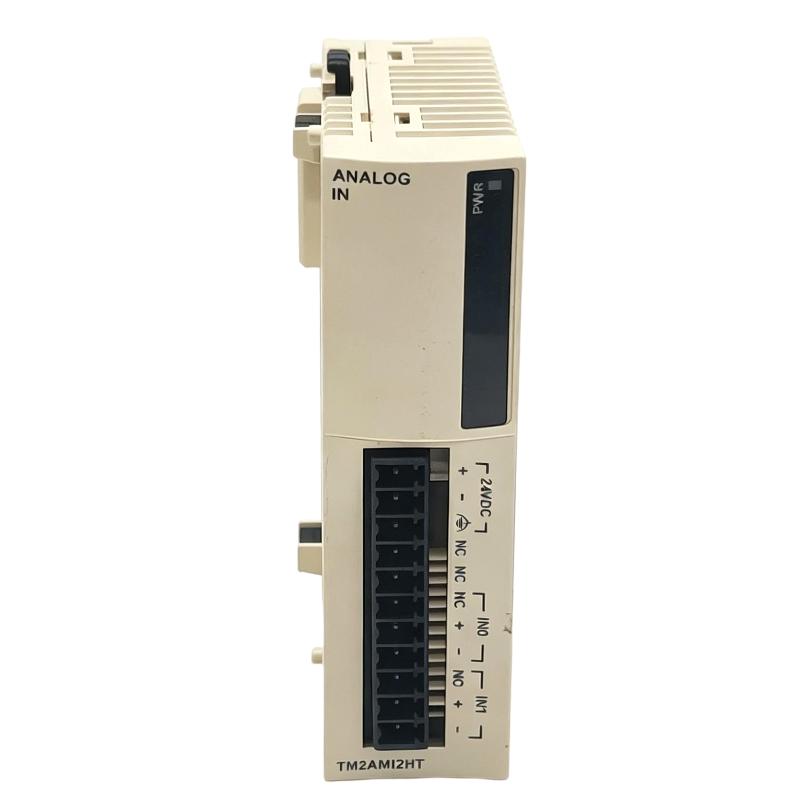

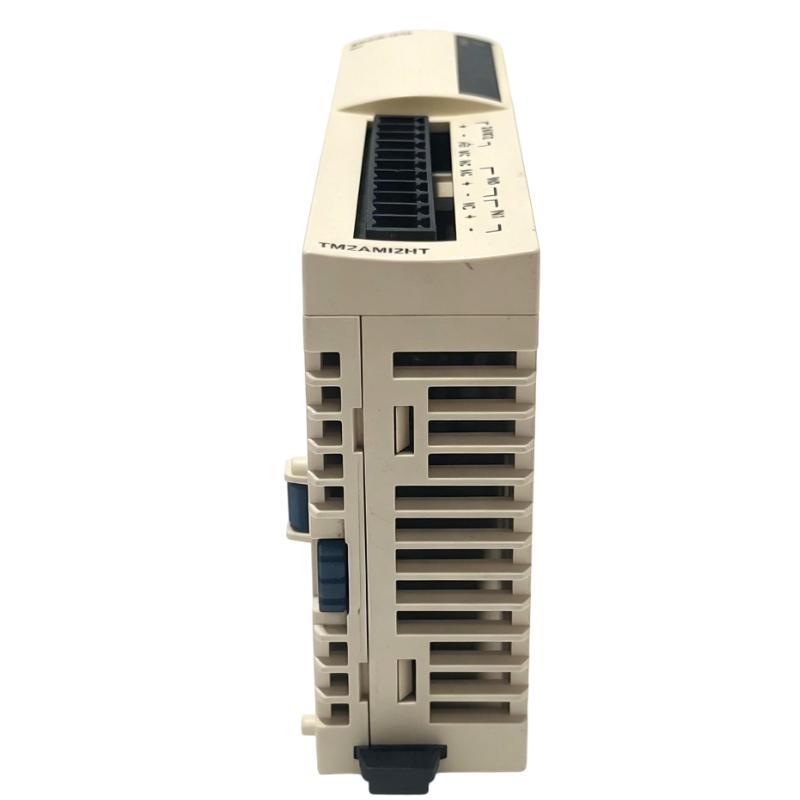

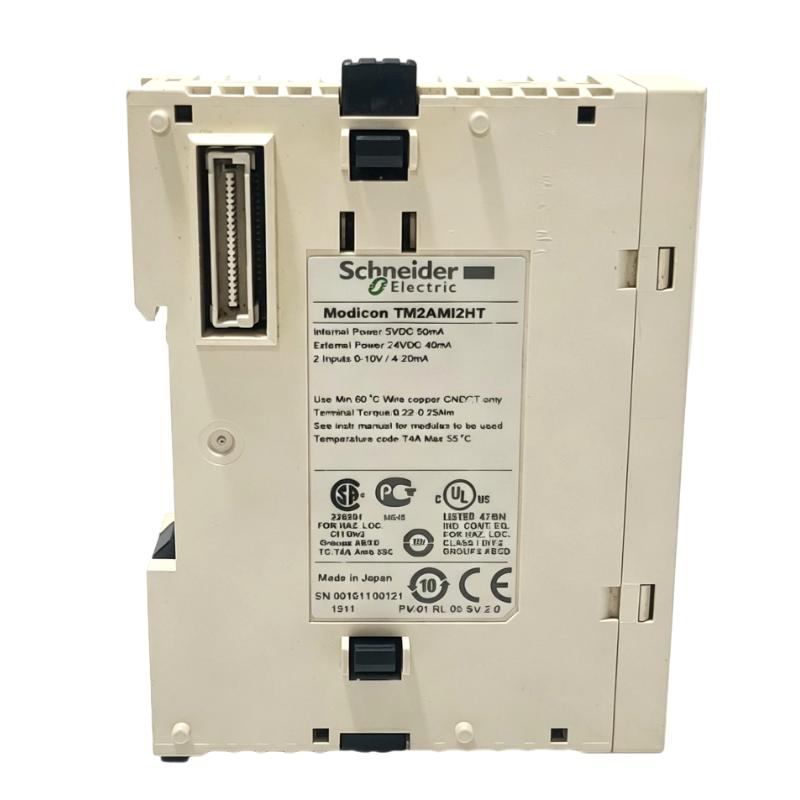

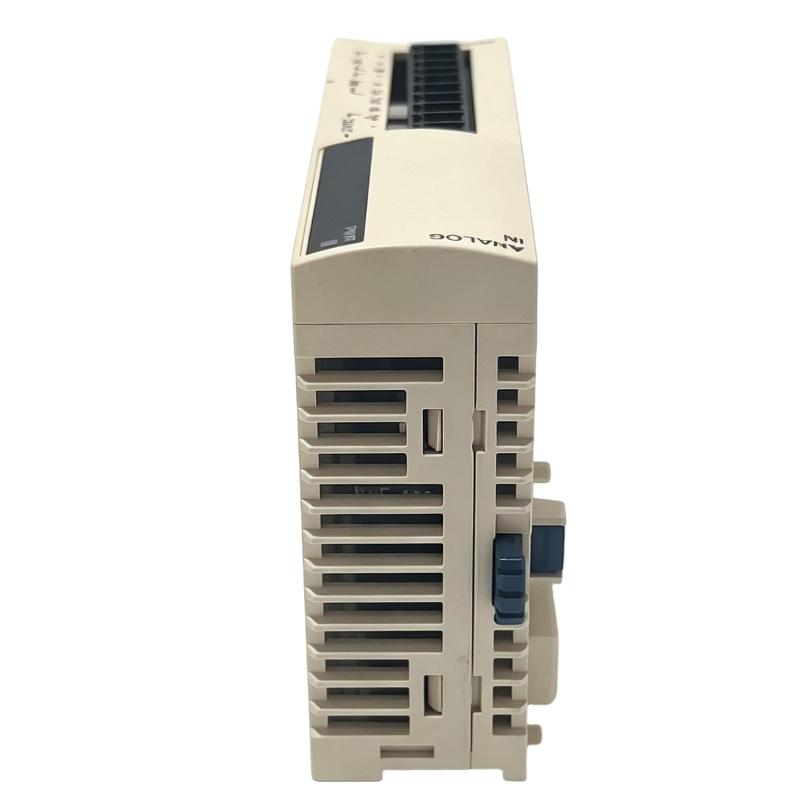

The Schneider TM2AMI2HT is a Modicon M238 analog input module used to bring continuous process or machine signals into an M238 control system. It expands the controller’s analog acquisition capability when the base controller does not provide enough analog input capacity for the application.

In a typical machine or process installation, sensors and transmitters generate variable electrical signals representing conditions such as temperature, pressure, level, flow, position, or other measured values. The TM2AMI2HT receives these analog signals and makes the corresponding measurements available to the M238 controller for monitoring, logic, sequencing, and control functions.

The module is suited to applications where analog measurements need to be integrated into a compact automation architecture without changing the main controller platform. It can be used as part of a distributed machine-control cabinet alongside digital I/O and other Modicon M238 expansion modules.

Technical Specifications

Product Features

• Provides additional analog input capability for Modicon M238 control systems.
• Acquires variable signals from field sensors and measurement devices.
• Suitable for machine automation and compact process-control applications.
• Integrates with the M238 controller through the TM2 expansion architecture.
• Allows analog measurements to be incorporated into controller logic and monitoring functions.
• Can be combined with digital and other analog I/O modules to build a complete machine interface.
• Supports centralized cabinet-based signal acquisition within an M238 automation system.
• Useful for applications requiring continuous measurement rather than simple ON/OFF status detection.
• Suitable for retrofit and expansion projects where additional analog acquisition is required.
• Helps separate field signal acquisition from the controller’s main processing function.

Working Principle

The TM2AMI2HT operates as an analog acquisition stage between field measurement devices and the Modicon M238 controller.

A field sensor or transmitter generates an analog electrical signal corresponding to the measured process variable. The signal is connected to the analog input interface of the TM2AMI2HT, where the module acquires the incoming value and converts the field measurement into data that can be handled by the M238 control system.

Field Sensor / Transmitter → TM2AMI2HT Analog Input → M238 Controller → Control Logic / Monitoring

The controller can then use the acquired measurement within application logic. For example, an analog temperature measurement can be evaluated against operating limits, while a pressure or level measurement can be used as an input to sequencing or regulation functions.

The module therefore handles the interface between continuously varying field measurements and the digital control environment. It does not replace the controller itself; instead, it extends the controller’s ability to acquire analog process information.

Role in a Modicon M238 Control Architecture

The TM2AMI2HT occupies the analog field-input layer of an M238 automation system. It connects measurement devices to the controller so that continuously varying process values can participate in the application’s control logic.

Industrial Applications

Installation and Maintenance

1. Confirm that the TM2AMI2HT is compatible with the existing Modicon M238 controller and expansion configuration.
2. Review the application wiring diagram before connecting field sensors or transmitters.
3. Isolate the relevant control-system power before installing or removing the module.
4. Verify the intended analog input connections and corresponding field devices.
5. Check field wiring for loose terminals, damaged conductors, or incorrect connections.
6. Keep analog signal wiring properly separated from sources of significant electrical interference where required by the cabinet design.
7. Install the module securely within the M238 expansion arrangement and verify that the connection is properly seated.
8. Confirm the controller configuration corresponds to the installed analog input hardware.
9. Energize the system and verify that the controller recognizes the installed I/O configuration.
10. Compare the acquired analog values with the actual field measurements during commissioning.
11. If an input behaves abnormally, check the field device, wiring, module connection, configuration, and controller diagnostics in sequence.
12. Record the module model and associated field-channel assignments to simplify future maintenance and troubleshooting.

Related Components

Recommended Related Models

Key Advantages

• Adds analog input capability to Modicon M238 control systems.
• Provides a dedicated interface for continuously varying field measurements.
• Fits into the modular TM2 expansion architecture.
• Supports integration of sensors and transmitters into machine-control logic.
• Suitable for compact automation cabinets and M238 expansion projects.
• Can be combined with digital and analog I/O modules to match application requirements.

Technical FAQs

What type of signals can the TM2AMI2HT acquire?

The TM2AMI2HT is an analog input module intended for connecting compatible analog sensors and transmitters to a Modicon M238 control system. The exact supported signal type and configuration should be confirmed against the applicable Schneider documentation before wiring.

How does the TM2AMI2HT communicate with the M238 controller?

The module operates as part of the Modicon TM2 expansion architecture. Field analog measurements are acquired by the module and made available to the M238 controller for use in the application program and monitoring functions.

What should be checked if an analog value is incorrect?

Start by checking the field sensor or transmitter, wiring polarity and termination, module seating, controller configuration, and the actual field measurement. Comparing the physical process value with the value received by the controller can help isolate whether the problem originates in the field device, wiring, module, or configuration.

When is an analog input expansion module needed on an M238 system?

An analog input expansion module is useful when the application requires additional analog measurement channels beyond the controller’s available built-in or existing I/O capacity. It can also be used when the control cabinet architecture needs a dedicated interface for additional field sensors or transmitters.
