Product Overview

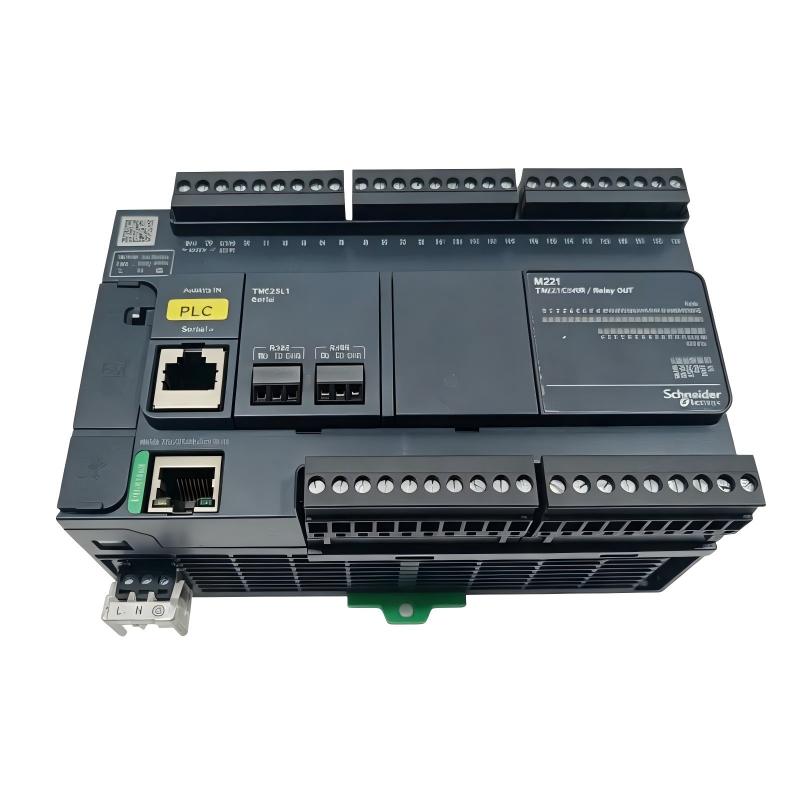

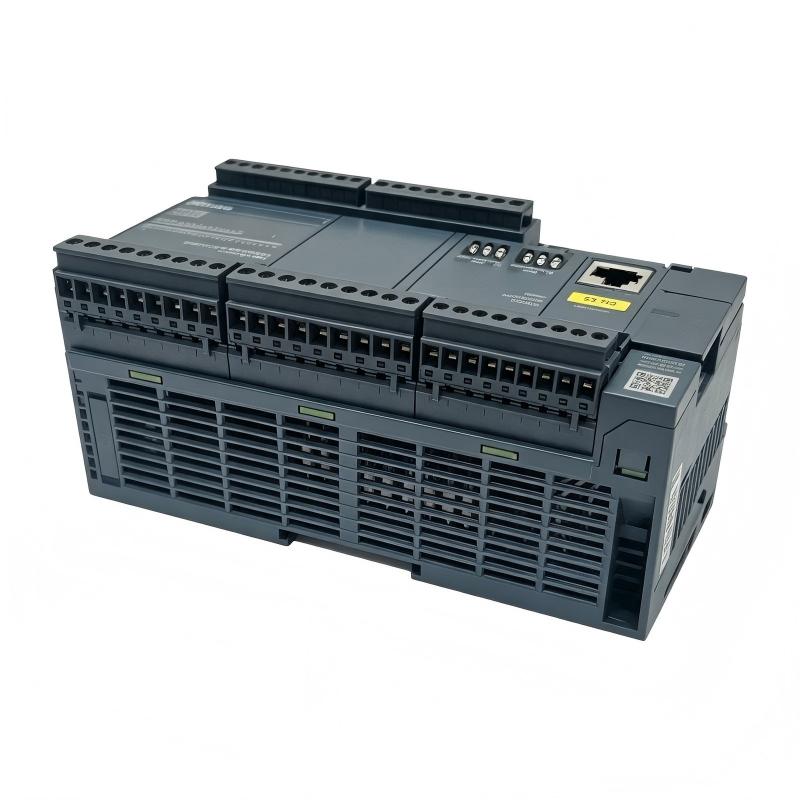

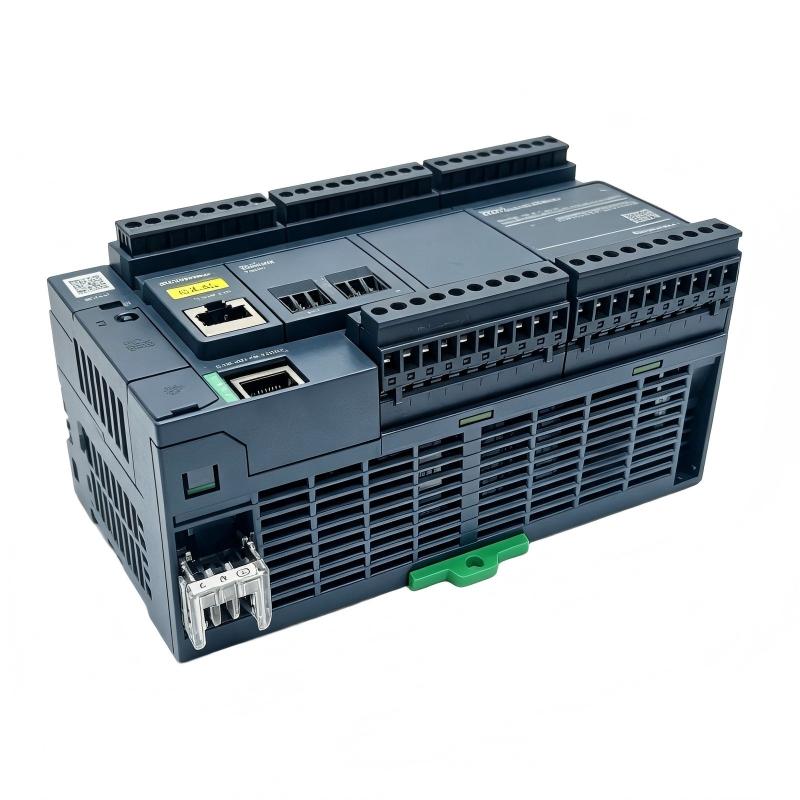

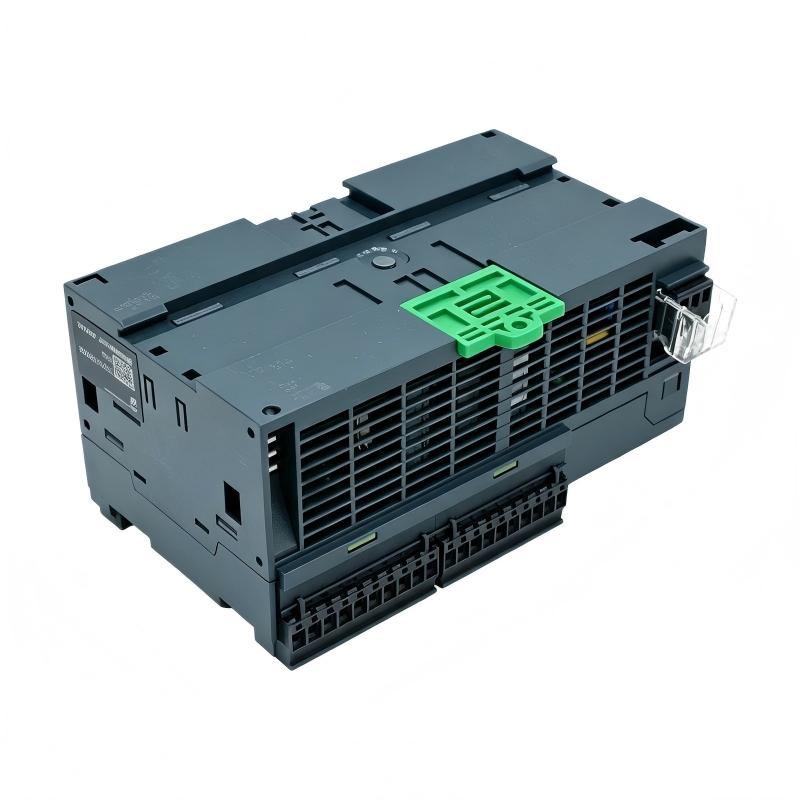

The Schneider TM221CE40R Modicon M221 Logic Controller is a compact programmable logic controller (PLC) developed for industrial automation, machine control, and OEM equipment manufacturing.
As part of the Modicon M221 PLC family, the TM221CE40R combines powerful logic processing, integrated Ethernet communication, relay outputs, and flexible expansion capability into a compact controller platform. It is designed to deliver reliable automation performance, simplify machine integration, and improve production efficiency across a wide range of industrial applications.
The controller supports digital and analog signal processing, equipment monitoring, communication networking, and intelligent machine control, making it suitable for modern manufacturing systems requiring dependable operation and flexible configuration.
Typical applications include:
- Packaging machinery
- Conveyor automation systems
- Assembly equipment
- Material handling systems
- Pump and motor control
- Food and beverage production
- Textile machinery
- OEM industrial equipment
With dimensions of 90 × 70 × 160 mm and a weight of 0.456 kg, the TM221CE40R offers a compact installation profile while delivering reliable industrial control performance.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Schneider Electric |
| Model | TM221CE40R |
| Product Type | Modicon M221 Logic Controller |
| Controller Series | Modicon M221 |
| Dimensions | 90 × 70 × 160 mm |
| Weight | 0.456 kg |
| PLC Type | Compact Programmable Logic Controller |
| Digital Inputs | 24 Inputs |
| Digital Outputs | 16 Relay Outputs |
| Analog Inputs | 2 Analog Inputs |
| Output Type | Relay Output |
| Communication | Ethernet, USB, Serial Communication |
| Installation Method | DIN Rail Mounting |
| Expansion Capability | Compatible with TM3 Expansion Modules |
Function and Working Principle
The Schneider TM221CE40R Logic Controller serves as the central processing unit of an industrial automation system.
Its operating process includes:
- Industrial sensors collect machine operating data.
- Digital and analog signals are transmitted to the PLC.
- The CPU executes the user program, processing timers, counters, arithmetic functions, PID control, and sequential logic.
- Relay outputs control motors, contactors, valves, alarms, and other field devices.
- Ethernet and serial communication interfaces exchange operational data with HMIs, industrial computers, variable frequency drives, and supervisory systems.
This operating principle enables efficient machine automation while ensuring stable production and reliable equipment performance.
Main Features
1. Compact Industrial PLC Design
The TM221CE40R features a compact housing suitable for space-limited control cabinets.
Benefits include:
- Space-saving installation
- DIN rail mounting
- Simplified wiring
- Easy cabinet integration
- Suitable for OEM machine designs
Its compact dimensions help reduce cabinet size while maintaining excellent control performance.
2. Reliable Relay Output Control
The controller utilizes relay outputs capable of controlling various industrial loads.
Typical applications include:
- AC motor contactors
- Solenoid valves
- Warning lamps
- Industrial relays
- Process switching equipment
Relay outputs provide excellent compatibility with a wide range of industrial electrical systems.
3. Integrated Ethernet Communication
Built-in communication capability allows seamless connection with industrial automation devices.
Communication functions include:
- HMI connectivity
- PLC programming
- Industrial Ethernet networking
- Data acquisition
- Remote diagnostics
- Production monitoring
Integrated networking improves automation efficiency while reducing additional communication hardware.
4. Flexible Expansion Capability
The TM221CE40R supports Schneider TM3 expansion modules, allowing users to build larger automation systems.
Expansion options include:
- Additional digital I/O
- Analog input/output modules
- Communication modules
- Specialized automation interfaces
The modular architecture allows the controller to adapt to future production expansion.
5. Stable Industrial Performance
Designed for continuous industrial operation, the controller provides:
- High processing reliability
- Stable logic execution
- Long operating life
- Low maintenance requirements
- Consistent automation performance
These characteristics make it suitable for demanding industrial environments operating continuously.
Industrial Applications
Packaging Machinery
The TM221CE40R provides reliable automation control for packaging equipment.
Typical applications include:
- Filling machines
- Labeling systems
- Cartoning equipment
- Product counting
- Conveyor synchronization
Conveyor Automation
Industrial conveying systems require dependable PLC control.
Typical functions include:
- Motor start and stop
- Product positioning
- Material transportation
- Sensor monitoring
- Automatic sorting
Assembly Equipment
Assembly automation requires precise sequence control and dependable machine coordination.
Applications include:
- Automatic assembly stations
- Robotic auxiliary control
- Component positioning
- Fixture management
- Production sequencing
Pump and Motor Control
The controller supports automatic operation of industrial pumping equipment.
Typical functions include:
- Pump sequencing
- Motor control
- Pressure monitoring
- Water level management
- Alarm processing
OEM Machine Manufacturing
The TM221CE40R is widely used by equipment manufacturers for customized industrial machines.
Typical industries include:
- Textile machinery
- Plastic processing
- Food processing
- Printing equipment
- Woodworking machinery
Installation Guide
Mechanical Installation
Recommended installation procedure:
- Confirm the controller model before installation.
- Mount the PLC securely on a standard DIN rail.
- Maintain adequate ventilation around the controller.
- Install expansion modules where required.
- Verify all mechanical connections before energizing the system.
Proper installation helps ensure reliable long-term operation.
Electrical Wiring
Before powering the controller, verify:
- AC power supply wiring
- Digital input wiring
- Relay output connections
- Ethernet communication cables
- USB programming connection
- Protective grounding
Recommended practices:
- Separate signal wiring from power wiring.
- Use industrial-grade shielded communication cables where appropriate.
- Tighten all terminal screws securely.
- Avoid routing signal cables alongside high-voltage power cables.
Programming and Commissioning
Recommended commissioning procedure:
- Connect the PLC to the programming computer.
- Download the control application.
- Configure communication parameters.
- Verify digital and analog inputs.
- Test relay outputs.
- Perform complete machine functional testing.
- Monitor system performance during trial operation.
Proper commissioning minimizes startup issues and improves long-term reliability.
Common Fault Symptoms and Troubleshooting
| Fault Symptom | Possible Cause | Recommended Solution |
|---|---|---|
| PLC cannot power on | Power supply failure | Verify supply voltage and wiring |
| Digital input unavailable | Wiring or sensor fault | Inspect sensors and input terminals |
| Relay output not operating | Output circuit or program issue | Check relay wiring and PLC logic |
| Ethernet communication failure | Incorrect network settings | Verify IP configuration and communication cables |
| Machine sequence abnormal | Application logic error | Review and debug PLC program |
| Expansion module unavailable | Loose module installation | Reinstall and inspect module connections |
Maintenance Recommendations
To maximize controller performance:
- Inspect terminal wiring regularly.
- Keep the control cabinet clean and dry.
- Verify power supply stability.
- Backup PLC programs periodically.
- Check Ethernet communication status.
- Inspect expansion modules during scheduled maintenance.
- Replace damaged cables immediately.
Routine preventive maintenance reduces unexpected downtime and extends controller service life.
Advantages of Schneider TM221CE40R
- Compact Modicon M221 PLC platform
- 24 digital inputs and 16 relay outputs
- Integrated Ethernet communication
- Built-in analog input capability
- Flexible TM3 expansion support
- Reliable industrial operation
- Easy installation and maintenance
- Suitable for OEM and industrial automation systems
Technical FAQs
What is the Schneider TM221CE40R?
The Schneider TM221CE40R is a compact Modicon M221 Logic Controller designed for industrial automation, machine control, and OEM equipment applications.
What output type does the TM221CE40R use?
The controller provides 16 relay outputs, making it suitable for controlling contactors, solenoid valves, alarms, and other industrial loads.
Can the TM221CE40R support expansion modules?
Yes. The controller supports TM3 expansion modules, allowing additional I/O capacity and enhanced automation functionality.
Where is the TM221CE40R commonly used?
It is widely used in packaging machinery, conveyor systems, assembly equipment, pump control, material handling systems, and OEM industrial machines.
Conclusion
The Schneider TM221CE40R Modicon M221 Logic Controller is a compact, reliable, and highly flexible PLC designed for modern industrial automation.
Combining relay output control, integrated Ethernet communication, modular expansion capability, and dependable processing performance, the TM221CE40R provides an ideal automation solution for machine builders, system integrators, and manufacturing facilities.
Its robust design, compact dimensions, and scalable architecture make it an excellent choice for industrial applications requiring stable operation, efficient control, and long-term reliability.
