Product Overview

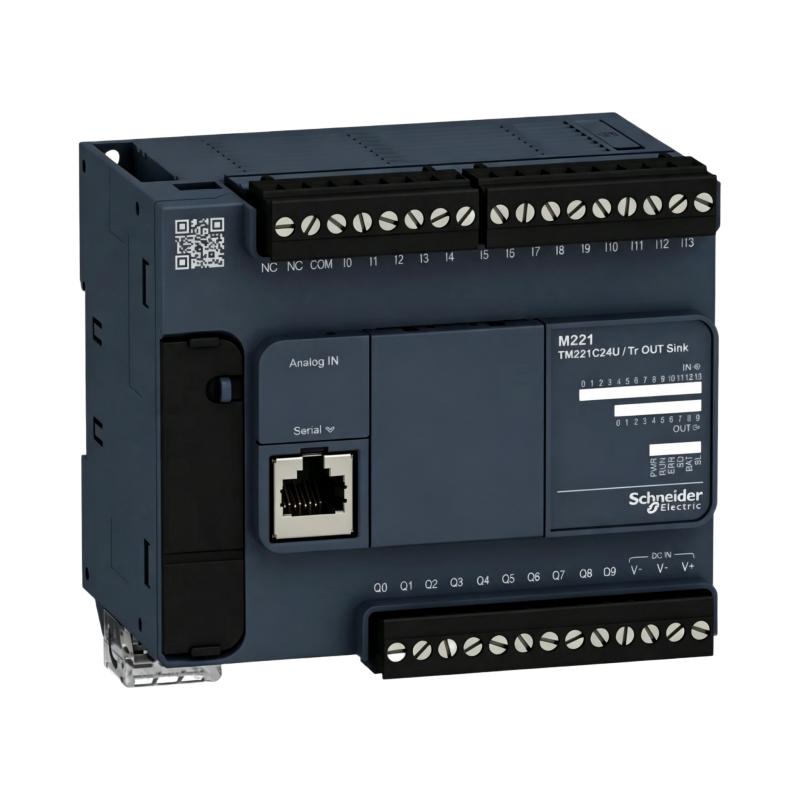

The Schneider TM221C24U Modicon M221 Logic Controller is a compact and high-performance programmable logic controller designed for industrial automation applications requiring reliable control, fast signal processing, and flexible system integration.
As part of the Modicon M221 Logic Controller family, the TM221C24U provides an efficient automation solution for OEM machine builders, system integrators, and industrial engineers. It combines digital input/output control, analog signal processing, high-speed operation capability, communication functions, and expansion flexibility within a compact PLC design.
The TM221C24U is designed for applications where fast response, accurate control, and stable operation are required. Its transistor output structure provides faster switching performance compared with relay-based PLC models, making it suitable for high-speed automation tasks, pulse control applications, and equipment requiring frequent output switching.
The controller is widely used in:
- Packaging machinery
- Assembly systems
- Conveyor equipment
- Material handling machines
- Automated production lines
- Customized industrial automation equipment
With dimensions of 90 × 70 × 110 mm and a weight of 0.77 kg, the Schneider TM221C24U provides a compact installation solution for industrial control cabinets with limited space requirements.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Schneider Electric |
| Model | TM221C24U |
| Product Series | Modicon M221 |
| Product Type | Logic Controller / PLC |
| Application | Industrial Machine Automation |
| Power Supply | 24 V DC |
| Digital I/O Points | 24 |
| Digital Inputs | 14 Inputs |
| High-Speed Inputs | 4 High-Speed Inputs |
| Digital Outputs | 10 Transistor Outputs |
| High-Speed Outputs | 2 High-Speed Outputs |
| Output Type | Transistor Sink Output |
| Analog Inputs | 2 Channels |
| Communication Interface | Serial Communication / USB Programming |
| Expansion Capability | Supports Expansion Modules |
| Installation Method | DIN Rail Mounting |
| Dimensions | 90 × 70 × 110 mm |
| Weight | 0.77 kg |
Function and Working Principle
The Schneider TM221C24U Modicon M221 Logic Controller operates as the main control unit of an industrial automation system.
During operation, the PLC continuously receives signals from connected field devices, processes the programmed application logic, and sends control commands to external equipment.
The PLC working cycle includes:
- Receiving input signals from sensors and control devices
- Processing application instructions
- Executing logic calculations
- Updating output states
- Performing communication and diagnostic functions
The controller can coordinate different industrial devices, including:
- Proximity sensors
- Photoelectric sensors
- Encoders
- Motors
- Solenoid valves
- Actuators
- Contactors
- Human-machine interfaces
The fast processing capability enables the TM221C24U to achieve stable and accurate machine control performance.
Main Functions
1. Advanced Machine Logic Control
The main function of the TM221C24U is executing automation programs for industrial machines.
Typical control functions include:
- Automatic production sequences
- Machine start and stop control
- Timing operations
- Equipment synchronization
- Safety interlocking
- Alarm monitoring
The controller provides a reliable automation platform for different industrial applications.
2. High-Speed Input Processing
The TM221C24U provides high-speed input capability for applications requiring fast signal acquisition.
Typical applications include:
- Encoder feedback
- Product counting
- Position detection
- Speed measurement
- Machine synchronization
High-speed input processing improves equipment accuracy and response speed.
3. High-Speed Transistor Output Control
The transistor output design allows faster switching performance and improved control accuracy.
Common applications include:
- Pulse signal output
- Stepper motor control
- Positioning systems
- PWM applications
- High-frequency switching tasks
This makes the TM221C24U suitable for automation equipment requiring rapid output response.
4. Analog Signal Processing
The controller supports analog input functions for industrial measurement and monitoring.
Typical applications include:
- Temperature monitoring
- Pressure measurement
- Liquid level detection
- Sensor feedback acquisition
Analog processing expands the PLC’s ability to handle different industrial control requirements.
5. Communication and Expansion Capability
The TM221C24U provides flexible communication and expansion functions.
Applications include:
- HMI connection
- Industrial network integration
- Remote monitoring
- Additional I/O expansion
- Machine system upgrades
The expandable architecture allows the controller to adapt to different automation projects.
Industrial Applications
Packaging Machinery
The TM221C24U is widely used in automated packaging equipment.
Typical applications include:
- Filling machines
- Labeling systems
- Sealing machines
- Wrapping equipment
- Conveyor control systems
The PLC provides accurate sequence control and improves production efficiency.
Assembly Automation Systems
The controller is suitable for automated assembly applications.
Common uses include:
- Component assembly machines
- Inspection equipment
- Testing stations
- Automated workstations
Fast signal processing improves machine coordination and operating stability.
Conveyor and Material Handling Equipment
The TM221C24U can control:
- Conveyor motors
- Sorting systems
- Transfer equipment
- Product detection systems
Its fast response capability supports efficient material movement.
Customized OEM Machines
The PLC is designed for customized industrial equipment.
Applications include:
- Special-purpose machines
- Automated production equipment
- Industrial testing systems
- Custom manufacturing solutions
Installation Guide
Mechanical Installation
Recommended installation procedures:
- Install the PLC on a standard DIN rail.
- Ensure sufficient ventilation space around the controller.
- Avoid strong electromagnetic interference sources.
- Confirm the controller is securely mounted.
- Check environmental conditions before operation.
Proper installation improves system reliability and extends equipment service life.
Electrical Wiring
Before startup, verify:
- 24 V DC power supply connection
- Digital input wiring
- Transistor output wiring
- Grounding connection
- Communication cable installation
Recommended wiring practices:
- Separate signal cables from power cables.
- Avoid electrical noise interference.
- Tighten terminal connections properly.
- Protect cables from mechanical damage.
Programming and Commissioning
Typical commissioning steps:
- Connect the PLC to the programming system.
- Configure hardware parameters.
- Create or download the PLC program.
- Test input signals.
- Verify output operation.
- Check machine sequence performance.
Proper commissioning ensures stable automation operation.
Common Fault Symptoms and Troubleshooting
| Fault Symptom | Possible Cause | Recommended Solution |
|---|---|---|
| PLC cannot power on | Power supply failure | Check 24 V DC connection |
| Input signal missing | Sensor or wiring fault | Inspect input terminals |
| Output device not operating | Transistor output problem | Check output wiring |
| High-speed signal error | Incorrect parameter setting | Verify high-speed input configuration |
| Pulse output abnormal | Program or configuration issue | Check output parameters |
| Analog signal incorrect | Sensor problem | Verify analog input settings |
| Communication failure | Communication configuration error | Check communication parameters |
| Machine sequence abnormal | PLC logic problem | Review application program |
Maintenance Recommendations
To maintain reliable operation:
- Inspect wiring connections regularly
- Keep the control cabinet clean
- Monitor operating temperature
- Backup PLC programs
- Check diagnostic information
- Inspect connected field devices
Regular maintenance helps reduce unexpected downtime and improves system reliability.
Advantages of Schneider TM221C24U
- Compact Modicon M221 PLC design
- Fast transistor output performance
- High-speed signal processing capability
- Integrated analog input functions
- Flexible expansion capability
- Reliable industrial operation
- Easy DIN rail installation
- Suitable for OEM automation equipment
Technical FAQs
What is Schneider TM221C24U?
The Schneider TM221C24U is a Modicon M221 Logic Controller designed for industrial automation and machine control applications.
What type of outputs does TM221C24U use?
The TM221C24U uses transistor outputs, providing fast switching performance for high-speed automation applications.
What applications are suitable for TM221C24U?
It is suitable for packaging machines, assembly equipment, conveyor systems, production lines, and customized automation solutions.
Can TM221C24U support expansion modules?
Yes. The controller supports expansion modules to increase system flexibility and meet different automation requirements.
Conclusion
The Schneider TM221C24U Modicon M221 Logic Controller is a compact, flexible, and reliable PLC solution designed for modern industrial automation systems.
With high-speed signal processing, transistor output capability, analog input functions, communication features, and expansion support, it provides an efficient control platform for machine builders and automation engineers.
For packaging equipment, assembly systems, conveyor applications, and customized OEM machines, the Schneider TM221C24U helps improve operational reliability, increase production efficiency, and simplify industrial control system design.
