Product Overview

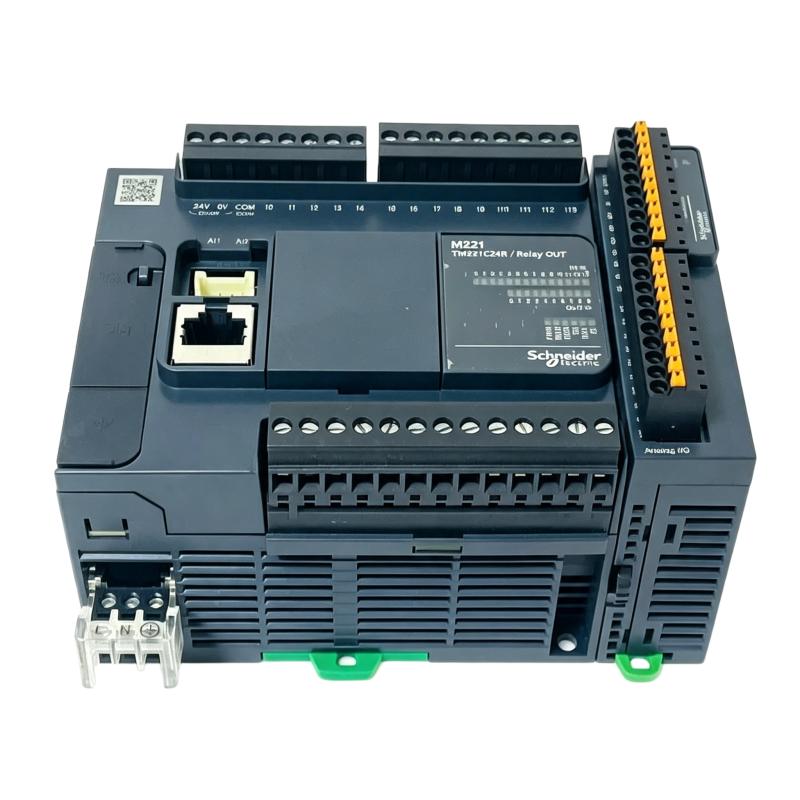

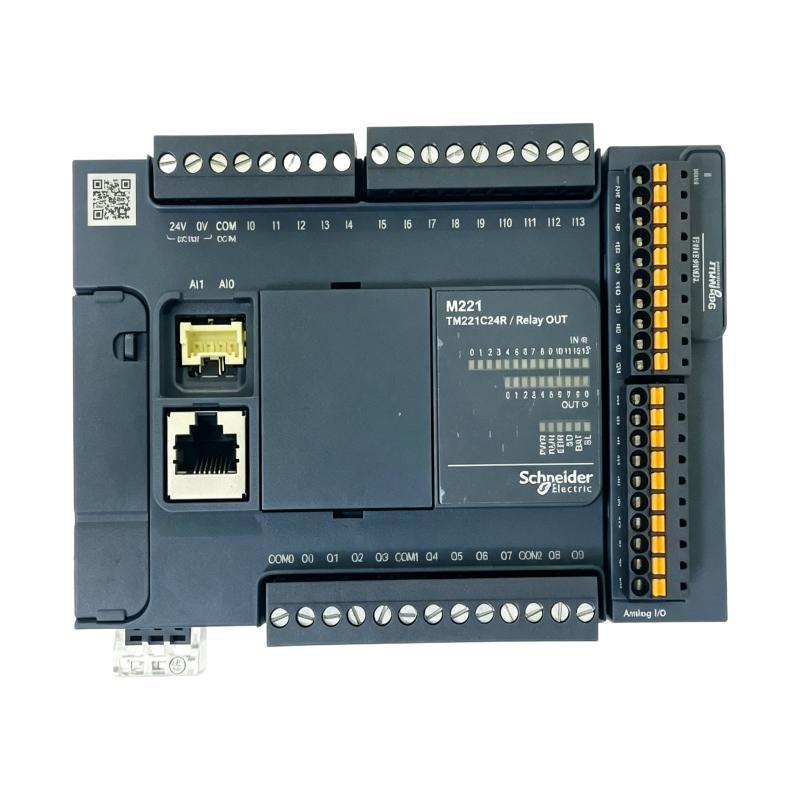

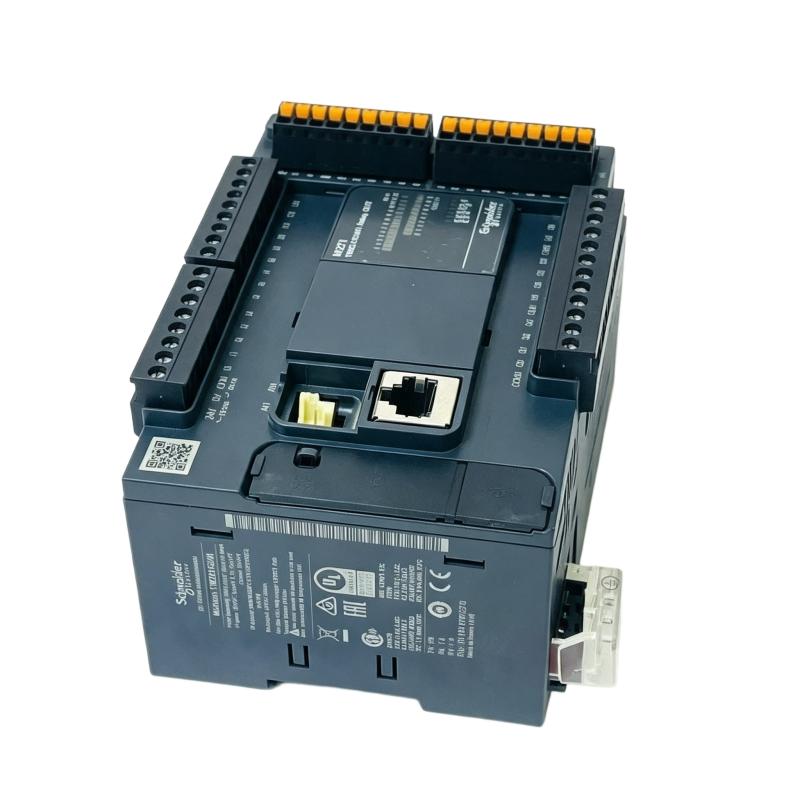

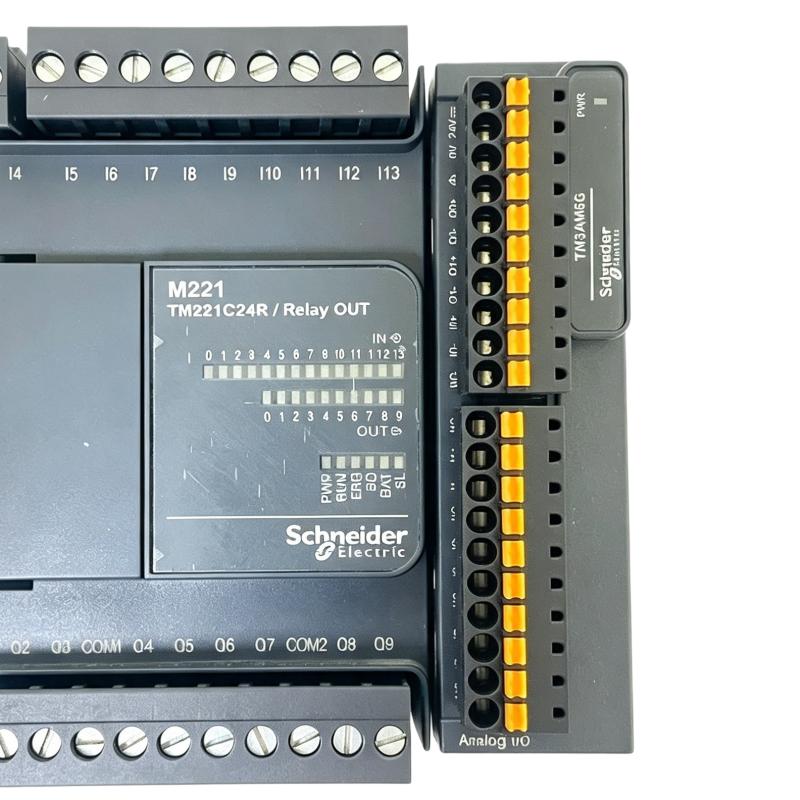

The Schneider TM221C24R Modicon M221 Logic Controller is a compact and reliable programmable logic controller designed for small and medium industrial automation applications. It provides efficient machine control, flexible I/O management, and stable processing performance for OEM equipment, automated production systems, and industrial control solutions.
As part of the Modicon M221 Logic Controller family, the TM221C24R is designed to meet the requirements of modern machine builders who need a compact PLC with reliable performance, easy integration, and flexible expansion capability.
The controller integrates digital inputs, relay outputs, analog input functions, communication capability, and expansion options. The relay output design provides compatibility with various industrial loads, making it suitable for general-purpose automation applications.
The Schneider TM221C24R is widely used in packaging machinery, conveyor systems, assembly equipment, pump control applications, material handling systems, and customized industrial machines.
With dimensions of 90 × 70 × 110 mm and a weight of 0.395 kg, the controller provides a compact solution for industrial control cabinets where installation space is limited.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Schneider Electric |
| Model | TM221C24R |
| Product Series | Modicon M221 |
| Product Type | Logic Controller / PLC |
| Application | Industrial Machine Automation |
| Digital I/O Points | 24 |
| Digital Inputs | 14 Inputs |
| Digital Outputs | 10 Relay Outputs |
| Analog Inputs | 2 Channels |
| Output Type | Relay Normally Open |
| Power Supply | 100-240V AC |
| Communication Capability | Ethernet / Serial Communication |
| Expansion Capability | Supports Expansion Modules |
| Installation Method | DIN Rail Mounting |
| Dimensions | 90 × 70 × 110 mm |
| Weight | 0.395 kg |
Function and Working Principle
The Schneider TM221C24R Modicon M221 Logic Controller operates as the central processing unit of an industrial automation system.
During machine operation, the PLC receives signals from field devices, executes the programmed control logic, and sends commands to connected output equipment.
The PLC operation process includes:
- Receiving signals from sensors and control devices
- Processing the user application program
- Executing logic control instructions
- Updating output device conditions
- Managing communication and diagnostic functions
The controller can coordinate various industrial components, including:
- Sensors
- Push buttons
- Limit switches
- Motors
- Contactors
- Solenoid valves
- Relays
- Human-machine interfaces
Through continuous processing, the TM221C24R ensures stable and accurate automation control.
Main Functions
1. Machine Logic Control
The primary function of the TM221C24R is executing automation programs for industrial machines.
Typical control functions include:
- Machine start and stop operations
- Automatic production cycles
- Sequence control
- Timing management
- Equipment interlocking
- Alarm handling
The PLC provides dependable control performance for various industrial applications.
2. Digital Input Processing
The controller provides multiple digital inputs for receiving signals from external devices.
Common input applications include:
- Proximity sensors
- Photoelectric sensors
- Emergency stop signals
- Push buttons
- Machine status feedback
The PLC processes these signals and performs programmed actions according to machine requirements.
3. Relay Output Control
The TM221C24R uses relay outputs for controlling external industrial equipment.
Typical output applications include:
- Motor contactors
- Solenoid valves
- Indicator lamps
- Control relays
- Machine actuators
Relay outputs provide flexible connection options for different industrial loads.
4. Analog Signal Monitoring
The controller supports analog input functions for basic industrial measurement tasks.
Typical applications include:
- Temperature monitoring
- Pressure measurement
- Level detection
- Sensor feedback collection
Analog processing expands the controller’s application range in automation systems.
5. Communication and Expansion Capability
The TM221C24R supports communication and expansion functions for flexible system design.
Applications include:
- HMI connection
- Industrial network communication
- Remote monitoring
- Additional I/O expansion
- Machine system integration
The expandable architecture allows the controller to adapt to different automation requirements.
Industrial Applications
Packaging Machinery
The TM221C24R is suitable for automated packaging equipment.
Applications include:
- Filling machines
- Labeling machines
- Sealing systems
- Wrapping equipment
- Conveyor control
The PLC provides reliable sequence control and improves production efficiency.
Conveyor and Material Handling Systems
The controller is commonly used for:
- Conveyor operation control
- Product detection
- Sorting systems
- Transfer equipment
- Material transportation systems
It provides stable control for continuous production processes.
Assembly Equipment
The PLC can manage automated assembly applications.
Typical uses include:
- Component assembly machines
- Inspection equipment
- Testing systems
- Production stations
The controller coordinates sensors and actuators to improve manufacturing accuracy.
Pump and Process Control
The TM221C24R is suitable for basic process automation applications.
Examples include:
- Pump control systems
- Water treatment equipment
- Ventilation systems
- Utility control systems
Installation Guide
Mechanical Installation
Recommended installation procedures:
- Install the PLC on a standard DIN rail.
- Ensure adequate ventilation space.
- Keep away from strong electromagnetic interference sources.
- Secure the controller properly.
- Confirm environmental conditions before operation.
Correct installation improves system stability and controller service life.
Electrical Wiring
Before powering the PLC, check:
- Power supply connection
- Input terminal wiring
- Output terminal wiring
- Grounding connection
- Communication cables
Recommended practices:
- Separate signal cables from power cables.
- Avoid electrical noise interference.
- Tighten all terminal connections.
- Protect cables from mechanical damage.
Programming and Commissioning
Typical commissioning steps:
- Connect the PLC to the programming system.
- Configure controller parameters.
- Create or download the application program.
- Check input and output signals.
- Test machine operation.
- Verify communication functions.
Proper commissioning ensures reliable automation performance.
Common Fault Symptoms and Troubleshooting
| Fault Symptom | Possible Cause | Recommended Solution |
|---|---|---|
| PLC cannot power on | Power supply problem | Check input voltage and wiring |
| Input signal unavailable | Sensor or cable fault | Inspect input connections |
| Output device not working | Relay output problem | Check output circuit |
| Analog signal incorrect | Sensor calibration issue | Check analog input settings |
| Communication failure | Configuration error | Verify communication parameters |
| PLC program stops | Controller or logic error | Check diagnostics and application program |
| Machine sequence abnormal | Program setting problem | Review PLC logic |
Maintenance Recommendations
To maintain reliable operation:
- Check wiring connections regularly
- Keep the control cabinet clean
- Monitor operating temperature
- Backup PLC programs
- Review diagnostic information
- Inspect connected devices
Regular maintenance helps reduce unexpected downtime and extends equipment service life.
Advantages of Schneider TM221C24R
- Compact Modicon M221 PLC design
- Reliable industrial control performance
- 24-point I/O configuration
- Flexible relay output capability
- Analog input support
- Communication integration capability
- Expansion system compatibility
- Suitable for OEM automation equipment
Technical FAQs
What is Schneider TM221C24R?
The Schneider TM221C24R is a Modicon M221 Logic Controller designed for industrial machine automation and compact PLC control applications.
What type of output does TM221C24R use?
The controller uses relay outputs suitable for controlling various industrial devices such as contactors, valves, and relays.
What applications are suitable for this PLC?
It is commonly used in packaging machines, conveyors, assembly equipment, pump systems, and customized industrial automation projects.
Can TM221C24R be expanded?
Yes. The controller supports expansion modules to increase I/O capacity and system functionality.
Conclusion
The Schneider TM221C24R Modicon M221 Logic Controller is a compact and reliable PLC solution designed for small and medium industrial automation systems.
With flexible digital I/O control, relay output capability, analog signal processing, communication functions, and expansion support, it provides an efficient automation platform for machine builders and industrial engineers.
For packaging systems, conveyor equipment, assembly machines, and customized automation applications, the Schneider TM221C24R helps improve operational reliability, simplify control system design, and enhance industrial production efficiency.
