Product Overview

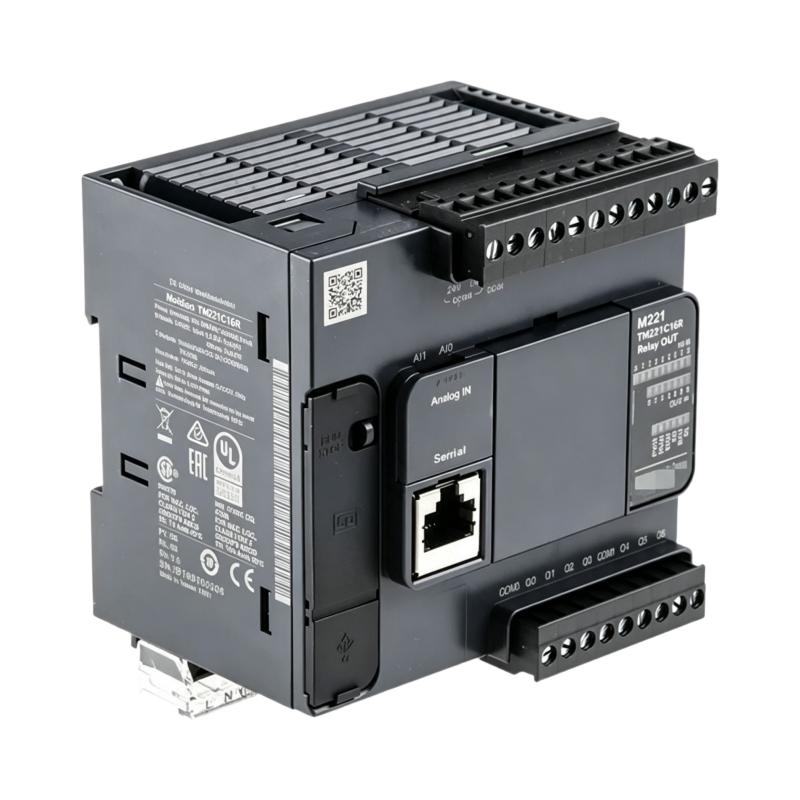

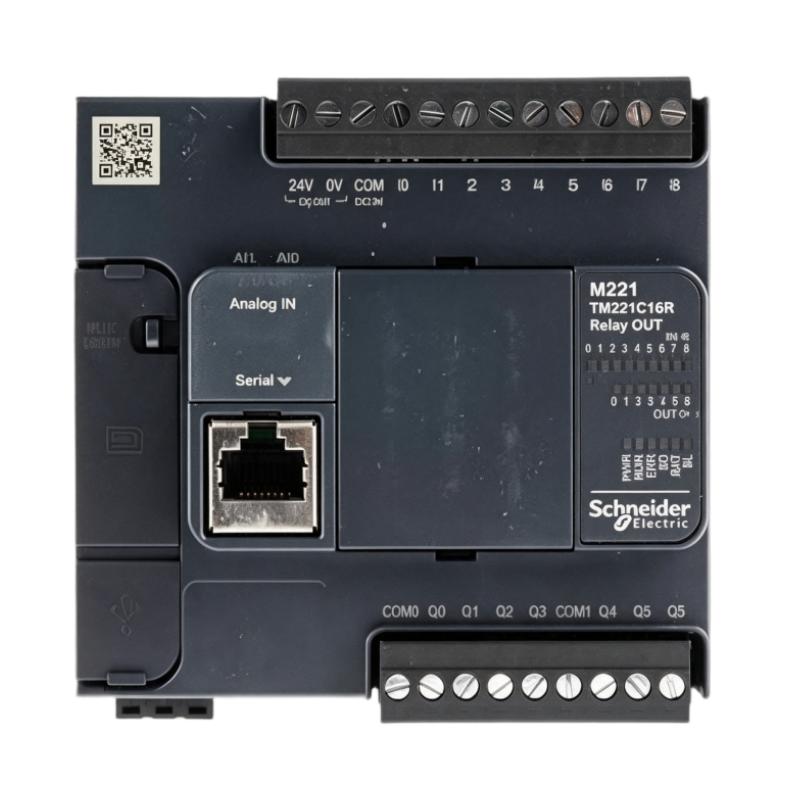

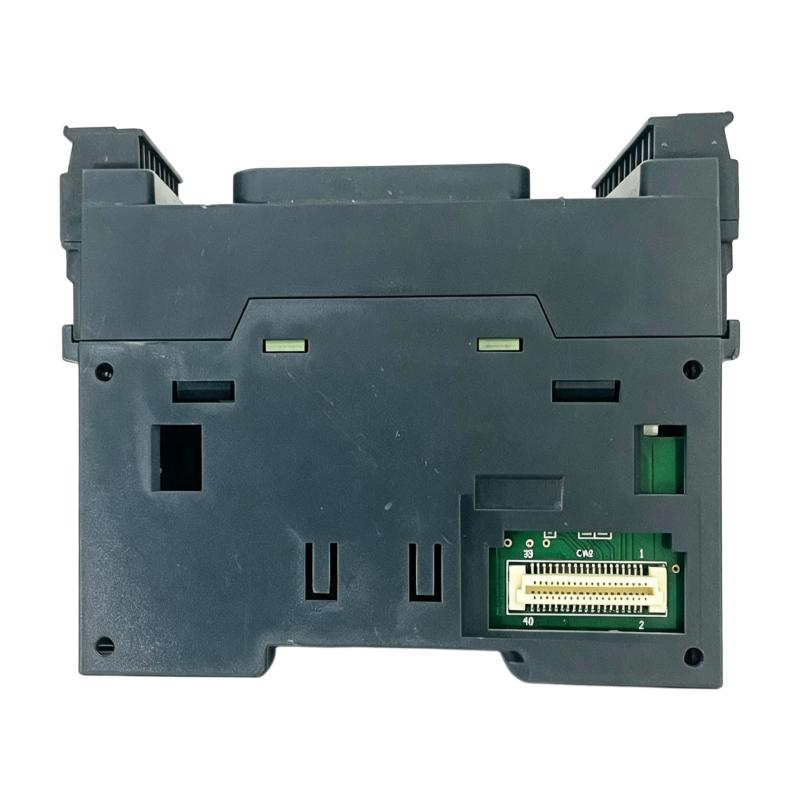

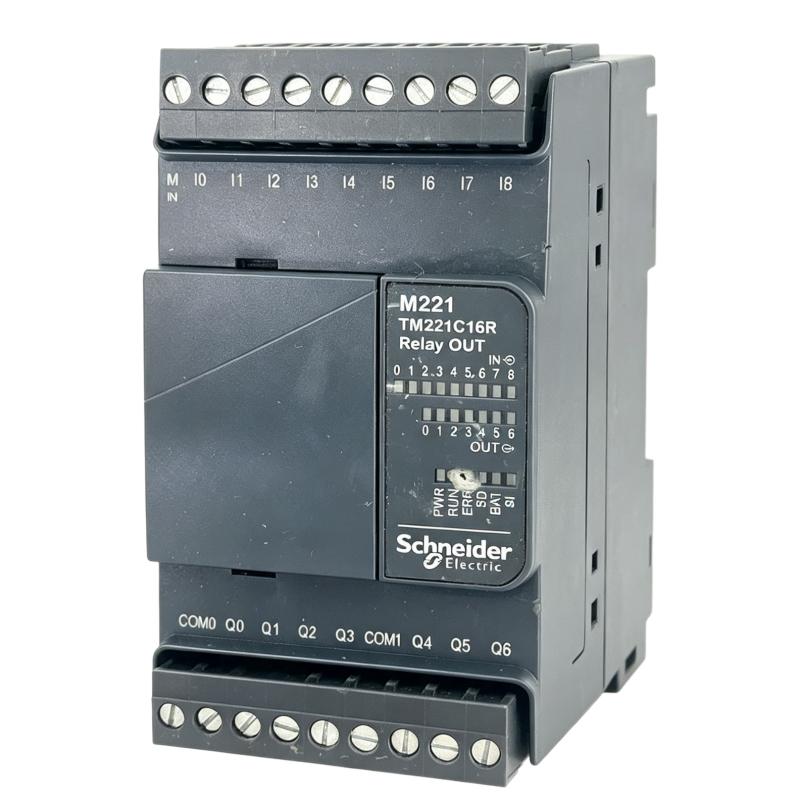

The Schneider TM221C16R Modicon M221 Logic Controller is a compact and reliable programmable logic controller designed for small and medium industrial automation applications. It provides efficient machine control, flexible I/O management, and stable processing performance for OEM equipment builders and industrial system integrators.
The Modicon M221 series is designed to meet the requirements of modern machine automation projects that require compact installation, reliable operation, and cost-effective control solutions. The TM221C16R integrates digital inputs, relay outputs, analog signal processing capability, communication functions, and expansion options to support a wide range of automation applications.
The controller is widely applied in packaging machinery, conveyor systems, assembly equipment, pumping systems, and customized industrial machines. Its compact design allows easy installation inside electrical cabinets while maintaining reliable PLC performance.
The Schneider TM221C16R features dimensions of 90 × 70 × 95 mm and a weight of 0.346 kg, making it suitable for applications where installation space is limited.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Schneider Electric |
| Model | TM221C16R |
| Product Series | Modicon M221 |
| Product Type | Logic Controller / PLC |
| Application | Machine Automation Control |
| Digital I/O Points | 16 |
| Digital Inputs | 9 |
| Digital Outputs | 7 Relay Outputs |
| Analog Inputs | Integrated Analog Input Function |
| Output Type | Relay Output |
| Communication Capability | Industrial Communication Interface |
| Expansion Capability | Supports Expansion Modules |
| Installation Method | DIN Rail Mounting |
| Dimensions | 90 × 70 × 95 mm |
| Weight | 0.346 kg |
Function and Working Principle
The Schneider TM221C16R Modicon M221 Logic Controller works as the main control unit of an automated machine system.
The PLC continuously receives signals from connected field devices, processes the programmed logic instructions, and controls external devices according to predefined automation sequences.
The basic PLC operation process includes:
- Receiving input signals from sensors and switches
- Processing the user application program
- Executing control logic operations
- Updating output device status
- Performing communication and diagnostic functions
The controller can manage various industrial components, including:
- Sensors
- Push buttons
- Limit switches
- Motors
- Solenoid valves
- Contactors
- Relays
- Human-machine interfaces
Through continuous control processing, the TM221C16R provides stable and accurate automation performance.
Main Functions
1. Compact Machine Control
The primary function of the TM221C16R is providing reliable logic control for compact industrial machines.
Typical control applications include:
- Machine start and stop control
- Automatic operating cycles
- Timing operations
- Equipment interlocking
- Sequence management
- Status monitoring
The PLC provides an efficient control solution for small and medium automation systems.
2. Digital Input Signal Processing
The controller receives digital signals from external devices and processes them according to the programmed logic.
Typical input devices include:
- Proximity sensors
- Photoelectric sensors
- Push buttons
- Limit switches
- Safety signals
Accurate input processing allows machines to respond quickly to changing operating conditions.
3. Relay Output Control
The TM221C16R provides relay outputs for controlling various industrial loads.
Common applications include:
- Motor starters
- Solenoid valves
- Indicator lights
- Control relays
- Machine actuators
Relay outputs provide flexible connection options for different types of equipment.
4. Analog Signal Monitoring
The controller supports analog signal processing for basic industrial measurement applications.
Typical uses include:
- Temperature monitoring
- Pressure detection
- Level measurement
- Sensor signal acquisition
Analog functions allow the PLC to handle simple process monitoring tasks.
5. Expansion Capability
The TM221C16R supports system expansion to meet different automation requirements.
Expansion applications include:
- Additional digital I/O
- Analog modules
- Communication modules
- Specialized automation functions
This flexibility allows the controller to adapt to changing project requirements.
Industrial Applications
Packaging Machinery
The TM221C16R is widely used in compact packaging equipment.
Applications include:
- Filling machines
- Labeling machines
- Sealing equipment
- Wrapping systems
- Conveyor control
The PLC provides reliable sequence control and improves production efficiency.
Conveyor and Material Handling Systems
The controller is suitable for material transportation applications.
Typical uses include:
- Conveyor start/stop control
- Product detection
- Sorting systems
- Transfer equipment
Assembly Equipment
The PLC can control automated assembly machines.
Applications include:
- Component assembly
- Inspection stations
- Testing equipment
- Small production lines
Pump and Facility Control
The TM221C16R can also be applied in:
- Pump control systems
- Water treatment equipment
- Ventilation systems
- Building automation equipment
Installation Guide
Mechanical Installation
Recommended installation steps:
- Install the PLC on a standard DIN rail.
- Ensure sufficient ventilation around the controller.
- Avoid strong electromagnetic interference sources.
- Secure the controller firmly.
- Confirm the installation environment meets requirements.
Proper mechanical installation improves system stability.
Electrical Wiring
Before powering the PLC, check:
- Power supply wiring
- Input terminal connections
- Output wiring
- Grounding condition
- Communication connections
Recommended practices:
- Keep signal cables separated from power cables.
- Tighten all terminal connections.
- Avoid electrical noise interference.
- Protect cables from mechanical damage.
Programming and Commissioning
Typical commissioning steps:
- Connect the PLC to the programming system.
- Configure controller parameters.
- Create or download the application program.
- Check input and output signals.
- Test machine operation.
- Verify system functions.
Proper commissioning ensures reliable automation performance.
Common Fault Symptoms and Troubleshooting
| Fault Symptom | Possible Cause | Recommended Solution |
|---|---|---|
| PLC cannot start | Power supply problem | Check voltage and wiring |
| Input signal missing | Sensor or cable failure | Inspect input connections |
| Output device inactive | Relay output fault | Check output circuit |
| Analog value incorrect | Sensor or parameter issue | Check analog configuration |
| Communication failure | Incorrect settings | Verify communication parameters |
| PLC program stops | Controller or logic error | Check diagnostics and program |
| Machine sequence abnormal | Application logic problem | Review PLC program |
Maintenance Recommendations
To maintain reliable operation:
- Check terminal connections regularly
- Keep the control cabinet clean
- Monitor operating temperature
- Backup PLC programs
- Review diagnostic information
- Inspect connected devices
Regular maintenance helps reduce downtime and extend equipment service life.
Advantages of Schneider TM221C16R
- Compact PLC structure
- Reliable Modicon M221 control platform
- Integrated digital I/O functions
- Relay output flexibility
- Analog monitoring capability
- Expandable automation solution
- Easy DIN rail installation
- Suitable for OEM automation equipment
Technical FAQs
What is Schneider TM221C16R?
The Schneider TM221C16R is a Modicon M221 Logic Controller designed for compact industrial automation and machine control applications.
What industries use the TM221C16R?
It is commonly used in packaging machines, conveyor systems, assembly equipment, pump control systems, and customized industrial machinery.
Does TM221C16R support expansion modules?
Yes. The controller can be expanded with additional modules to increase system functions.
What type of output does this PLC provide?
The TM221C16R uses relay outputs for controlling industrial devices such as valves, contactors, and control relays.
Conclusion
The Schneider TM221C16R Modicon M221 Logic Controller is a compact and dependable PLC solution for small and medium industrial automation applications.
With flexible I/O control, relay output capability, analog monitoring functions, expansion options, and a space-saving design, it provides an efficient control platform for machine builders and automation engineers.
For packaging systems, conveyor equipment, assembly machines, and customized industrial applications, the Schneider TM221C16R helps improve machine reliability, simplify automation design, and enhance production efficiency.
