Product Overview

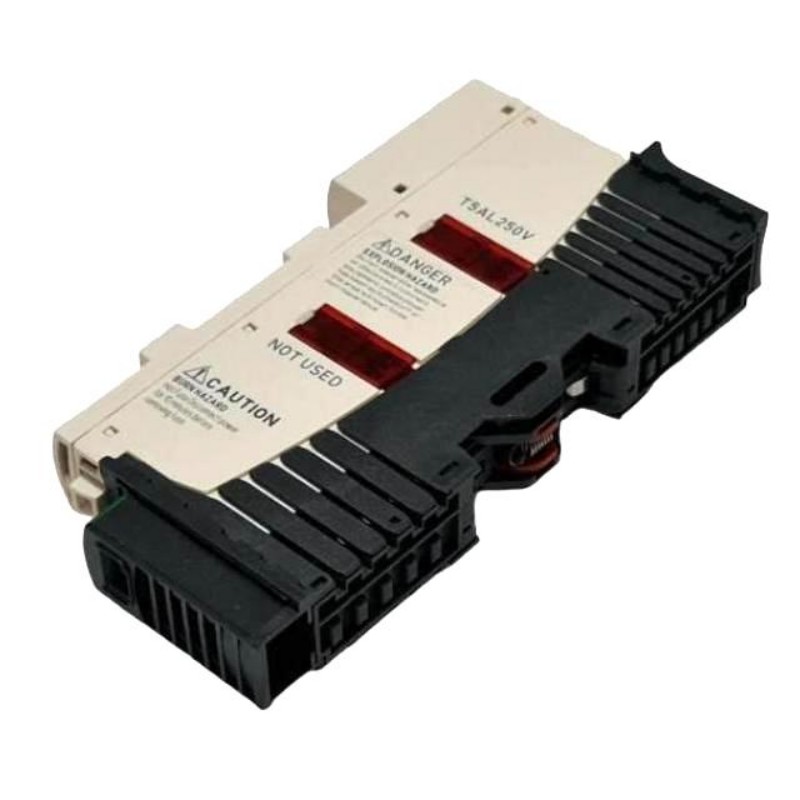

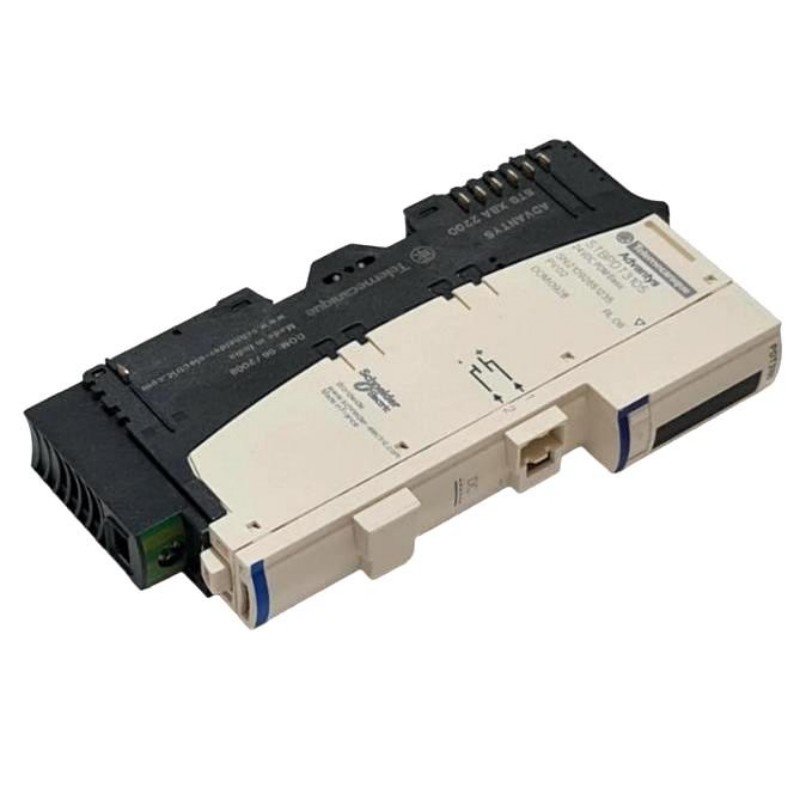

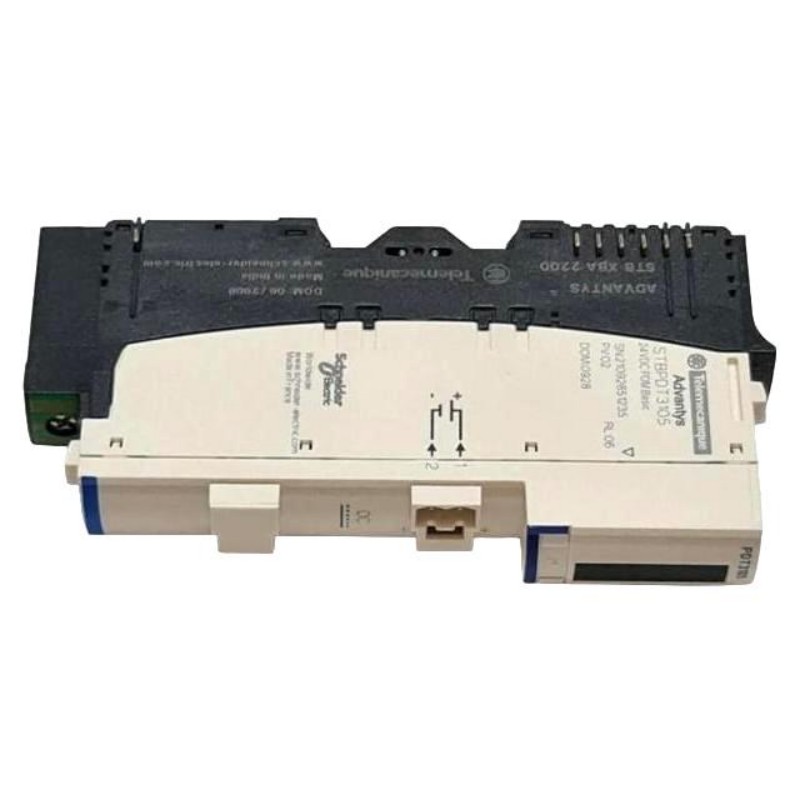

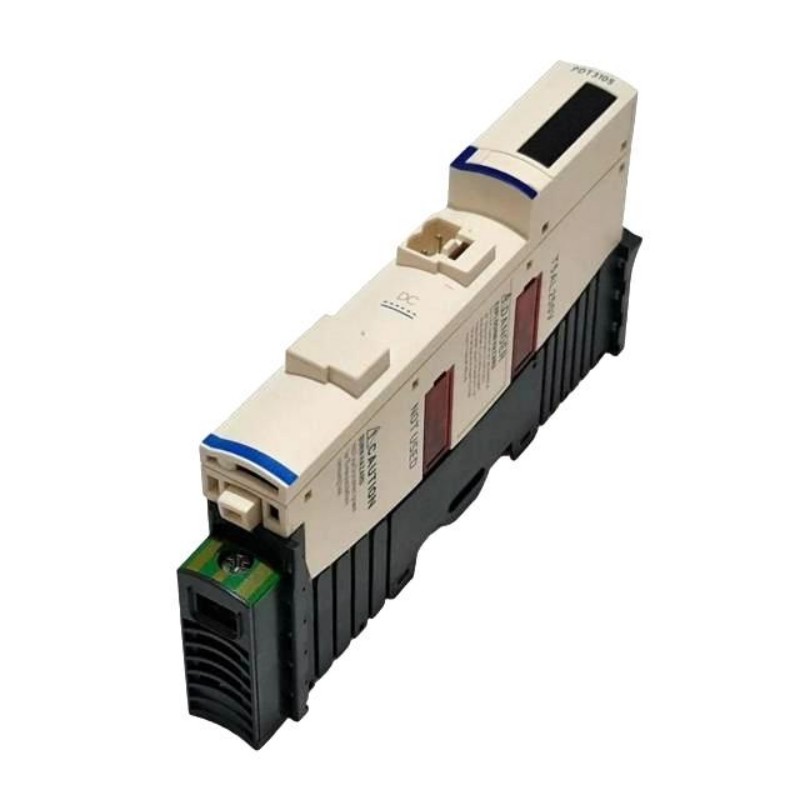

The Schneider STBPDT3105K Modicon STB Basic Power Distribution Kit is used to establish field power distribution within a Modicon STB distributed I/O island. As a kit version of the STB basic power distribution arrangement, it supports the electrical connection between the island’s power architecture and connected field devices.

In a machine control cabinet, the kit can be used with STB terminal bases and I/O modules where sensors, actuators, and other field devices require an organized power distribution path. This is especially useful in distributed I/O installations where power wiring needs to remain separate from communication and signal-processing functions.

The STBPDT3105K is a power-distribution component rather than a controller or signal-processing module. When an STB field device loses power, maintenance personnel can trace the circuit from the supply through the distribution point and terminal connections to the affected load.

Technical Specifications

Product Features

• Basic power distribution kit for Modicon STB island configurations.
• Provides a defined arrangement for distributing field power.
• Supports organized wiring for field sensors and actuators.
• Integrates with the modular STB terminal-base architecture.
• Suitable for distributed I/O stations with multiple connected field devices.
• Keeps power-distribution functions separate from the control and I/O processing layers.

Working Principle

The STBPDT3105K establishes the field-power distribution path within the STB island. Incoming field power is connected through the appropriate distribution arrangement and routed toward the field side of the associated I/O and connected devices.

The kit does not process input signals, generate output logic, or handle network communication. Those functions remain with the corresponding STB I/O and network interface modules.

For troubleshooting, a field-power problem can be followed through the complete path: incoming supply, distribution connection, terminal base, field wiring, and connected load. If several devices supplied from the same distribution path fail together, the common power path should be checked before individual I/O channels are replaced.

Role in a Modicon STB Distributed I/O Control Architecture

Industrial Applications

Installation and Maintenance

1. Confirm the system configuration: Verify that the STBPDT3105K is appropriate for the planned Modicon STB island and field-power arrangement.
2. Review the island layout: Confirm the intended location of the power distribution kit relative to the terminal bases and I/O modules.
3. Verify the incoming supply: Check the field-power source before connecting the distribution arrangement.
4. Inspect the terminal base: Ensure that the associated STB terminal base is correctly mounted and securely fixed.
5. Install the kit correctly: Confirm that the kit components are properly positioned and seated within the STB assembly.
6. Check field wiring: Inspect power conductors, terminals, and connections for looseness, incorrect routing, or physical damage.
7. Verify downstream power: Check the power path toward the connected field devices to confirm that the expected supply is available.
8. Inspect connected loads: Look for field devices or loads that may create an abnormal power condition.
9. Distinguish power faults from I/O faults: Confirm field power before troubleshooting a sensor input or actuator output channel.
10. Check adjacent STB components: Inspect neighboring modules and terminal bases for connection or installation problems.
11. Document the field-power arrangement: Keep power-distribution connections and field circuits clearly identified for maintenance work.
12. Verify replacement compatibility: Confirm the complete STBPDT3105K model and the existing STB island configuration before replacing the kit.

Compatible System Components

Recommended Related Models

Key Advantages

• Basic STB field-power distribution
• Organized power architecture
• Kit-based installation
• Suitable for distributed I/O stations
• Supports structured field wiring
• Simplifies power-path troubleshooting

Technical FAQs

What is the function of the STBPDT3105K?

The STBPDT3105K is a Modicon STB Basic Power Distribution Kit used to establish and distribute field power within an STB distributed I/O island.

Is the STBPDT3105K an I/O module?

No. It handles power distribution rather than digital or analog signal processing. The actual I/O functions are performed by the corresponding STB input and output modules.

How can a field-power fault be isolated in an STB island?

Start at the incoming field supply and trace the circuit through the power distribution arrangement, terminal connections, field wiring, and connected load. A common loss of power across several devices can help identify a fault in the shared distribution path.

What should be considered when replacing an STBPDT3105K?

The complete model number, STB island configuration, terminal-base arrangement, field-power requirements, and connected I/O should be checked. A physically similar power-distribution component is not automatically an interchangeable replacement.
