Product Overview

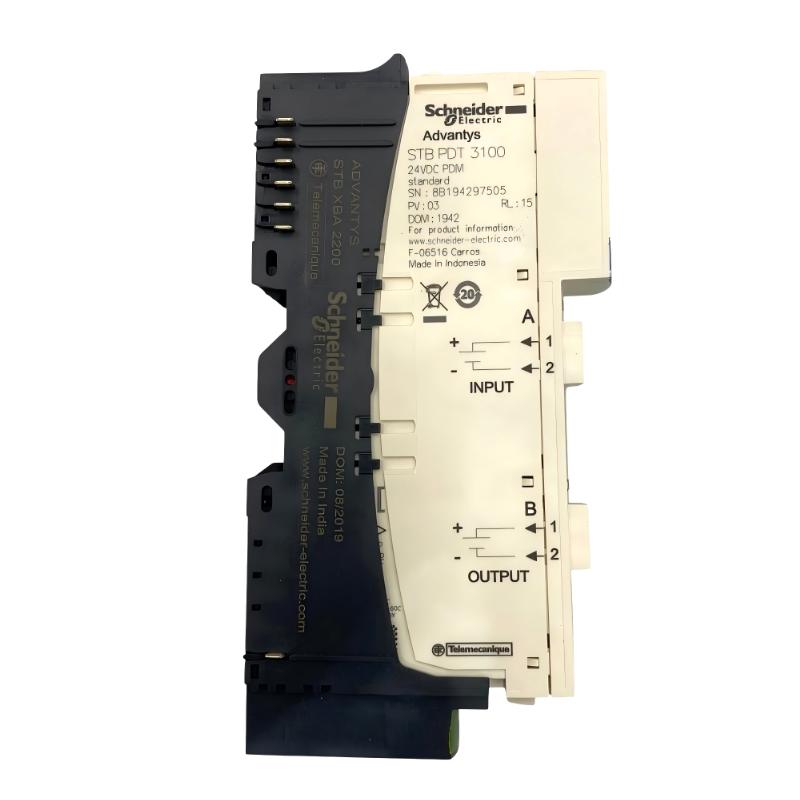

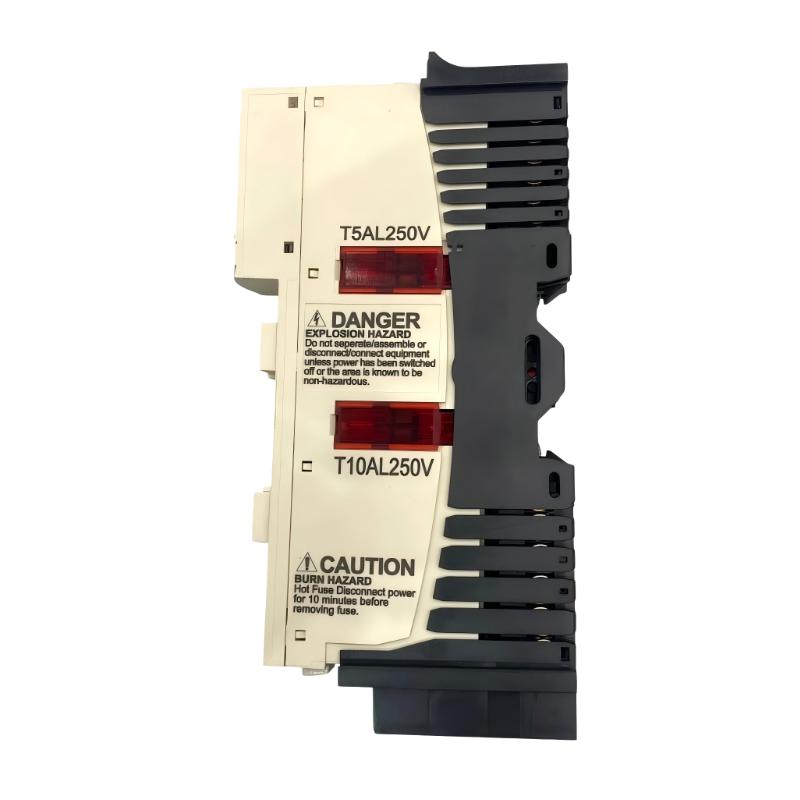

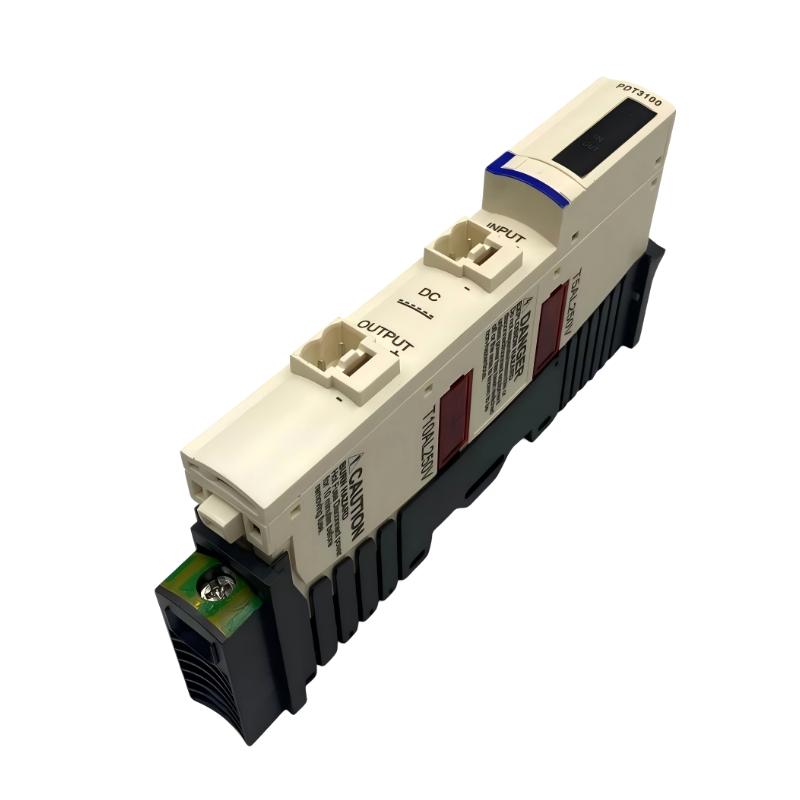

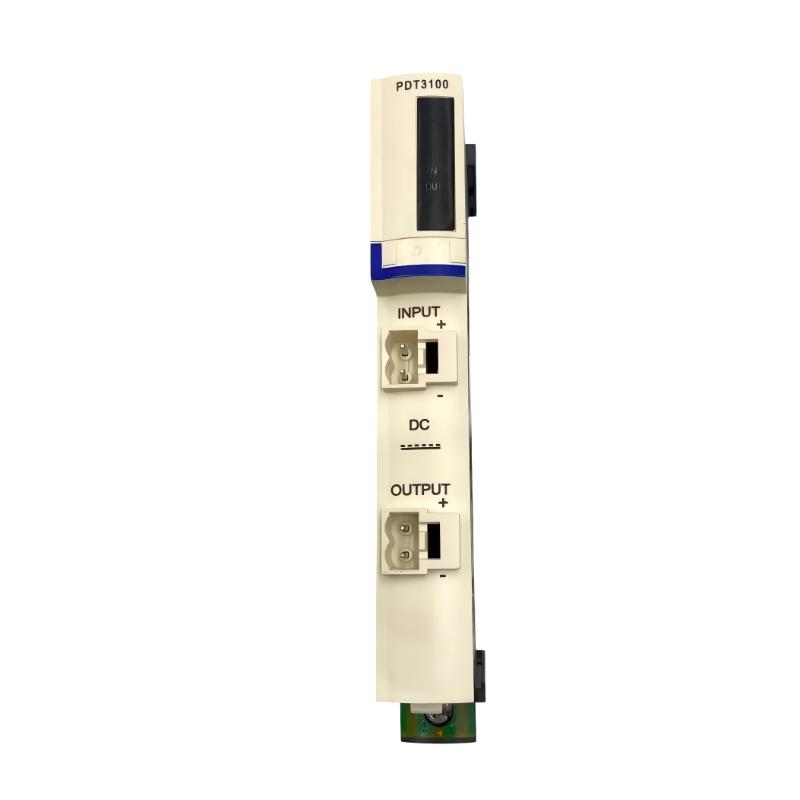

The Schneider STBPDT3100K Modicon STB Standard Power Distribution Kit is a kit version of the STB power distribution solution used to establish field power distribution within a Modicon STB distributed I/O island.
In a typical machine control panel, the kit is used alongside STB terminal bases and I/O modules to organize the power path for connected field devices. This is particularly useful in islands containing several digital or analog I/O modules, where clear separation between system power, field power, and I/O signal wiring makes commissioning and maintenance easier.
The STBPDT3100K should be viewed as part of the complete STB island assembly rather than as an independent controller or I/O processing module. When troubleshooting field-device power problems, the incoming supply, distribution connection, terminal base, downstream wiring, and connected loads should be checked as one power path.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product | Schneider STBPDT3100K |
| Product Type | Standard Power Distribution Kit |
| Series | Modicon STB |
| Function | Field Power Distribution |
| Application | STB Distributed I/O Island |
| System Role | Power Distribution for Connected Field Devices |
| Installation | Modicon STB Island |
| Dimensions | 125 × 18.4 × 65.1 mm |
| Weight | 0.13 kg |
Product Features
- Standard power distribution kit for Modicon STB island configurations.
- Provides a structured point for field-power distribution.
- Supports organized wiring for distributed sensors and actuators.
- Suitable for STB islands containing multiple I/O modules.
- Integrates with the STB terminal-base architecture.
- Kit format can simplify procurement and installation of the required power-distribution arrangement.
Working Principle
The STBPDT3100K establishes the field-power distribution function within the STB island. Power connected to the distribution arrangement is routed toward the field side of the associated STB modules and connected devices.
The kit does not execute the control program and does not replace an STB network interface or I/O module. Its purpose is to support the power distribution layer of the island.
During commissioning, field power should be verified at the distribution point and then checked progressively toward the connected devices. If multiple field devices lose power simultaneously, the distribution path is a logical starting point for diagnosis. If only one device is affected, the downstream wiring or individual load should also be considered.
Role in a Modicon STB Distributed I/O Control Architecture
| System Element | Function |
|---|---|
| STBPDT3100K Power Distribution Kit | Establishes the field-power distribution arrangement |
| STB Network Interface Module | Connects the island to the upstream control network |
| STB I/O Modules | Process digital and analog field signals |
| STB Terminal Bases | Provide mechanical mounting and electrical interconnection |
| STB Power Supply | Supplies the required island power |
| Field Sensors | Generate input signals for the I/O modules |
| Field Actuators | Receive output commands from the I/O system |
| PLC / Controller | Executes the control application |
| Industrial Network | Transfers I/O data between the controller and island |
Industrial Applications
| Application | Typical Use |
|---|---|
| Machine Automation | Organizing field power for distributed machine I/O |
| Packaging Machinery | Supporting sensor and actuator power distribution |
| Material Handling | Distributing field power across remote I/O stations |
| Process Skids | Providing structured power distribution for local STB I/O |
| Factory Automation | Supporting multi-module distributed I/O islands |
| Remote I/O Panels | Managing power close to distributed field devices |
| Mixed I/O Stations | Supporting islands containing different STB I/O module types |
| Machine Control Cabinets | Keeping field-power wiring organized within compact control panels |
Installation and Maintenance
- Confirm the kit application: Verify that the STBPDT3100K matches the intended Modicon STB island configuration and power-distribution requirements.
- Review the island layout: Check the planned position of the power distribution arrangement relative to the terminal bases and connected I/O modules.
- Verify the power source: Confirm that the incoming field supply is suitable for the connected field devices.
- Inspect the terminal base: Ensure the associated STB terminal base is correctly mounted and secured.
- Install the kit correctly: Make sure all kit components are properly seated and aligned within the STB assembly.
- Check field-power wiring: Inspect conductors and terminals for loose connections, incorrect wiring, or damaged insulation.
- Verify downstream power: Measure the field-power path at appropriate points to confirm that power reaches the connected devices.
- Check connected loads: Investigate abnormal current demand or a field device that may be causing a power interruption.
- Separate power faults from I/O faults: If a device does not respond, first determine whether field power is present before diagnosing the I/O signal channel.
- Inspect adjacent STB modules: Check neighboring modules and terminal bases for mechanical or electrical connection problems.
- Document the power arrangement: Keep field-power terminals and connected device circuits clearly identified for future maintenance.
- Use the correct kit for replacement: Verify the complete STBPDT3100K model and the required STB system configuration before replacing the kit.
Compatible System Components
| Component | Function |
|---|---|
| Modicon STB Terminal Bases | Provide mounting and electrical interconnection |
| Modicon STB Network Interface Modules | Connect the island to the control network |
| Modicon STB Digital I/O Modules | Process discrete field signals |
| Modicon STB Analog I/O Modules | Process analog field signals |
| Modicon STB Power Supply Modules | Supply power to the STB island |
| Field Sensors | Provide machine and process input signals |
| Field Actuators | Execute output commands |
| PLC / Controller | Controls the distributed I/O application |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Schneider STBPDT3100K | Modicon STB Standard Power Distribution Kit | Field-power distribution in STB island installations |
| Schneider STBPDT3100 | Modicon STB Standard Power Distribution Module | Standard field-power distribution |
| Schneider STB Power Distribution Components | Modicon STB Power Distribution Products | Organizing power within distributed I/O islands |
| Schneider STBDDI Series | Modicon STB Digital Input Modules | Connecting discrete sensors |
| Schneider STBDDO Series | Modicon STB Digital Output Modules | Controlling discrete actuators |
| Schneider STB Analog I/O Series | Modicon STB Analog I/O Modules | Processing analog process signals |
Key Advantages
- Standard STB power distribution kit
- Organized field-power architecture
- Suitable for distributed I/O islands
- Supports structured sensor and actuator wiring
- Simplifies field-power troubleshooting
- Integrates with the Modicon STB terminal-base system
Technical FAQs
What is the difference between STBPDT3100K and a standard STB I/O module?
The STBPDT3100K is a Standard Power Distribution Kit, not an input or output signal-processing module. Its function is associated with field-power distribution within the STB island.
When would a power distribution kit be used in an STB island?
It is useful when the island requires a defined field-power distribution arrangement for connected sensors, actuators, and other field devices. The exact arrangement depends on the I/O configuration and field-power requirements.
What does a simultaneous loss of power across several field devices indicate?
A common power loss across multiple devices can point toward an upstream field-power or distribution problem. The incoming supply, STBPDT3100K, terminal connections, and downstream distribution wiring should be checked before replacing individual I/O modules.
Does the STBPDT3100K replace the STB network interface module?
No. The two components have different functions. The network interface handles communication between the STB island and the upstream controller or network, while the STBPDT3100K supports the island’s field-power distribution.
