Product Overview

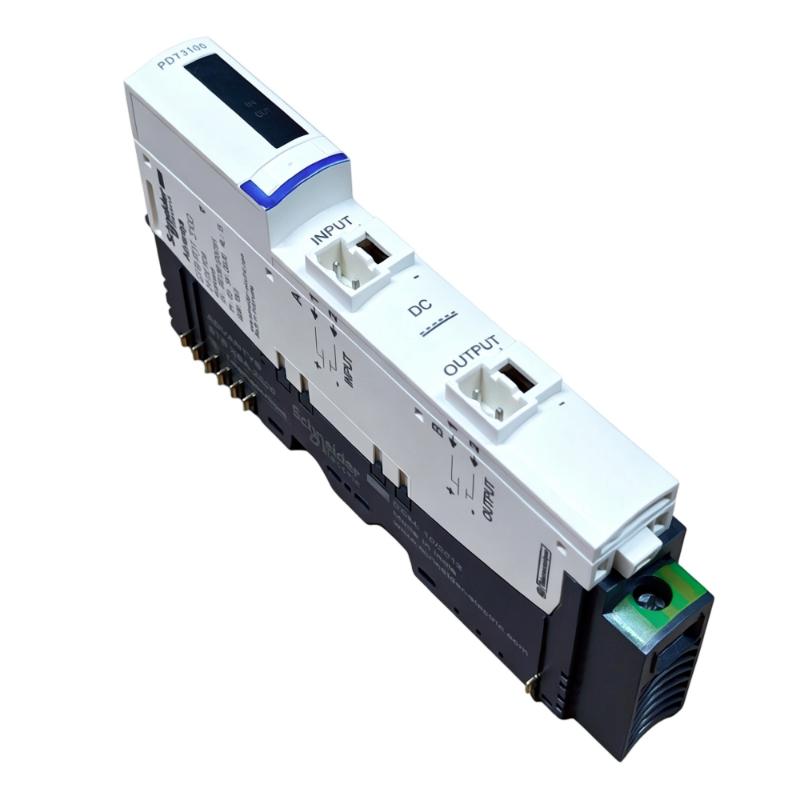

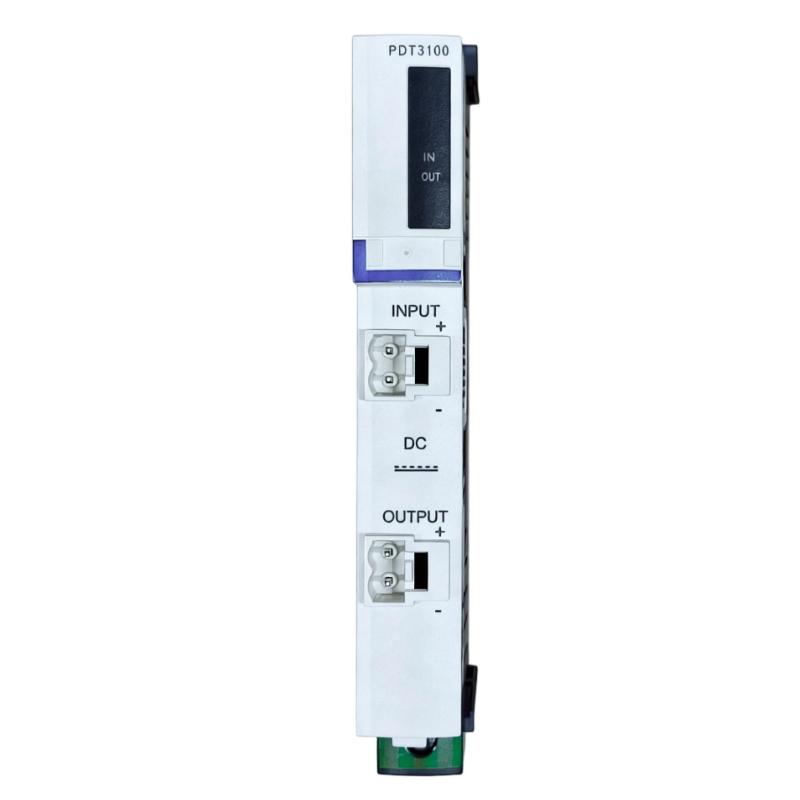

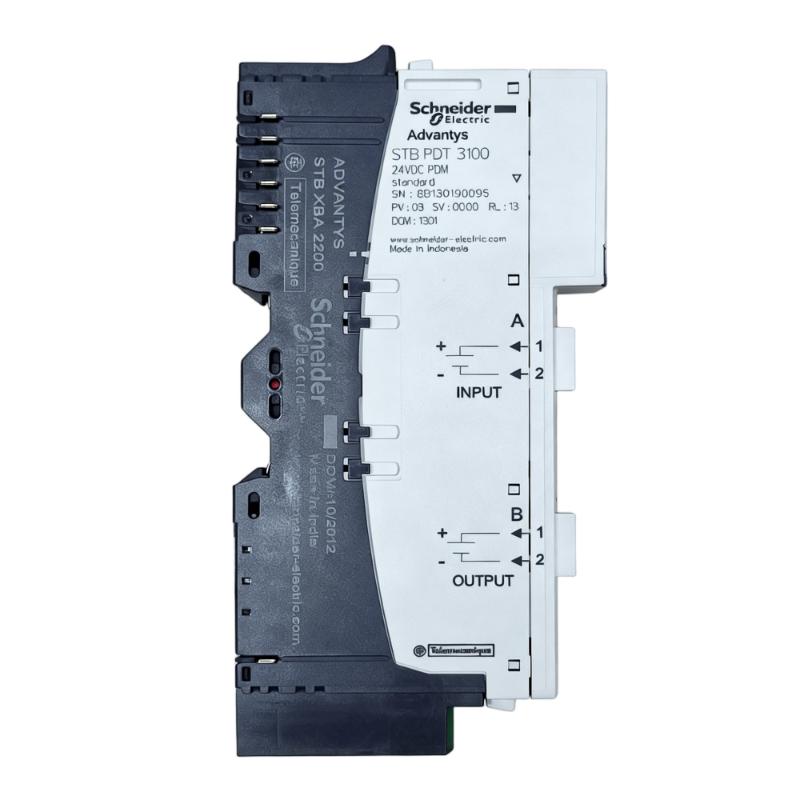

The Schneider STBPDT3100 Modicon STB Standard Power Distribution Module is used within a Modicon STB island to distribute field power to the connected I/O modules. It sits in the island architecture between the network interface section and the field I/O, providing a defined point for distributing sensor and actuator power.
In a typical STB installation, the STBPDT3100 is used when the island requires a dedicated power distribution point for field devices. It can separate the field power distribution from the logic power carried on the island bus, making the power architecture easier to organize and troubleshoot.
The module is particularly relevant in mixed I/O islands where digital and analog modules share a common STB configuration but field devices require properly managed power distribution. During commissioning, the module should be checked together with the power supply, terminals, distribution wiring, and adjacent I/O modules rather than treated as an isolated component.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product | Schneider STBPDT3100 |
| Product Type | Standard Power Distribution Module |
| Series | Modicon STB |
| Function | Field Power Distribution |
| Application | STB Distributed I/O Island |
| System Role | Power Distribution for Connected I/O and Field Devices |
| Installation | Modicon STB Island |
| Dimensions | 18.4 × 125 mm |
| Weight | 0.13 kg |
Product Features
- Standard power distribution for a Modicon STB island.
- Provides a defined point for distributing field power to connected devices.
- Supports organized power architecture within an STB I/O island.
- Suitable for installations combining multiple STB I/O modules.
- Helps separate field-device power distribution from the island’s logic communication path.
- Accessible from the island architecture for commissioning and maintenance checks.
Working Principle
The STBPDT3100 works as the field-power distribution point within the STB island. Incoming field power is connected to the appropriate distribution terminals, and the module distributes that power to the field side of the connected island modules.
The module does not perform PLC processing or I/O signal conversion. Its function is centered on power distribution. This distinction is useful during troubleshooting: an I/O channel that has lost field power should be investigated through the power supply, STBPDT3100, terminal connections, and field wiring before replacing the I/O module itself.
In a properly configured island, the power distribution module works alongside the network interface and I/O modules so that communication, logic power, field power, and device wiring can be diagnosed as separate parts of the system.
Role in a Modicon STB Distributed I/O Control Architecture
| System Element | Function |
|---|---|
| STBPDT3100 Power Distribution Module | Distributes field power within the STB island |
| STB Network Interface Module | Connects the island to the upstream fieldbus or network |
| STB I/O Modules | Process digital or analog field signals |
| STB Power Supply | Supplies the required system power |
| Terminal Bases | Provide electrical and mechanical connections for island modules |
| Field Sensors | Provide input signals to the I/O modules |
| Field Actuators | Receive output power or control signals |
| PLC / Controller | Executes the control program and exchanges data with the STB island |
| Industrial Network | Transfers I/O data between the controller and distributed island |
Industrial Applications
| Application | Typical Use |
|---|---|
| Distributed I/O Panels | Field-power distribution within compact STB island assemblies |
| Machine Automation | Supplying field devices connected to distributed I/O |
| Packaging Equipment | Supporting sensor and actuator power distribution |
| Material Handling | Organizing field power for distributed machine devices |
| Process Skids | Providing a structured power distribution point for local I/O |
| Factory Automation | Supporting multi-module STB island installations |
| Remote I/O Stations | Managing field power close to distributed devices |
| Mixed I/O Systems | Supporting islands containing multiple types of STB I/O modules |
Installation and Maintenance
- Verify the STB island architecture: Confirm that the STBPDT3100 is being installed in the appropriate position within the planned island configuration.
- Check the power source: Verify that the incoming field power matches the requirements of the connected field devices and I/O architecture.
- Inspect the terminal base: Make sure the mounting base is correctly installed and mechanically secured before inserting the module.
- Install the module correctly: Confirm that the STBPDT3100 is fully seated and properly aligned with the STB island assembly.
- Check power wiring: Inspect field-power connections for loose terminals, incorrect conductors, or damaged wiring.
- Separate power and signal troubleshooting: When an I/O device stops responding, determine whether the problem is related to field power, logic communication, or the I/O channel itself.
- Verify downstream power: Check that the expected field power reaches the connected I/O and field devices.
- Inspect adjacent modules: Check neighboring STB modules and terminal bases for installation or connection problems that could affect the island.
- Check field loads: Confirm that connected sensors and actuators are not causing abnormal loading or power interruptions.
- Inspect wiring during maintenance: Look for loose terminals, damaged insulation, corrosion, or other conditions that could cause intermittent power loss.
- Document the island power arrangement: Keep field-power connections and device assignments clearly identified for future troubleshooting.
- Use the correct replacement module: Verify the complete STBPDT3100 model and its compatibility with the existing Modicon STB island before replacement.
Compatible System Components
| Component | Function |
|---|---|
| Modicon STB Network Interface Modules | Connect the STB island to the control network |
| Modicon STB I/O Modules | Process field input and output signals |
| Modicon STB Terminal Bases | Provide module mounting and electrical interconnection |
| Modicon STB Power Distribution Components | Manage logic or field power within the island |
| STB Power Supply Modules | Supply system power for the island architecture |
| Field Sensors | Supply process and machine input signals |
| Field Actuators | Execute control commands from the I/O system |
| PLC / Controller | Coordinates the distributed I/O system |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Schneider STBPDT3100 | Modicon STB Standard Power Distribution Module | Field power distribution within an STB island |
| Schneider STB Power Distribution Modules | Modicon STB Power Distribution Components | Managing power for distributed I/O installations |
| Schneider STBDDI Series | Modicon STB Digital Input Modules | Connecting discrete field sensors |
| Schneider STBDDO Series | Modicon STB Digital Output Modules | Controlling discrete field actuators |
| Schneider STB Analog I/O Modules | Modicon STB Analog I/O Modules | Processing process-variable signals |
| Schneider STBNI Series | Modicon STB Network Interface Modules | Connecting STB islands to industrial networks |
Key Advantages
- Dedicated field-power distribution
- Clear STB island power architecture
- Suitable for distributed I/O installations
- Supports organized sensor and actuator wiring
- Simplifies power-path troubleshooting
- Compact integration within the Modicon STB system
Technical FAQs
What is the primary function of the STBPDT3100?
The STBPDT3100 is a Modicon STB Standard Power Distribution Module used to distribute field power within an STB distributed I/O island.
Does the STBPDT3100 process digital or analog I/O signals?
No. It is a power distribution module rather than a digital or analog I/O module. Signal processing is handled by the corresponding STB I/O modules installed in the island.
What should be checked if an STB field device loses power?
Check the incoming field power, STBPDT3100 connections, terminal base, downstream wiring, and connected loads. If field power is present but the I/O signal remains abnormal, the corresponding I/O channel and network communication should then be checked.
Why is a power distribution module useful in a multi-module STB island?
It provides a defined point for field-power distribution, making the island’s power and wiring arrangement easier to organize. It also gives maintenance personnel a clear location to inspect when diagnosing field-power problems.
