Product Overview

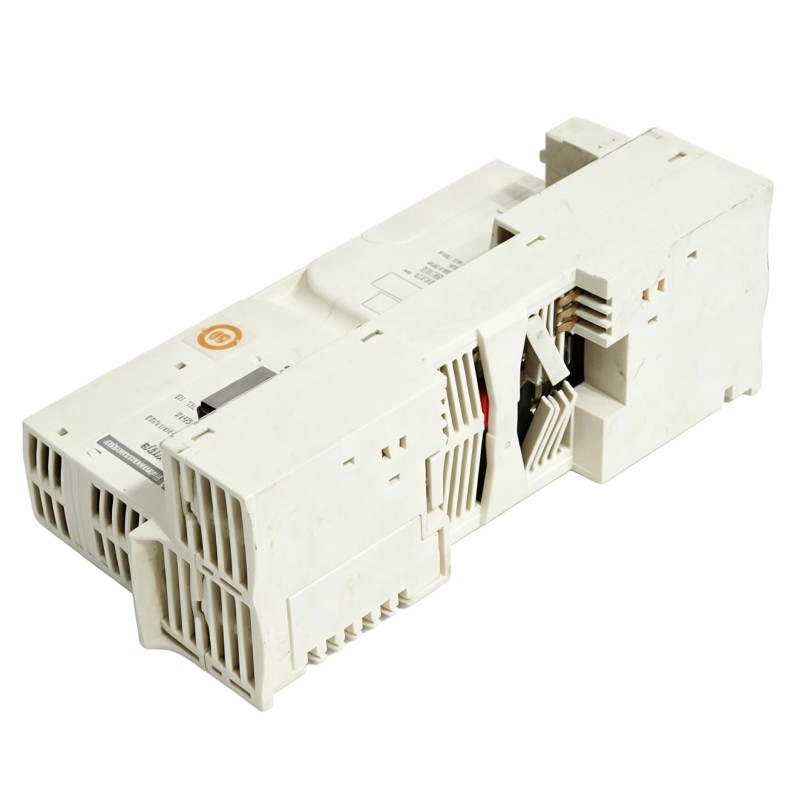

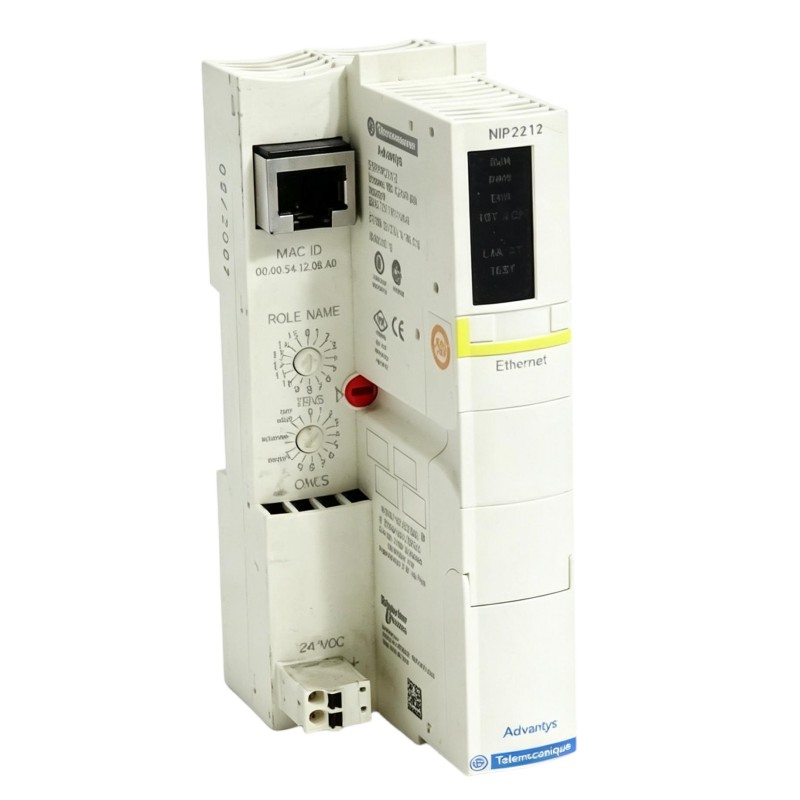

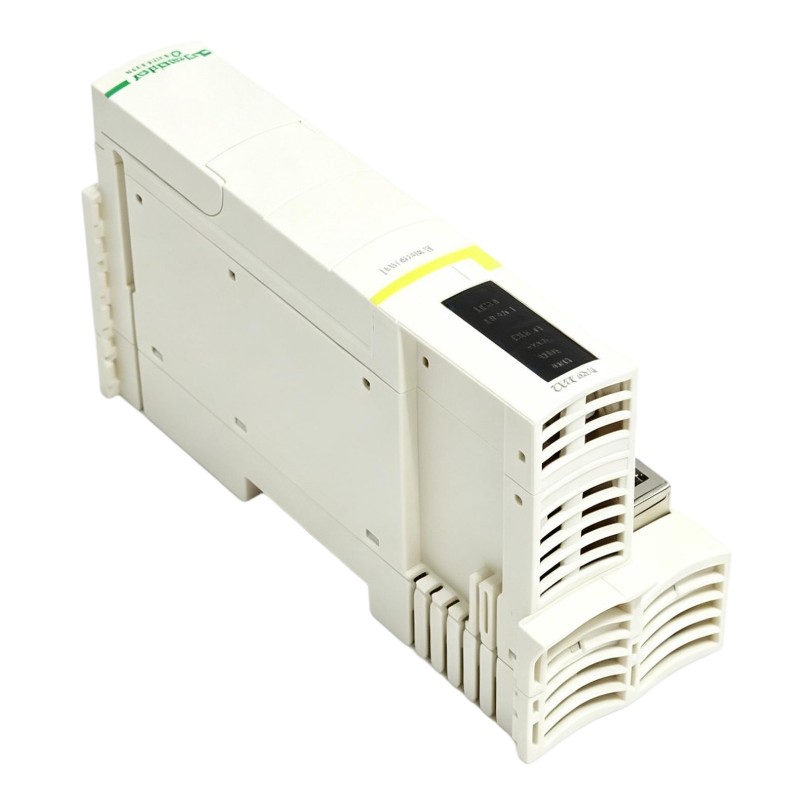

The Schneider STBNIP2212 Modicon STB Standard Network Interface Module serves as the communication interface between an STB island and the upstream control system. It sits at the network level of the distributed I/O architecture, allowing the controller to exchange process data with the STB island while the local I/O modules handle field signals.
In a typical machine or process installation, the STBNIP2212 is mounted at the head of an STB island, followed by power distribution and I/O modules. Digital and analog modules collect signals from field devices or drive field actuators, while the network interface manages the exchange of I/O data with the controller.
This separation makes the module useful in distributed control architectures where the I/O is installed close to machines, production equipment, or process instruments instead of being concentrated inside the main controller cabinet.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product | STBNIP2212 |
| Product Family | Modicon STB |
| Product Type | Standard Network Interface Module |
| Application | Distributed I/O network interface |
| System Role | Interface between the STB island and the upstream controller/network |
| Installation | STB island architecture |
| Dimensions | 70 × 128.3 × 40.5 mm |
| Weight | 0.13 kg |
Product Features
- Functions as the network-level interface for a Modicon STB distributed I/O island.
- Supports communication between the upstream control system and local STB I/O modules.
- Separates network communication from field-level signal acquisition and output switching.
- Works with modular STB island architectures containing digital and analog I/O.
- Suitable for distributed machine and process automation layouts.
- Compact construction helps keep distributed I/O stations close to the controlled equipment.
- Provides a central communication point for the modules installed on the associated STB island.
Working Principle
The STBNIP2212 operates at the boundary between the control network and the local STB I/O island. The upstream controller sends output data to the network interface, which makes the corresponding data available to the appropriate STB output modules. Input modules return field status and measurement data through the island interface toward the controller.
For example, a PLC may command a motor contactor through an STB digital output module. The controller sends the output state through the network connection to the STBNIP2212, the island distributes that information to the corresponding output module, and the output module switches the field circuit.
The reverse path is used for field feedback. A proximity switch, limit switch, pressure transmitter, or other instrument connected to an STB input module produces input data that travels through the island and STBNIP2212 before reaching the controller.
When troubleshooting, the communication path should be considered separately from the field I/O path. A complete loss of communication with several STB modules can point toward the network interface, island power, network connection, or configuration rather than an individual input or output channel.
Role in a Modicon STB Distributed I/O Control Architecture
| System Element | Function |
|---|---|
| PLC / Controller | Executes the application logic and exchanges process data with the distributed I/O |
| Control Network | Carries I/O data between the controller and the distributed STB island |
| STBNIP2212 | Provides the network interface for the STB island |
| STB Power Distribution | Supplies the required power to the island and connected modules |
| Digital Input Modules | Acquire discrete signals from switches, sensors, and interlocks |
| Digital Output Modules | Control discrete field loads such as relays, contactors, and solenoids |
| Analog I/O Modules | Interface with continuous process measurements and control signals |
| Terminal Bases | Provide the physical connection and mounting interface for STB modules |
| Field Devices | Provide process feedback or receive commands from the control system |
Industrial Applications
| Application | Typical Use |
|---|---|
| Machine Automation | Distributed control of sensors, switches, actuators, and machine interlocks |
| Packaging Equipment | Local I/O connection for conveyors, sensors, valves, and machine actuators |
| Material Handling | Distributed monitoring and control of motors, position sensors, and safety-related interlocks |
| Process Automation | Collection and distribution of field signals around process equipment |
| Water and Wastewater | Distributed I/O for pumps, valves, level devices, and monitoring instruments |
| Manufacturing Lines | Localized I/O stations positioned near production equipment |
| Building and Utility Systems | Distributed monitoring and control of equipment and auxiliary systems |
Installation and Maintenance
- Confirm the STB island architecture
Verify that the STBNIP2212 is being installed as the network interface for the intended STB island configuration. - Check module positioning
Install the network interface in the correct position at the head of the island before the associated STB modules. - Inspect the mounting connection
Make sure the module is properly seated and mechanically secured to the adjacent STB components. - Verify network wiring
Inspect the network cable, connector, routing, and termination for loose connections or physical damage. - Check island power
Confirm that the STB island has the required power distribution and that the power connections are secure. - Review controller configuration
Make sure the controller project recognizes the intended STB network interface and connected I/O architecture. - Check I/O addressing
Verify that the controller’s I/O mapping corresponds to the actual order and configuration of the STB modules. - Inspect adjacent modules
If several I/O points become unavailable at the same time, inspect the network interface and island connections before replacing individual I/O modules. - Check communication status
Use the available status indicators and controller diagnostics to determine whether the problem is located on the network side or within the local island. - Maintain clean connections
Keep connectors, terminal areas, and the cabinet environment free from contamination that could affect electrical contact or communication. - Document module replacement
Record the original module position and configuration before replacement so that the new installation can be checked against the existing system. - Verify the complete I/O path after maintenance
After installation or replacement, confirm controller communication, input status, output operation, and field-device response before returning the equipment to normal operation.
Related Components
| Component | Function |
|---|---|
| Modicon STB Digital Input Modules | Acquire discrete signals from field switches and sensors |
| Modicon STB Digital Output Modules | Control discrete field devices |
| Modicon STB Analog Input Modules | Acquire continuous process measurements |
| Modicon STB Analog Output Modules | Provide analog control signals to field equipment |
| STB Power Distribution Modules | Distribute required power within the island |
| STB Terminal Bases | Provide mounting and electrical connection for STB modules |
| PLC / Controller | Executes control logic and exchanges process data with the STB island |
| HMI / SCADA System | Provides operator visualization and supervisory control |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Schneider STBNIP2212 | Modicon STB Standard Network Interface Module | Distributed STB I/O communication |
| Schneider STBNIB2212 | Modicon STB Standard Network Interface Module | STB island network interface applications |
| Schneider STBDDI3610 | Modicon STB Standard Digital Input Module | Discrete field signal acquisition |
| Schneider STBDDO3600 | Modicon STB Standard Digital Output Module | Discrete actuator control |
| Schneider STBAVI1255 | Modicon STB Basic Analog Input Module | Analog process signal acquisition |
| Schneider STBACO0220 | Modicon STB Standard Analog Output Module | Analog field control |
| Schneider STBCPS2111 | Modicon STB Auxiliary Power Supply | Additional island power distribution |
Key Advantages
- Provides a dedicated communication interface for an STB distributed I/O island.
- Supports localized I/O installation close to machines and process equipment.
- Keeps network communication separate from individual field I/O functions.
- Simplifies the organization of modular distributed I/O stations.
- Helps isolate network-level problems from individual I/O channel faults during troubleshooting.
Technical FAQs
What is the role of the Schneider STBNIP2212 in an STB island?
The STBNIP2212 functions as the network interface for the STB island. It handles the exchange of I/O data between the upstream controller and the local STB modules, while the individual I/O modules handle field signal acquisition and output control.
What should be checked if the controller cannot communicate with the entire STB island?
Start with the network connection and the STBNIP2212 status, then check island power, module seating, controller configuration, and I/O mapping. If multiple STB modules become unavailable simultaneously, investigate the common network and island infrastructure before replacing individual I/O modules.
Can the STBNIP2212 directly control field devices?
The STBNIP2212 itself is a network interface rather than a field output module. Field devices such as contactors, solenoids, valves, and indicators are normally connected through the appropriate STB output modules.
What is the difference between the STBNIP2212 and an STB I/O module?
The STBNIP2212 operates at the network interface level of the STB island, providing communication with the upstream controller. Digital and analog STB I/O modules operate at the field level, acquiring input signals or controlling output devices.
