Product Overview

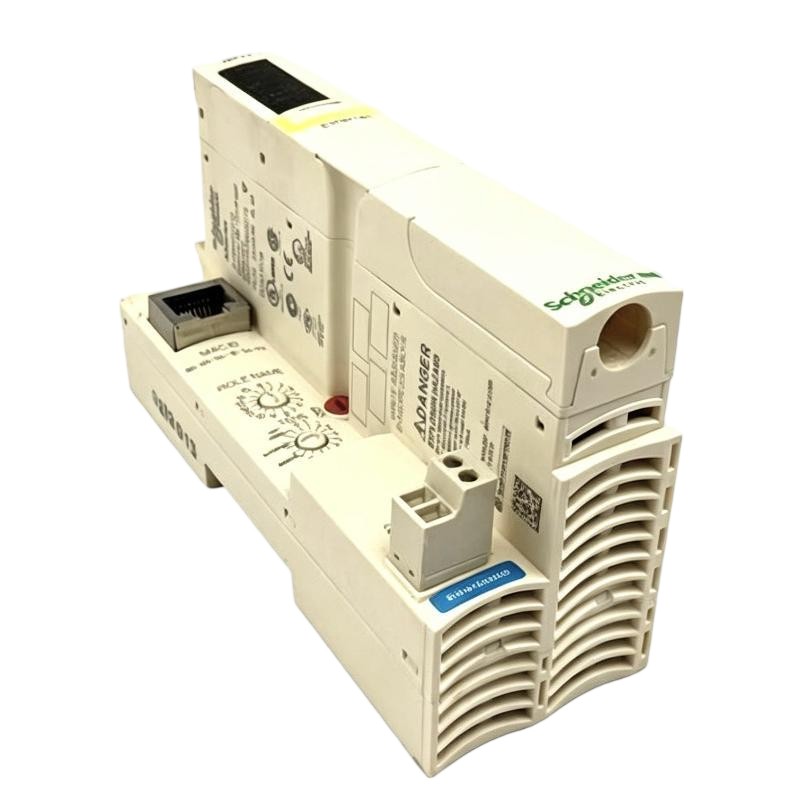

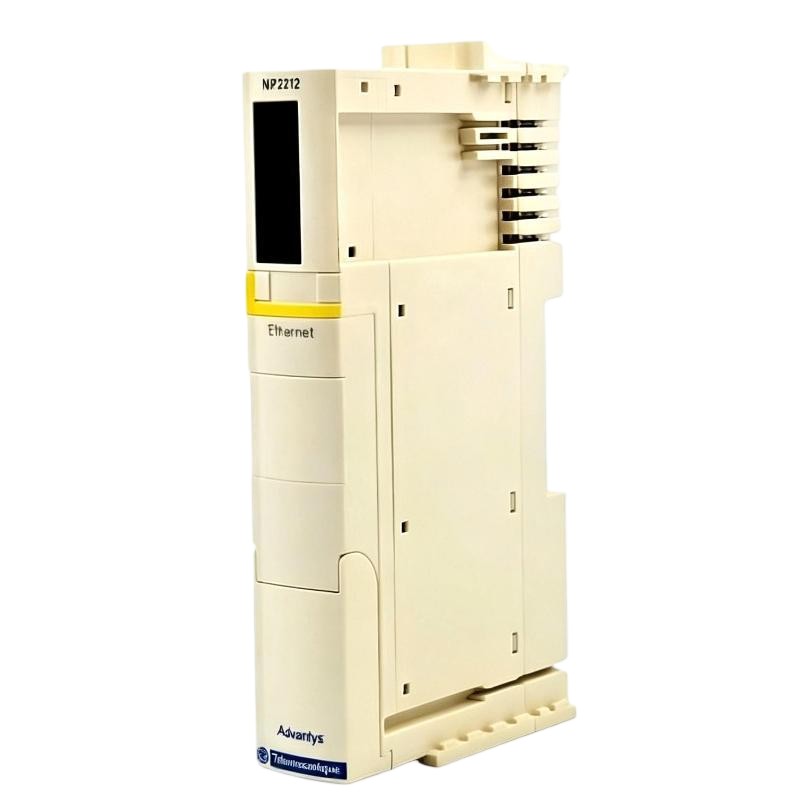

The Schneider STBNIB2212 Modicon STB Standard Network Interface Module is the communication interface for a Modicon STB distributed I/O island. It connects the STB island to the associated fieldbus or network and provides the communication path between the island’s I/O modules and the control system.
Unlike an I/O module, the STBNIB2212 does not directly acquire process signals or switch field loads. Its role is at the network level: it exchanges I/O data with the controller while coordinating communication with the modules installed on the STB island.
In a distributed machine or process control cabinet, this arrangement allows digital and analog I/O modules to be located close to field devices while the controller remains elsewhere in the automation architecture. Correct network configuration, island addressing, power distribution, and module arrangement are therefore important when installing or replacing the STBNIB2212.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | STBNIB2212 |
| Product Family | Modicon STB |
| Product Type | Standard Network Interface Module |
| Application | STB distributed I/O network communication |
| Installation | Modicon STB I/O island |
| Communication Role | Interface between STB island and control network |
| Dimensions | 44 × 73 × 130 mm |
| Weight | 0.163 kg |
Product Features
- Standard network interface for Modicon STB distributed I/O
- Provides communication between the STB island and the control system
- Coordinates I/O data exchange across the island
- Supports modular STB distributed I/O architectures
- Separates network communication from individual field I/O functions
- Suitable for machine and process automation installations
- Provides a central communication point for the associated STB island
Working Principle
The STBNIB2212 sits at the head of the Modicon STB I/O island. The controller communicates with the network interface, while the network interface exchanges I/O data with the modules installed on the island.
Input information collected by STB input modules travels through the island to the network interface and then to the controller. In the opposite direction, controller output commands are transferred through the network interface to the appropriate digital or analog output modules.
This makes the network interface an important diagnostic point. If an entire STB island becomes unavailable, checking the network interface, island power, communication connection, and module configuration is more appropriate than immediately replacing individual I/O modules.
Role in a Modicon STB Control Architecture
| System Element | Function |
|---|---|
| PLC / Controller | Executes application logic and exchanges I/O data with the STB island |
| Control Network | Carries communication between the controller and distributed I/O |
| STBNIB2212 | Provides the network interface for the Modicon STB island |
| STB I/O Modules | Acquire input signals and generate output signals |
| STB Terminal Bases | Provide physical connections for installed I/O modules |
| STB Power Distribution | Supplies the required logic and field power |
| Field Devices | Provide measurements, status signals, and control loads |
| HMI / SCADA | Provides operator monitoring, alarms, and control functions |
The STBNIB2212 is positioned between the control network and the local STB I/O island. Its condition can therefore affect communication with multiple I/O modules simultaneously.
Industrial Applications
| Application | Typical Use |
|---|---|
| Machine Automation | Connecting distributed STB I/O to a machine controller |
| Packaging Equipment | Network interface for localized machine I/O |
| Material Handling | Communication with distributed conveyor and actuator I/O |
| Process Automation | Connecting remote field I/O to the control system |
| Water and Wastewater | Distributed pump, valve, and monitoring I/O |
| General Industrial Automation | Communication interface for modular STB I/O islands |
Installation and Maintenance
- Verify the module model — Confirm that STBNIB2212 is the correct network interface for the intended STB architecture.
- Check network compatibility — Verify that the communication network and controller configuration are compatible with the selected interface module.
- Inspect the module — Check the housing, connectors, terminals, and mounting points for physical damage.
- Isolate system power — Follow the approved electrical isolation procedure before removing or installing the network interface.
- Confirm island configuration — Check the STB module sequence, terminal bases, power distribution, and end-of-island arrangement.
- Verify network wiring — Inspect communication cables, connectors, shielding, and termination where applicable to the installed network.
- Check power connections — Confirm that the network interface and associated STB island receive the required operating power.
- Verify addressing and configuration — Ensure that the network address, I/O configuration, and controller configuration correspond to the actual STB island.
- Check island communication — Review network interface status and diagnostic indicators before replacing individual I/O modules.
- Inspect downstream modules — If communication is unstable, check the adjacent I/O modules, terminal bases, and island connections for loose or damaged connections.
- Test I/O data exchange — Confirm that input values reach the controller and that output commands reach the appropriate STB modules.
- Document network settings — Record the interface model, network configuration, island layout, and maintenance findings for future troubleshooting.
Related Components
| Component | Function |
|---|---|
| Modicon STB Digital Input Modules | Acquire discrete field signals |
| Modicon STB Digital Output Modules | Control discrete field devices |
| Modicon STB Analog Input Modules | Acquire analog process signals |
| Modicon STB Analog Output Modules | Generate analog control signals |
| STB Terminal Bases | Provide module mounting and field connections |
| STB Power Distribution Components | Supply logic and field power |
| PLC / Controller | Executes control logic and exchanges I/O data |
| HMI / SCADA | Provides operator monitoring and control |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Schneider STBDDI3610 | Modicon STB Standard Digital Input Module | Standard discrete input acquisition |
| Schneider STBDDO3600 | Modicon STB Standard Digital Output Module | Standard discrete output control |
| Schneider STBDDO3705 | Modicon STB Digital Output Basic Module | Basic discrete output control |
| Schneider STBACO0220 | Modicon STB Standard Analog Output Module | Analog process and actuator control |
| Schneider STBAVI1255 | Modicon STB Basic Analog Input Module | Basic analog signal acquisition |
| Schneider STBCPS2111 | Modicon STB Auxiliary Power Supply | Additional power distribution within STB islands |
| Modicon STB Network Interface Modules | STB Network Interface | Distributed I/O network communication |
Key Advantages
- Provides a central communication interface for an STB I/O island
- Connects distributed I/O with the control system
- Supports modular STB island architectures
- Simplifies localized field I/O installation
- Provides a useful diagnostic point for island-wide communication problems
Technical FAQs
What is the main function of the STBNIB2212?
The STBNIB2212 is a Modicon STB Standard Network Interface Module. It provides the communication path between the STB distributed I/O island and the associated control network.
Is the STBNIB2212 an input or output module?
No. It is a network interface module rather than a field I/O module. Digital and analog STB I/O modules perform the actual field signal acquisition and output functions.
What does it mean if the entire STB island loses communication?
A complete island communication loss should first be investigated at the network interface, power supply, network connection, configuration, and island-level connections. Since the network interface communicates with multiple I/O modules, a common interface or power problem can affect the entire island.
What should be checked before replacing an STBNIB2212?
Check the network connection, power supply, communication configuration, addressing, module arrangement, diagnostic indicators, and downstream STB connections. Confirm that the fault follows the network interface rather than originating elsewhere in the island.
