Product Overview

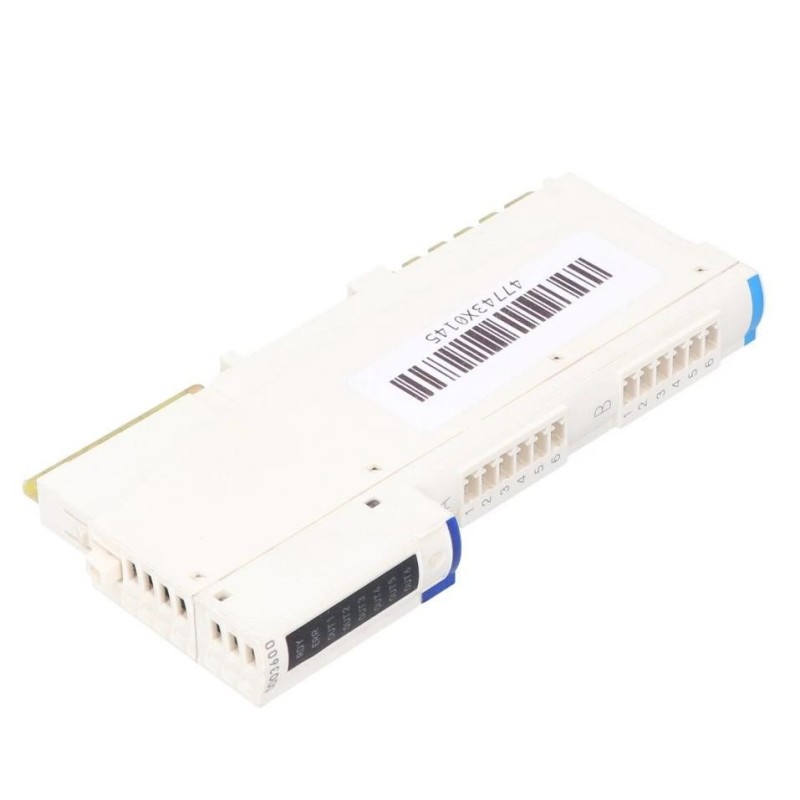

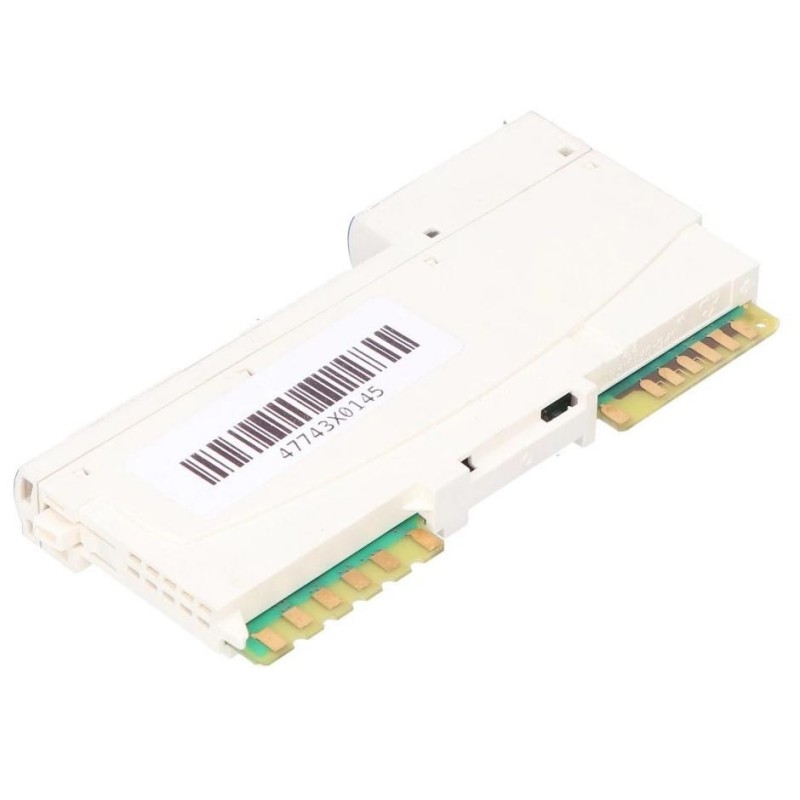

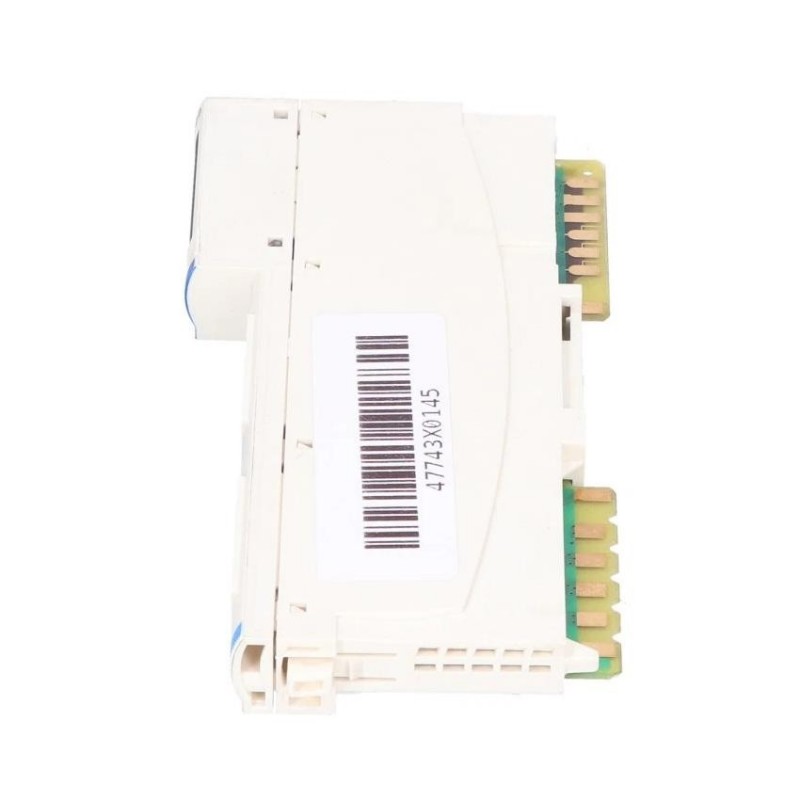

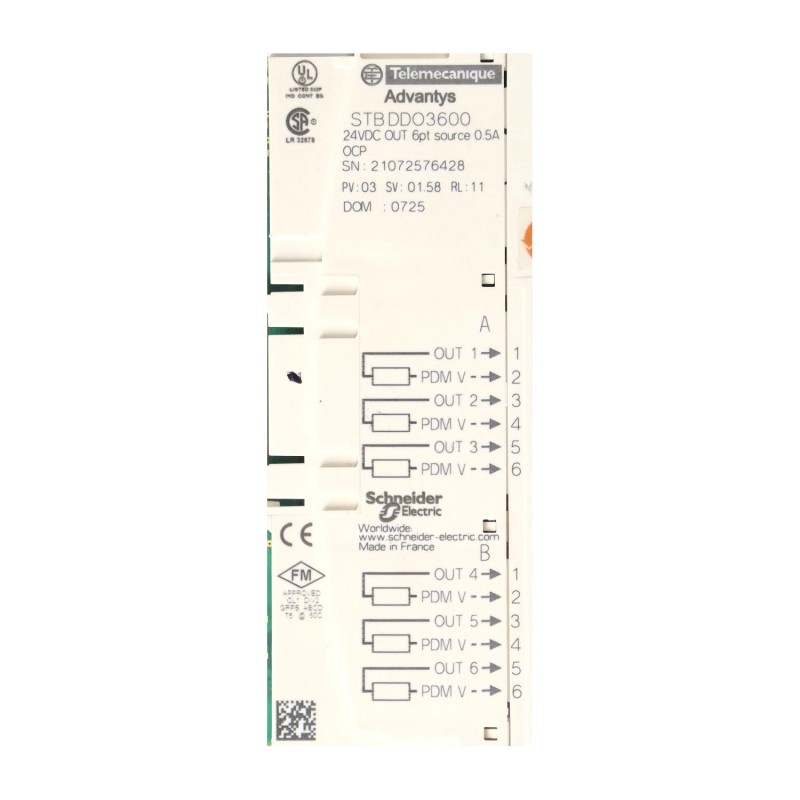

The Schneider STBDDO3600 Modicon STB Standard Digital Output Module is a discrete output module for Modicon STB distributed I/O systems. It converts control commands from the STB network and logic system into discrete electrical outputs for field devices.
In a typical installation, the module sits between the STB network interface and loads such as contactors, relays, solenoid valves, indicators, and other on/off actuators. The controller determines the required output state, while the STB I/O system transfers that command to the STBDDO3600, which switches the corresponding field output.
The module is intended for distributed control cabinets where field output wiring needs to be located close to the controlled equipment. Its compact STB format also allows output channels to be combined with other digital and analog I/O modules on the same island.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | STBDDO3600 |
| Product Family | Modicon STB |
| Product Type | Standard Digital Output Module |
| I/O Type | Digital Output |
| Application | Discrete field-device control |
| Installation | Modicon STB distributed I/O island |
| Dimensions | 13.9 × 70 × 128.3 mm |
| Weight | 0.114 kg |
Product Features
- Standard digital output module for Modicon STB systems
- Provides discrete output signals to field devices
- Suitable for distributed I/O installations
- Compact STB modular construction
- Can be combined with other STB I/O modules
- Supports centralized control logic with distributed field wiring
- Useful for controlling discrete actuators and switching devices
Working Principle
The STBDDO3600 receives output commands through the Modicon STB island architecture. When the controller changes an output state, the network interface transfers the corresponding command to the digital output module.
The module then switches the associated output channel according to the commanded state. The resulting field signal can energize or de-energize a connected actuator, relay, contactor, indicator, or solenoid.
For troubleshooting, the signal path should be followed from the controller through the STB network interface and module to the field device. A missing output may result from control logic, network communication, module configuration, field wiring, load-side power, or the output channel itself.
Role in a Modicon STB Control Architecture
| System Element | Function |
|---|---|
| PLC / Controller | Executes application logic and determines output states |
| STB Network Interface Module | Connects the STB island with the controller or fieldbus network |
| STBDDO3600 | Converts digital commands into discrete field outputs |
| STB Terminal Base | Provides the physical electrical connection between the module and field wiring |
| Field Power Supply | Supplies the required field-side power for connected loads |
| Actuators | Respond to the digital output commands |
| Sensors / Inputs | Provide process status back to the control system |
| HMI / SCADA | Provides operator monitoring and control |
The STBDDO3600 occupies the output layer of the STB distributed I/O architecture. It does not make independent process-control decisions; output states are determined by the controller and system configuration.
Industrial Applications
| Application | Typical Use |
|---|---|
| Machine Automation | Switching solenoids, contactors, relays, and machine actuators |
| Material Handling | Controlling conveyors, motor starters, indicators, and interlocks |
| Packaging Equipment | Operating pneumatic valves, actuators, and status devices |
| Process Automation | Discrete control of valves, alarms, and auxiliary equipment |
| Water and Wastewater | Switching pumps, valves, and local control devices |
| Building and Utility Systems | Controlling fans, relays, indicators, and other discrete loads |
Installation and Maintenance
- Verify the module model — Confirm that STBDDO3600 is the correct digital output module for the existing Modicon STB configuration.
- Check the STB island configuration — Verify the network interface, terminal base, power distribution, and adjacent modules before installation.
- Inspect the module — Check the housing, connector interface, and module contacts for physical damage or contamination.
- Isolate power — Follow the machine or plant electrical isolation procedure before removing or installing the module.
- Check the terminal base — Ensure that the module is installed on the correct compatible STB terminal base and that the base is securely mounted.
- Verify field wiring — Check output wiring for correct terminal assignment, loose connections, damaged conductors, and short circuits.
- Check load requirements — Confirm that connected field devices are appropriate for the output circuit and that their power supply is available.
- Confirm module addressing — Verify the module position and I/O addressing in the STB island configuration.
- Check network communication — If several STB modules are affected, inspect the network interface and island communication before replacing an individual output module.
- Test individual outputs — Compare the commanded state with the actual field output to determine whether the fault is in logic, configuration, wiring, or the output channel.
- Inspect switching loads — Check contactors, relays, solenoid valves, and other connected loads when an output appears correct at the module but the field device does not operate.
- Document replacement and wiring — Record the module position, output assignments, connected loads, and maintenance findings for future service.
Related Components
| Component | Function |
|---|---|
| Modicon STB Network Interface Module | Connects the STB island to the control network |
| STB Terminal Base | Provides the physical connection for the I/O module and field wiring |
| STB Power Distribution Components | Distribute logic and field power within the island |
| STB Digital Input Modules | Acquire discrete signals from field devices |
| STB Analog I/O Modules | Interface variable process signals |
| PLC / Controller | Executes the application logic controlling the outputs |
| Contactors and Relays | Switch higher-power or isolated field loads |
| Solenoid Valves | Convert digital electrical commands into pneumatic or hydraulic actions |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Schneider STBDDI3610 | Modicon STB Standard Digital Input Module | Discrete field signal acquisition |
| Schneider STBDDI3420 | Modicon STB Standard Digital Input Module | Digital input monitoring |
| Schneider STBDDI3725 | Modicon STB Basic Digital Input Module | Basic discrete input applications |
| Schneider STBDDO3410 | Modicon STB Standard Digital Output Module | Discrete actuator control |
| Schneider STBACO0220 | Modicon STB Standard Analog Output Module | Analog actuator and process output |
| Schneider STBAVI1255 | Modicon STB Basic Analog Input Module | Analog process signal acquisition |
| Schneider STBCPS2111 | Modicon STB Auxiliary Power Supply | Additional power distribution within STB islands |
Key Advantages
- Standard digital output interface for Modicon STB islands
- Compact modular format for distributed I/O cabinets
- Supports direct control of discrete field devices
- Integrates with mixed STB I/O configurations
- Simplifies localized field output wiring
- Suitable for machine and process automation applications
Technical FAQs
What type of field devices can the STBDDO3600 control?
The module can be used in applications involving discrete loads such as relays, contactors, solenoid valves, indicators, and other compatible on/off actuators. The connected load must meet the applicable electrical requirements of the output circuit.
Does the STBDDO3600 contain the control logic for its outputs?
No. The module provides the physical digital output interface. Output states are determined by the PLC or controller through the Modicon STB network and configured I/O architecture.
Why can the output status be correct while the field device does not operate?
A correct commanded output does not necessarily mean that the load is receiving the required electrical power. Check the field power supply, terminal connections, wiring, fuses or protection devices, load condition, and actuator itself.
What should be checked when multiple STBDDO3600 outputs stop working?
When several outputs or several STB modules are affected simultaneously, check the STB network interface, island power, common field power, configuration, and communication path before replacing the individual output module. A common upstream problem can affect multiple channels at once.
